Altara

React components for real-time telemetry dashboards. Built for robotics, aerospace, and industrial IoT — embed canvas-rendered instruments, time-series, live maps, and flight displays directly into any React app.

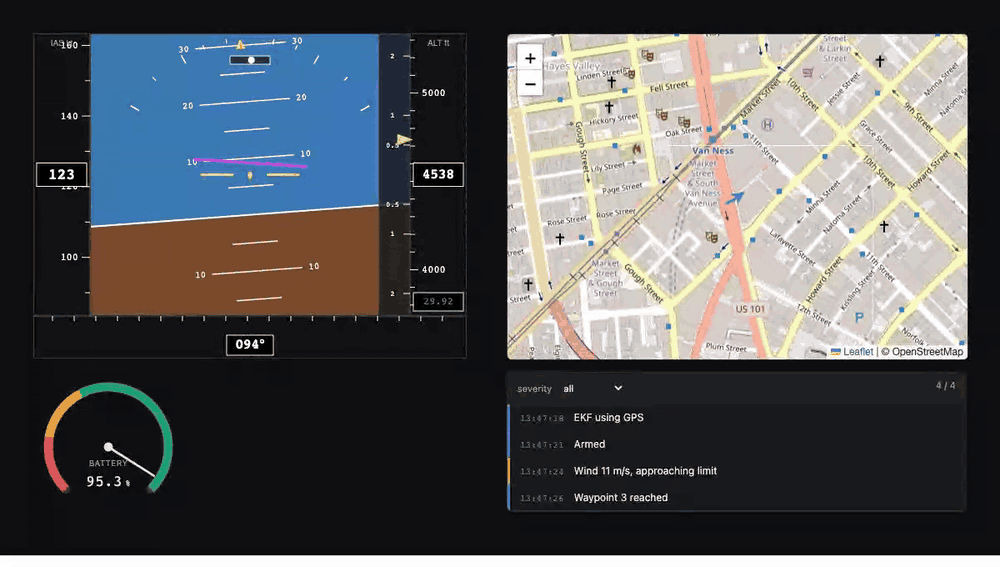

Altara — real-time telemetry at 60fps

Website · Live demo · Storybook

Packages

| Package | Description | | --- | --- | | @altara/core | Components, hooks, MQTT/mock adapters, design tokens. The starting point. | | @altara/aerospace | Flight instruments — PFD, HSI, altimeter, airspeed, VSI, engine cluster, TCAS, TAWS, FMA, fuel gauge, radio altimeter. | | @altara/av | Autonomous-vehicle UI — LiDAR (Three.js), occupancy grid, object detection, path planner, perception state machine, SLAM, radar, control trace. | | @altara/industrial | SCADA / HMI — waterfall spectrogram (FFT), OEE dashboard, PID tuning, alarm annunciator, trend recorder, P&ID symbols, process flow, motor dashboard, predictive-maintenance gauge. | | @altara/ros | rosbridge adapter + typed factories for common sensormsgs/* message types. | | @altara/mqtt | MQTT-over-WebSocket adapter (re-exports createMqttAdapter from core). |

Install

# Start with core — required for every package below.
npm install @altara/core
Add the extras you need:
npm install @altara/aerospace        # flight instruments
npm install @altara/av three         # autonomous-vehicle UI (three is an optional peer dep)
npm install @altara/industrial       # SCADA / HMI / industrial-IoT
npm install @altara/ros              # ROS2 / rosbridge
npm install @altara/mqtt mqtt        # MQTT brokers (mqtt is an optional peer dep)

Quick start

import '@altara/core/styles.css';
import { AltaraProvider, TimeSeries, Gauge } from '@altara/core';
import { PrimaryFlightDisplay } from '@altara/aerospace';
export function Dashboard() {   return (     <AltaraProvider theme="dark">       <PrimaryFlightDisplay mockMode size="md" />       <TimeSeries mockMode height={240} />       <Gauge mockMode min={0} max={100} label="Battery" unit="%" />     </AltaraProvider>   ); }

mockMode plumbs realistic synthetic data into every component until you swap in a real dataSource.

What's included

`@altara/core` — telemetry primitives

| Component | What it does | | --- | --- | | TimeSeries | Canvas-rendered time-series chart — requestAnimationFrame + RingBuffer for smooth 60+ fps. | | Gauge | SVG analog gauge with 270° sweep, animated needle, and threshold-zone arcs. | | Attitude | Canvas artificial horizon — sky/ground halves, pitch ladder, fixed aircraft symbol. | | SignalPanel | Compact grid of named telemetry values with status dots, threshold coloring, staleness. | | LiveMap | GPS track on Leaflet (optional peer dep) with heading marker and geofence overlays. | | EventLog | Scrollable severity-tagged log with filter, auto-scroll-when-pinned, and maxEntries cap. | | ConnectionBar | Persistent status strip — connection state, URL, latency, message rate. | | MultiAxisPlot | Dual-Y-axis time-series chart. | | DashboardLayout | react-grid-layout integration for draggable / resizable panels. |

Plus createWorkerDataSource (off-thread WebSocket pipeline for ≥500 Hz feeds), createMqttAdapter, and createMockDataSource for synthetic feeds.

`@altara/aerospace` — flight instruments

_{PrimaryFlightDisplay — composite PFD with attitude, tapes, VSI, and flight director}

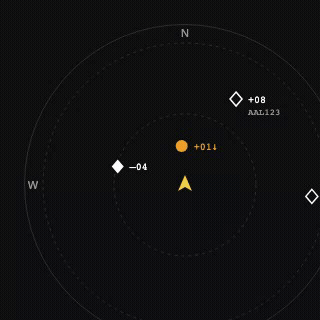

_{HorizontalSituationIndicator}	_TCASDisplay

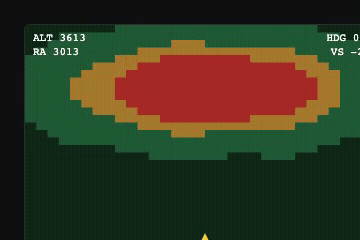

_{AirspeedIndicator}	_{TerrainAwareness}

11 components total: PrimaryFlightDisplay · HorizontalSituationIndicator · Altimeter · VerticalSpeedIndicator · AirspeedIndicator · EngineInstrumentCluster · RadioAltimeter · TerrainAwareness · TCASDisplay · AutopilotModeAnnunciator · FuelGauge. All canvas/SVG, all support mockMode, all consume any AltaraDataSource.

`@altara/av` — autonomous-vehicle UI

import { LiDARPointCloud, OccupancyGrid, ControlTrace } from '@altara/av';
<LiDARPointCloud mockMode width={800} height={500} /> <OccupancyGrid mockMode width={400} height={400} /> <ControlTrace mockMode windowMs={15_000} />

11 components total: LiDARPointCloud (Three.js, lazy-imported as an optional peer dep) · OccupancyGrid · ObjectDetectionOverlay · PathPlannerOverlay · VelocityVectorDisplay · PerceptionStateMachine · SensorHealthMatrix · CameraFeed · ControlTrace · RadarSweep · SLAMMap.

_{LiDARPointCloud — Three.js point cloud, color by intensity}

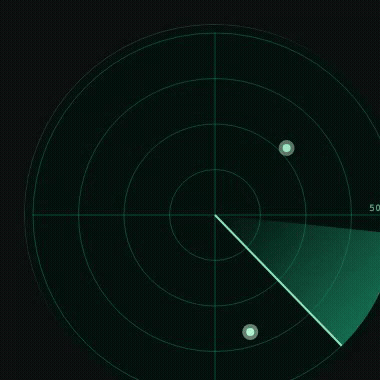

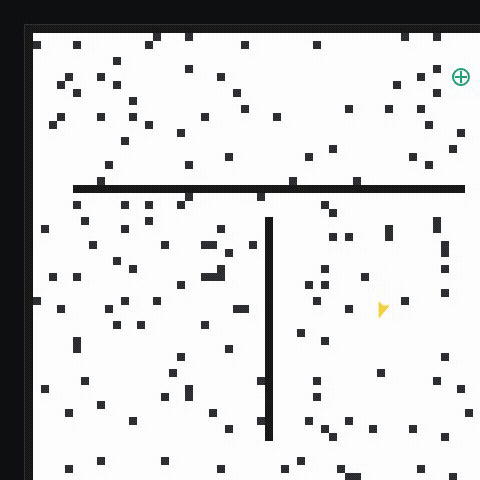

_{OccupancyGrid}	_RadarSweep

`@altara/industrial` — SCADA / HMI / industrial-IoT

import { WaterfallSpectrogram, OEEDashboard, AlarmAnnunciatorPanel } from '@altara/industrial';
<WaterfallSpectrogram mockMode width={720} height={360} /> <OEEDashboard mockMode shift="A1" /> <AlarmAnnunciatorPanel mockMode columns={6} />

9 components total: WaterfallSpectrogram (FFT + Canvas, flagship) · OEEDashboard · AlarmAnnunciatorPanel · TrendRecorder · PIDTuningPanel · PIDNode (ISA 5.1 symbol) · ProcessFlowDiagram · MotorDashboard · PredictiveMaintenanceGauge.

_{WaterfallSpectrogram — Hann + radix-2 FFT, dB color map}

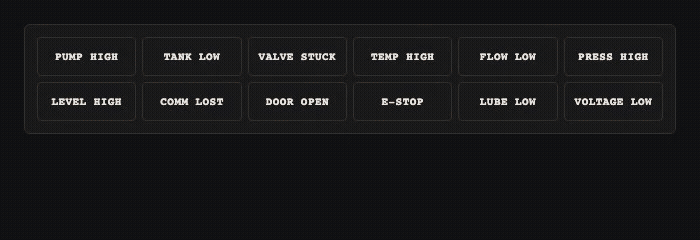

_OEEDashboard	_{AlarmAnnunciatorPanel}

`@altara/ros` — ROS2 / rosbridge

import { createRosbridgeAdapter } from '@altara/ros';
const source = createRosbridgeAdapter({   url: 'ws://localhost:9090',   topic: '/imu/data',   messageType: 'sensor_msgs/Imu',   valueExtractor: (msg) => msg.angular_velocity.z, });

For multi-input instruments, pass a channels map (or use createImuAdapter for roll/pitch/yaw off one socket) to fan a single message out into named channels, then mergeChannels them into one dataSource to wire up a PrimaryFlightDisplay.

Pair with rosbridge_suite running on the robot or in Docker (docker compose -f docker/ros2/docker-compose.yml up).

`@altara/mqtt` — MQTT brokers

import { createMqttAdapter } from '@altara/mqtt';
const source = createMqttAdapter({   url: 'ws://broker.local:8083/mqtt',   topic: 'sensors/temp/room1',   valueExtractor: (payload) => (payload as { celsius: number }).celsius, });

JSON / string / binary payload decoding, MQTT topic wildcards (+, #).

Why Altara

| | Altara | Grafana | Foxglove | Recharts | | --- | --- | --- | --- | --- | | Embeds in React app | ✅ Native | ❌ iframe only | ❌ Separate app | ✅ Native | | 60fps canvas rendering | ✅ | ❌ SVG | ✅ | ❌ SVG | | Aerospace instruments | ✅ Full suite (PFD/HSI/TCAS…) | ❌ | ⚠️ Partial | ❌ | | AV / LiDAR / perception | ✅ Native (Three.js) | ❌ | ✅ Native | ❌ | | Industrial / SCADA / HMI | ✅ Native (FFT, OEE, P&ID, alarms) | ⚠️ Plugin | ❌ | ❌ | | ROS2 adapter | ✅ Native | ⚠️ Plugin | ✅ Native | ❌ | | MQTT adapter | ✅ Native | ⚠️ Plugin | ❌ | ❌ | | Bundle size | <30KB gz (core) | Standalone app | Standalone app | ~80KB gz | | License | MIT | AGPL | Proprietary | MIT |

Documentation

📚 Storybook — every component, every prop, with live demos. Plus Guides, the Cookbook, and Comparisons vs. Grafana / Foxglove.
🛰️ Live demo dashboard — multi-tab showcase combining core, aerospace, av, and industrial packages, all driven by mock data.

Or run them locally:

git clone https://github.com/JayaSaiKishanChapparam/altara.git
cd altara
pnpm install
pnpm --filter @altara/storybook storybook   # http://localhost:6006
pnpm --filter @altara/demo dev              # http://localhost:5173

You'll find a landing page, a six-part Guides section (Getting started, Connecting ROS2, Connecting MQTT, Mock data, Theming, Performance), five full Cookbook dashboards (drone, robot arm, IoT sensor grid, drone ground station, AV stack), two honest Comparisons vs. Grafana / Foxglove, and an interactive playground for every component across core, aerospace, av, and industrial.

Development

Common commands. See CONTRIBUTING.md for the full repository layout and contributor checklist.

| Command | What it does | | --- | --- | | pnpm install | Install all workspace deps | | pnpm turbo build | Build every package + Storybook | | pnpm turbo test | Run unit tests across the workspace | | pnpm turbo lint | ESLint everywhere | | pnpm --filter @altara/storybook storybook | Storybook on http://localhost:6006 | | pnpm --filter @altara/demo dev | Live demo dashboard on http://localhost:5173 | | pnpm --filter @altara/core dev | Watch + rebuild @altara/core | | pnpm changeset | Add a release note for a PR | | STORY_FILTER=<substring> node scripts/record-gifs.js | Record demo GIFs (Storybook must be running; ffmpeg required) |

Releases are automated. Merging a PR with a changeset to main opens a "Version Packages" PR; merging that triggers npm publish for every public package with a pending bump.

Repository layout

packages/
  core/        @altara/core
  aerospace/   @altara/aerospace
  av/          @altara/av
  industrial/  @altara/industrial
  ros/         @altara/ros
  mqtt/        @altara/mqtt
apps/
  storybook/   @altara/storybook — interactive docs (deployed to GH Pages)
  demo/        @altara/demo — live multi-package dashboard (deployed to GH Pages)
docker/ros2/   rosbridge dev environment
scripts/       GIF recorder, smoke tests, JSDoc check
docs/          cross-cutting docs (accessibility, etc.)
.changeset/    pending version bumps
