VideoLab

README 中文版本 框架设计与实现介绍

High-performance and flexible video editing and effects framework, based on AVFoundation and Metal.

Framework design and implementation

Features

• [x] High-performance real-time video editing and exporting.
• [x] Highly free combination of video, image, audio.
• [x] Support audio pitch setting and volume adjustment.
• [x] Support CALayer vector animations, so complex text animations are supported.
• [x] Support keyframe animation.
• [x] Support After Effect-like pre-compose.
• [x] Support transitions.
• [x] Support custom effects. Such as LUT filter, zoom blur, etc.

Requirements

• iOS 11.0+
• Swift 5.0+

Installation

VideoLab is available through CocoaPods. Specify the following in your Podfile:

source 'https://github.com/CocoaPods/Specs.git'
platform :ios, '11.0'
use_frameworks!
target '<Your Target>' do   pod 'VideoLab' end

Usage

Basic Concept

RenderLayer

RenderLayer is the most basic unit in the VideoLab framework. A video, image, audio can be a RenderLayer, or even just an effect can be a RenderLayer. RenderLayer is more like the concept of the layer in After Effect.

RenderComposition

RenderComposition works as a composite, can set frame rate, canvas size, contains multiple RenderLayers, can set CALayer to support vector animations.

VideoLab

VideoLab can be considered as a lab where AVPlayerItem, AVAssetExportSession, AVAssetImageGenerator can be generated according to RenderComposition.

Basic Usage

// 1. Layer 1
var url = Bundle.main.url(forResource: "video1", withExtension: "MOV")
var asset = AVAsset(url: url!)
var source = AVAssetSource(asset: asset)
source.selectedTimeRange = CMTimeRange(start: CMTime.zero, duration: asset.duration)
var timeRange = source.selectedTimeRange
let renderLayer1 = RenderLayer(timeRange: timeRange, source: source)

// 1. Layer 2
url = Bundle.main.url(forResource: "video2", withExtension: "MOV")
asset = AVAsset(url: url!)
source = AVAssetSource(asset: asset)
source.selectedTimeRange = CMTimeRange(start: CMTime.zero, duration: asset.duration)
timeRange = source.selectedTimeRange
timeRange.start = CMTimeRangeGetEnd(renderLayer1.timeRange)
let renderLayer2 = RenderLayer(timeRange: timeRange, source: source)

// 2. Composition
let composition = RenderComposition()
composition.renderSize = CGSize(width: 1280, height: 720)
composition.layers = [renderLayer1, renderLayer2]
// 3. VideoLab let videoLab = VideoLab(renderComposition: composition)
// 4. Make playerItem let playerItem = videoLab.makePlayerItem()

• Create RenderLayer
• Create RenderComposition, set renderSize and layers
• Create VideoLab with renderComposition
• Make AVPlayerItem or AVAssetExportSession

More Advanced Usage

Transform

var center = CGPoint(x: 0.25, y: 0.25)
var transform = Transform(center: center, rotation: 0, scale: 0.5)
renderLayer1.transform = transform

• Create Transform with center, rotation and scale
• RenderLayer set transform

Audio Configuration

let audioConfiguration = AudioConfiguration()
let volumeRampTimeRange = CMTimeRange(start: CMTime.zero, duration: CMTime(seconds: 5, preferredTimescale: 600))
let volumeRamp1 = VolumeRamp(startVolume: 0.0, endVolume: 0.0, timeRange: volumeRampTimeRange)
audioConfiguration.volumeRamps = [volumeRamp1]
renderLayer2.audioConfiguration = audioConfiguration

• Create AudioConfiguration
• Create VolumeRamp with startVolume, endVolume and timeRange
• AudioConfiguration set volumeRamps
• RenderLayer set audioConfiguration

CALayer Animation

For exporting set your customized CALayer for RenderComposition

composition.animationLayer = <Your customized CALayer>

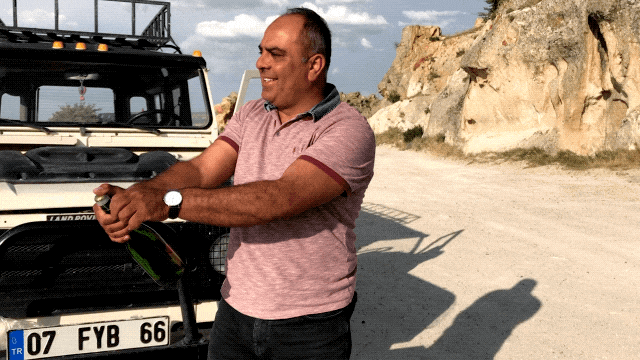

For playback add AVSynchronizedLayer to your view's layer, See more detail in Text Animation Demo.

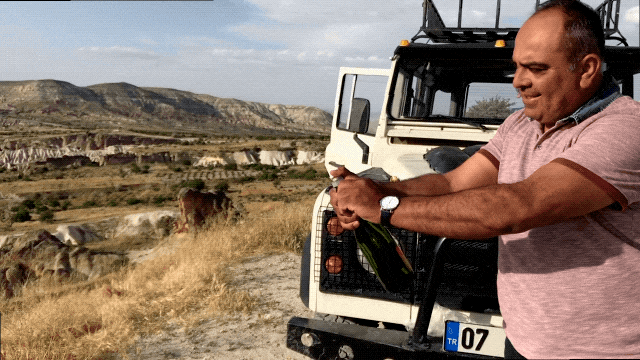

Keyframe Animation

// 1. Keyframe animation
let keyTimes = [CMTime(seconds: 2, preferredTimescale: 600),
                CMTime(seconds: 4, preferredTimescale: 600),
                CMTime(seconds: 6, preferredTimescale: 600)]
let animation = KeyframeAnimation(keyPath: "blendOpacity",
                                  values: [1.0, 0.2, 1.0],
                                  keyTimes: keyTimes, timingFunctions: [.linear, .linear])
renderLayer1.animations = [animation]

var transform = Transform.identity
let animation1 = KeyframeAnimation(keyPath: "scale",
                                   values: [1.0, 1.3, 1.0],
                                   keyTimes: keyTimes, timingFunctions: [.quadraticEaseInOut, .quadraticEaseInOut])
let animation2 = KeyframeAnimation(keyPath: "rotation",
                                   values: [0, Float.pi / 2.0, 0],
                                   keyTimes: keyTimes, timingFunctions: [.quadraticEaseInOut, .quadraticEaseInOut])
transform.animations = [animation1, animation2]
renderLayer1.transform = transform

• Create KeyframeAnimation with keyPath, values, keyTimes and timingFunctions
• Set animations for a struct or class that implements the Animatable protocol (e.g. Transform struct, RenderLayer class)

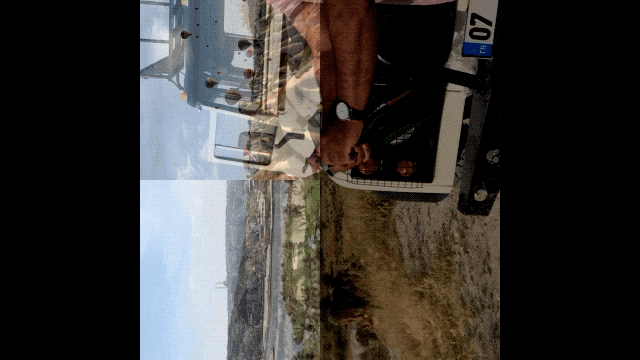

RenderLayerGroup (After Effect-like pre-compose)

let layerGroup = RenderLayerGroup(timeRange: timeRange)
layerGroup.layers = [renderLayer1, renderLayer2]

• Create RenderLayerGroup with timeRange
• Set sub layers for layerGroup. See more detail in Layer Group Demo.

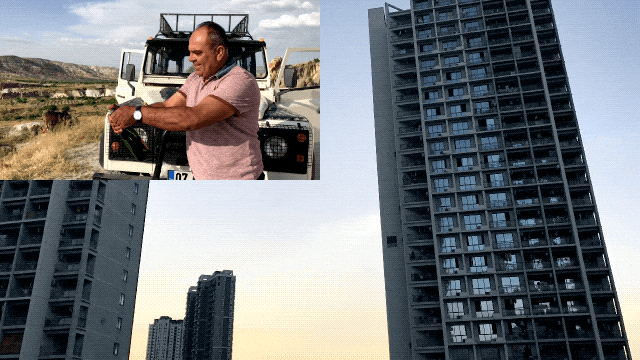

Transition

We don't have a transition layer, so instead, you can add a transform or operations to each RenderLayer to create a transition. See more detail in Transition Demo.

Custom Effects

// Filter
var filter = LookupFilter()
filter.addTexture(lutTextures[0], at: 0)
renderLayer.operations = [filter]
// Zoom Blur var zoomblur = ZoomBlur() animation = KeyframeAnimation(keyPath: "blurSize",                               values: [0.0, 3.0],                               keyTimes: keyTimes, timingFunctions: [.quarticEaseOut]) zoomblur.animations = [animation] layerGroup1.operations = [zoomblur]

• Create customize Operation inherited from BasicOperation. BasicOperation also conforms to the Animatable protocol
• Set operations for RenderLayer.

TODO

• Support Open GL render
• Add speed adjustment for RenderLayer.
• Provide a more convenient way to use transitions, possibly providing TransitionLayer.
• Add log system.

Author

• BearRuan, ruanjingxiong@gmail.com
• Kay, kayyyuan@gmail.com

License

VideoLab is available under the MIT license. See the LICENSE file for more info.
