TTGTagCollectionView

中文文档 ->

TTGTagCollectionView is a Swift-first iOS tag layout component. Use it for filter chips, topic labels, search facets, dense table cells, custom tag views, and any UI that needs predictable wrapping or horizontal tag rows.

Highlights

• Text tags or custom views: TextTagCollectionView for styled text, TagCollectionView for arbitrary UIView content.
• Flexible layout: vertical wrapping, horizontal scrolling, line limits, spacing, insets, and 6 alignment modes.
• Per-tag appearance: gradient backgrounds, borders, shadows, corner radius, padding, size constraints, and selected states.
• AutoLayout friendly: intrinsic size updates and preferredMaxLayoutWidth for stack views, forms, and self-sizing cells.
• Cache-aware performance: text measurement cache, pure layout cache, and precomputed content-size APIs for dense lists.
• Swift and Objective-C: modern Swift sources with Objective-C-compatible names and selectors.

Requirements

• iOS 16.0+
• Swift 5.9+
• Xcode 15+

Installation

Swift Package Manager

In Xcode, choose File -> Add Package Dependencies and enter:

https://github.com/zekunyan/TTGTagCollectionView.git

Or add it to Package.swift:

dependencies: [
    .package(url: "https://github.com/zekunyan/TTGTagCollectionView.git", from: "3.3.0")
]

CocoaPods

pod 'TTGTagCollectionView'

Quick Start

The screenshots below are generated from the Swift example app running in an iOS Simulator.

1. Create the view

import TTGTags
let tagView = TextTagCollectionView() tagView.translatesAutoresizingMaskIntoConstraints = false view.addSubview(tagView)
NSLayoutConstraint.activate([     tagView.leadingAnchor.constraint(equalTo: view.leadingAnchor, constant: 16),     tagView.trailingAnchor.constraint(equalTo: view.trailingAnchor, constant: -16),     tagView.topAnchor.constraint(equalTo: view.safeAreaLayoutGuide.topAnchor, constant: 24) ])

2. Build content plus style

Each TextTag is built from content and style. The same model also carries selection state, accessibility metadata, and optional attachment data.

let content = TextTagStringContent(text: "Swift")
content.textFont = .boldSystemFont(ofSize: 14)
content.textColor = .white
let style = TextTagStyle() style.enableGradientBackground = true style.gradientBackgroundStartColor = .systemBlue style.gradientBackgroundEndColor = .systemPurple style.cornerRadius = 12 style.extraSpace = CGSize(width: 14, height: 8)
let tag = TextTag(content: content, style: style) tagView.add(tag: tag) tagView.reload()

3. Add selected states

selectedStyle is applied automatically when a tag is selected. Use selectionLimit and the delegate callbacks for app-specific behavior.

let selectedStyle = TextTagStyle()
selectedStyle.backgroundColor = .systemOrange
selectedStyle.cornerRadius = 12
selectedStyle.extraSpace = CGSize(width: 14, height: 8)
tag.selectedStyle = selectedStyle tagView.selectionLimit = 3 tagView.delegate = self

4. Control layout behavior

Use the same view for normal wrapping tag clouds, fill-width rows, or horizontal filter bars.

tagView.alignment = .fillByExpandingWidth
tagView.horizontalSpacing = 8
tagView.verticalSpacing = 8
tagView.contentInset = UIEdgeInsets(top: 12, left: 12, bottom: 12, right: 12)
tagView.scrollDirection = .horizontal tagView.numberOfLines = 2 tagView.showsHorizontalScrollIndicator = false
tagView.reload()

Objective-C

#import <TTGTags/TTGTags-Swift.h>
TTGTextTagCollectionView *tagView = [[TTGTextTagCollectionView alloc] initWithFrame:self.view.bounds]; [self.view addSubview:tagView];
TTGTextTagStringContent *content = [TTGTextTagStringContent contentWithText:@"Hello"]; TTGTextTagStyle *style = [TTGTextTagStyle new]; style.backgroundColor = UIColor.systemBlueColor; style.cornerRadius = 10; style.extraSpace = CGSizeMake(12, 8);
TTGTextTag *tag = [TTGTextTag tagWithContent:content style:style]; [tagView addTag:tag]; [tagView reload];

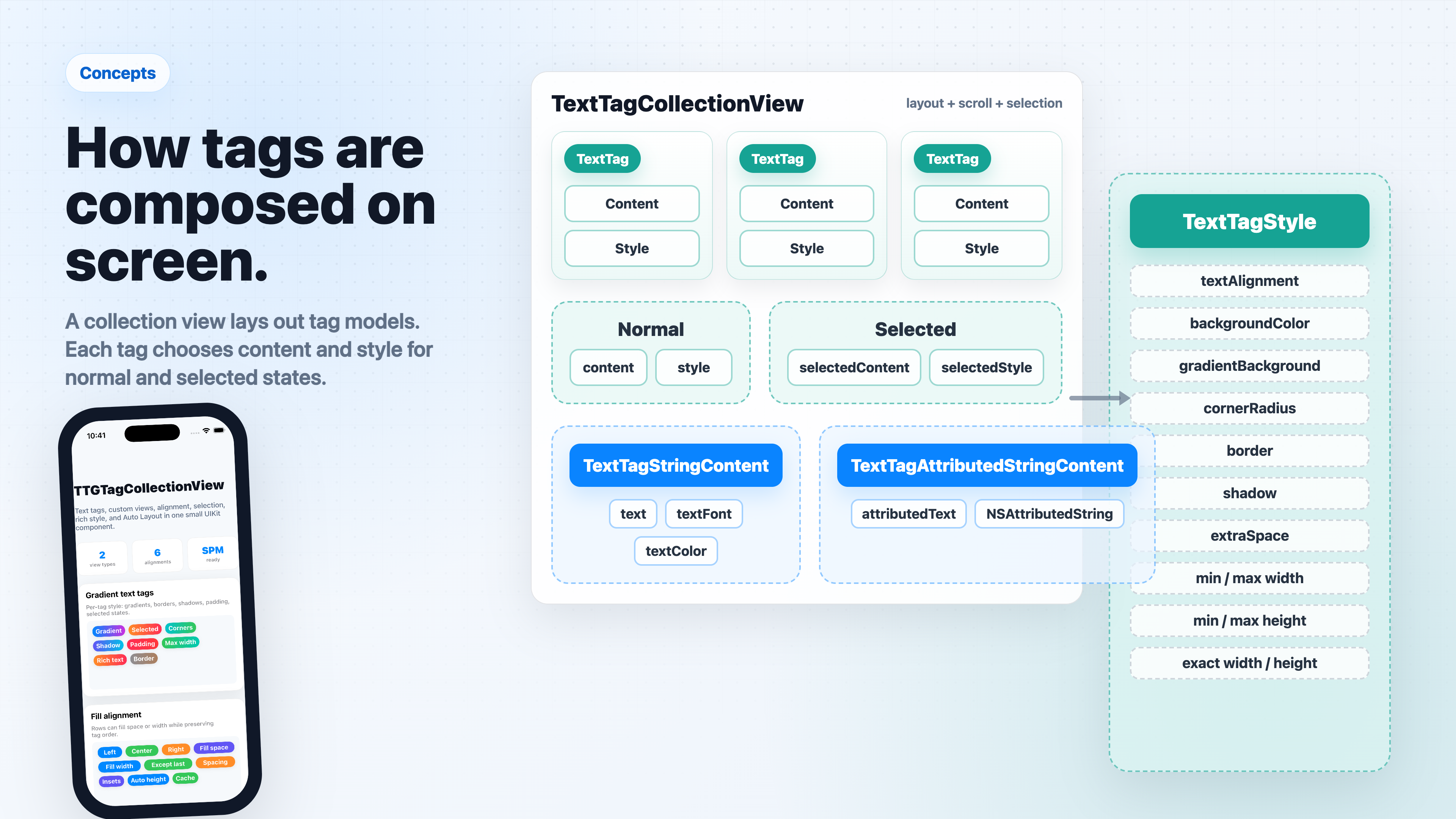

Concepts

Understanding these 4 building blocks will help you use the library effectively:

| Concept | Class | Role | |---|---|---| | Tag | TextTag | Data model: holds content, style, selection state, and an optional attachment | | Content | TextTagStringContent / TextTagAttributedStringContent | What text to display, with font and color | | Style | TextTagStyle | Visual appearance: background, gradient, corners, border, shadow, size | | Collection View | TextTagCollectionView / TagCollectionView | Container that lays out tags with alignment, spacing, and scroll |

Key rule: always call reload() after adding, removing, or updating tags.

Visual Assets

• Promo poster: Resources/promo_poster.png
• Quick Start images: Resources/quickstart01create.png, Resources/quickstart02style.png, Resources/quickstart03selection.png, Resources/quickstart04layout.png
• Concepts image: Resources/concepts_poster.png
• Review HTML: Resources/promoposter.html, Resources/quickstart01create.html, Resources/quickstart02style.html, Resources/quickstart03selection.html, Resources/quickstart04_layout.html
• Regenerate PNG assets with node Resources/renderreadmeimages.mjs.

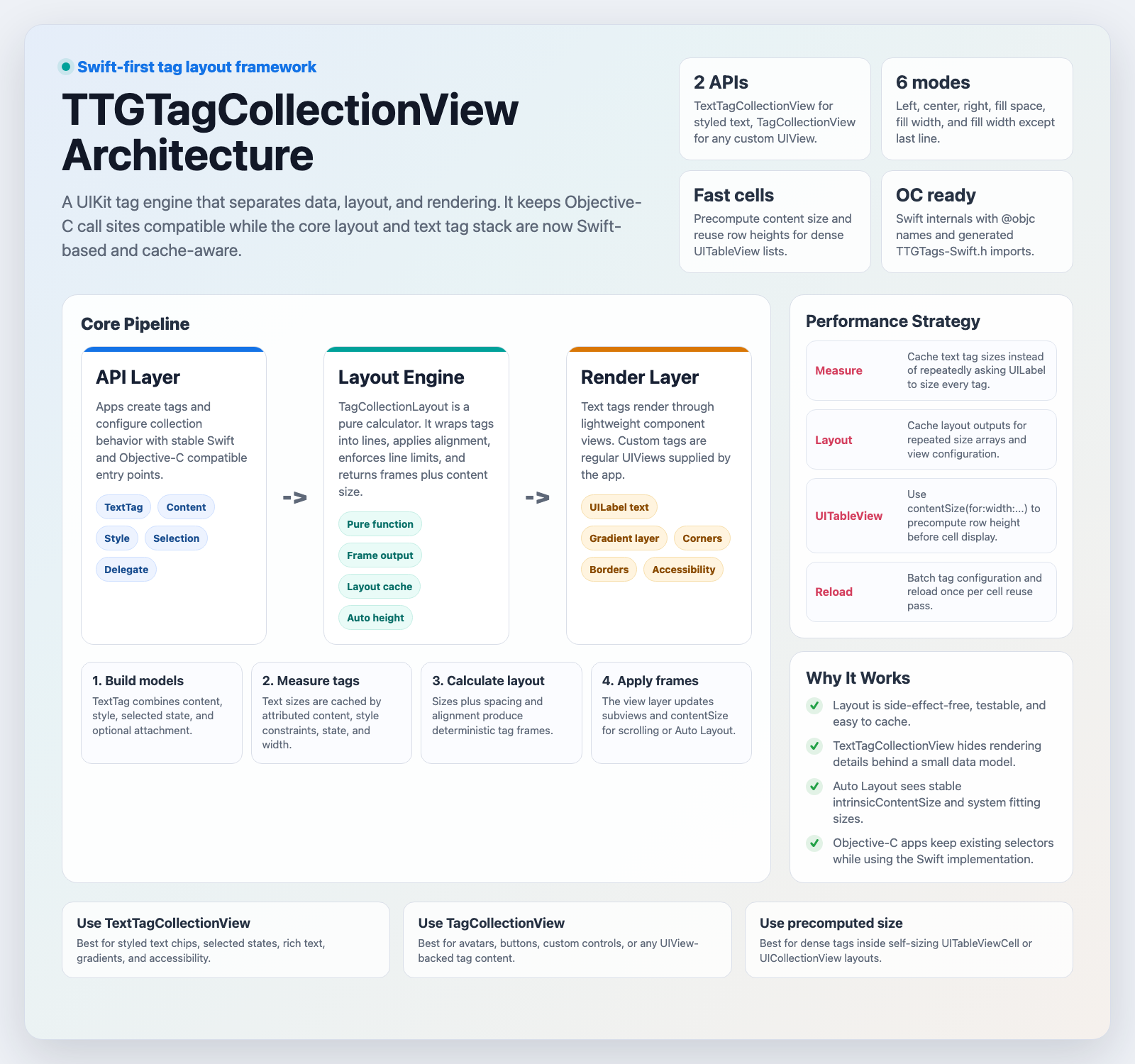

Architecture at a Glance

The architecture poster is generated from Resources/architecture_poster.html. It summarizes the Swift-first architecture, Objective-C compatibility layer, pure layout engine, rendering flow, and the cache-aware path used for dense tag lists.

Usage

Delegate

tagView.delegate = self
// TextTagCollectionViewDelegate func textTagCollectionView(_ collectionView: TextTagCollectionView,                            canTapTag tag: TextTag, at index: Int) -> Bool { true }
func textTagCollectionView(_ collectionView: TextTagCollectionView,                            didTapTag tag: TextTag, at index: Int) {     print("tapped: \(tag.rightfulContent.contentAttributedString.string), selected: \(tag.selected)") }
func textTagCollectionView(_ collectionView: TextTagCollectionView,                            canSwipeSelectTag tag: TextTag, at index: Int) -> Bool { true }
func textTagCollectionView(_ collectionView: TextTagCollectionView,                            didSwipeSelectTag tag: TextTag, at index: Int) {     print("swipe selected: \(index)") }
func textTagCollectionView(_ collectionView: TextTagCollectionView,                            updateContentSize contentSize: CGSize) {     // e.g. update a height constraint }

Content types

// Plain text
let c1 = TextTagStringContent(text: "Hello")
c1.textFont  = .systemFont(ofSize: 14)
c1.textColor = .darkText
// Rich text via NSAttributedString let attrs: [NSAttributedString.Key: Any] = [     .foregroundColor: UIColor.systemRed,     .font: UIFont.boldSystemFont(ofSize: 16) ] let c2 = TextTagAttributedStringContent(     attributedText: NSAttributedString(string: "Rich", attributes: attrs) )

Style properties — TextTagStyle

let style = TextTagStyle()
// Background style.backgroundColor = .systemBlue style.textAlignment = .center style.numberOfLines = 1                  // 0 = unlimited multiline style.lineBreakMode = .byTruncatingTail
// Gradient background style.enableGradientBackground        = true style.gradientBackgroundStartColor    = .systemBlue style.gradientBackgroundEndColor      = .systemPurple style.gradientBackgroundStartPoint    = CGPoint(x: 0, y: 0.5) style.gradientBackgroundEndPoint      = CGPoint(x: 1, y: 0.5)
// Corner (all corners by default; set individual flags for per-corner control) style.cornerRadius      = 14 style.cornerTopLeft     = true style.cornerTopRight    = true style.cornerBottomLeft  = false style.cornerBottomRight = false
// Border style.borderWidth = 1 style.borderColor = .white
// Shadow style.shadowColor   = .black style.shadowOffset  = CGSize(width: 2, height: 2) style.shadowRadius  = 2 style.shadowOpacity = 0.3
// Size style.extraSpace  = CGSize(width: 12, height: 6)  // padding style.minWidth    = 60      // 0 = no limit style.maxWidth    = 200 style.exactWidth  = 0       // 0 = auto style.exactHeight = 32

Layout configuration

tagView.scrollDirection  = .vertical     // .vertical (default) or .horizontal
tagView.alignment        = .left         // see Alignment below
tagView.horizontalDistribution = .rowMajor
tagView.contentVerticalAlignment = .top
tagView.numberOfLines    = 0             // 0 = unlimited
tagView.selectionLimit   = 3             // 0 = unlimited
tagView.horizontalSpacing = 8
tagView.verticalSpacing   = 8
tagView.contentInset      = UIEdgeInsets(top: 8, left: 8, bottom: 8, right: 8)
// AutoLayout manual height tagView.manualCalculateHeight   = true tagView.preferredMaxLayoutWidth = 320
// Tap callbacks (no delegate needed) tagView.onTapBlankArea = { point in print("tapped blank at \(point)") } tagView.onTapAllArea   = { point in print("tapped anywhere at \(point)") }

Alignment modes

| Swift | Description | |---|---| | .left | Left-aligned (default) | | .center | Center-aligned | | .right | Right-aligned | | .fillByExpandingSpace | Expand spacing between tags to fill each row | | .fillByExpandingWidth | Expand each tag's width to fill each row | | .fillByExpandingWidthExceptLastLine | Same as above but skip the last row |

Horizontal rows and vertical placement

// Natural reading order in horizontal multi-line rows (default in 3.1)
tagView.scrollDirection = .horizontal
tagView.numberOfLines = 2
tagView.horizontalDistribution = .rowMajor
// Preserve the old round-robin column-first behavior when needed tagView.horizontalDistribution = .columnMajor
// Center content inside a fixed-height tag surface tagView.contentVerticalAlignment = .center

Multiline text tags

let content = TextTagStringContent(text: "Long filter label that can wrap")
let style = TextTagStyle()
style.numberOfLines = 0
style.maxWidth = 180
style.lineBreakMode = .byWordWrapping
let tag = TextTag(content: content, style: style)

Tag model — TextTag

let tag = TextTag()
// Content & style for normal / selected state tag.content         = TextTagStringContent(text: "Label") tag.style           = TextTagStyle() tag.selectedContent = TextTagStringContent(text: "Selected")   // optional, falls back to content copy tag.selectedStyle   = TextTagStyle()                           // optional, falls back to style copy
// Selection tag.selected = false tag.onSelectStateChanged = { selected in print(selected) }
// Attach any object tag.attachment = myModel
// Accessibility tag.enableAutoDetectAccessibility = true   // auto sets label + traits from content // or manually: tag.isAccessibilityElement  = true tag.accessibilityLabel      = "My tag" tag.accessibilityHint       = "Double tap to select" tag.accessibilityTraits     = .button
// Current active content / style (respects selected state) let activeContent = tag.rightfulContent let activeStyle   = tag.rightfulStyle

Mutating tags

// Add
tagView.add(tag: tag)
tagView.add(tags: [tag1, tag2])
// Insert tagView.insert(tag: tag, at: 0) tagView.insert(tags: [tag1, tag2], at: 2)
// Update tagView.updateTag(at: 0, selected: true) tagView.updateTag(at: 0, with: newTag) tagView.updateTag(byId: tag.tagId, selected: true) tagView.updateTag(byId: tag.tagId, with: newTag)
// Remove tagView.remove(tag: tag) tagView.removeTag(byId: tag.tagId) tagView.removeTag(at: 0) tagView.removeAllTags()
// Move (auto reloads) tagView.moveTag(at: 0, to: 3) tagView.moveTag(byId: tag.tagId, to: 1)
// Query let tag  = tagView.getTag(at: 0) let sameTag = tagView.getTag(byId: tagId) let index = tagView.indexOfTag(byId: tagId) let tags = tagView.getTags(in: NSRange(location: 0, length: 3)) let all      = tagView.allTags() let selected = tagView.allSelectedTags() let unselected = tagView.allNotSelectedTags()
// Reload (required after any mutation) tagView.reload()

Hit-testing

let index = tagView.indexOfTag(at: touchPoint)   // NSNotFound if missed

Scroll to a tag

tagView.scrollToTag(at: 12, position: .center, animated: true)
tagView.scrollToTag(byId: tag.tagId, position: .end, animated: true)

Swipe selection

TextTagCollectionView can select tags as the user's finger moves across them. Swipe selection is opt-in, selects only unselected tags, and respects selectionLimit.

tagView.enableSwipeSelection = true
tagView.selectionLimit = 6
tagView.delegate = self
func textTagCollectionView(_ collectionView: TextTagCollectionView,                            canSwipeSelectTag tag: TextTag,                            at index: Int) -> Bool {     return true }
func textTagCollectionView(_ collectionView: TextTagCollectionView,                            didSwipeSelectTag tag: TextTag,                            at index: Int) {     print("swipe selected \(index)") }

tagView.enableSwipeSelection = YES;
tagView.selectionLimit = 6;

Reorder and drag-to-delete

TextTagCollectionView can reorder text tags with a long-press drag gesture. Drag-to-delete is opt-in and shows a bottom delete zone while dragging.

tagView.enableTagReordering = true
tagView.enableDragToDelete = true
tagView.enableTagSelection = false
tagView.delegate = self
// Optional delete-zone styling tagView.dragDeleteZoneHeight = 52 tagView.dragDeleteZoneInsets = UIEdgeInsets(top: 0, left: 18, bottom: 12, right: 18) tagView.dragDeleteZoneCornerRadius = 16 tagView.dragDeleteZoneBackgroundColor = UIColor.systemGray.withAlphaComponent(0.92) tagView.dragDeleteZoneHighlightedBackgroundColor = UIColor.systemPink.withAlphaComponent(0.96) tagView.dragDeleteZoneText = "Drop tag to remove" tagView.dragDeleteZoneTextColor = .white tagView.dragDeleteZoneFont = .systemFont(ofSize: 15, weight: .semibold) tagView.dragDeleteZoneImage = UIImage(systemName: "trash.fill") tagView.dragDeleteZoneImageTintColor = .white

func textTagCollectionView(_ collectionView: TextTagCollectionView,
                           canMoveTag tag: TextTag,
                           fromIndex: Int,
                           toIndex: Int) -> Bool {
    return true
}
func textTagCollectionView(_ collectionView: TextTagCollectionView,                            didMoveTag tag: TextTag,                            fromIndex: Int,                            toIndex: Int) {     print("moved \(fromIndex) -> \(toIndex)") }
func textTagCollectionView(_ collectionView: TextTagCollectionView,                            canDeleteTag tag: TextTag,                            at index: Int) -> Bool {     return true }
func textTagCollectionView(_ collectionView: TextTagCollectionView,                            didDeleteTag tag: TextTag,                            at index: Int) {     print("deleted \(index)") }

Objective-C uses the same API through TTGTags-Swift.h:

tagView.enableTagReordering = YES;
tagView.enableDragToDelete = YES;
[tagView moveTagAtIndex:0 toIndex:3];
[tagView moveTagById:tag.tagId toIndex:1];
tagView.dragDeleteZoneHeight = 52; tagView.dragDeleteZoneInsets = UIEdgeInsetsMake(0, 18, 12, 18); tagView.dragDeleteZoneBackgroundColor = [UIColor.systemGrayColor colorWithAlphaComponent:0.92]; tagView.dragDeleteZoneHighlightedBackgroundColor = [UIColor.systemPinkColor colorWithAlphaComponent:0.96]; tagView.dragDeleteZoneText = @"Drop tag to remove"; tagView.dragDeleteZoneImage = [UIImage systemImageNamed:@"trash.fill"];

TagCollectionView — custom views

Use TagCollectionView when your tags are arbitrary UIView subclasses instead of text.

tagCollectionView.dataSource = self
tagCollectionView.delegate   = self
// TagCollectionViewDataSource func numberOfTags(in tagCollectionView: TagCollectionView) -> Int { items.count }
func tagCollectionView(_ tagCollectionView: TagCollectionView,                        tagViewFor index: Int) -> UIView { myViews[index] }
// TagCollectionViewDelegate func tagCollectionView(_ tagCollectionView: TagCollectionView,                        sizeForTagAt index: Int) -> CGSize { myViews[index].frame.size }
func tagCollectionView(_ tagCollectionView: TagCollectionView,                        didSelectTag tagView: UIView, at index: Int) {     print("selected \(index)") }
func tagCollectionView(_ tagCollectionView: TagCollectionView,                        updateContentSize contentSize: CGSize) { }
// Reload tagCollectionView.reload()

All layout and spacing properties (scrollDirection, alignment, horizontalDistribution, contentVerticalAlignment, numberOfLines, horizontalSpacing, verticalSpacing, contentInset, manualCalculateHeight, preferredMaxLayoutWidth) are identical to TextTagCollectionView.

Performance

TTGTagCollectionView keeps layout deterministic and cache-friendly:

• TagCollectionLayout is a pure calculator: the same tag sizes and configuration produce the same frames and content size.
• TextTagCollectionView caches text tag measurements by attributed content, style constraints, selected state, and available width.
• Layout results are cached for repeated tag size arrays and collection view configuration.
• TextTagCollectionView.contentSize(for:width:...) lets table/list screens precompute row height without creating or laying out a cell.
• Demo table cells batch tag configuration and call reload() once per reuse pass.

Dense tags inside UITableViewCell

For smooth scrolling, build tag models once, cache the row height by table width, and configure the cell in one pass:

let tagSize = TextTagCollectionView.contentSize(
    for: tags,
    width: availableTagWidth,
    scrollDirection: .vertical,
    alignment: .fillByExpandingWidth,
    horizontalDistribution: .rowMajor,
    numberOfLines: 0,
    horizontalSpacing: 8,
    verticalSpacing: 8,
    contentInset: UIEdgeInsets(top: 4, left: 0, bottom: 4, right: 0)
)
let rowHeight = titleHeight + tagSize.height + verticalPadding

Objective-C uses the same API through TTGTags-Swift.h:

CGSize tagSize = [TTGTextTagCollectionView contentSizeForTags:tags
                                                        width:availableTagWidth
                                              scrollDirection:TTGTagCollectionScrollDirectionVertical
                                                    alignment:TTGTagCollectionAlignmentFillByExpandingWidth
                                       horizontalDistribution:TTGTagCollectionHorizontalDistributionRowMajor
                                                numberOfLines:0
                                            horizontalSpacing:8
                                              verticalSpacing:8
                                                 contentInset:UIEdgeInsetsMake(4, 0, 4, 0)];

When data changes globally or you need to benchmark a cold path, clear both caches:

TextTagCollectionView.clearMeasurementCache()

Tips

• Always call reload() after adding, removing, or updating tags.
• moveTag(at:to:) and moveTag(byId:to:) reload automatically.
• Swipe selection starts only from a tag, selects unselected tags, and does not toggle already selected tags off.
• Drag-to-delete is destructive. Use canDeleteTag to block protected tags or the last remaining tag.
• When embedding in a UITableViewCell, prefer precomputing row height with TextTagCollectionView.contentSize(for:width:...) and reusing the result by table width.
• Configure all tags first, then call reload() once. Avoid repeated updateTag(...) calls during cell reuse.
• Use manualCalculateHeight = true + preferredMaxLayoutWidth when the view's width is not yet determined at layout time.

Source Structure

Sources/TTGTags/
├── Model/
│   ├── TextTag.swift                         # Tag data model (id, content, style, selection)
│   ├── TextTagContent.swift                  # Abstract content base class
│   ├── TextTagStringContent.swift            # Plain text content
│   └── TextTagAttributedStringContent.swift  # NSAttributedString content
├── Style/
│   └── TextTagStyle.swift                    # Visual style (background, border, shadow, corner, size)
├── Layout/
│   └── TagCollectionLayout.swift             # Pure layout calculator (no UIKit side effects)
└── View/
    ├── TagCollectionView.swift               # Custom-view tag collection
    ├── TextTagCollectionView.swift            # Text tag collection
    └── Internal/
        ├── TextTagComponentView.swift        # Per-tag rendering view
        └── TextTagGradientLabel.swift        # CAGradientLayer-backed label
Tests/TTGTagsTests/ ├── TagCollectionLayoutTests.swift ├── TextTagTests.swift └── TextTagContentTests.swift

3.0 Migration Guide

Version 3.0 rewrites all core sources in Swift. Objective-C class names, selectors, and enum cases are fully preserved via @objc(TTGXxx) aliases — existing OC call sites need only one change: replace the old .h imports with the Swift generated umbrella header.

One-line OC migration:

// Before (2.x)
#import <TTGTags/TTGTextTagCollectionView.h>
// After (3.0+) #import <TTGTags/TTGTags-Swift.h>

Swift API mapping

| 2.x / Objective-C | 3.0 Swift | |---|---| | TTGTagCollectionView | TagCollectionView | | TTGTextTagCollectionView | TextTagCollectionView | | TTGTextTag | TextTag | | TTGTextTagStyle | TextTagStyle | | TTGTextTagContent | TextTagContent | | TTGTextTagStringContent | TextTagStringContent | | TTGTextTagAttributedStringContent | TextTagAttributedStringContent | | TTGTagCollectionAlignment | TagCollectionAlignment | | TTGTagCollectionScrollDirection | TagCollectionScrollDirection | | [tag getRightfulContent] | tag.rightfulContent | | [tag getRightfulStyle] | tag.rightfulStyle | | [content getContentAttributedString] | content.contentAttributedString | | [tagView addTag:] | tagView.add(tag:) | | [tagView insertTag:atIndex:] | tagView.insert(tag:at:) | | [tagView removeTagAtIndex:] | tagView.removeTag(at:) | | [tagView getTagAtIndex:] | tagView.getTag(at:) | | [tagView updateTagAtIndex:selected:] | tagView.updateTag(at:selected:) |

Other changes in 3.0

• Minimum deployment target raised from iOS 11 to iOS 16
• tagId auto-increment is now thread-safe (NSLock)
• Per-corner UIRectCorner bitmask bug fixed
• Pure layout calculator TagCollectionLayout extracted (fully unit-tested)
• Text measurement and layout caches added for dense tag lists
• TextTagCollectionView.contentSize(for:width:...) added for precomputing list row height
• SPM test target added (Tests/TTGTagsTests)

3.1 API additions

• Horizontal multi-line rows now default to .rowMajor, matching natural reading order.
• .columnMajor keeps the previous round-robin horizontal distribution when apps need it.
• contentVerticalAlignment can place short tag content at the top, center, or bottom of a fixed-height tag view.
• TextTagStyle.numberOfLines and lineBreakMode enable multiline text tags with maxWidth or container-width constraints.
• getTag(byId:), indexOfTag(byId:), updateTag(byId:...), and scrollToTag(byId:...) make id-driven updates straightforward.
• scrollToTag(at:position:animated:) supports .nearest, .start, .center, and .end.

3.2 API additions

• enableTagReordering enables long-press drag reordering for TextTagCollectionView.
• enableDragToDelete shows a bottom delete zone while dragging.
• dragDeleteZoneHeight, dragDeleteZoneInsets, colors, text, font, image, and tint properties customize the delete zone without replacing its view.
• moveTag(at:to:) and moveTag(byId:to:) support programmatic reordering.
• canMoveTag / didMoveTag and canDeleteTag / didDeleteTag cover reorder and delete decisions.
• SwiftUI TagCloudView does not expose reordering yet because it rebuilds tags from value input on each update; use UIKit TextTagCollectionView for reorder/delete workflows.

Swipe selection API additions

• enableSwipeSelection enables finger-swipe selection for TextTagCollectionView.
• canSwipeSelectTag / didSwipeSelectTag cover swipe selection decisions and results.
• Swipe selection falls back to canTapTag when canSwipeSelectTag is not implemented, so existing selection gates still apply.

Author

zekunyan — zekunyan@163.com

License

TTGTagCollectionView is available under the MIT license. See the LICENSE file for more info.
