`widget-bzvisualizer`: A Jupyter Widget as Brillouin Zone Visualizer

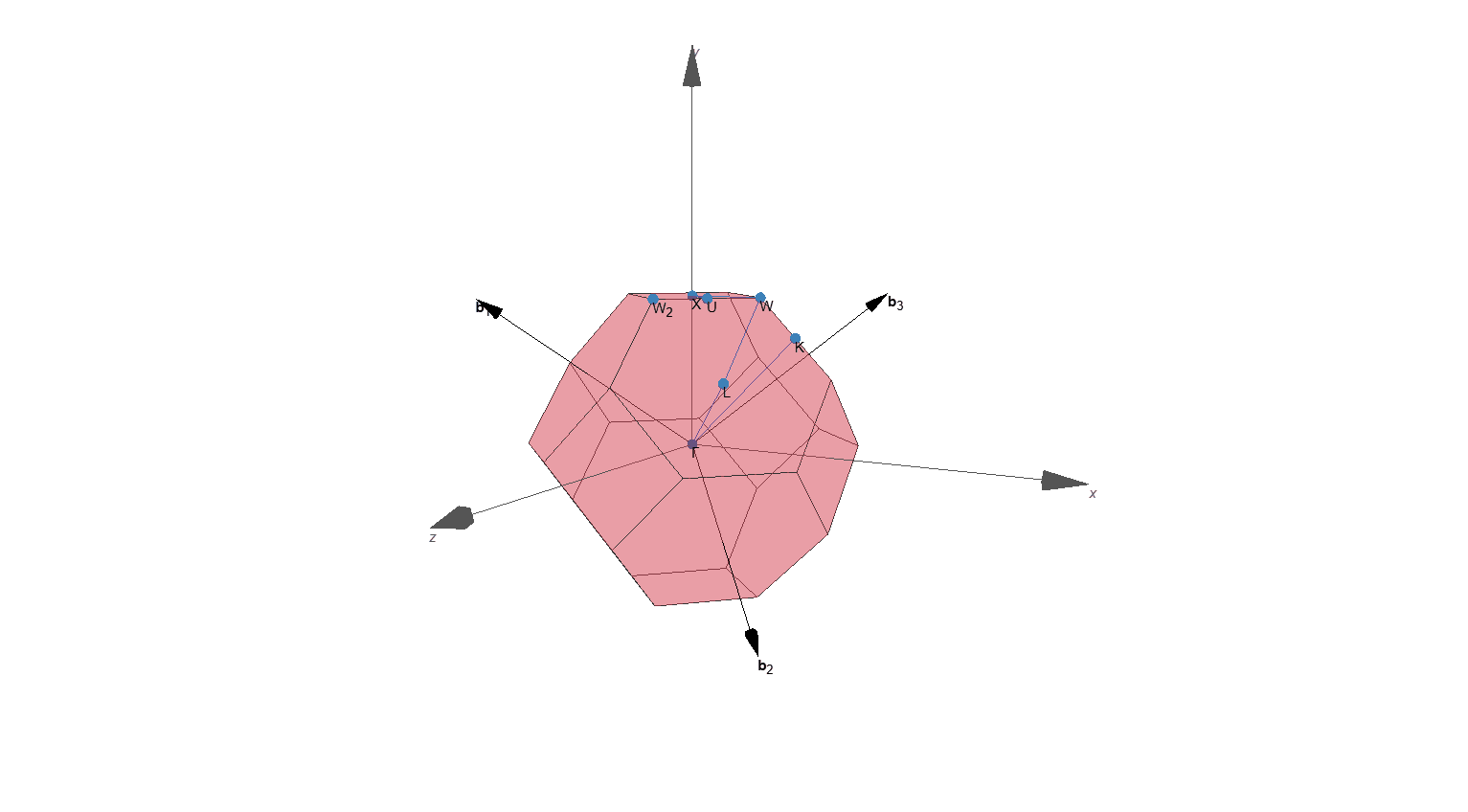

A Jupyter widget to plot the 1st Brillouin zone of crystals. It is based on the corresponding Javascript library: https://github.com/materialscloud-org/brillouinzone-visualizer

The primary input is a crystal structure, which is parsed by seekpath and the result is displayed by the Javascript widget using anywidget.

This repo is bootstrapped with npm create anywidget@latest.

Installation & usage

pip install widget-bzvisualizer

For usage examples, see example/example.ipynb.

Development

Install the python code:

pip install -e .[dev]

You then need to install the JavaScript dependencies and run the development server.

npm install
npm run dev

Open example/example.ipynb in JupyterLab, VS Code, or your favorite editor to start developing. Changes made in js/ will be reflected in the notebook.

Releasing and publishing a new version

In order to make a new release of the library and publish to PYPI, run

bumpver update --major/--minor/--patch

This will

update version numbers, make a corresponding git commit and a git tag;
push this commit and tag to Github, which triggers the Github Action that makes a new Github Release and publishes the package to PYPI.

Github workflow testing

If the widget test fails, it indicates there is something wrong with the code, and the widget is NOT being displayed correctly in the test.

If the widget test passes but the screenshot comparison fails, it indicates the appearance of the widget is different from the previous version. In this case, you'll need to manually download the artifact from the widget test and use it to replace the widget-sample.png figure in the test folder.

How to cite

When using the content of this repository, please cite the following two articles:

D. Du, T. J. Baird, S. Bonella and G. Pizzi, OSSCAR, an open platform for collaborative development of computational tools for education in science, Computer Physics Communications, 282, 108546 (2023).

https://doi.org/10.1016/j.cpc.2022.108546

D. Du, T. J. Baird, K. Eimre, S. Bonella, G. Pizzi, Jupyter widgets and extensions for education and research in computational physics and chemistry, Computer Physics Communications, 305, 109353 (2024).

https://doi.org/10.1016/j.cpc.2024.109353
