Flexbox for Android
FlexboxLayout
FlexboxLayout is a library project which brings the similar capabilities of CSS Flexible Box Layout Module to Android.
Installation
Add the following dependency to yourbuild.gradle file:
dependencies {
implementation 'com.google.android.flexbox:flexbox:3.0.0'
}**Starting from 3.0.0, the groupId is changed to com.google.android.flexbox in preparation to uploading the artifacts to google maven. You can still download the artifacts from jcenter for the past versions with the prior groupId (com.google.android), but migrating the library 3.0.0 is recommended.**
Note that the default values for alignItems and alignContent for FlexboxLayout have been changed from stretch to flex_start starting from 2.0.0, it may break the existing apps. Please make sure to set stretch explicitly if you want to apply the behavior of stretch.
Note that starting from 1.1.0, the library is expeced to use with AndroidX. Please migrate to AndroidX if you use 1.1.0 or above.
Please use 1.0.0 if you haven't migrated to AndroidX.
Usage
There are two ways of using Flexbox in your layout.FlexboxLayout
The first one isFlexboxLayout that extends the ViewGroup like LinearLayout and RelativeLayout.
You can specify the attributes from a layout XML like:
<com.google.android.flexbox.FlexboxLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layoutwidth="matchparent"
android:layoutheight="matchparent"
app:flexWrap="wrap"
app:alignItems="stretch"
app:alignC >
<TextView android:id="@+id/textview1" android:layout_width="120dp" android:layout_height="80dp" app:layout_flexBasisPercent="50%" />
<TextView android:id="@+id/textview2" android:layout_width="80dp" android:layout_height="80dp" app:layout_alignSelf="center" />
<TextView android:id="@+id/textview3" android:layout_width="160dp" android:layout_height="80dp" app:layoutalignSelf="flexend" /> </com.google.android.flexbox.FlexboxLayout>
Or from code like:
FlexboxLayout flexboxLayout = (FlexboxLayout) findViewById(R.id.flexbox_layout); flexboxLayout.setFlexDirection(FlexDirection.ROW);
View view = flexboxLayout.getChildAt(0); FlexboxLayout.LayoutParams lp = (FlexboxLayout.LayoutParams) view.getLayoutParams(); lp.setOrder(-1); lp.setFlexGrow(2); view.setLayoutParams(lp);
FlexboxLayoutManager (within RecyclerView)
The second one isFlexboxLayoutManager that can be used within RecyclerView.
RecyclerView recyclerView = (RecyclerView) context.findViewById(R.id.recyclerview);
FlexboxLayoutManager layoutManager = new FlexboxLayoutManager(context);
layoutManager.setFlexDirection(FlexDirection.COLUMN);
layoutManager.setJustifyContent(JustifyContent.FLEX_END);
recyclerView.setLayoutManager(layoutManager);or for the attributes for the children of the FlexboxLayoutManager you can do like:
mImageView.setImageDrawable(drawable);
ViewGroup.LayoutParams lp = mImageView.getLayoutParams();
if (lp instanceof FlexboxLayoutManager.LayoutParams) {
FlexboxLayoutManager.LayoutParams flexboxLp = (FlexboxLayoutManager.LayoutParams) lp;
flexboxLp.setFlexGrow(1.0f);
flexboxLp.setAlignSelf(AlignSelf.FLEX_END);
}The advantage of using FlexboxLayoutManager is that it recycles the views that go off the screen for reuse for the views that are appearing as the user scrolls instead of inflating every individual view, which consumes much less memory especially when the number of items contained in the Flexbox container is large.
Supported attributes/features comparison
Due to some characteristics ofRecyclerView, some Flexbox attributes are not available/not implemented
to the FlexboxLayoutManager.
Here is a quick overview of the attributes/features comparison between the two implementations.
|Attribute / Feature|FlexboxLayout| FlexboxLayoutManager (RecyclerView)| | ------- |:-----------:|:----------------------------------:| |flexDirection|
|| |flexWrap|| (except wrap_reverse)| |justifyContent||| |alignItems||| |alignContent|| - | |layoutorder|
| - | |layoutflexGrow|
|| |layoutflexShrink||| |layoutalignSelf||| |layoutflexBasisPercent||| |layout(min/max)Width||| |layout(min/max)Height||| |layoutwrapBefore||| |Divider||| |View recycling| - || |Scrolling| *1 ||
*1 Partially possible by wrapping it with ScrollView. But it isn't likely to work with a large set of views inside the layout. Because it doesn't consider view recycling.
Supported attributes
Attributes for the FlexboxLayout:
- flexDirection

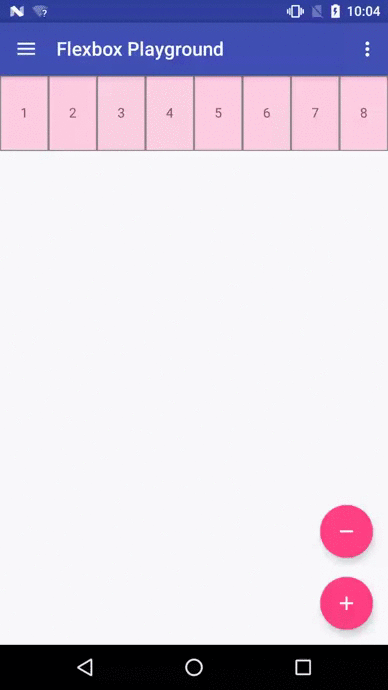

- flexWrap

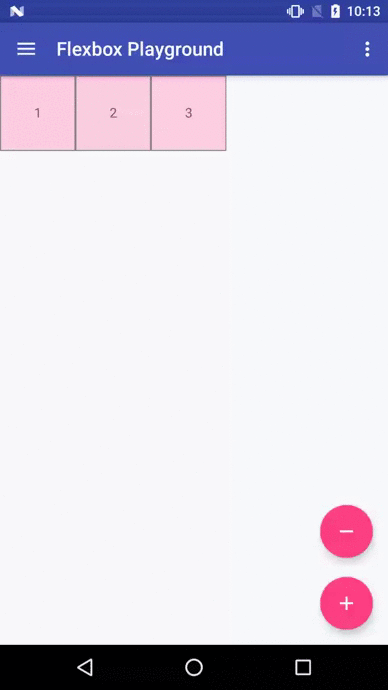

- justifyContent
- alignItems

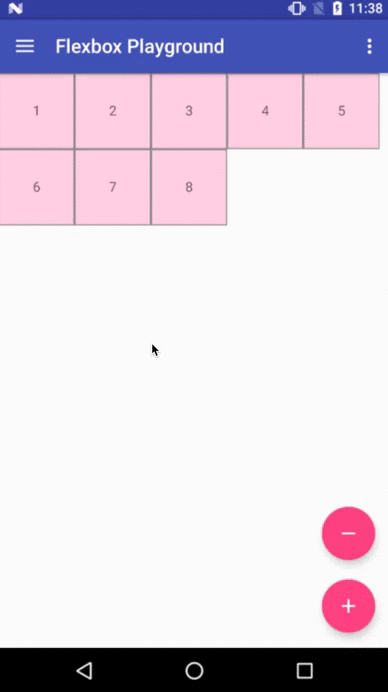

- alignContent
- showDividerHorizontal (one or more of
none | beginning | middle | end) - dividerDrawableHorizontal (reference to a drawable)
column or column_rebase).
- showDividerVertical (one or more of
none | beginning | middle | end) - dividerDrawableVertical (reference to a drawable)
column or column_rebase).
- showDivider (one or more of
none | beginning | middle | end) - dividerDrawable (reference to a drawable)
justifyC or alignC ... etc) for putting
spaces between flex lines or flex items, you may see unexpected spaces. Please avoid using these
at the same time.

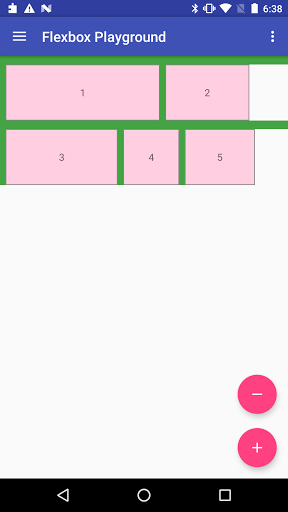

Example of putting both vertical and horizontal dividers.
res/drawable/divider.xml
<shape xmlns:android="http://schemas.android.com/apk/res/android">
<size
android:width="8dp"
android:height="12dp" />
<solid android:color="#44A444" />
</shape>res/layout/content_main.xml
<com.google.android.flexbox.FlexboxLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layoutwidth="matchparent"
android:layoutheight="matchparent"
app:alignC
app:alignItems="flex_start"
app:flexWrap="wrap"
app:showDivider="beginning|middle"
app:dividerDrawable="@drawable/divider" >
<TextView style="@style/FlexItem" android:layout_width="220dp" android:layout_height="80dp" android:text="1" /> <TextView style="@style/FlexItem" android:layout_width="120dp" android:layout_height="80dp" android:text="2" /> <TextView style="@style/FlexItem" android:layout_width="160dp" android:layout_height="80dp" android:text="3" /> <TextView style="@style/FlexItem" android:layout_width="80dp" android:layout_height="80dp" android:text="4" /> <TextView style="@style/FlexItem" android:layout_width="100dp" android:layout_height="80dp" android:text="5" />
Attributes for the children of a FlexboxLayout

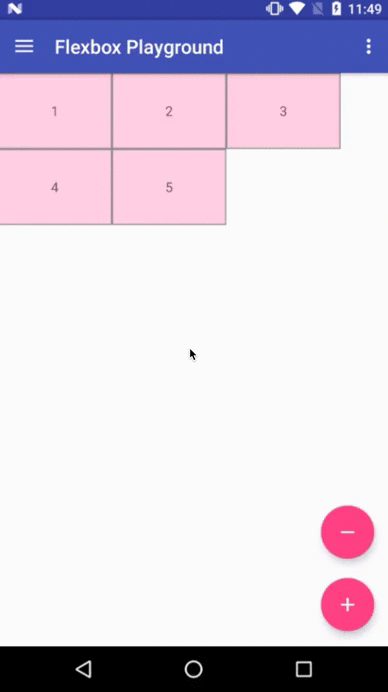

- layout_order (integer)
1 is set as a default value.

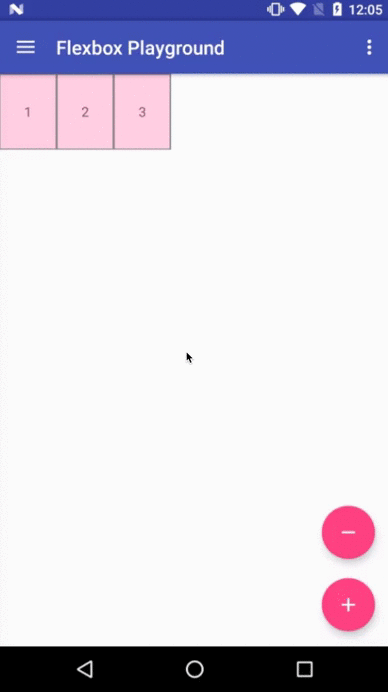

- layout_flexGrow (float)
layout_flexGrow value, the item will take up the remaining
space in the flex line. If multiple flex items in the same flex line have positive layout_flexGrow
values, the remaining free space is distributed depending on the proportion of their declared
layoutflexGrow value. (Similar to the layoutweight attribute in the LinearLayout)
If not specified, 0 is set as a default value.

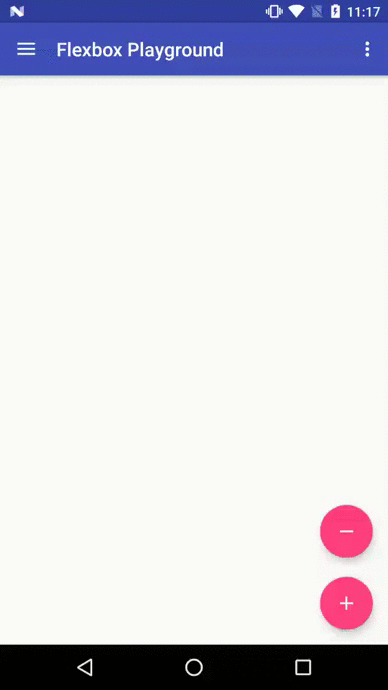

- layout_flexShrink (float)
1 is set as a default value.

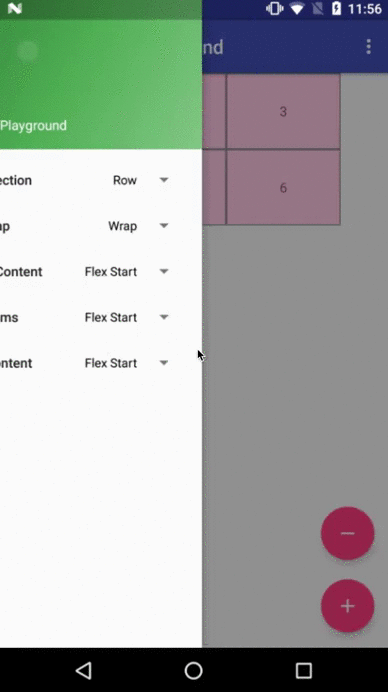

- layout_alignSelf
alignItems in the parent, but if this is set to other than
auto, the cross axis alignment is overridden for this child. Possible values are:
* auto (default)
* flex_start
* flex_end
* center
* baseline
* stretch

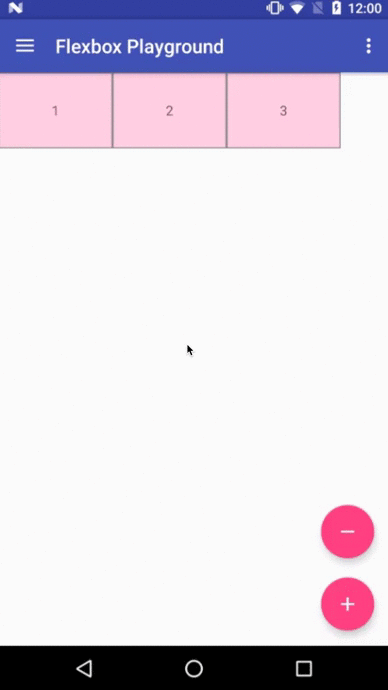

- layout_flexBasisPercent (fraction)
layout_width
(or layout_height) is overridden by the calculated value from this attribute.
This attribute is only effective when the parent's length is definite (MeasureSpec mode is
MeasureSpec.EXACTLY). The default value is -1, which means not set.

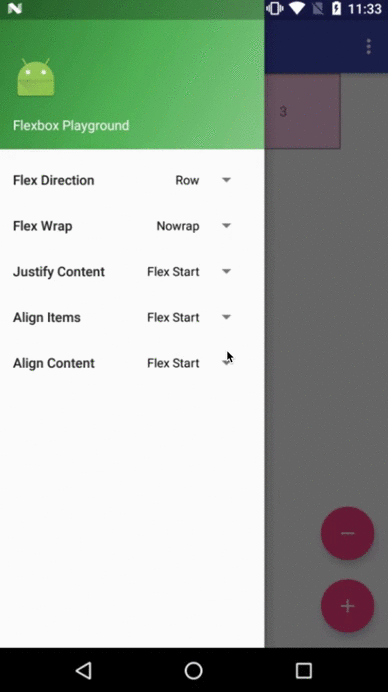

- layoutminWidth / layoutminHeight (dimension)
flexDirection attribute as to which attribute imposes the size constraint along the
main axis) regardless of the layout_flexShrink attribute.
- layoutmaxWidth / layoutmaxHeight (dimension)
flexDirection attribute as to which attribute imposes the size constraint along the
main axis) regardless of the layout_flexGrow attribute.

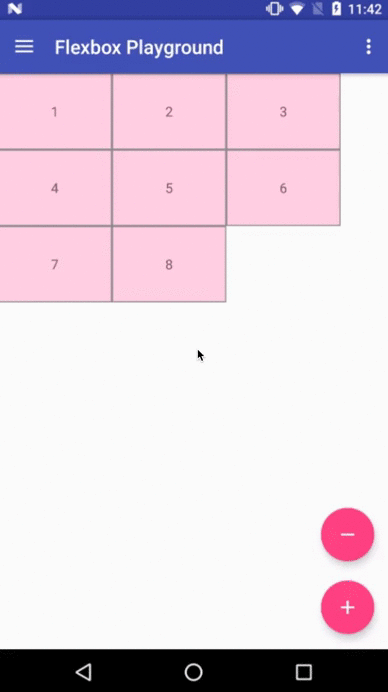

- layout_wrapBefore (boolean)
false.
i.e. if this is set to true for a
flex item, the item will become the first item of a flex line. (A wrapping happens
regardless of the flex items being processed in the previous flex line)
This attribute is ignored if the flex_wrap attribute is set to nowrap.
The equivalent attribute isn't defined in the original CSS Flexible Box Module
specification, but having this attribute is useful for Android developers. For example, to flatten
the layouts when building a grid-like layout or for a situation where developers want
to put a new flex line to make a semantic difference from the previous one, etc.
Others
Known differences from the original CSS specification
This library tries to achieve the same capabilities of the original Flexible Box specification as much as possible, but due to some reasons such as the way specifying attributes can't be the same between CSS and Android XML, there are some known differences from the original specification.(1) There is no flex-flow equivalent attribute * Because flex-flow is a shorthand for setting the flex-direction and flex-wrap properties, specifying two attributes from a single attribute is not practical in Android.
(2) There is no flex equivalent attribute * Likewise flex is a shorthand for setting the flex-grow, flex-shrink and flex-basis, specifying those attributes from a single attribute is not practical.
(3) layout_flexBasisPercent is introduced instead of flexBasis * Both layout_flexBasisPercent in this library and flex-basis property in the CSS are used to determine the initial length of an individual flex item. The flex-basis property accepts width values such as 1em, 10px, and content as strings as well as percentage values such as 10% and 30%. layout_flexBasisPercent only accepts percentage values. However, specifying initial fixed width values can be done by specifying width (or height) values in layoutwidth (or layoutheight, varies depending on the flexDirection). Also, the same effect can be done by specifying "wrapcontent" in layoutwidth (or layout_height) if developers want to achieve the same effect as 'content'. Thus, layout_flexBasisPercent only accepts percentage values, which can't be done through layoutwidth (or layoutheight) for simplicity.
(4) layout_wrapBefore is introduced. * The equivalent attribute doesn't exist in the CSS Flexible Box Module specification, but as explained above, Android developers will benefit by having this attribute for having more control over when a wrapping happens.
(5) Default values for alignItems and alignContent are set to flex_start instead of stretch. * Setting stretch for the alignItems is expensive because the children of FlexboxLayout are measured more than twice. The difference is more obvious when the layout hierarchy is deeply nested.
Xamarin Binding
Xamarin binding is now available on NuGet thanks to @btrippDemo apps
Flexbox Playground demo app
Thedemo-playground module works as a playground demo app for trying various values for the supported attributes.
You can install it by
./gradlew demo-playground:installDebugCat gallery demo app

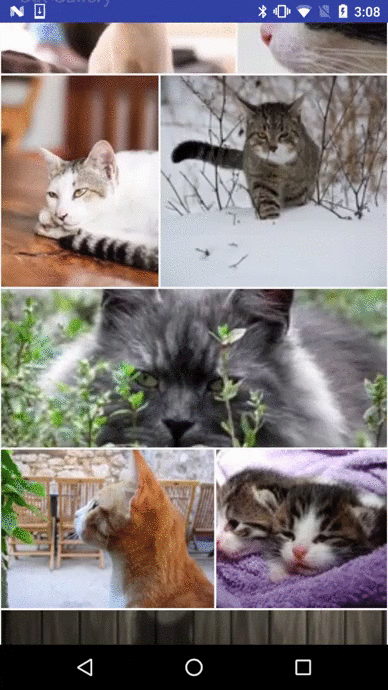

Thedemo-cat-gallery module showcases the usage of the FlexboxLayoutManager inside the RecyclerView
that handles various sizes of views aligned nicely regardless of the device width like the
Google Photo app without loading all the images on the memory.
Thus compared to using the {@link FlexboxLayout}, it's much less likely to abuse the memory,
which sometimes leads to the OutOfMemoryError.
./gradlew demo-cat-gallery:installDebug
