Graph Editor ==========

A library for creating and editing graph-like diagrams in JavaFX.

This project is a fork of tesis-dynaware/graph-editor 1.3.1, which is no longer being maintained.

Features

• Highly customizable
• Add your own custom skins or restyle existing ones via CSS
• Graphical effects where connections intersect:

• Full undo / redo functionality via EMF commands
• Selection API with cut, copy, paste
• Alignment (optionally with snap-to-grid)
• Editing of large graphs via a panning mechanism & minimap
• Additional skin examples provided:

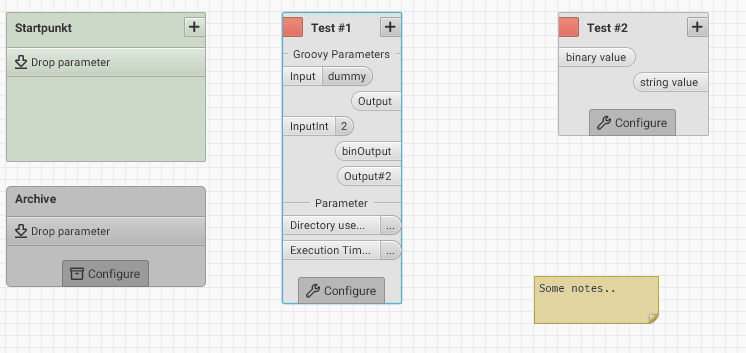

Example of a fully customized implementation:

Use it

Maven coordinates:

<dependency>   <groupId>io.github.eckig.grapheditor</groupId>   <artifactId>grapheditor-core</artifactId>   <version>24.0.9</version> </dependency>

Try the tutorials.

Demo

Run the sample application after cloning the repository with maven inside the demo module with mvn javafx:run.
