Semantic Segmentation using Auto Encoders

A Lightweight Human (Person) Segmentation Model built using Autoencoders, trained on COCO.
Model Notebook · Report Bug

Table of Contents

• Table of Contents
• About The Project
• Jupyter Notebooks - nbViewer
• Dataset Information
• Features
• Results
• How to Run

- Hardware Used for the Experiment - Dataset Directory Structure (For Training) - Built With

• Changelog
• Contributing
• License
• Contact

- Animikh Aich

About The Project

Inspired from UNet (Paper), which is a form of Autoencoder with Skip Connections, I wondered why can't a much shallower network create segmentation masks for a single object? Hence, the birth of this small project.

The primary goal of this is to determine if a shallow end-to-end CNN can learn complicated features like human beings. Hence, as a proof of concept, this notebook has been created.

The notebooks do not render properly on GitHub, hence please use the nbviewer links provided below to see the results.

Jupyter Notebooks - nbViewer

• Dataset Preparation - Extracting Masks for Person from COCO Dataset
• Model - Main Notebook Containing the Dataset Loader and Model Architecture

Dataset Information

• The Model is trained on COCO 2017 Dataset.
• Dataset Splits Used:

- Train: COCO 2017 Train Images + Train Annotations - instances_train2017.json - Val: COCO 2017 Val Images + Val Annotations - instances_val2017.json

• Dataset Download: https://cocodataset.org/#download
• Dataset Format Information: https://cocodataset.org/#format-data
• API to parse COCO: https://github.com/philferriere/cocoapi

Features

• Pre Trained Weights - The weights can directly be downloaded from here: weights.h5 - It is stored using Git LFS.
• Fast Inference - Inference Time for batch of 32 images of 512x512 dimensions with an Nvidia RTX 2080Ti is just 10.3 µs.

Results

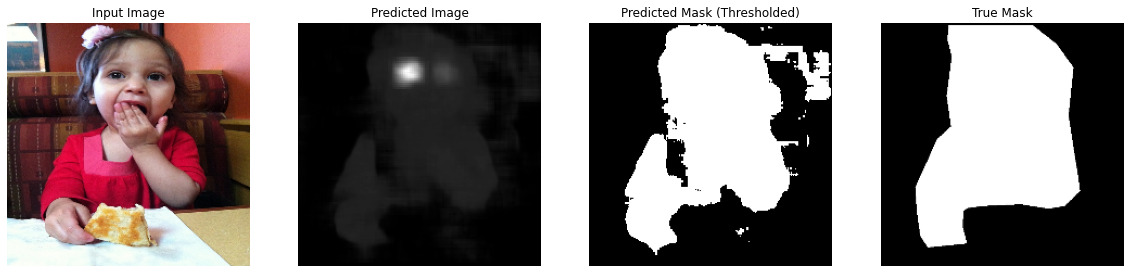

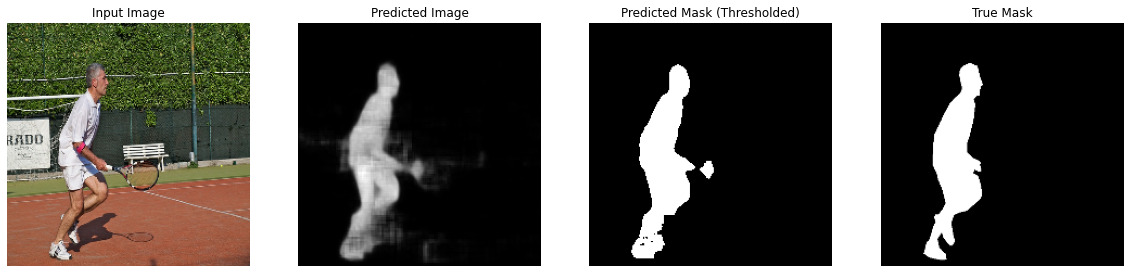

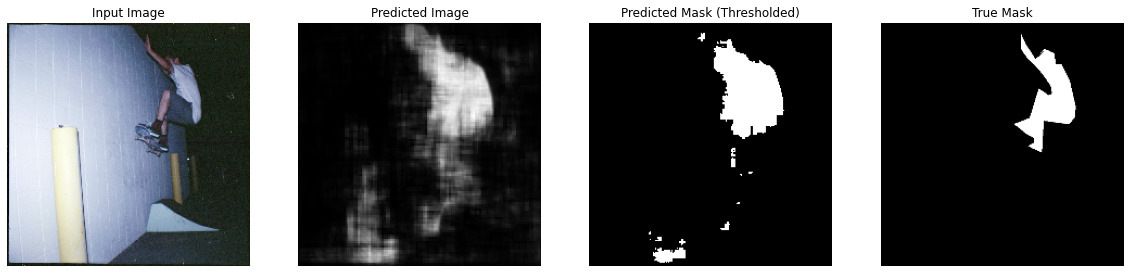

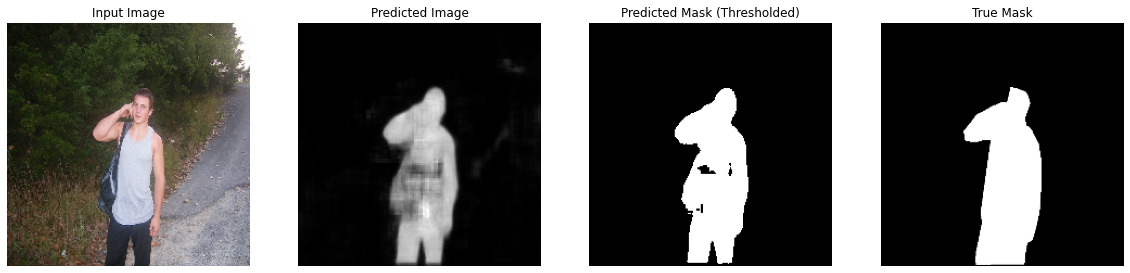

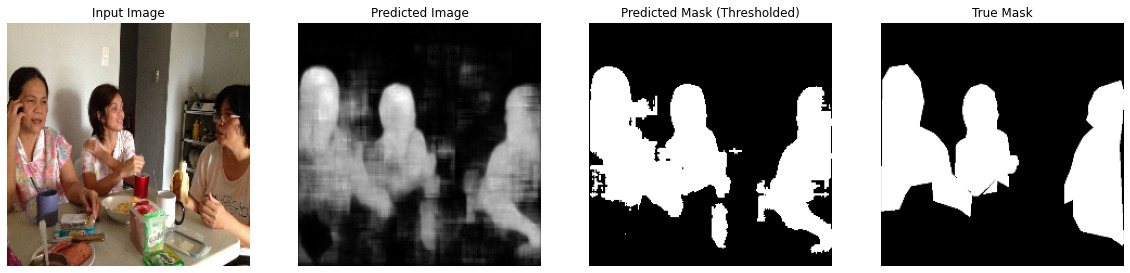

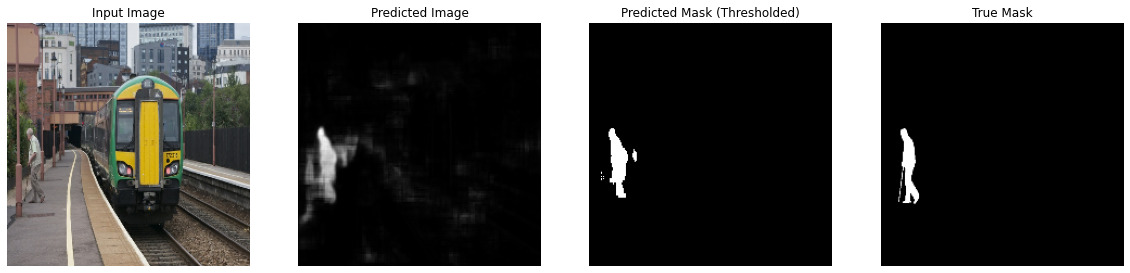

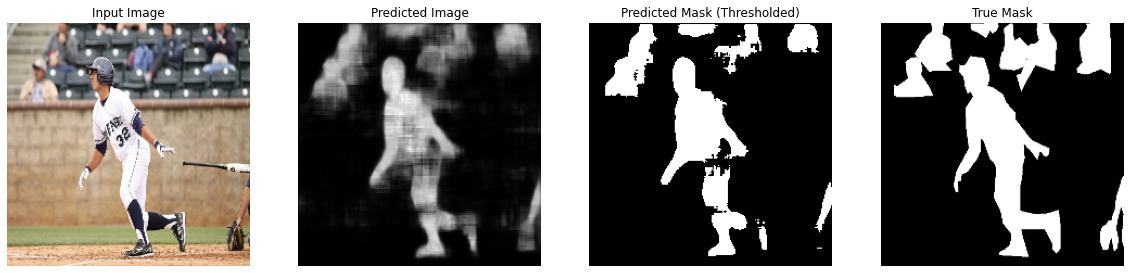

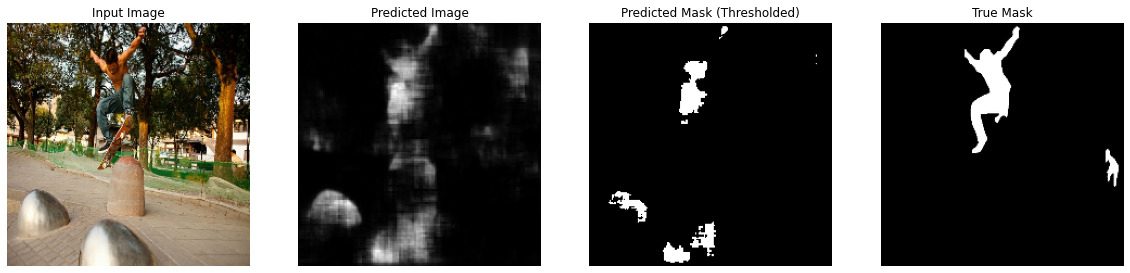

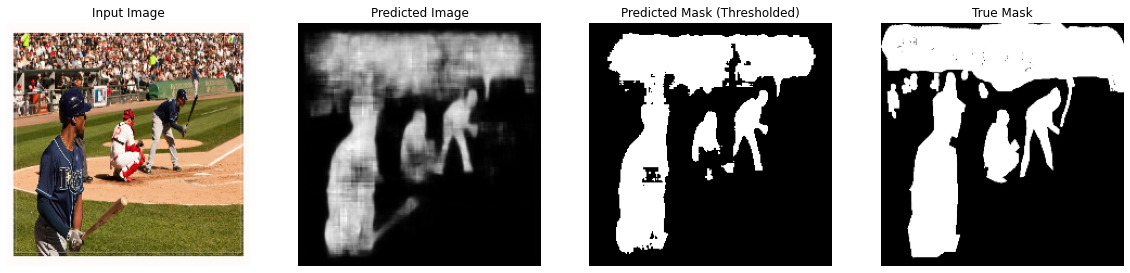

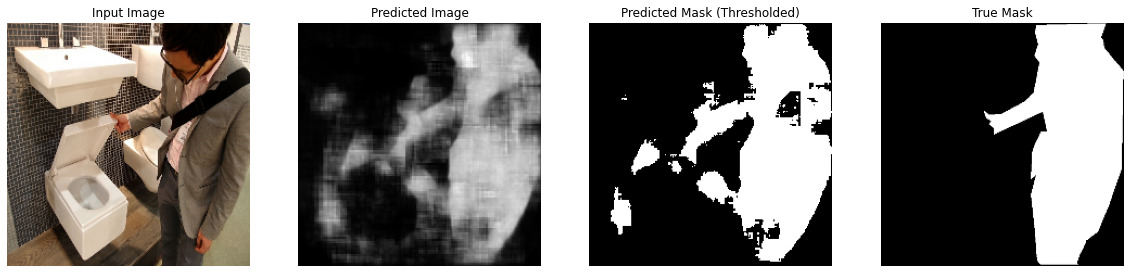

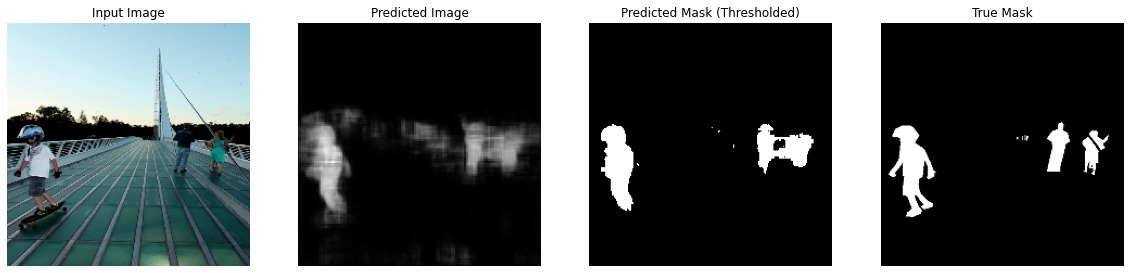

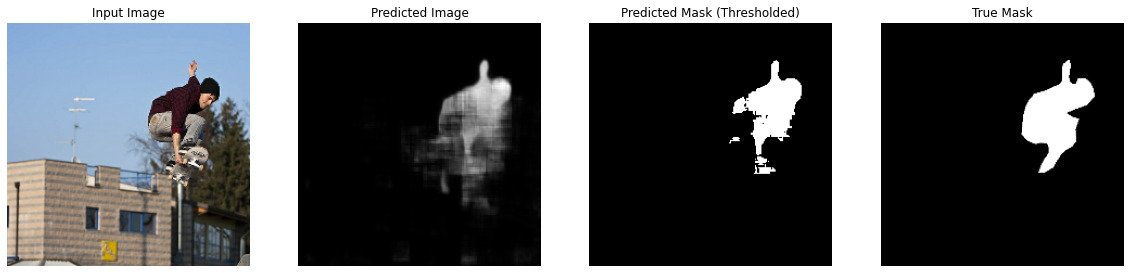

Images (Left to Right): Input Image, Predicted Image, Thresholded Mask @ 0.5, Ground Truth Mask

How to Run

The experiment should be fairly reproducible. However, a GPU would be recommended for training. For Inference, a CPU System would suffice.

Hardware Used for the Experiment

• CPU: AMD Ryzen 7 3700X - 8 Cores 16 Threads
• GPU: Nvidia GeForce RTX 2080 Ti 11 GB
• RAM: 32 GB DDR4 @ 3200 MHz
• Storage: 1 TB NVMe SSD (This is not important, even a normal SSD would suffice)
• OS: Ubuntu 20.10

Alternative Option: Google Colaboratory - GPU Kernel

Dataset Directory Structure (For Training)

• Use the COCO API to extract the masks from the dataset. (Refer: Dataset Preparation.ipynb Notebook)
• Save the masks in a directory as .jpg images.
• Example Directory Structure:

.
├── images
│   ├── train
│   │   ├── *.jpg
│   └── val
│       └── *.jpg
└── masks
│   ├── train
│   │   ├── *.jpg
│   └── val
│       └── *.jpg

Built With

Simple List of Deep Learning Libraries. The main Architecture/Model is developed with Keras, which comes as a part of Tensorflow 2.x

• Tensorflow 2.4.1
• OpenCV 4.5.1.48
• Numpy 1.19.5
• Matplotlib 3.3.4
• PyCOCOTools 2.0.2

Changelog

Since this is a Proof of Concept Project, I am not maintaining a CHANGELOG.md at the moment. However, the primary goal is to improve the architecture to make the predicted masks more accurate.
