mysql database to golang struct conversion tools base on gorm(v1/v2)，You can automatically generate golang sturct from mysql database. big Camel-Case Name Rule, JSON tag.

gui support

./gormt -g=true

cmd support

./gormt -g=false

install

go get -u -v github.com/xxjwxc/gormt@latest

or: Dowloading

1. Configure default configuration items through the current directory config.yml file

out_dir : "./model"  # out dir
url_tag : json # web url tag(json,db(https://github.com/google/go-querystring))
language :  # language(English,中 文)
db_tag : gorm # DB tag(gorm,db)
simple : false #simple output
isoutsql : false # Whether to output sql
isoutfunc : true # Whether to output function
isforeignkey : true # Whether to mark foreign key or not
is_gui : false # Whether to operate on gui
istablename : false # Whether to out GetTableName/column function
isnullto_point : false # database is 'DEFAULT NULL' then set element type as point
iswebtag: false
iswebtagpkhidden: false
table_prefix: "" #table prefix
table_names: "" # Specified table generation, multiple tables with , separated
iscolumnname: true # Whether to generate column names
isoutfilebytable_name: false # Whether to generate multiple models based on table names
db_info :
    host : "127.0.0.1"
    port : 3306
    username : "root"
    password : "qwer"
    database : "oauth_db"
    type: 0 # database type (0:mysql , 1:sqlite , 2:mssql)
selftypedefine: # Custom data type mapping
    datetime: time.Time
    date: time.Time
outfilename: "" # Custom build file name
webtagtype: 0 # json tag 0: Small Camel-Case 1: _

2. get help

./gormt --help
or
./gormt -h

base on gorm tools for mysql database to golang struct
Usage:   main [flags]
Flags:   -d, --database string   数据库名   -f, --foreign           是否导出外键关联   -F, --fun               是否导出函数   -g, --gui               是否ui显示模式   -h, --help              help for main   -H, --host string       数据库地址.(注意-H为大写)   -o, --outdir string     输出目录   -p, --password string   密码.       --port int          端口号 (default 3306)   -s, --singular          是否禁用表名复数   -b, --table_names string 表名称     -l, --url string        url标签(json,url)   -u, --user string       用户名.

3. Can be updated configuration items using command line tools

./gormt -H=127.0.0.1 -d=oauth_db -p=qwer -u=root --port=3306 -F=true

4. Support for gorm attributes

• Database tables, column field annotation support
• json tag json tag output
• gorm.Model Support export gorm.model>>>
• PRIMARY_KEY Specifies column as primary key
• UNIQUE Specifies column as unique
• NOT NULL Specifies column as NOT NULL
• INDEX Create index with or without name, same name creates composite indexes
• UNIQUE_INDEX Like INDEX, create unique index
• Support foreign key related properties Support export gorm.model>>>
• Support function export (foreign key, association, index , unique and more)Support export function >>>
• model.Condition{} sql link

You can enrich data types in def

5. Demonstration

• sql:

CREATE TABLE useraccounttbl (
  id int(11) NOT NULL AUTO_INCREMENT,
  account varchar(64) CHARACTER SET utf8 COLLATE utf8generalci NOT NULL,
  password varchar(64) CHARACTER SET utf8 COLLATE utf8generalci NOT NULL,
  account_type int(11) NOT NULL DEFAULT '0' COMMENT '帐号类型:0手机号，1邮件',
  appkey varchar(255) CHARACTER SET utf8 COLLATE utf8unicodeci NOT NULL COMMENT 'authbucketoauth2_client表的id',
  userinfotbl_id int(11) NOT NULL,
  reg_time datetime DEFAULT NULL,
  regip varchar(15) CHARACTER SET utf8 COLLATE utf8general_ci DEFAULT NULL,
  bundleid varchar(255) CHARACTER SET utf8 COLLATE utf8general_ci DEFAULT NULL,
  describ varchar(255) CHARACTER SET utf8 COLLATE utf8unicodeci DEFAULT NULL,
  PRIMARY KEY (id) USING BTREE,
  UNIQUE KEY account (account) USING BTREE,
  KEY userinfoid (userinfotbl_id) USING BTREE,
  CONSTRAINT useraccounttblibfk1 FOREIGN KEY (userinfotblid) REFERENCES userinfo_tbl (id) ON DELETE RESTRICT ON UPDATE RESTRICT
) ENGINE=InnoDB AUTOINCREMENT=38 DEFAULT CHARSET=utf8 COLLATE=utf8unicode_ci COMMENT='用户账号'

--->Derived results

// UserAccountTbl 用户账号
type UserAccountTbl struct {
	ID            int    gorm:"primary_key"
	Account       string gorm:"unique"
	Password      string
	AccountType   int         // 帐号类型:0手机号，1邮件
	AppKey        string      // authbucketoauth2client表的id
	UserInfoTblID int         gorm:"index"
	UserInfoTbl   UserInfoTbl gorm:"associationforeignkey:userinfotblid;foreignkey:id" // 用户信息
	RegTime       time.Time
	RegIP         string
	BundleID      string
	Describ       string
}

more>>>

6. support func export

The exported function is only the auxiliary class function of Gorm, and calls Gorm completely

// FetchByPrimaryKey primary or index 获取唯一内容
func (obj *_UserAccountTblMgr) FetchByPrimaryKey(ID int) (result UserAccountTbl, err error) {
	err = obj.DB.Table(obj.GetTableName()).Where("id = ?", ID).Find(&result).Error
	if err == nil && obj.isRelated {
		{
			var info UserInfoTbl // 用户信息
			err = obj.DB.Table("userinfotbl").Where("id = ?", result.UserInfoTblID).Find(&info).Error
			if err != nil {
				return
			}
			result.UserInfoTbl = info
		}
	}
return }

more>>>

how to use call style>>>

7. page

Use of paging query in gormt

8. build

make windows
make linux
make mac

go generate

note : in windows not support utf-8 style . ASCALL model

• Switch encoding mode

CHCP 65001

column notes default

• Add a comment to the column starting with [@gorm default:'test']
• example [@gorm default:'test';->;<-:create]this is my notes Indicates that the default value is 'test',can read/creat/write
• Use of foreign key notes[@fk tableName.columnName]this is my notes Represents the 'columnName' column associated with the 'tableName'

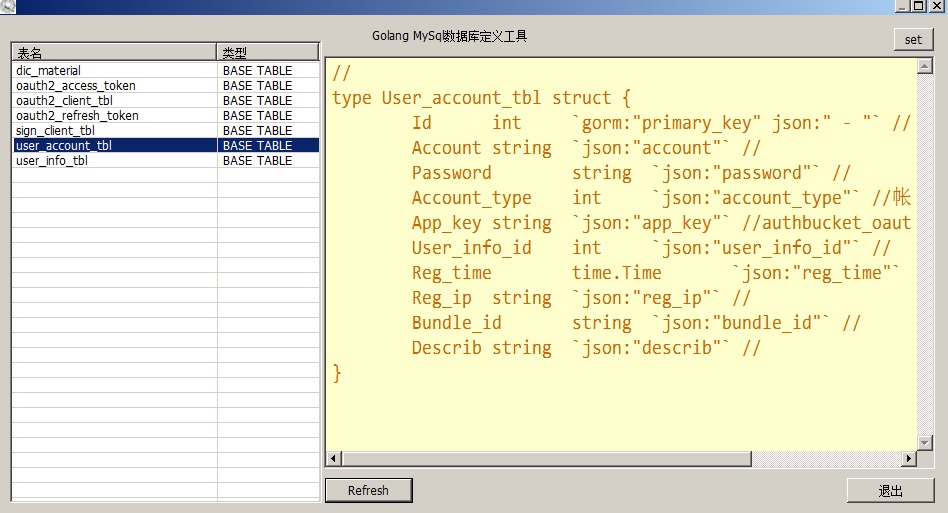

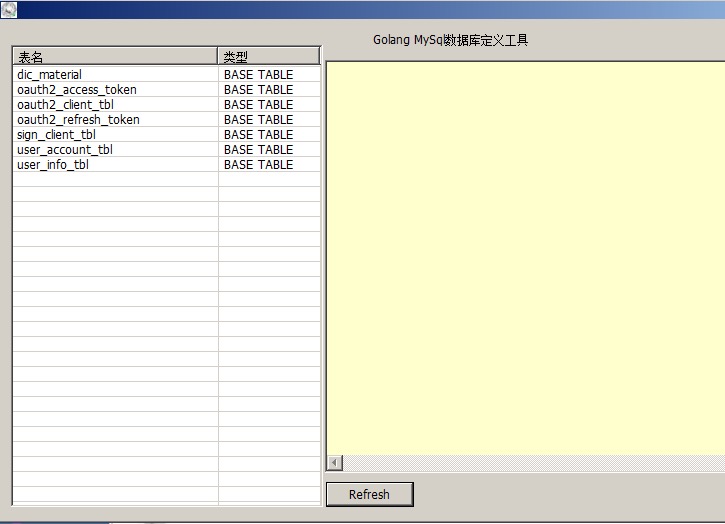

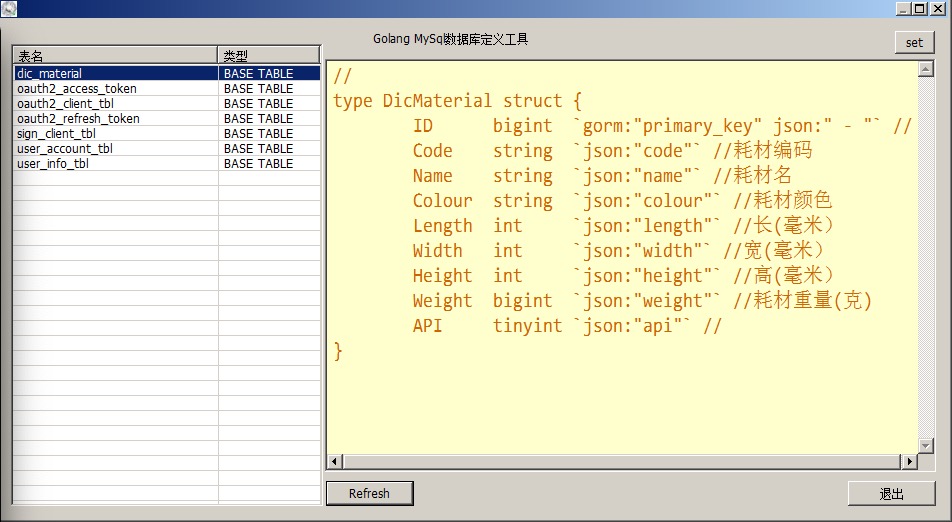

9. one windows gui tools

Download
