Multi-Tenant SaaS Gateway

A production-grade, enterprise-scale Multi-Tenant SaaS API Gateway built with NestJS, featuring complete tenant isolation, role-based access control, webhook delivery, audit logging, and end-to-end security.

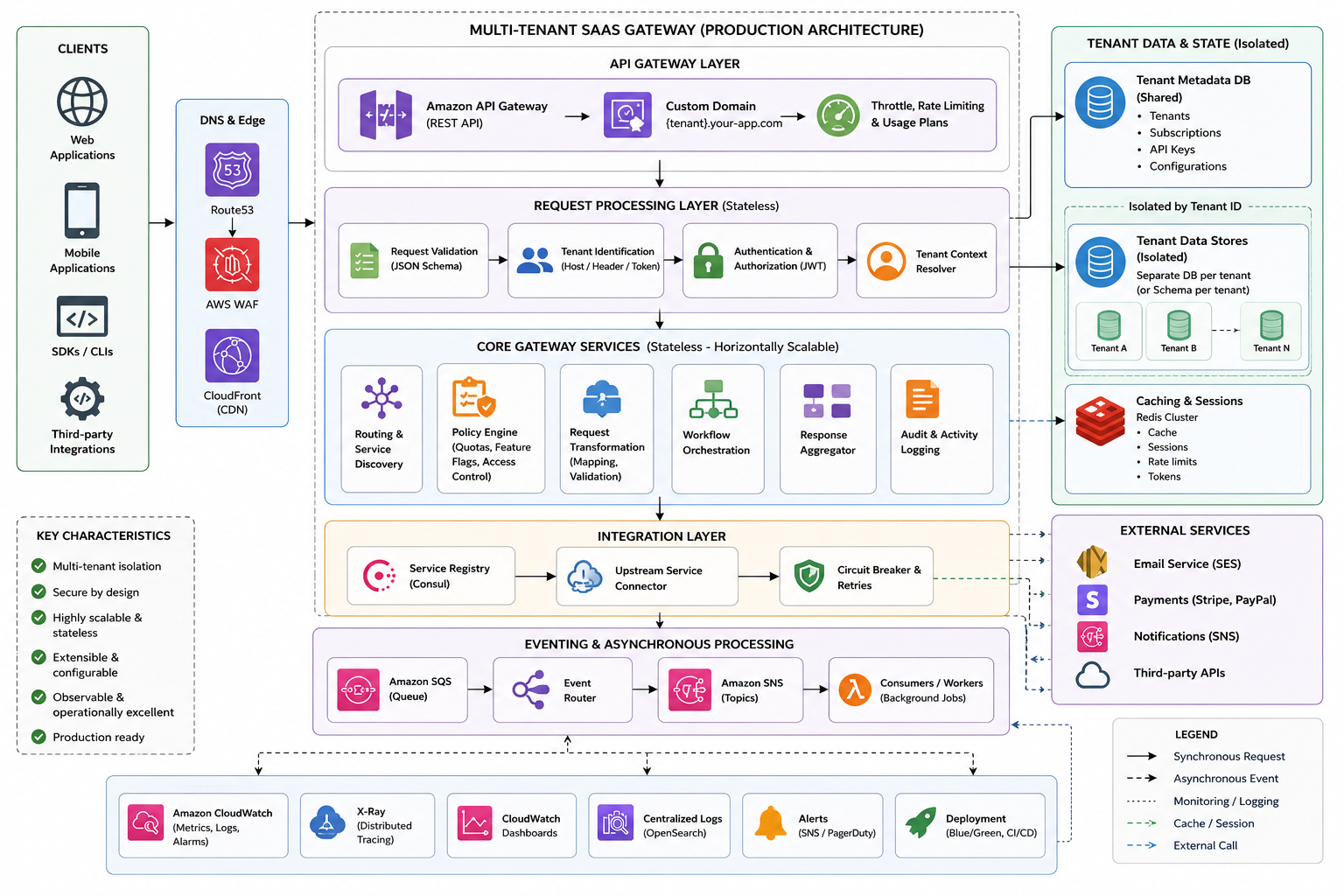

Architecture

Key Features

| Feature | Details | |---|---| | Multi-Tenancy | Complete data isolation at DB, cache, and event layers | | Authentication | JWT access + refresh tokens, API key auth | | RBAC | Role-based access control with tenant-scoped roles and permissions | | Webhooks | Register endpoints, HMAC-SHA256 signed payloads, retry logic | | Password Reset | Secure token-based reset flow, SHA-256 hashed, 60-min expiry | | Audit Logs | Every state-changing action recorded with who/what/when | | Pagination & Search | All list endpoints paginated; users/tenants support ?q= and ?status= | | Tenant Onboarding | Default admin/member/viewer roles auto-created on tenant registration | | Compression | Gzip response compression | | Security Headers | Helmet, CORS with env-configured origins | | Rate Limiting | Global throttling via Redis | | Health Checks | /api/health and /api/ready with live DB ping | | Event Streaming | Apache Kafka for async domain events | | Caching | Redis with automatic cache invalidation | | Observability | Prometheus + Grafana, structured request logging, correlation IDs | | Kubernetes Ready | Helm charts, HPA (3–10 replicas), liveness/readiness probes |

Quick Start

git clone https://github.com/victorpreston/multi-tenant-saas-gateway
cd multi-tenant-saas-gateway
cp .env.example .env
Start PostgreSQL, Redis, Kafka, Prometheus, Grafana
npm run docker:up
npm install npm run start:dev

• API: http://localhost:3000/api
• Swagger UI: http://localhost:3000/api/docs
• Grafana: http://localhost:3001
• Prometheus: http://localhost:9090

API Endpoints

All routes are prefixed with /api. Pass x-tenant-id header on all protected routes.

Auth — POST /api/auth/...

| Method | Path | Auth | Description | |--------|------|------|-------------| | POST | /register | — | Register a new user in a tenant | | POST | /login | — | Authenticate and receive JWT tokens | | POST | /refresh | — | Exchange refresh token for new access token | | GET | /me | JWT | Get the current authenticated user | | POST | /forgot-password | — | Request a password reset token | | POST | /reset-password | — | Reset password using a valid token | | POST | /change-password | JWT | Change password (requires current password) |

Tenants — GET/POST/PUT/DELETE /api/tenants/...

| Method | Path | Description | |--------|------|-------------| | POST | / | Create a new tenant (triggers onboarding) | | GET | /?page=1&limit=20&q=acme&status=ACTIVE | List tenants (paginated, searchable) | | GET | /:id | Get tenant by ID | | PUT | /:id | Update tenant | | DELETE | /:id | Delete tenant |

Users — GET/POST/PUT/DELETE /api/users/... (JWT, tenant-scoped)

| Method | Path | Description | |--------|------|-------------| | POST | / | Create user in current tenant | | GET | /?page=1&limit=20&q=john&status=ACTIVE | List users (paginated, searchable) | | GET | /:id | Get user by ID | | PUT | /:id | Update user | | DELETE | /:id | Delete user |

Profile — /api/profile (JWT)

| Method | Path | Description | |--------|------|-------------| | GET | / | Get authenticated user's profile | | PATCH | / | Update profile (name) |

API Keys — /api/api-keys (JWT)

| Method | Path | Description | |--------|------|-------------| | POST | / | Create API key | | GET | / | List all API keys | | GET | /:id | Get API key | | PATCH | /:id | Update API key | | POST | /:id/rotate | Rotate secret | | POST | /:id/revoke | Revoke key | | DELETE | /:id | Delete key |

Webhooks — /api/webhooks (JWT)

| Method | Path | Description | |--------|------|-------------| | POST | / | Register a webhook endpoint | | GET | / | List webhooks for current tenant | | GET | /:id | Get webhook by ID | | PATCH | /:id | Update webhook (url, events, active) | | DELETE | /:id | Delete webhook | | POST | /:id/rotate-secret | Rotate HMAC signing secret | | POST | /:id/test | Send a test delivery |

Webhook payloads are signed with x-webhook-signature: sha256=<hmac>. Events: tenant.created, tenant.updated, tenant.deleted, user.created, user.updated, user.deleted, apikey.created, apikey.revoked

RBAC — /api/rbac (JWT)

| Method | Path | Description | |--------|------|-------------| | GET | /permissions | List all available permissions | | GET | /roles | List roles for current tenant | | POST | /roles | Create a role | | DELETE | /roles/:roleId | Delete a role | | POST | /users/:userId/roles | Assign role to user | | DELETE | /users/:userId/roles/:roleId | Remove role from user | | GET | /users/:userId/roles | Get roles for a user |

Audit Logs — /api/audit-logs (JWT)

| Method | Path | Description | |--------|------|-------------| | GET | /?page=1&limit=50&action=user.create&status=SUCCESS&from=2026-01-01&to=2026-12-31 | Query audit logs |

Health — /api/health, /api/ready

| Method | Path | Description | |--------|------|-------------| | GET | /api/health | Liveness probe (checks DB connectivity) | | GET | /api/ready | Readiness probe (checks DB connectivity) |

Environment Variables

# Application
NODE_ENV=development
PORT=3000
LOG_LEVEL=info
CORS (comma-separated)
CORS_ORIGINS=http://localhost:3000,http://localhost:3001
Database (PostgreSQL)
DATABASE_HOST=postgres
DATABASE_PORT=5432
DATABASEUSER=gatewayuser
DATABASEPASSWORD=gatewaypassword
DATABASENAME=saasgateway_db
DATABASE_SSL=false
Redis
REDIS_HOST=redis
REDIS_PORT=6379
REDISPASSWORD=redispassword
JWT — generate with: node -e "require('crypto').randomBytes(32).toString('hex')"
JWT_SECRET=<strong-secret>
JWT_EXPIRATION=24h
JWTREFRESHSECRET=<strong-refresh-secret>
JWTREFRESHEXPIRATION=7d
Kafka
KAFKA_BROKERS=kafka:29092
KAFKAGROUPID=saas-gateway
Rate Limiting
RATELIMITWINDOW=60000
RATELIMITMAX_REQUESTS=100
Webhooks
WEBHOOKTIMEOUTMS=10000
WEBHOOKMAXRETRIES=3

Full reference: .env.example

Database

Entities

| Entity | Purpose | |---|---| | Tenant | Core multi-tenancy unit | | User | Tenant-scoped user accounts | | Role | RBAC roles (admin, member, viewer) | | Permission | Granular resource:action permissions | | ApiKey | API authentication credentials | | AuditLog | Immutable compliance trail | | Webhook | Registered webhook endpoints | | PasswordResetToken | Secure password reset tokens (60-min TTL) |

Migrations

npm run db:migrate          # Run pending migrations
npm run db:migrate:create   # Create a new migration file
npm run db:reset            # Revert all + re-run + seed

Testing

npm run test          # Unit tests
npm run test:cov      # Unit tests with coverage report
npm run test:e2e      # End-to-end tests
npm run test:watch    # Watch mode

126 unit tests across 16 test suites covering:

• All service layer logic (auth, users, tenants, RBAC, audit, webhooks, profile, onboarding)
• Global exception filter (including PostgreSQL error codes)
• Tenant middleware (header extraction, subdomain fallback)
• Pagination DTO calculations
• HMAC webhook signature verification

CI/CD

| Workflow | Trigger | Jobs | |---|---|---| | PR Checks (ci.yml) | push / PR to master, dev | lint, format, build, type-check, unit tests with coverage | | Docker Build (build.yml) | push / PR to master, dev | build image; push to GHCR on merge | | Security Scan (security.yml) | push / PR + weekly | npm audit (report only) |

Infrastructure

Docker (local dev)

npm run docker:up    # Start all services
npm run docker:down  # Stop all services
npm run docker:logs  # Tail logs

Services: PostgreSQL, Redis, Kafka, Zookeeper, Prometheus, Grafana, NestJS app

Kubernetes

aws eks update-kubeconfig --region us-east-1 --name saas-gateway-eks
kubectl create secret generic db-secret \   --from-literal=username=gateway_user \   --from-literal=password=your-db-password \   -n saas-gateway
kubectl apply -f k8s/

Deployment: 3 replicas, HPA 3→10 on 70% CPU / 80% memory, rolling updates with zero downtime.

Terraform (AWS)

cd infrastructure/
cp terraform.tfvars.example terraform.tfvars
terraform init
terraform plan
terraform apply

Provisions: VPC, EKS, RDS PostgreSQL, ElastiCache Redis, security groups, IAM roles (~$138/mo). See infrastructure/infrastructure.md for details.

Monitoring

| Tool | URL | Purpose | |---|---|---| | Grafana | http://localhost:3001 | Dashboards (admin/admin — change in prod) | | Prometheus | http://localhost:9090 | Metrics collection | | Swagger UI | http://localhost:3000/api/docs | Interactive API documentation |

Scripts Reference

# Development
npm run start:dev       # Hot-reload dev server
npm run start:debug     # Debug mode
npm run start:prod      # Production server
Code quality
npm run lint            # ESLint with auto-fix
npm run lint:check      # ESLint check only
npm run format          # Prettier format
npm run format:check    # Prettier check only
Database
npm run db:migrate      # Run migrations
npm run db:seed         # Seed data
npm run db:reset        # Reset + migrate + seed
Docker
npm run docker:up       # Start containers
npm run docker:down     # Stop containers
npm run docker:logs     # View logs
Git
npm run commit          # Commitizen guided commit

Contributing

See CONTRIBUTING.md for branch strategy, commit conventions, and code standards.

Resources

• NestJS Documentation
• TypeORM Documentation
• Conventional Commits
• Kubernetes Documentation
• Terraform AWS Provider
