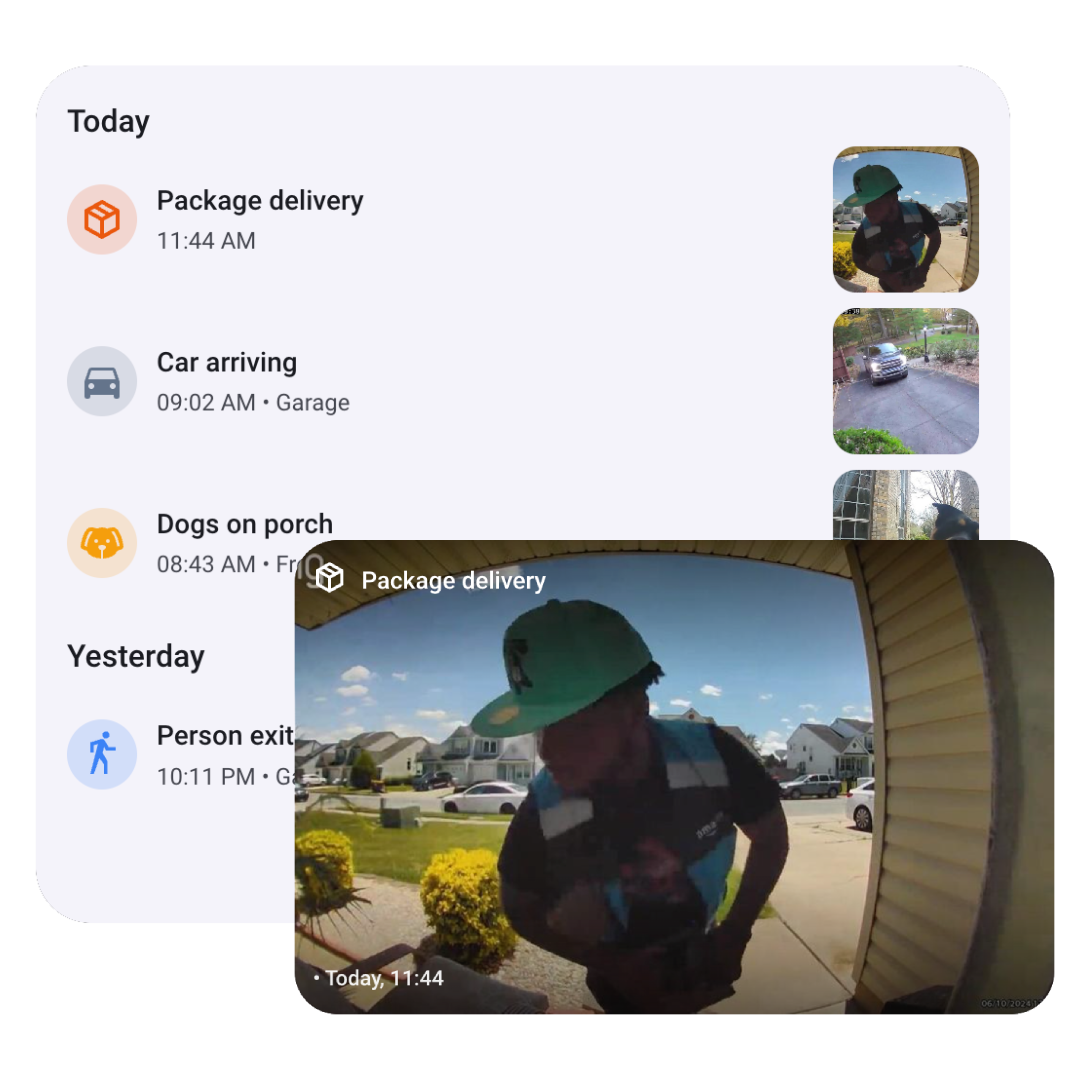

Timeline Card

Custom Card to display the LLM Vision Timeline on your Home Assistant Dashboard

🌟 Prerequisites · ⬇️ Installation · 🚧 Setup · 🔧 Configuration

Visit Website →

Prerequisites

• LLM Vision set up in Home Assistant
• Timeline provider set up in LLM Vision
• Blueprint or Automation to add events to the timeline

Documentation

Installation

Add the repository to HACS and install the LLM Vision card using this link:

Alternatively you can add the url of this repository to the custom repositories list in HACS.

Setup

• Install the card through HACS
• Reload
• Add the card to your dashboard

Configuration

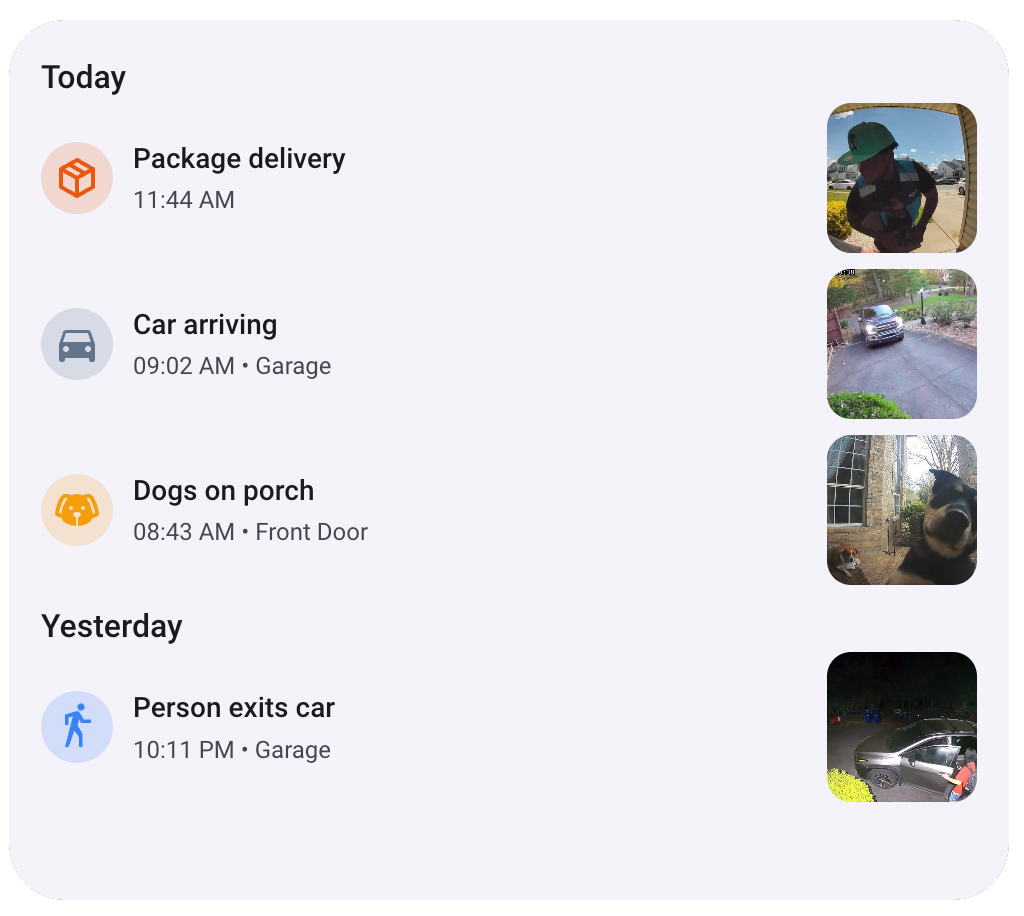

Timeline Card

| Parameter | Description | Default | |-------------------|-------------------------------------------------------------------------------------------------------------|------------------------------| | header | Shows a header (title) at the top of the card. Hidden when empty. | | numberofevents | How many events to show. | 100 | | numberofdays | Show events that occurred within the past specified number of days. | 30 | | category_filters | Only show events matching one of the specified categories. | [] | | camera_filters | Only show events matching one of the specified cameras. | [] | | filterfalsepositives | Show or hide activities titles "no activity" | false | | language | Language used for the card UI (supports: bg, ca, cs, de, en, es, fr, hu, it, nl, pl, pt, sk, sv) | en | | time_format | 12h or 24h time format. | 24h | | default_icon | Icon to use when event couldn't be classified | mdi:motion-sensor | | custom_colors | Custom colors for categories. Colors must be specified as a dictionary where keys are category names and values are lists of RGB values (e.g., [255, 255, 0]). See the example configuration below for details. | [] |

Example Configuration

type: custom:llmvision-card
numberofdays: 365
numberofevents: 100
category_filters: []
camera_filters: []
default_icon: mdi:motion-sensor
language: en
time_format: 12h
filterfalsepositives: true

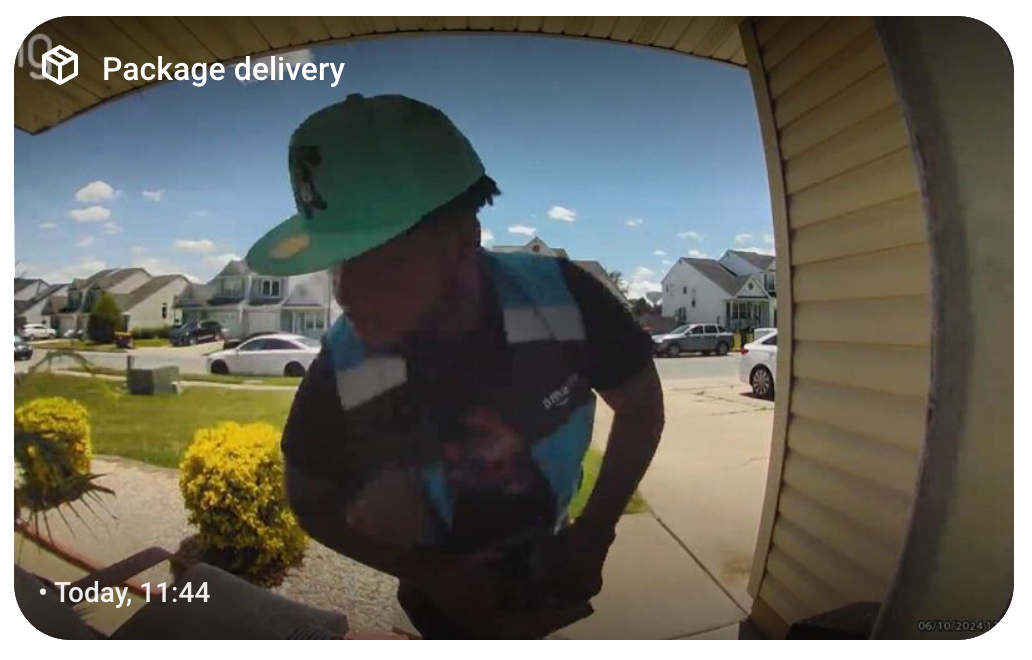

Preview Card

| Parameter | Description | Default | |-------------------|-------------------------------------------------------------------------------------------------------------|------------------------------| | category_filters | Only show events matching one of the specified categories. | [] | | camera_filters | Only show events matching one of the specified cameras. | [] | | filterfalsepositives | Show or hide activities titles "no activity" | false | | language | Language used for the card UI (supports: bg, ca, cs, de, en, es, fr, hu, it, nl, pl, pt, sk, sv) | en | | time_format | 12h or 24h time format. | 24h | | default_icon | Icon to use when event couldn't be classified | mdi:motion-sensor |

Example Configuration

type: custom:llmvision-preview-card
language: en
time_format: 12h
category_filters:
  - people
camera_filters:
  - camera.garage

Providing Feedback

You can submit feedback for events to help make LLM Vision better for everyone. This helps us understand, what our users expect from a good event description.

To provide feedback:

• Click on any event in the timeline or the preview card
• Click the three dots
• In the menu, select either thumbs up or thumbs down, depending on how good the response is.
• If you selected thumbs down, select a reason and follow the remaining steps.

We don't collect personal information. Our privacy policy applies._
