rupixel — search documents by meaning, including pictures of pages

-orange.svg)

rupixel finds the documents that match what you mean, not just the words you typed. You can search a pile of documents two ways:

By their text — the classic approach.
By how the page looks — rupixel takes a screenshot of each page and

searches the pictures. That matters when the text is locked inside a scan, an image, a table, or a chart that ordinary text search can't read.

Try it right now — all run entirely in your browser, no install, no server:

▶ Real-time video search: https://ruvnet.github.io/rupixel/live.html

— point a camera/screen at it, type what you're looking for, jump to the moment.

▶ Visual search: https://ruvnet.github.io/rupixel/visual.html
▶ Text search: https://ruvnet.github.io/rupixel/

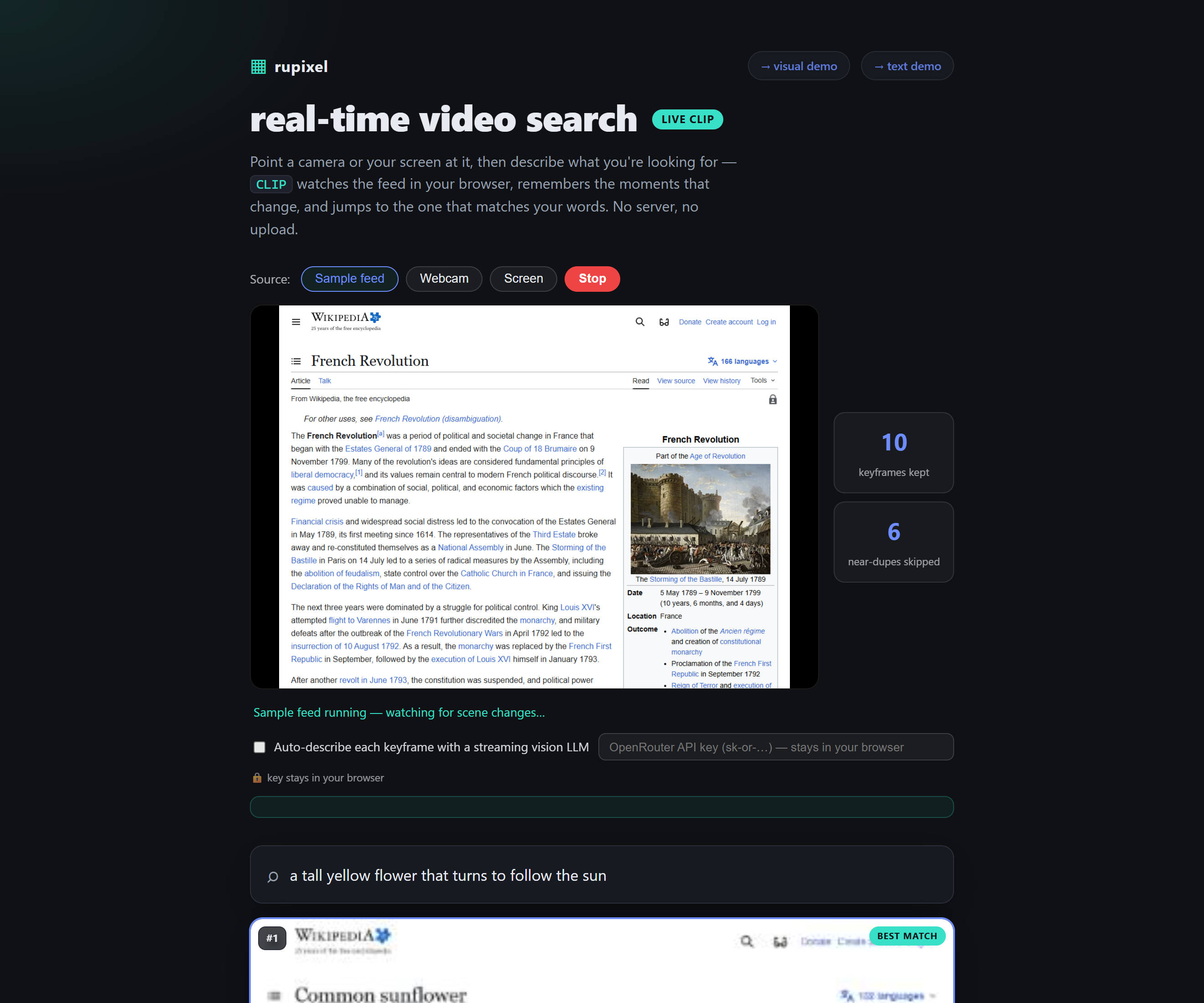

Real-time video search (live)

A live feed (sample clip / webcam / screen) is sampled a few times a second. Frames that barely changed are skipped (a "keyframe gate"); the rest are embedded with CLIP so you can search the stream by meaning. Highlights:

Runs on your GPU when available (WebGPU via transformers.js v3), falling back

to CPU/WASM automatically — so frame embedding is fast enough to feel live.

Runs on your GPU when available (WebGPU via transformers.js v3), falling back

to CPU/WASM automatically.

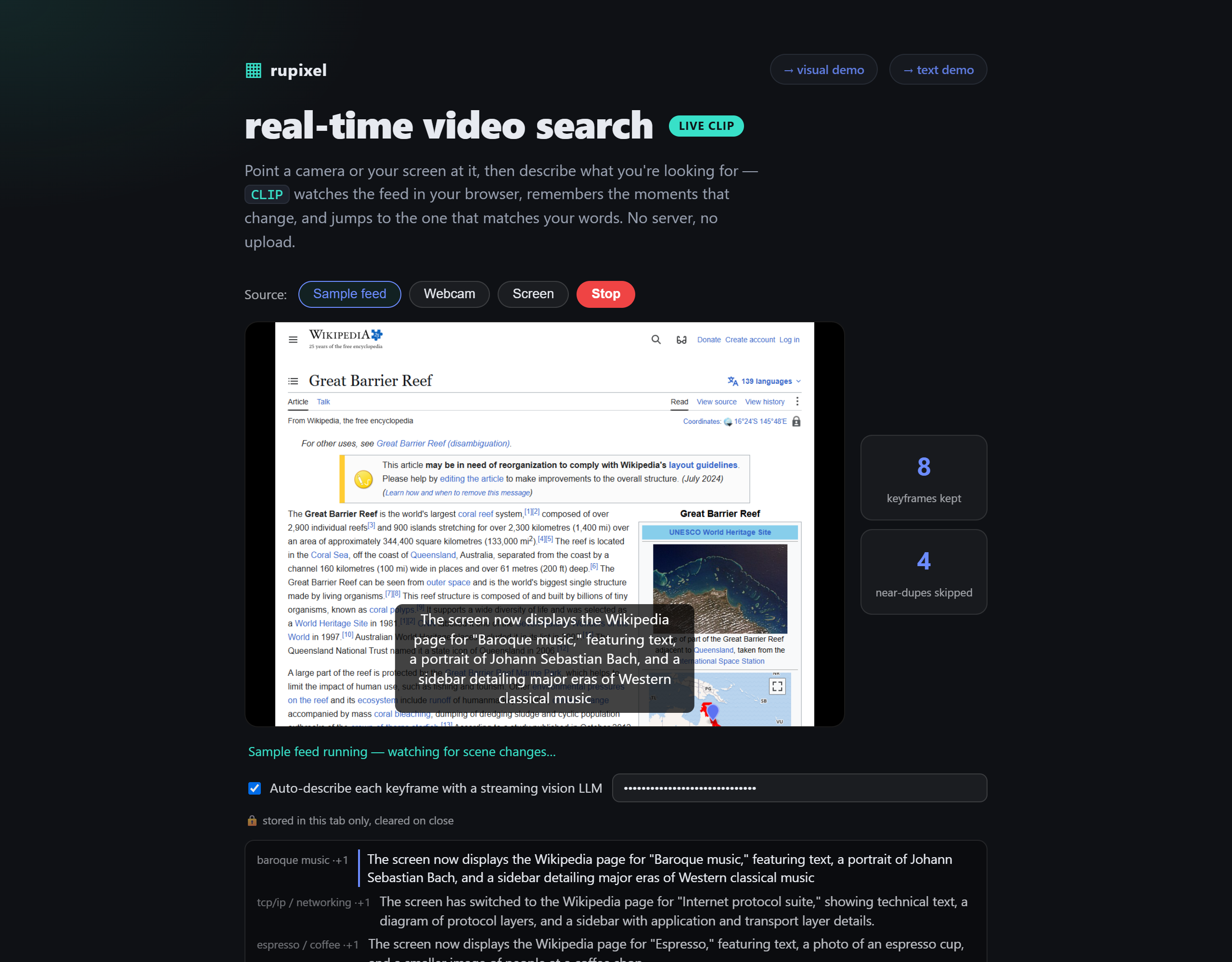

Optional live captions (like closed captions). A streaming vision LLM

(default Qwen3-VL, a recent, low-cost Chinese vision model) narrates each keyframe word-by-word: the current line shows as a subtitle over the video, and every line is kept in a timestamped transcript below it.

Built for motion. When lots changes at once, it doesn't flood — it describes

only the latest settled frame (skipping the in-between ones, shown as ·+N) and feeds the previous caption as context, so the captions narrate *what changed* ("the screen has switched to…") instead of restarting each time.

Your API key is handled safely. The public demo is bring-your-own-key:

your OpenRouter key is stored only in your browser tab (sessionStorage, cleared when you close it), sent only to OpenRouter, never uploaded here or committed. For a shared/managed key, run the included server-side proxy (describe-proxy.mjs) that reads the key from an environment variable and paste the proxy's URL instead — the key then never reaches the browser at all.

Design details: ADR-265 (pipeline), ADR-266 (MidStream scale tier + the key-security proxy), ADR-267 (experimental optical front-end).

In the demo above, the question "the unseen monster lurking at a galaxy's center"

brings back the black-hole page — even though the question never says the

words "black hole." That's searching by meaning.

A 30-second explainer (no jargon)

Searching by meaning. A computer can't compare meanings directly, so each

document is turned into a long list of numbers that captures what it's about. Things that mean similar things get similar numbers. To search, we turn your question into numbers the same way and find the documents whose numbers are closest. (The technical name for "meaning as numbers" is an embedding.)

Two translators do this:

- Text → numbers: a small, fast model called MiniLM. - Picture → numbers and text → numbers, in the same number-space: a model called CLIP. Because CLIP puts pictures and words in the same space, you can type words and get back images — that's the visual search.

It's fast and private. The models are small enough to run on a normal CPU,

right inside your browser tab. Nothing is uploaded.

What the numbers in the demo mean. Each result shows a score like 0.27.

That's a similarity score (how close the meanings are — higher is a better match), not a time. Speed is reported separately, in milliseconds.

This idea — "search the picture of the page" — comes from a project called PixelRAG. rupixel is a fresh re-build of it in the Rust language, on top of ruvector (a fast engine for storing and searching those number-lists).

"RAG"? It stands for Retrieval-Augmented Generation: first find the

documents relevant to a question, then hand them to an AI to write the answer.

rupixel is the "find" half — the search engine, not the answer-writer.

How well does it work?

We tested it on 8 real Wikipedia pages (black holes, the French Revolution, photosynthesis, espresso, TCP/IP, baroque music, sunflowers, the Great Barrier Reef) using 8 questions phrased in everyday words that don't reuse the page's vocabulary — so it can only succeed by understanding meaning.

| How we searched | Got the right page #1 | Speed per search | |---|---|---| | By text (MiniLM reads the words) | 8 out of 8 | ~0.6 ms | | By picture (CLIP looks at the screenshot) | 8 out of 8\* | ~0.5 ms |

\* 8/8 when run on the desktop/Rust side. The in-browser version gets 7 out of 8 (it draws the images slightly differently, which flips one near-tie: "a coral ecosystem" puts the reef page 2nd behind the photosynthesis page — both are green nature scenes).

The honest takeaway: these 8 pages are easy — clean text, clearly different topics — so both methods ace it and the test can't really tell them apart. The point of visual search shows up on the hard stuff that text search chokes on: scanned paper, screenshots, complex layouts, tables and charts. That harder test is the next thing to build. Also, **CLIP is a modest, free, CPU-friendly "eyes" model** — a stronger one (like Qwen3-VL or ColPali) would do better, but needs a graphics card (GPU). Full details and how to reproduce these numbers: docs/BENCHMARK.md.

Try the command-line tool

npx rupixel            # what it is + links
npx rupixel doctor     # check your setup

npx rupixel is a tiny helper (no install needed beyond Node 18+). It explains the project and runs the benchmark harness. It does not compile the Rust code for you — see "Run it yourself" for that.

How finished is this?

**Early-stage, but everything described here actually runs — there is no fake or placeholder code.** What works today:

✅ Text search with a real model (MiniLM).
✅ Visual search with a real model (CLIP) over real page screenshots.
✅ Page rendering (turning a web page or PDF into a screenshot) using a real

headless browser.

✅ Two live in-browser demos + a reproducible benchmark.

What's not done yet (and is honestly described as future work, not faked):

A stronger visual model (Qwen3-VL / ColPali) for sharper results — needs a GPU.
A bigger, harder test set (scans, tables, charts) to really show where

visual search beats text search.

What's inside (for developers)

The pipeline is simple: **turn each page into numbers → store them → find the closest ones to your query.**

page  →  (text or screenshot)  →  numbers (MiniLM / CLIP)  →  stored in ruvector
your question  →  numbers  →  find the closest pages  →  ranked results

Three small Rust packages, all real code:

| Package | What it does | |---|---| | pixelrag-core | the pipeline + storing/searching the number-lists (via ruvector) | | pixelrag-encoder | turns text/images into number-lists (MiniLM / CLIP) | | pixelrag-cli | runs the benchmarks and prints accuracy + speed |

The models run via small Node.js helper scripts ("sidecars") so they work on a plain CPU with no special setup. Storage and search use two interchangeable indexing methods from ruvector (you can switch between them to trade memory for speed).

There's also an optional, completely removable tuning tool

(metaharness/darwin) that

can automatically search for the fastest/most-accurate settings. The project

works fine without it — details in docs/BENCH.md.

Run it yourself

The Rust code lives inside the ruvector project (it reuses ruvector's search engine), so build it from a ruvector checkout:

# one-time: install the small model helpers
( cd crates/pixelrag-cli/sidecar && npm install )
build
cargo build -p pixelrag-core -p pixelrag-cli
search by text (MiniLM)
cargo run -p pixelrag-cli -- benchmark --mode text  --embedder real \
  --ground-truth tests/fixtures/pixelrag/compare/text/ground-truth.json \
  --queries      tests/fixtures/pixelrag/compare/text/queries.json \
  --tiles        tests/fixtures/pixelrag/compare/text/tiles \
  --metrics ndcg,mrr,recall@10
search by picture (CLIP, over the page screenshots)
cargo run -p pixelrag-cli -- benchmark --mode visual

More detail in rust/README.md.
