Usernetes: Kubernetes without the root privileges (Generation 2)

Usernetes (Gen2) deploys a Kubernetes cluster inside Rootless Docker, so as to mitigate potential container-breakout vulnerabilities.

[!NOTE]

Usernetes (Gen2) has significantly diverged from the original Usernetes (Gen1),

which did not require Rootless Docker to be installed on hosts.

See the gen1 branch for

the original Usernetes (Gen1).

Usernetes (Gen2) is similar to Rootless kind and Rootless minikube, but Usernetes (Gen 2) supports creating a cluster with multiple hosts.

Components

• Cluster configuration: kubeadm
• CRI: containerd
• OCI: runc
• CNI: Flannel

Requirements

• One of the following host operating system:

• One of the following container engines:

curl -o install.sh -fsSL https://get.docker.com
sudo sh install.sh
dockerd-rootless-setuptool.sh install

• systemd lingering:

sudo loginctl enable-linger $(whoami)

• cgroup v2 delegation:

sudo mkdir -p /etc/systemd/system/user@.service.d
sudo tee /etc/systemd/system/user@.service.d/delegate.conf <<EOF >/dev/null [Service] Delegate=cpu cpuset io memory pids EOF
sudo systemctl daemon-reload

• Kernel modules:

sudo tee /etc/modules-load.d/usernetes.conf <<EOF >/dev/null
br_netfilter
vxlan
EOF
sudo systemctl restart systemd-modules-load.service

• sysctl:

sudo tee /etc/sysctl.d/99-usernetes.conf <<EOF >/dev/null
net.ipv4.conf.default.rp_filter = 2
EOF
sudo sysctl --system

• slirp4netns, not Pasta:

# Podman v5 (or later) users have to change the network mode from pasta to slirp4netns.
This step is not needed for Docker, nerdctl, and Podman v4.
mkdir -p "$HOME/.config/containers/containers.conf.d" cat <<EOF >"$HOME/.config/containers/containers.conf.d/slirp4netns.conf" [network] defaultrootlessnetwork_cmd="slirp4netns" EOF

Use scripts in ./init-host for automating these steps.

Usage

# Bootstrap a cluster
make up
make kubeadm-init
make install-flannel
Enable kubectl
make kubeconfig
export KUBECONFIG=$(pwd)/kubeconfig
kubectl get pods -A
Multi-host
make join-command
scp join-command another-host:~/usernetes
ssh another-host make -C ~/usernetes up kubeadm-join
make sync-external-ip
Debug
make logs
make shell
make kubeadm-reset
make down-v
kubectl taint nodes --all node-role.kubernetes.io/control-plane-

The container engine defaults to Docker. To change the container engine, set export CONTAINERENGINE=podman or export CONTAINERENGINE=nerdctl.

Customization

The following environment variables are recognized:

Name | Type | Default value ----------------------|---------|---------------------------------------------------------------- CONTAINER_ENGINE | String | automatically resolved to "docker", "podman", or "nerdctl" HOST_IP | String | automatically resolved to the host's IP address NODE_NAME | String | "u7s-" + the host's hostname NODE_SUBNET | String | "10.100.%d.0/24" (%d is computed from the hash of the hostname) PORT_ETCD | Integer | 2379 PORT_KUBELET | Integer | 10250 PORT_FLANNEL | Integer | 8472 PORTKUBEAPISERVER | Integer | 6443

Limitations

• Node ports cannot be exposed automatically. Edit docker-compose.yaml for exposing additional node ports.
• Most of host files are not visible with hostPath mounts. Edit docker-compose.yaml for mounting additional files.
• Some volume drivers such as nfs do not work.

Advanced topics

Network

containerd-rootless-setuptool.sh install-bypass4netnsd
export CONTAINER_ENGINE=nerdctl
make up

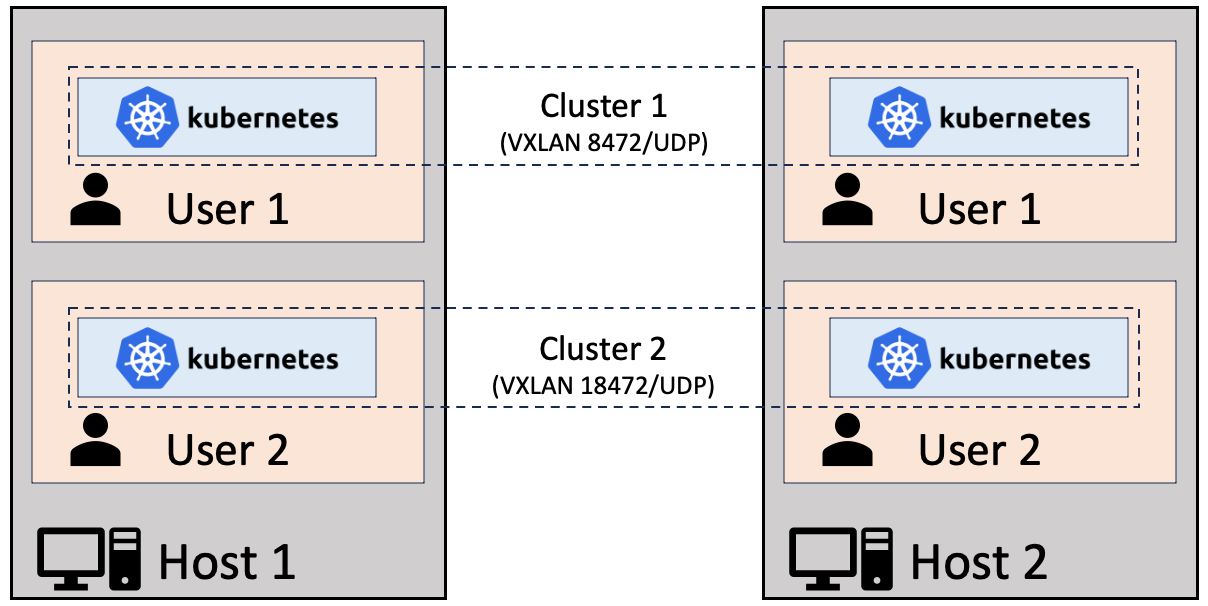

# Default: 2379
export PORT_ETCD=12379
Default: 10250
export PORT_KUBELET=20250
Default: 8472
export PORT_FLANNEL=18472
Default: 6443
export PORTKUBEAPISERVER=16443
make up
