Option contracts as ERC20-compatible tokens

UPDATE

You can try the DAPP on the http://www.erc20-options.com

Preface

In the crypto-currency world the number of traded tokens and their trading volume increased dramatically since the last time. The volatility of the market and increased trading activity implies significant demand for the derivative instruments. There are several projects which are active in the creation of them, but there are still not many production-ready solutions. Failure to find some instrument similar to "normal" call/put options was a motivation for me (along with the desire to "dive in" into Smart Contract world) to create one.

As a result I implemented creation ERC20-compatible option contracts (which allows them, contrary to other implementations, relatively easily to be traded via numerous Ethereum based exchanges and protocols).

General information about "normal", "off-chain" option contracts one can read in Wikipedia Option (finance) article. Below there are some specific things about implementation, based on Ethereum smart contracts.

Main Contracts

Option Contract. Gives its owner the right to get the specified amount of underlying (ERC20) tokens in exchange for basis ERC20 tokens during the period before expiration at the specified price (strike price). The transaction, which uses this right, is called "exercise"

Anti-Option Contract. Gives a right to get "non-exercised" part of deposited underlying and “exercised” part of basis token after the expiration date, or, if combined with Option Contract, to get the corresponding token amount before the expiration date.

Actors

• Option House: owner the generating contracts, defines the fee policy.

• Option Pair Creator: creates the 2 ERC20 compatible token contracts

(option an anti-option, s. later), which specifies ERC20 token pair (underlying and basis), strike price and expiration date. Additionally it creates a smart contract which check / performs "business logic". The creation of three contracts are relatively expensive in Ethereum gas terms. The idea, that the creator can take part of fees, paid later by contract usage, namely during Option Writing.

• Option Writer. Deposits the "underlying" ERC20-compatible tokens with minimum amount specified by by Option Line. in exchange she gets ERC20-compatible option contract as well as ERC20-compatible “anti-option” contract (s. later). For this transaction Option Writer pays fee.

• Option Buyer. Buys Option Contracts e.g. on exchanges (the Option Contracts are fully ERC20-compatible), via 0x protocol etc.

• Anti-Option Buyer. As Option Writer side of contracts is tokenized, one can sell / buy the Option Writer right to withdraw the deposit after expiration time too.

Use Cases

• Creation Option Token Contracts:

Creates 2 new ERC20 compatible Option and Anti-Option contracts

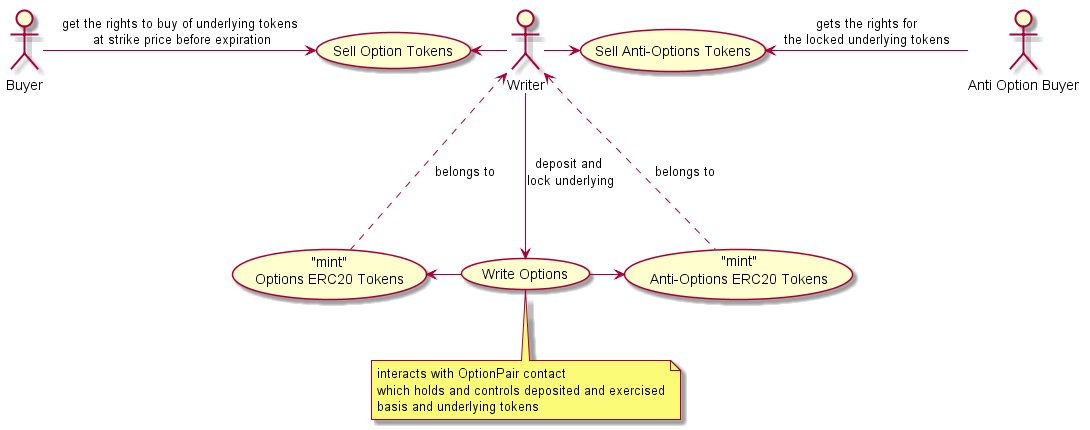

• Option Writing

creates (or mint) Option and Anti-Option contracts by depositing the specified in the contract underlying ERC20-compatible tokens Described above:

• Option Exercise:

Owner of option contract can exercise option contract before expiration time. To exercise the owner should supply corresponding amount of basis tokens :

• Withdraw:

Owner of anti-option contract can withdraw corresponding amount of underlying tokens and corresponding amount of exercised basis tokens after expiration time

• Annihilate:

The same amount of option and anti-option contracts can be "annihilated" before the expiration time. In this case the owner of the annihilated contracts gets the corresponding (as in case of withdraw) amount of the underlying and basis tokens

Example

Ann creates 2 (Option and Anti-Option) ERC20-compatible contracts which specify as underlying WETH (wrapped Ethereum, to make it ERC20-compatible) and basis DAI tokens, with the strike price 3000 and expiration date 31.12.2018 (current price at the time of writing is about 900 DAI per WETH).

Bob "writes" 10 option contracts. That is he deposits 10 WETH and get (or mint) 10 Option (OPTWETHDAI20181231) and 10 Anti-Option contracts (AOPTWETHDAI201812_31). At this point the fee could be taken. Note in the tables below the fees are not considered!

	Options	Anti-Options	WETH	DAI
Meta-Option Contract			10	0
Bob	10	10	0	0
Clair	0	0	0	350

Bob sells 7 OPTWETHDAI3112_2018 contracts to Clair for 50 DAI (actually could be any asset)

	Options	Anti-Options	WETH	DAI
Meta-Option Contract			10	0
Bob	3	10	0	350
Clair	7	0	0	0

At 01.09.2018 Bob will get back some WETH. He "annihilates" the remaining 3 OPT1WETH3000DAI20181231 with 3 anti-option contracts (AOPT1WETH3000DAI201812_31) and gets 3 from WETH back

	Options	Anti-Options	WETH	DAI
Meta-Option Contract			7	0
Bob	0	7	3	350
Clair	7	0	0	0

The price of Ethereum went up and per 2018-11-01 the price reaches 4000 DAI per WETH. Clair decides to exercise 5 of her options. So she borrows and transfers 5 3000 (strike price) to meta-option contract and get back 5 WETH. These 5 WETH she sells on exchange at 4000 to make 5000 (5 (4000 - 3000) ) DAI. Another possibility is to exercise option with exchange. In this case Clair does not need basis token at all. The corresponding amount of underlying is exchanged by the smart contract. As a result she gets DAI (exceed amount above corresponding "strike" amount) directly. Two option contracts she would like to hold for further growth.

	Options	Anti-Options	WETH	DAI
Meta-Option Contract			2	15000
Bob	0	7	3	350
Clair	2	0	5	0

	Options	Anti-Options	WETH	DAI
Meta-Option Contract			2	15000
Bob	0	7	3	350
Clair	2	0	0	5000

Suddenly the price drops for 2000 DAI (below strike) per WETH and remains below the strike price till expiration date. After expiration date Bob can withdraw the remaining 2 WETH (10 initial - 3 annihilated - 5 exercised) and 15000 DAI (from exercised part)

	Options	Anti-Options	WETH	DAI
Meta-Option Contract			0	0
Bob	0	0	5	15350
Clair	2 (expired)	0	0	5000

Exercise with exchange

The operations are displayed on the sequence diagram.

As it can be seen it allows for option holders exercise options without holding basis tokens at all. The smart contract exchange the requested amount of options and transfer excess amount above strike of basis token to option seller.

E.g. Clair has 10 Option contracts for WETH as underlying at strike 300 DAI per 1 WETH. Current price of WETH at exchange is 350 DAI. By selling 10 contracts with exchange, the smart contract sells 10 WETH and gets 3500 DAI. From this amount 500 DAI goes to Clair, the 3000 DAI (strike * 10 contracts) remain at the smart contract for further withdraw by "anti-option" holders

Monetisation: Option Series Creation and Fees

The main idea of monetisation is collection the fees during option writing. The right to withdraw fees belongs to a ERC721 "option serie" token owner.

An user can create option serie and write options just after that. During the creation a ERC721 token is minting to a specific account. Besides this specific "fee collector" contract is created. From this contract the collected fees can be withdrawn only by a corresponding ERC721 token owner. The ERC721 token can be directly transferred to an auction for sale (currently it goes to the owner of the corresponding contract)

Others

• Put option contract

* There is no need for them: just swap underlying and base token. In this case Ann needs to create line with underlying DAI, base WETH, e.g. 1 WETH per 500 DAI

• Differences to "normal" option contract

Due to tokenisation of the writer part of the contracts, the exercised and not-exercised part of the contracts are shared among all writers. E.g if Bob writes 10 options by depositing 10 WETH, Dan writes 30 options (30 WETH) and only 10 of them were executed for strike 3000 DAI, after expiration date Bob can withdraw 7.5 WETH plus 2.5 3000 DAI and Dan can withdraw 22.5 WETH and 7.5 * 3000 DAI

Naked Options*: cannot be created

Installation, Testing

Pre-requisite: truffle installation. To install run:

npm install -g truffle

To test clone repo and run tests with the help of truffle run the next snippet

git clone https://github.com/mxn/eth_option.git
cd eth_option
npm install
truffle test

The example of usage of the smart contracts can be seen under test/ directory

The web frontend is currently being developed in https://github.com/mxn/ethoptionui.git repository.

Current State

MVP version of the contracts with the web-frontend deployed on the http://www.erc20-options.com.

The implementation is being made in my spare time. Generally I would be glad to find some support to proceed with the things further with more dedicated time for the development (I have a couple other ideas to monetise the solution).
