zt — minimal terminal emulator in Zig

A small terminal emulator written in Zig. Renders to the Linux framebuffer, X11 (XCB + SHM), Wayland (pure Zig wire protocol, no libwayland), or macOS (Cocoa/AppKit, untested). No GPU required.

Originally built for the HackberryPi Zero (RPi Zero 2W + 720x720 HyperPixel4). Runs on any Linux system.

Note: This is an experimental project. It works well enough for daily use with common CLI tools, but it is not a full-featured terminal. See Limitations for what's missing.

Benchmarks

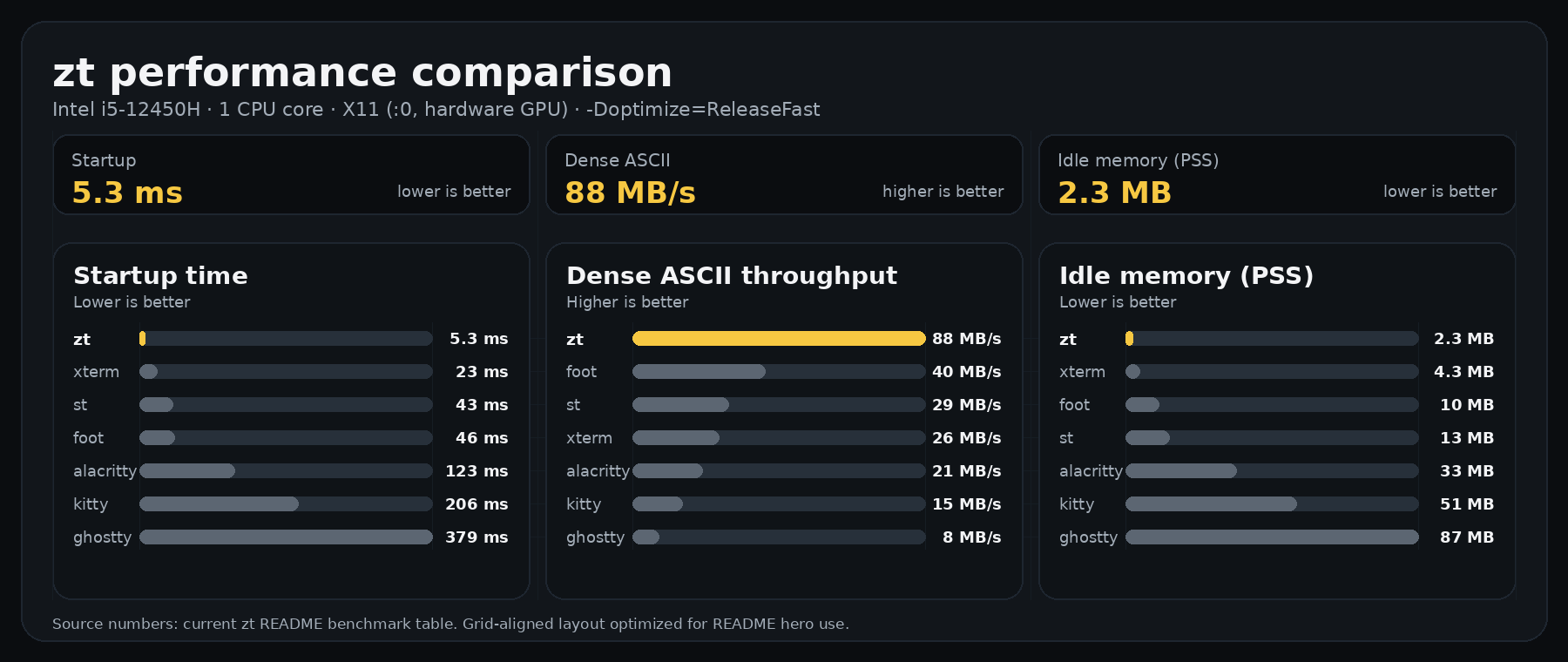

zt performance comparison

Measured on Intel i5-12450H, 1 CPU core, X11 (:0, hardware GPU), -Doptimize=ReleaseFast. See zt-bench for methodology, detailed results, and how to reproduce.

Features

Rendering

Four backends — framebuffer (no X11/Wayland), XCB + SHM under X11, pure Zig Wayland client (no libwayland), Cocoa/AppKit on macOS (experimental, untested)
Pixel scaling — -Dscale=2 or -Dscale=4 for HiDPI. Integer scaling, same font blob
Double-buffered SHM — tear-free rendering on X11 and Wayland
Adaptive frame limiter — reduces FPS under heavy output to avoid wasting CPU

Terminal

xterm-256color + 24-bit TrueColor — SGR attributes (bold, italic, underline, reverse, dim, strikethrough), styled underlines (single/double/curly/dotted/dashed) with custom colors, DEC modes, alternate screen
Bracketed paste — DECSET 2004
CJK wide characters — double-width rendering with boundary repair
59,635 glyphs — UFO bitmap font + Nerd Fonts icons, embedded at compile time
XKB keyboard layout — any X11/Wayland layout (US, JP, DE, FR, etc.)
Input method — XIM under X11, text-input-v3 under Wayland (fcitx5, ibus, etc.)
Inline pre-edit (IME composition) — Wayland text-input-v3 preedit; composition text is rendered at the cursor position with reverse-video / underline / highlight feedback from the IME
OSC 8 hyperlinks — parsed and stored; click-to-open is not yet implemented
OSC 52 clipboard — copy to system clipboard via xclip/wl-copy (disabled by default for security)

Performance

Bulk ASCII fast path — SIMD 16-byte range check, 8-byte template cell writes
UTF-8 bulk path — multi-byte sequences decoded directly in ground state
Row-map scroll — O(1) scroll via row indirection instead of copying cells
Lazy metadata planes — TrueColor, underline-color and hyperlink arrays are only written while those features are in use
Damage tracking — per-cell dirty flag, row-level skip
Comptime configuration — backend, font, palette, scale resolved at compile time

Build

Requires Zig 0.16+.

| | fbdev | X11 | Wayland | |---|---|---|---| | Binary (stripped, with 59K-glyph font) | ~3 MB | ~3 MB | ~3 MB | | Runtime dependencies | none | libxcb, libxcb-shm, libxcb-xkb, libxkbcommon, libxcb-imdkit | libxkbcommon |

Quick Start

# X11
zig build -Dbackend=x11 -Doptimize=ReleaseFast
Wayland
zig build -Dbackend=wayland -Doptimize=ReleaseFast
Framebuffer (bare Linux console, no X/Wayland)
zig build -Doptimize=ReleaseSmall
Run
./zig-out/bin/zt

Add -Dstrip=true to remove debug symbols.

More Options

# HiDPI (2x or 4x pixel scaling)
zig build -Dbackend=x11 -Dscale=2 -Doptimize=ReleaseFast
Custom shell (default: /bin/sh)
zig build -Dbackend=x11 -Dshell=/bin/fish -Doptimize=ReleaseFast
60fps cap (battery saving)
zig build -Dbackend=x11 -Dmax_fps=60 -Doptimize=ReleaseFast
Smaller PTY buffer (conserve memory)
zig build -Dbackend=x11 -Dptybufkb=256 -Doptimize=ReleaseSmall
Disable scrollback (smaller binary, no scroll history)
zig build -Dbackend=x11 -Dscrollback_lines=0 -Doptimize=ReleaseFast
Smaller scrollback (lower memory)
zig build -Dbackend=x11 -Dscrollback_lines=2000 -Doptimize=ReleaseFast
Wheel scrolls alt-screen scrollback (for codex CLI / long TUI sessions).
Default off: wheel translates to arrow keys in alt screen (less/vim compat).
zig build -Dbackend=x11 -Daltscreenwheel_scrollback=true -Doptimize=ReleaseFast
Custom BDF or TTF font (experimental — see Font section)
zig build -Dbackend=x11 -Dfont=path/to/myfont.ttf -Doptimize=ReleaseFast
Cross-compile for aarch64
zig build -Dtarget=aarch64-linux -Doptimize=ReleaseSmall
macOS (experimental, untested — see note below)
zig build -Dbackend=macos -Dshell=/bin/zsh -Doptimize=ReleaseFast
Run tests
zig build test

Wayland Backend

Implements the Wayland wire protocol directly in Zig — no libwayland-client dependency. Only libxkbcommon is needed for keyboard layout.

Supported protocols: xdg-shell, wlshm, text-input-v3 (IME), wldatadevice + primary selection (clipboard), xdg-decoration, wpcursorshapemanager_v1.

macOS Backend (Experimental)

Note: Developed without access to macOS hardware and never tested on a real Mac. Uses Cocoa/AppKit via objc_msgSend from Zig. Bug reports welcome.

Status

| Backend | Status | |---------|--------| | fbdev | Stable — used daily on HackberryPi | | X11 | Stable — primary development target | | Wayland | Works — IME and basic usage tested | | macOS | Untested — compiles but never run on real hardware |

Configuration

Edit config.zig and rebuild — st-style, no runtime config files.

pub const backend: Backend = .fbdev;  // set via -Dbackend
pub const keymap: Keymap = .us;       // set via -Dkeymap (fbdev only)
pub const default_fg: u8 = 7;        // white
pub const default_bg: u8 = 0;        // black
pub const font_width: u32 = 8;
pub const font_height: u32 = 16;
pub const scale: u32 = 1;            // set via -Dscale
pub const maxfps: u32 = 120;        // set via -Dmaxfps (0 = unlimited)

Font

Embeds a pre-compiled binary font blob at compile time. The default includes ~60K glyphs (Latin, Japanese, Nerd Fonts icons).

curl -Lo src/fonts/ufo-nf.bin https://github.com/midasdf/zt-fonts/raw/main/ufo-nf.bin

See zt-fonts for sources, build scripts, and custom fonts.

Custom fonts (experimental)

You can embed your own font instead of the default blob with -Dfont. Both bitmap (BDF) and TrueType outline (TTF) fonts are accepted:

# Bitmap font
zig build -Dbackend=x11 -Dfont=path/to/myfont.bdf -Doptimize=ReleaseFast
TrueType outline font (rasterized to the 8x16 cell at build time)
zig build -Dbackend=x11 -Dfont=path/to/myfont.ttf -Doptimize=ReleaseFast

Everything happens at build time via pure-Zig host tools, with **no external dependencies** (no FreeType, no FontForge):

tools/ttf2bdf.zig rasterizes TrueType (glyf) outlines into a fixed-cell,

1-bit BDF — scaling is derived from the font's own metrics (advance width → cell width, ascent/descent → cell height).

tools/bdf2blob.zig packs the BDF into zt's binary blob format.

The runtime stays zero-dependency: only the resulting blob is embedded, exactly as with the default font.

Example — Topaz NG, a vector revival of the Amiga Topaz font (its 8×16 cell matches zt natively):

zig build -Dbackend=x11 -Dfont=TopazNG_Code-Regular.ttf -Doptimize=ReleaseFast

Experimental. Glyphs are embedded as 1-bit monochrome bitmaps at the fixed

8×16 cell (no antialiasing, no color emoji). TrueType glyf outlines only —

CFF-based OTF is not supported (use the .ttf variant). Fine-tuning flags

are available when running tools/ttf2bdf.zig directly (--baseline,

--xscale, --yscale, --xoff, --preview).

Architecture

epoll event loop (single-threaded)
├── PTY reader → VT parser → cell grid
│   ├── ASCII fast path (SIMD bulk write)
│   └── UTF-8 fast path (direct decode)
├── Input (evdev / XKB+XIM / XKB+text-input-v3)
├── Renderer (dirty-region, frame-limited)
├── Backend (fbdev mmap / X11 SHM / Wayland wl_shm)
└── Signals, timers, write buffering

Keybindings

| Keys | Action | |------|--------| | Ctrl+Shift+C | Copy selection to clipboard (X11/Wayland) | | Ctrl+Shift+V | Paste from clipboard (X11/Wayland) | | Shift+PageUp / Shift+PageDown | Scroll scrollback one page up / down (active ring: main or alt-screen) | | Shift+Home / Shift+End | Jump to scrollback top / live bottom (active ring) | | Left-click drag | Select text | | Mouse wheel | Scrollback (main screen) / arrow keys (alt screen, default) / scrollback (alt screen with -Daltscreenwheel_scrollback=true) / app (mouse capture) |

Tested Applications

vim, nano, micro, less, bat, top, btop, man, git, eza, tree, ripgrep, python3 REPL, fish, Claude Code

Some applications may have minor rendering issues due to missing features (see below).

Limitations

Scrollback — fixed capacity, set at compile time via -Dscrollback_lines=N (default 10000, 0 disables). No reflow on column resize, no selection of scrollback rows yet. Both the main screen and the alt screen have their own session-scoped scrollback rings: the alt ring is created on enter-alt and freed on leave-alt, so less/vim/codex history is scoped to that session and never pollutes the main ring.
Mouse wheel — scrolls scrollback in main screen; translates to arrow keys for less/vim in alt screen (default); scrolls the alt-screen ring when -Daltscreenwheelscrollback=true is set at build time (opt-in for codex-style sessions); passes through to apps with mouse capture (mousemode != .none).
No clipboard paste on fbdev — X11/Wayland support Ctrl+Shift+V
Bitmap rendering only — single embedded blob (1-bit, fixed 8×16 cell), no antialiasing, no runtime system font lookup or fallback. A custom BDF or TTF can be embedded at build time via -Dfont (experimental, see Font)
No X11 inline pre-edit display — XIM uses PreeditNothing, so the IME handles composition display
No ligatures
No sixel/image protocol
Blink attribute — parsed but not visually rendered
fbdev keymap — compile-time only (US/JP); X11/Wayland use XKB

Supported escape sequences

CSI sequences

| Sequence | Name | Description | |----------|------|-------------| | CSI n A | CUU | Cursor up | | CSI n B/e | CUD/VPR | Cursor down | | CSI n C/a | CUF/HPR | Cursor forward | | CSI n D | CUB | Cursor back | | CSI n E | CNL | Cursor next line | | CSI n F | CPL | Cursor preceding line | | CSI n G/ | CHA/HPA | Cursor horizontal absolute | | CSI n;m H/f | CUP | Cursor position | | CSI n I | CHT | Cursor forward tabulation | | CSI n J | ED | Erase display (0: below, 1: above, 2/3: all) | | CSI n K | EL | Erase line (0: right, 1: left, 2: all) | | CSI n L | IL | Insert lines | | CSI n M | DL | Delete lines | | CSI n P | DCH | Delete characters | | CSI n X | ECH | Erase characters | | CSI n @ | ICH | Insert characters | | CSI n Z | CBT | Cursor backward tabulation | | CSI n b | REP | Repeat preceding graphic character | | CSI n S | SU | Scroll up | | CSI n T | SD | Scroll down | | CSI n d | VPA | Vertical position absolute | | CSI n g | TBC | Tab clear (0: current, 3: all) | | CSI t;b r | DECSTBM | Set scroll region | | CSI s | | Save cursor position | | CSI u | | Restore cursor position | | CSI 5 n | DSR | Device status report (OK) | | CSI 6 n | DSR | Cursor position report | | CSI c | DA1 | Device attributes | | CSI > c | DA2 | Secondary device attributes | | CSI ! p | DECSTR | Soft terminal reset | | CSI Ps SP q | DECSCUSR | Set cursor style | | CSI Ps $ p | DECRQM | Mode query | | CSI 4 h/l | IRM | Insert/replace mode | | CSI ... m | SGR | Select graphic rendition |


SGR
| Code | Effect | |------|--------| | 0 | Reset all | | 1 | Bold | | 2 | Dim | | 3 | Italic | | 4, 4:1-4:5 | Underline (single/double/curly/dotted/dashed) | | 7 | Reverse video | | 9 | Strikethrough | | 30-37, 90-97 | Foreground color | | 38;5;n | 256-color foreground | | 38;2;r;g;b | TrueColor foreground | | 40-47, 100-107 | Background color | | 48;5;n | 256-color background | | 48;2;r;g;b | TrueColor background | | 58;5;n / 58;2;r;g;b | Underline color |
DEC private modes

| Mode | Description | |------|-------------| | ?1 | Application cursor keys | | ?7 | Auto-wrap | | ?25 | Cursor visible | | ?47, ?1047, ?1049 | Alternate screen | | ?2004 | Bracketed paste | | ?2026 | Synchronized update | | ?1004 | Focus events |


OSC sequences

| Sequence | Description | |----------|-------------| | OSC 0/2 | Set window title | | OSC 8 | Hyperlinks (parsed, click not implemented) | | OSC 52 | Clipboard copy (disabled by default) | | OSC 10/11/12 | Query fg/bg/cursor color |
