SHATTERED

Screenshots (click to expand)

Dashboard & LLM Configuration

Configure local or cloud LLM providers with one-click switching between LM Studio, Ollama, OpenAI, Groq, and custom endpoints.

ACH Analysis with AI Assistant

Full Analysis of Competing Hypotheses implementation with AI-powered observations, recommendations, and devil's advocate mode.

Graph Visualization

Interactive network analysis with 10+ visualization modes including force-directed layouts and geospatial mapping.

| Force-Directed | Geospatial | |----------------|------------| | | |

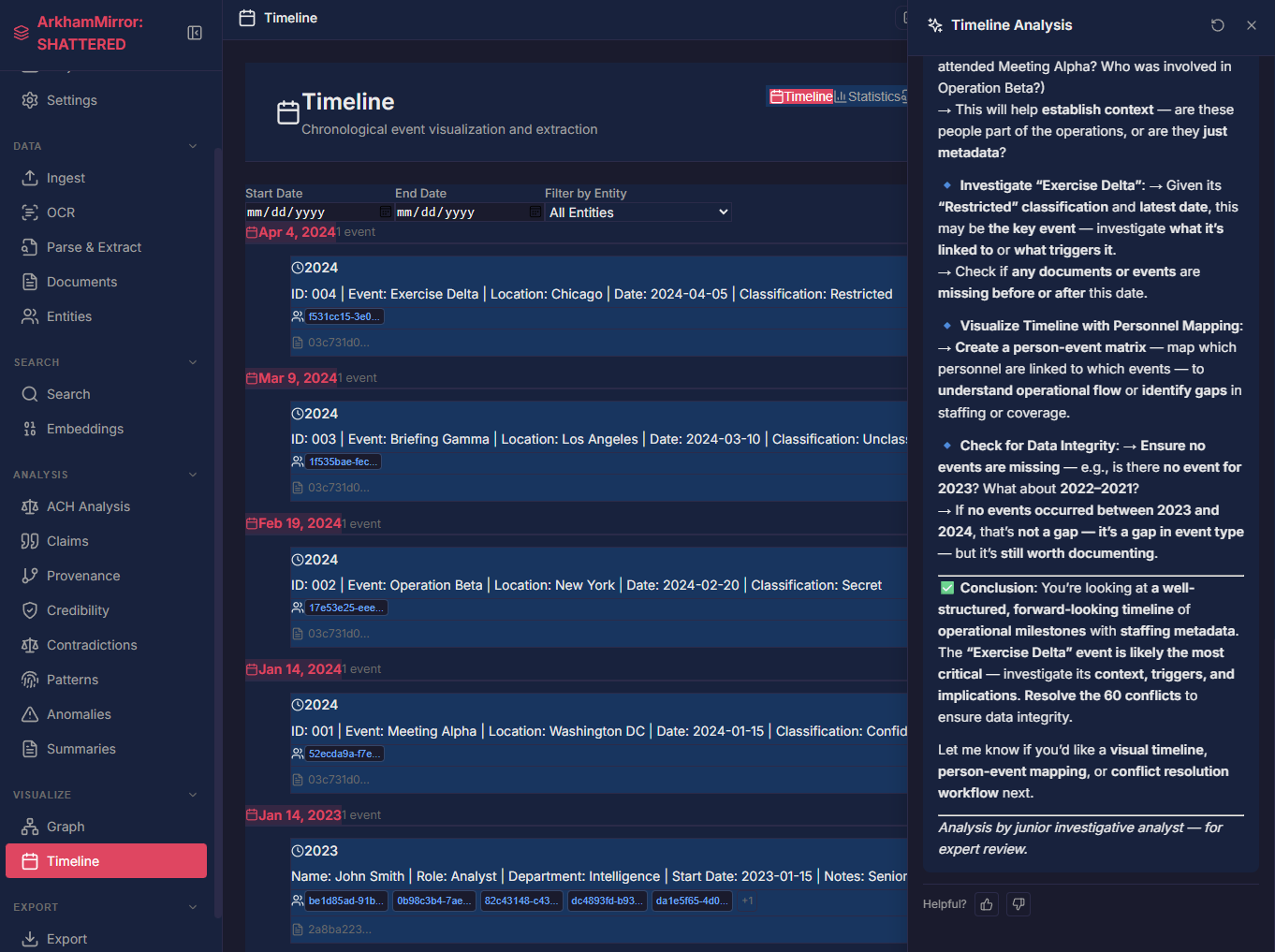

Timeline Analysis

Temporal event extraction with AI-powered analysis, conflict detection, and phase management.

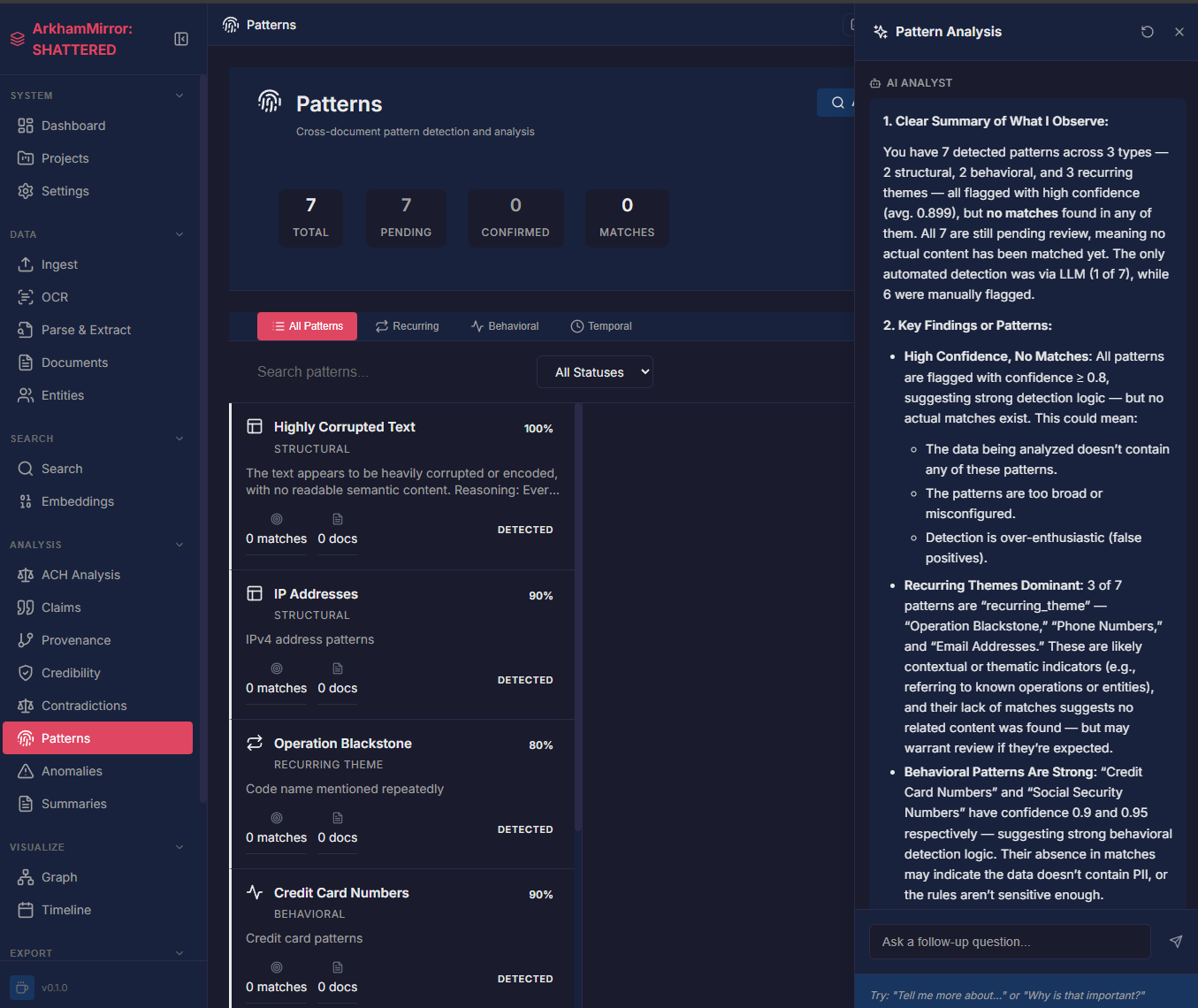

Pattern Detection

Automated pattern recognition across documents with statistical analysis and AI interpretation.

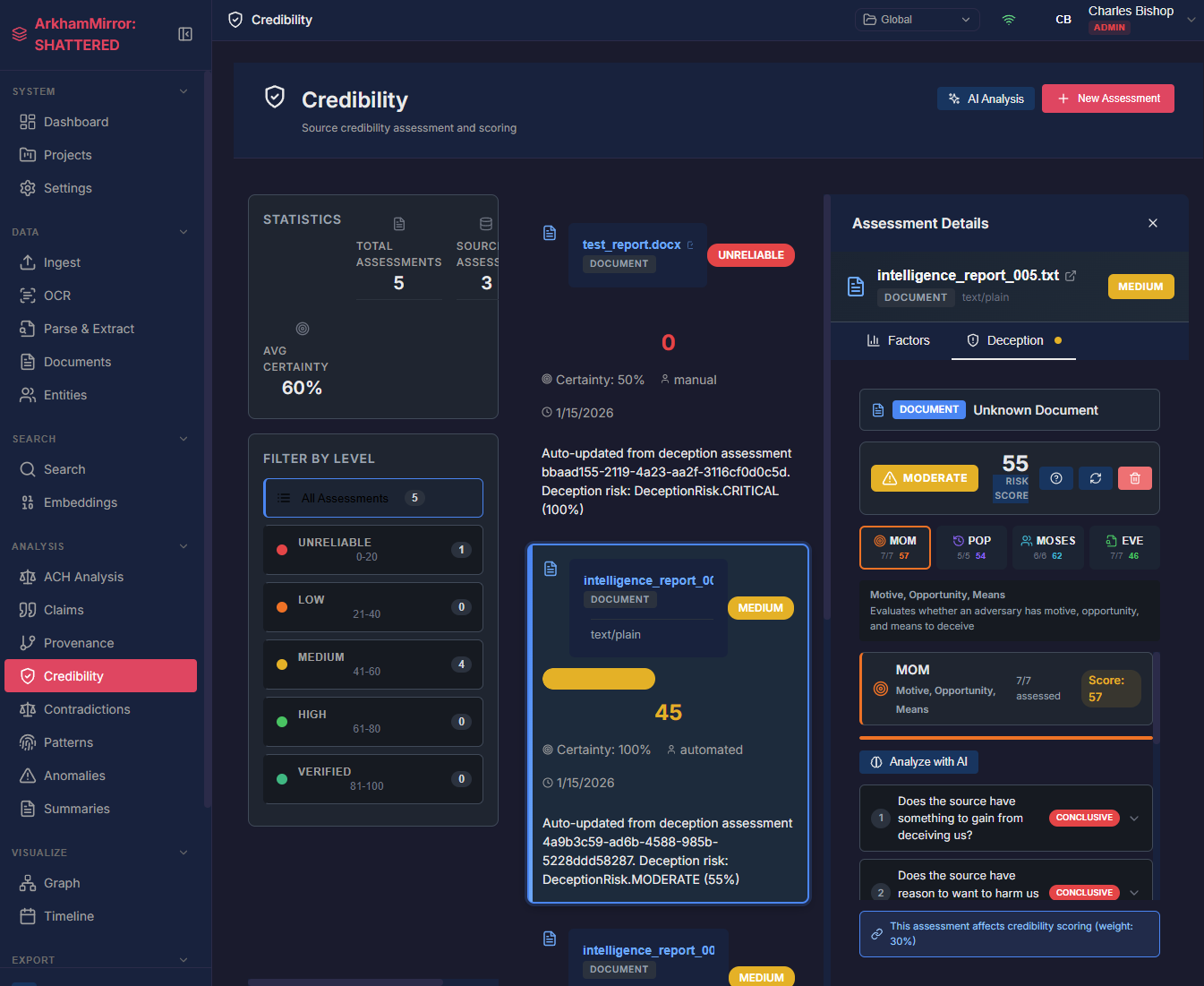

Credibility Assessment

Source reliability scoring with deception detection checklists (MOM, POP, MOSES, EVE).

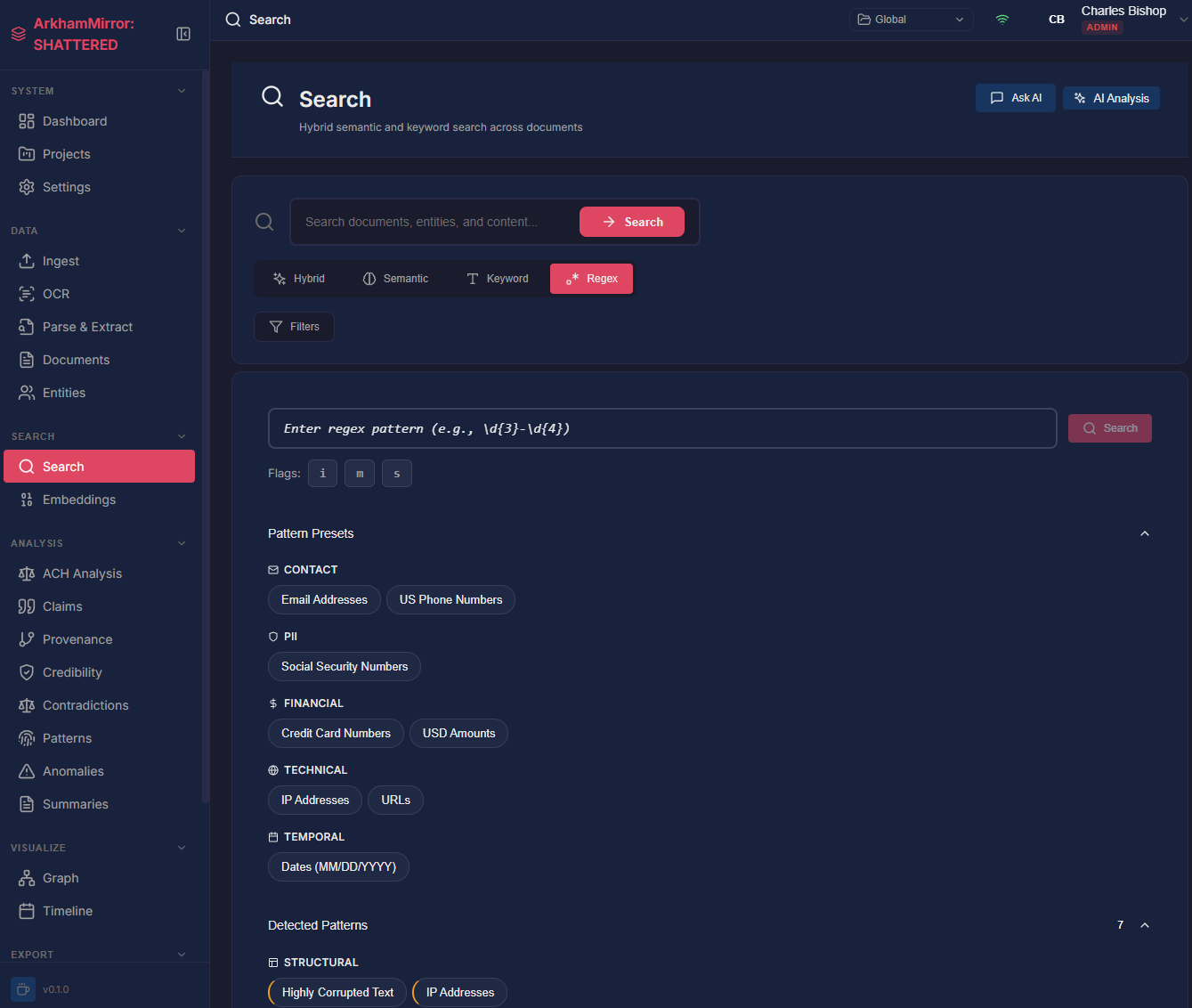

Search with Regex Presets

Hybrid semantic/keyword search with built-in regex patterns for PII, financial data, and technical indicators.

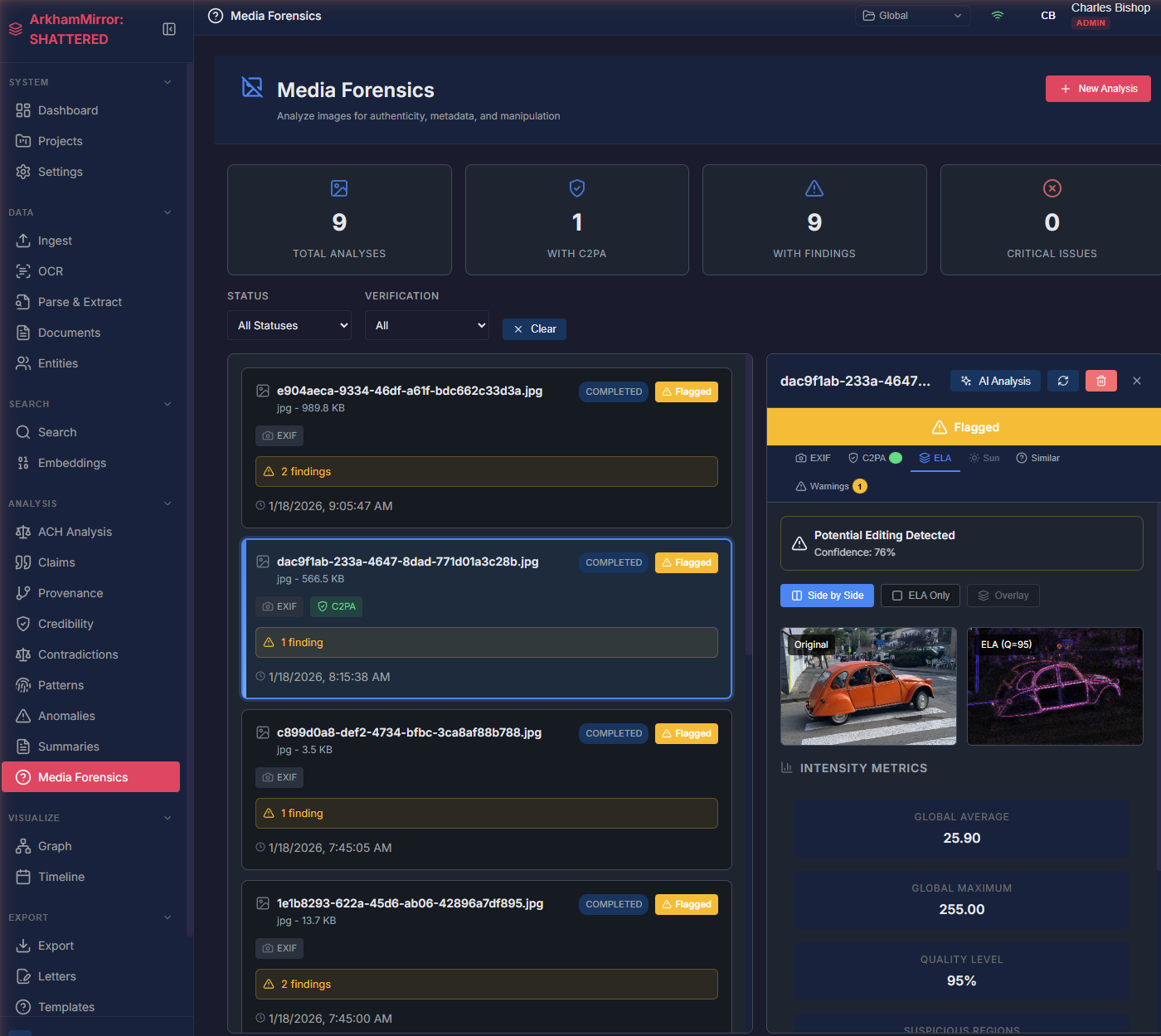

Media Forensics

Image authenticity analysis with EXIF extraction, Error Level Analysis (ELA), perceptual hashing, and reverse image search integration.

---

Philosophy

SHATTERED isn't a product - it's a platform. The shards are the products. Or rather, bundles of shards configured for specific use cases.

Core Principles:

• Build domain-agnostic infrastructure that supports domain-specific applications
• Lower the bar for contribution so non-coders can build custom shards
• Provide utility to people in need, not just those who can pay
• Local-first: Your data never leaves your machine unless you want it to
• Privacy-preserving: No telemetry, no cloud dependencies, full data sovereignty

---

The Meta-Pattern

Every investigative workflow follows the same fundamental pattern:

INGEST --> EXTRACT --> ORGANIZE --> ANALYZE --> ACT
  |          |           |            |          |
  |          |           |            |          +-- Export, Generate, Notify
  |          |           |            +-- ACH, Contradictions, Patterns, Anomalies
  |          |           +-- Timeline, Graph, Matrix, Provenance
  |          +-- Entities, Claims, Events, Relationships
  +-- Documents, Data, Communications, Records

• Core shards handle INGEST and EXTRACT
• Domain shards handle ORGANIZE and ANALYZE
• Output shards handle ACT

---

Architecture

SHATTERED uses the Voltron architectural philosophy: a modular, plug-and-play system where self-contained shards combine into a unified application.

+------------------+
                    |   ArkhamFrame    |    <-- THE FRAME (immutable core)
                    |   (17 Services)  |
                    +--------+---------+
                             |
                    +--------+---------+
                    |   arkham-shell   |    <-- THE SHELL (UI renderer)
                    | (React/TypeScript)|
                    +--------+---------+
                             |
        +--------------------+--------------------+
        |         |          |          |         |
   +----v----+ +--v--+ +-----v-----+ +--v--+ +---v---+
   |Dashboard| | ACH | |  Search   | |Graph| |Timeline|  <-- SHARDS (26)
   +---------+ +-----+ +-----------+ +-----+ +--------+

Core Design Principles

• Frame is Immutable: Shards depend on the Frame, never the reverse
• No Shard Dependencies: Shards communicate via events, not imports
• Schema Isolation: Each shard gets its own PostgreSQL schema
• Graceful Degradation: Works with or without AI/GPU capabilities
• Event-Driven Architecture: Loose coupling through pub/sub messaging

---

Features

AI-Powered Analysis

| Feature | Description | |---------|-------------| | AI Junior Analyst | LLM-powered analysis across all shards - anomaly detection, contradiction finding, pattern recognition, credibility assessment, and insight synthesis | | LLM Summarization | Automatic document and corpus summarization with multiple formats (brief, standard, detailed, executive, key points) | | Deception Detection | AI-assisted credibility assessment using MOM, POP, MOSES, and EVE checklists | | Query Expansion | Semantic search enhancement via LLM | | Devil's Advocate | AI-generated counter-arguments for ACH analysis |

Structured Analytic Techniques

| Technique | Capabilities | |-----------|-------------| | ACH (Analysis of Competing Hypotheses) | Full matrix analysis, evidence scoring, premortem analysis, cone of plausibility, corpus search integration, scenario planning, devil's advocate mode | | Contradiction Detection | Automated identification of conflicting claims across documents with severity scoring and resolution tracking | | Pattern Recognition | Recurring patterns, behavioral patterns, temporal patterns, correlation analysis with statistical significance | | Anomaly Detection | Statistical anomalies, contextual anomalies, collective anomalies with LLM-powered analysis | | Credibility Assessment | Source reliability scoring, bias indicators, deception detection checklists | | Provenance Tracking | Evidence chains, data lineage, audit trails, artifact verification |

Advanced Visualization

Graph Analysis - 10+ visualization modes:

| Mode | Description | |------|-------------| | Force-Directed | Interactive network layout with physics simulation | | Hierarchical | Tree-based layouts (top-down, bottom-up, radial) | | Circular | Entities arranged in circular patterns | | Sankey | Flow diagrams showing relationships and quantities | | Matrix | Adjacency matrix for dense relationship analysis | | Geographic | Map overlays with Leaflet integration | | Causal | Cause-and-effect relationship visualization | | Argumentation | ACH integration showing evidence-hypothesis relationships | | Link Analysis | i2 Analyst Notebook-style investigation graphs | | Temporal | Time-based graph evolution |

Graph Analytics:

• Centrality measures (degree, betweenness, closeness, eigenvector, PageRank)
• Community detection algorithms
• Path finding (shortest path, all paths, critical paths)
• Cycle detection
• Component analysis

Timeline Analysis:

• Temporal event extraction and visualization
• Date normalization across formats
• Conflict detection for overlapping events
• Phase/period management
• Gap analysis
• Event clustering

Document Processing Pipeline

| Stage | Capabilities | |-------|-------------| | Ingest | Multi-format support (PDF, DOCX, images, HTML, TXT), batch processing, duplicate detection, job queue management | | OCR | PaddleOCR for standard OCR, Vision LLM for complex documents (supports local Qwen-VL or cloud APIs like GPT-4o), language detection, confidence scoring | | Parse | 8 chunking strategies, metadata extraction, relations extraction, table detection | | Embed | Multiple embedding models, batch processing, incremental updates | | Entity Extraction | spaCy-powered NER (PERSON, ORG, GPE, DATE, etc.), relationship detection, duplicate merging | | Claim Extraction | Factual claim identification, source attribution, verification status tracking |

Search Capabilities

| Type | Description | |------|-------------| | Semantic Search | Vector similarity using pgvector embeddings | | Keyword Search | PostgreSQL full-text search with BM25 ranking | | Hybrid Search | Combined semantic + keyword with configurable weights | | Similarity Search | Find documents similar to a reference document | | Faceted Search | Filter by project, document type, date range, entities |

Export & Reporting

| Feature | Formats | |---------|---------| | Data Export | JSON, CSV, PDF, DOCX | | Analytical Reports | Investigation summaries, entity profiles, timeline reports, ACH reports | | Letters | FOIA requests, complaints, legal correspondence with templates | | Packets | Complete investigation bundles with versioning and sharing | | Templates | Jinja2-based template system with placeholder validation |

---

Frame Services

The Frame provides 17 core services available to all shards:

| Service | Description | |---------|-------------| | ConfigService | Environment + YAML configuration management | | ResourceService | Hardware detection, GPU/CPU management, tier assignment | | StorageService | File/blob storage with categories and lifecycle | | DatabaseService | PostgreSQL with per-shard schema isolation | | VectorService | pgvector-based vector storage for embeddings and similarity search | | LLMService | OpenAI-compatible LLM integration (LM Studio, Ollama, vLLM) | | ChunkService | 8 text chunking strategies (semantic, sentence, fixed, etc.) | | EventBus | Pub/sub messaging for inter-shard communication | | WorkerService | PostgreSQL-based job queues (SKIP LOCKED) with specialized worker pools | | DocumentService | Document CRUD with content and metadata access | | EntityService | Entity extraction, relationships, and deduplication | | ProjectService | Project organization and management | | ExportService | Multi-format export (JSON, CSV, PDF, DOCX) | | TemplateService | Jinja2 template rendering and management | | NotificationService | Email, webhook, and log notifications | | SchedulerService | APScheduler-based job scheduling | | AIJuniorAnalystService | LLM-powered cross-shard analysis |

---

Implemented Shards

System (3 shards)

| Shard | Description | Key Features | |-------|-------------|--------------| | Dashboard | System monitoring and administration | Service health, database stats, worker management, event log, LLM configuration | | Projects | Project organization | Project CRUD, document organization, bulk operations | | Settings | Application configuration | 7 setting categories, import/export, reset capabilities |

Data Pipeline (6 shards)

| Shard | Description | Key Features | |-------|-------------|--------------| | Ingest | Document ingestion | Multi-format support, batch processing, job queue, duplicate detection | | Documents | Document management | CRUD operations, content access, metadata, batch operations | | Parse | Document parsing | 8 chunking strategies, relations extraction, table detection | | Embed | Vector embeddings | Multiple models, batch processing, incremental updates | | OCR | Text extraction | PaddleOCR, Vision LLM (local or cloud), language detection, confidence scoring | | Entities | Entity management | NER extraction, relationships, deduplication, type management |

Search (1 shard)

| Shard | Description | Key Features | |-------|-------------|--------------| | Search | Document search | Semantic, keyword, hybrid search, facets, suggestions |

Analysis (9 shards)

| Shard | Description | Key Features | |-------|-------------|--------------| | ACH | Analysis of Competing Hypotheses | Matrix analysis, premortem, cone of plausibility, corpus search, scenarios | | Claims | Claim extraction | Document extraction, verification status, source attribution | | Credibility | Source assessment | Reliability scoring, bias detection, deception checklists (MOM/POP/MOSES/EVE) | | Contradictions | Conflict detection | Cross-document analysis, severity scoring, resolution tracking | | Anomalies | Anomaly detection | Statistical, contextual, collective anomalies, LLM analysis | | Patterns | Pattern recognition | Recurring, behavioral, temporal, correlation patterns | | Provenance | Evidence chains | Data lineage, audit trails, artifact verification | | Summary | Auto-summarization | Multiple summary types, batch processing, auto-summarize on ingest | | Media Forensics | Image authenticity analysis | EXIF extraction, ELA analysis, perceptual hashing, C2PA verification, reverse image search |

Visualization (2 shards)

| Shard | Description | Key Features | |-------|-------------|--------------| | Graph | Network visualization | 10+ layout modes, analytics, cross-shard integration | | Timeline | Temporal visualization | Event extraction, date normalization, phases, gap detection |

Export (5 shards)

| Shard | Description | Key Features | |-------|-------------|--------------| | Export | Data export | JSON, CSV, PDF, DOCX, job management | | Reports | Report generation | Multiple report types, templates, scheduling | | Letters | Letter generation | FOIA, complaints, legal templates | | Packets | Investigation bundles | Versioning, sharing, access control | | Templates | Template management | Jinja2 syntax, versioning, validation |

---

Tech Stack

Backend

| Component | Technology | |-----------|------------| | Runtime | Python 3.10+ | | API Framework | FastAPI with async/await | | Database | PostgreSQL 14+ with pgvector extension | | Job Queue | PostgreSQL (SKIP LOCKED pattern) | | Vector Store | pgvector (PostgreSQL extension) |

Frontend

| Component | Technology | |-----------|------------| | Framework | React 18 + TypeScript 5 | | Build Tool | Vite | | Styling | TailwindCSS + shadcn/ui | | Icons | Lucide React | | State | URL state + local storage | | Charts | Recharts | | Maps | Leaflet |

AI/ML (Optional)

| Component | Options | |-----------|---------| | LLM Inference | LM Studio, Ollama, vLLM, OpenAI API | | NER | spaCy (encoreweb_sm/lg/trf) | | OCR | PaddleOCR, Vision LLM (Qwen-VL local, or cloud GPT-4o/Claude) | | Embeddings | sentence-transformers, OpenAI | | Reverse Image Search | TinEye, Google Vision, SerpAPI (optional APIs for Media Forensics) |

---

Quick Start

Prerequisites

• Python 3.10+
• Node.js 18+ (for local UI development only)
• PostgreSQL 14+ with pgvector extension

Installation

# Clone the repository
git clone https://github.com/yourusername/SHATTERED.git
cd SHATTERED
Install the Frame
cd packages/arkham-frame
pip install -e .
Install all shards (or select specific ones)
for dir in ../arkham-shard-*/; do
  pip install -e "$dir"
done
Install spaCy model
python -m spacy download encoreweb_sm
Install UI dependencies
cd ../arkham-shard-shell
npm install

Configuration

Create a .env file or set environment variables:

# Required - PostgreSQL with pgvector extension
DATABASE_URL=postgresql://user:pass@localhost:5432/shattered
Optional - LLM Integration (OpenAI-compatible endpoint)
LLM_ENDPOINT=http://localhost:1234/v1
LLMAPIKEY=your-api-key
Optional - Embedding Model (default: all-MiniLM-L6-v2)
EMBED_MODEL=all-MiniLM-L6-v2
Optional - Vision LLM for OCR
VLM_ENDPOINT=http://localhost:1234/v1
Optional - Auth (required for production)
AUTHSECRETKEY=generate-with-openssl-rand-hex-32

Running

# Terminal 1: Start the Frame API (auto-discovers installed shards)
python -m uvicorn arkham_frame.main:app --host 127.0.0.1 --port 8100
Terminal 2 (optional): Start the UI for development
cd packages/arkham-shard-shell
npm run dev
Workers start automatically with the Frame
Background jobs use PostgreSQL SKIP LOCKED pattern

Access Points

| Interface | URL | |-----------|-----| | Web UI | http://localhost:8100 (served by Frame) | | API Documentation | http://localhost:8100/docs | | OpenAPI Spec | http://localhost:8100/openapi.json | | Health Check | http://localhost:8100/api/health |

Docker Deployment (Recommended)

# Copy environment template
cp .env.example .env
Generate a secure auth key
python -c "import secrets; print('AUTHSECRETKEY=' + secrets.token_urlsafe(32))"
Add the output to your .env file
Start all services (PostgreSQL + App)
docker compose up -d
Access the application
open http://localhost:8100

The Docker setup includes:

• PostgreSQL 14 with pgvector extension pre-installed
• All shards and the UI bundled in a single container
• Automatic database migrations on startup
• No external dependencies (Redis, Qdrant not required)

First-time Setup: When you first access the application, you'll be prompted to create an admin account. This sets up your tenant and initial credentials.

---

Authentication & Security

SHATTERED includes built-in authentication and multi-tenant support.

Initial Setup

• Start the application using Docker or manual installation
• Navigate to the app - you'll be redirected to the setup wizard
• Create your tenant - enter organization name and admin credentials
• Log in with your new admin account

User Roles

| Role | Capabilities | |------|--------------| | Admin | Full access: user management, settings, audit logs | | Analyst | Read/write access to all analysis features | | Viewer | Read-only access to documents and analyses |

Environment Variables

Add these to your .env file:

# REQUIRED: Generate with: python -c "import secrets; print(secrets.token_urlsafe(32))"
AUTHSECRETKEY=your-secure-random-key
Optional: JWT token lifetime (default: 3600 seconds = 1 hour)
JWTLIFETIMESECONDS=3600
Optional: Rate limiting
RATELIMITDEFAULT=100/minute
RATELIMITUPLOAD=20/minute
RATELIMITAUTH=10/minute
Optional: CORS origins (comma-separated, defaults to localhost)
CORS_ORIGINS=https://your-domain.com

Managing Users

Admins can manage users at Settings → Users:

• Create new users with email, password, and role
• Edit user roles and display names
• Deactivate/reactivate accounts
• View user activity

Audit Logging

All security-relevant actions are logged:

• User creation, updates, deletion
• Role changes
• Login attempts (coming soon)

View the audit log at Settings → Audit Log (admin only).

---

Production Deployment

For production deployments with HTTPS, SHATTERED includes Traefik integration.

Prerequisites

• A domain name pointing to your server
• Ports 80 and 443 open for Let's Encrypt verification
• Docker and Docker Compose installed

Setup

# 1. Configure environment
cp .env.example .env
Edit .env and set:
- AUTHSECRETKEY (generate a secure key)
- DOMAIN=your-domain.com
- ACME_EMAIL=admin@your-domain.com
2. Create certificate storage
mkdir -p traefik
touch traefik/acme.json
chmod 600 traefik/acme.json
3. Start with HTTPS
docker compose -f docker-compose.yml -f docker-compose.traefik.yml up -d

What Traefik Provides

• Automatic HTTPS via Let's Encrypt (auto-renewing)
• HTTP → HTTPS redirect for all traffic
• Security headers (HSTS, CSP, X-Frame-Options)
• Modern TLS (TLS 1.2+ only, strong ciphers)

Verify Deployment

# Check HTTPS is working
curl -I https://your-domain.com
Check HTTP redirects
curl -I http://your-domain.com
Should return 301 redirect to HTTPS
Check security headers
curl -I https://your-domain.com | grep -i "strict-transport"

Traefik Dashboard (Optional)

To enable the Traefik dashboard:

# Generate password hash
htpasswd -nb admin your-password
Add to .env
TRAEFIK_DASHBOARD=true
TRAEFIKDASHBOARDAUTH=admin:$apr1$...  # output from htpasswd
Access at https://traefik.your-domain.com

---

Air-Gap Deployment

SHATTERED is 100% air-gap capable when configured correctly. Deploy in isolated networks with no internet access.

Requirements

• PostgreSQL 14+ with pgvector extension
• Local LLM server (LM Studio, Ollama, or vLLM)
• Pre-cached embedding models

Setup Steps

1. Pre-cache Embedding Models

On a connected machine:

# Start the application
docker compose up -d
Navigate to Settings → ML Models
Download desired embedding models using the UI
Models are cached in: ~/.cache/huggingface/hub

Copy the cache directory to your air-gapped system.

2. Configure Environment

# .env for air-gapped deployment
DATABASE_URL=postgresql://user:pass@localhost:5432/shattered
Enable offline mode (prevents model download attempts)
ARKHAMOFFLINEMODE=true
Custom model cache location (if different from default)
ARKHAMMODELCACHE=/path/to/huggingface/hub
Local LLM endpoint
LLM_ENDPOINT=http://localhost:1234/v1
Vision LLM for OCR (optional)
VLM_ENDPOINT=http://localhost:1234/v1

3. Local LLM Options

| Server | Default Endpoint | Notes | |--------|-----------------|-------| | LM Studio | http://localhost:1234/v1 | GUI-based, easy setup | | Ollama | http://localhost:11434/v1 | CLI-based, many models | | vLLM | http://localhost:8000/v1 | High-performance serving |

4. Feature Availability

| Feature | Air-Gap Status | Notes | |---------|----------------|-------| | Document Processing | Full | PDF, DOCX, images, etc. | | OCR | Full | PaddleOCR works offline | | Vision LLM OCR | Full | Requires local VLM (e.g., Qwen-VL) | | Embeddings | Full | Pre-cache models first | | Semantic Search | Full | pgvector is fully local | | Entity Extraction | Full | spaCy models are local | | LLM Analysis | Full | Requires local LLM server | | Geo View | Limited | Requires internet for map tiles* |

*The Geo View tab in the Graph page fetches map tiles from OpenStreetMap. For full air-gap operation:

• Avoid using the Geo View tab (all other graph views work offline)
• For advanced users: set up a local tile server with offline OpenStreetMap data

Air-Gap Verification

After deployment, verify no external connections:

# Monitor network traffic (Linux)
ss -tuln | grep ESTAB
Or use netstat
netstat -an | grep ESTABLISHED
The only connections should be to:
- localhost (PostgreSQL, LLM server)
- Your local network (if applicable)

---

Use Cases

SHATTERED supports diverse investigative workflows:

Journalism & OSINT

• Social Media Analysis: Archive posts, extract entities, map networks
• FOIA Tracking: Request templates, deadline tracking, response analysis
• Source Verification: Credibility assessment, claim verification, contradiction detection
• Publication Prep: Claim extraction, citation tracing, fact-check reports

Legal Self-Advocacy

• Tenant Defense: Violation chronology, housing code matching, evidence packets
• Employment Rights: Incident documentation, labor law elements, EEOC prep
• Consumer Protection: Warranty extraction, demand letters, small claims prep
• Case Building: Timeline construction, evidence organization, pattern identification

Healthcare Self-Advocacy

• Chronic Illness Management: Lab results parsing, symptom tracking, treatment analysis
• Insurance Appeals: Denial tracking, appeal letters, medical necessity documentation
• Diagnosis Research: Test organization, symptom progression, specialist prep

Civic Engagement

• Government Oversight: Meeting minutes parsing, vote tracking, promise vs action analysis
• Campaign Finance: Donor identification, bundling detection, money flow mapping
• Policy Analysis: Document comparison, stakeholder mapping, impact assessment

Financial Analysis

• Fraud Detection: Benford analysis, transaction anomalies, duplicate detection
• Investment Research: SEC filings analysis, financial statement parsing, news tracking
• Audit Support: Evidence chains, provenance tracking, documentation verification

Intelligence Analysis

• Structured Analysis: ACH matrices, alternative hypotheses, scenario planning
• Link Analysis: Entity relationships, network mapping, path analysis
• Temporal Analysis: Event timelines, pattern detection, prediction support

---

Development

Creating a New Shard

• Use arkham-shard-ach as reference implementation
• Follow the manifest schema in docs/shardmanifestschema_prod.md
• Implement the ArkhamShard interface from the Frame
• No direct shard imports - use events for inter-shard communication
• Add comprehensive tests

Shard Structure

packages/arkham-shard-{name}/
+-- pyproject.toml          # Package definition with entry point
+-- shard.yaml              # Manifest (navigation, events, capabilities)
+-- README.md               # Documentation
+-- arkhamshard{name}/
    +-- init.py         # Exports {Name}Shard class
    +-- shard.py            # Shard implementation
    +-- api.py              # FastAPI routes
    +-- models.py           # Pydantic models (optional)
    +-- services/           # Business logic (optional)

Testing

# Run all tests
pytest
Run specific shard tests
pytest packages/arkham-shard-ach/tests/
Type checking
mypy packages/arkham-frame/
mypy packages/arkham-shard-ach/
Linting
ruff check packages/

API Development

All shards expose REST APIs that are auto-documented via FastAPI:

from fastapi import APIRouter, Depends
from arkhamframe import getframe
router = APIRouter(prefix="/api/myshard", tags=["myshard"])
@router.get("/items") async def listitems(frame=Depends(getframe)):     # Access frame services     db = frame.db     events = frame.events     llm = frame.llm  # Optional service     return {"items": [...]}

---

Documentation

| Document | Description | |----------|-------------| | SECURITY.md | Security best practices and deployment guide | | CLAUDE.md | Project guidelines and development standards | | docs/voltron_plan.md | Architecture deep-dive | | docs/shardmanifestschema_prod.md | Production manifest schema | | packages/arkham-frame/README.md | Frame services documentation | | packages/arkham-shard-shell/README.md | UI shell documentation |

Each shard has its own README with API documentation, events, and usage examples.

---

Project Status

| Metric | Value | |--------|-------| | Lines of Code | ~217,000 | | Total Packages | 27 (26 shards + shell) | | Frame Services | 17 | | API Endpoints | 400+ | | Graph Visualization Modes | 10+ | | Chunking Strategies | 8 | | Infrastructure | PostgreSQL-only (pgvector + SKIP LOCKED) |

Recent Major Features

• PostgreSQL-only architecture - Eliminated Redis and Qdrant dependencies
• pgvector integration - Native PostgreSQL vector search
• AI Junior Analyst integration across all analysis shards
• Full ACH implementation with premortem, cone of plausibility, corpus search
• Link Analysis mode (i2-style) for graph visualization
• Deception detection with MOM/POP/MOSES/EVE checklists
• Evidence chain provenance tracking
• Shared template system for exports

---

Support

If you find SHATTERED useful, consider supporting development:

---

Contributing

Contributions welcome! See CLAUDE.md for project guidelines.

Ways to contribute:

• Bug Reports: Open issues with reproduction steps
• Feature Requests: Describe your use case
• Code: Follow the shard development guidelines
• Documentation: Help improve guides and examples
• Bundles: Create pre-configured shard bundles for specific use cases

---

License

MIT License - Copyright (c) 2025-2026 Justin McHugh

See LICENSE for details.

---
