Kaggle Kernel Clone

A minimal, self-hosted notebook execution platform inspired by how Kaggle Kernels work under the hood. Write Python, run cells, see output — each notebook gets its own isolated Kubernetes pod.

---

What We're Building

Kaggle Kernels let you write and execute Python notebooks in the browser without setting up anything locally. Every time you start a session, Kaggle spins up a fresh, isolated environment just for your notebook. When you stop, it tears it down.

This project replicates that core mechanic — a real notebook interface backed by live Jupyter kernels running in Kubernetes pods, with a start/stop session model exactly like Kaggle.

---

Inspiration

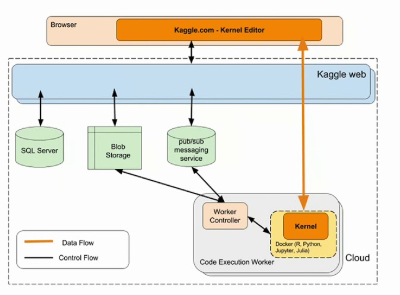

Inspired by the Kaggle infrastructure talk: How Kaggle Kernels Work — YouTube

The architecture they describe:

---

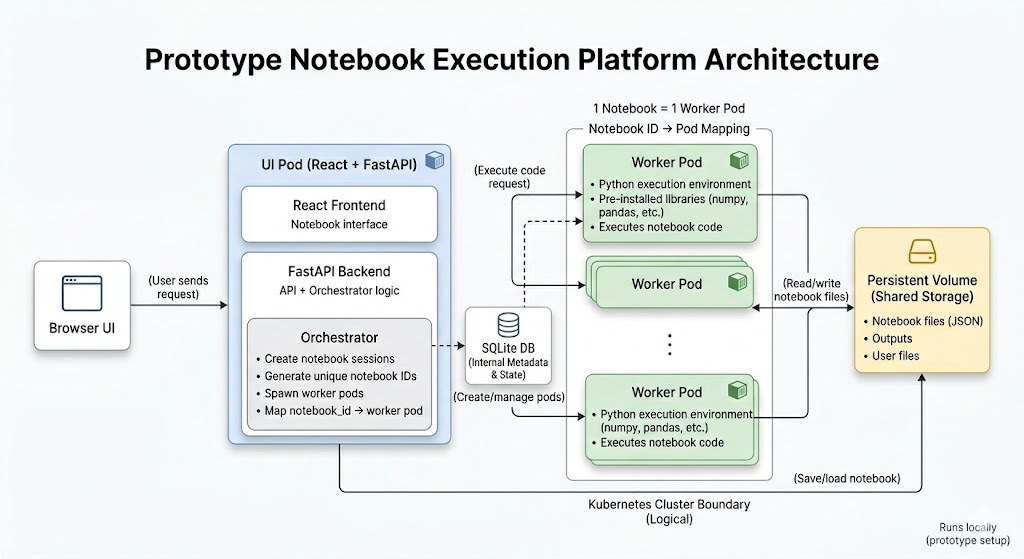

What We Built

Our implementation of the same idea — notebook sessions mapped to Kubernetes pods, shared persistent storage, orchestrated through a FastAPI backend:

---

Architecture

Browser
  └── HTTP / WebSocket ──► UI Pod (FastAPI + React)
                                └── spawns ──► Worker Pod (Jupyter Kernel)
                                                   └── reads/writes ──► Persistent Volume

Components

UI Pod

Single Kubernetes deployment running two things:

• React frontend — notebook editor with CodeMirror cells, real-time output rendering (text, HTML, images, errors), session controls in a sticky top bar
• FastAPI backend — REST API for notebook CRUD and session management, WebSocket endpoint that proxies streaming kernel output to the browser
• Orchestrator — uses the Kubernetes Python client to spawn and kill Worker Pods on demand. Tracks notebook_id → pod mapping in SQLite.

Worker Pod

One pod per notebook, created when you click Start Session, destroyed when you click Stop Session.

• Runs an ipykernel Python process
• Variables and imports persist across cells within a session (like a real notebook)
• Exposes an internal HTTP API: /execute (streaming), /interrupt, /restart, /status
• The UI Pod proxies all execution through here — the browser never talks to Worker Pods directly

Persistent Volume

Shared storage mounted into every pod:

/data/
├── metadata.db          ← SQLite: notebook names, session state
├── notebooks/
│   └── {id}.ipynb       ← standard Jupyter notebook format
└── files/

Notebooks are saved as standard .ipynb files — portable and compatible with Jupyter.

---

Tech Stack

| Layer | Technology | |---|---| | Frontend | React 18, TypeScript, Vite, CodeMirror 6 | | Backend | FastAPI, SQLAlchemy, SQLite | | Kernel | ipykernel, jupyter-client | | Orchestration | Kubernetes Python client | | Packaging | Docker (multi-stage), Helm | | Local cluster | Minikube |

---

Project Structure

├── ui-pod/
│   ├── backend/              FastAPI app
│   │   ├── main.py
│   │   ├── orchestrator.py   Kubernetes pod lifecycle
│   │   ├── routers/
│   │   │   ├── notebooks.py
│   │   │   ├── sessions.py
│   │   │   └── execution.py  WebSocket + interrupt/restart
│   │   └── models.py
│   ├── frontend/             React app
│   │   └── src/
│   │       ├── components/
│   │       │   ├── NotebookTopBar.tsx
│   │       │   ├── NotebookPage.tsx
│   │       │   ├── NotebookEditor.tsx
│   │       │   └── Cell.tsx
│   │       └── api.ts
│   └── Dockerfile
├── worker-pod/
│   ├── main.py               FastAPI wrapper
│   ├── kernel_manager.py     ipykernel interface
│   └── Dockerfile
├── helm/kaggle-kernel/       Helm chart
│   ├── values.yaml
│   └── templates/
│       ├── ui-pod/
│       ├── storage/
│       └── rbac/
└── deploy.sh                 One-command local deploy

---

Running Locally with Minikube

Prerequisites

Install these before running:

• Docker
• Minikube
• Helm
• kubectl

1. Start Minikube

minikube start

2. Deploy

# First deploy — builds Docker images and installs Helm chart
./deploy.sh --build
Subsequent deploys — reinstalls chart without rebuilding images
./deploy.sh

The script handles everything:

• Enables the ingress addon and waits for its webhook to be ready
• Builds both images directly into Minikube's Docker daemon (no registry push needed)
• Creates the kaggle-kernel namespace
• Cleanly uninstalls any existing release
• Installs the Helm chart with Minikube-compatible overrides
• Starts a port-forward at http://localhost:8080

3. Set Up Hosts File (for Ingress)

To use the ingress at http://notebook.local instead of the port-forward:

# Get your Minikube IP
minikube ip
Example output: 192.168.49.2

Add this line to your hosts file:

Linux / macOS — edit /etc/hosts:

192.168.49.2   notebook.local

Windows — edit C:\Windows\System32\drivers\etc\hosts as Administrator:

192.168.49.2   notebook.local

Then open http://notebook.local in your browser.

If you skip the hosts file step, the app is available at http://localhost:8080 via the port-forward that deploy.sh starts automatically.

4. Watch the Cluster

# Watch pods come up
kubectl get pods -n kaggle-kernel -w
Tail UI Pod logs
kubectl logs -n kaggle-kernel deployment/kaggle-kernel-ui -f

---

How It Works — Session Flow

• Create a notebook → saved as an .ipynb file, no pod yet
• Click Start Session → Orchestrator spawns a Worker Pod in Kubernetes, status badge shows "starting"
• Session goes idle → Worker Pod is running, kernel is ready, badge turns green
• Run a cell → code sent over WebSocket → executed by ipykernel → output streams back in real time
• Click Stop Session → notebook auto-saved → Worker Pod killed → kernel state gone, outputs remain

---

Output

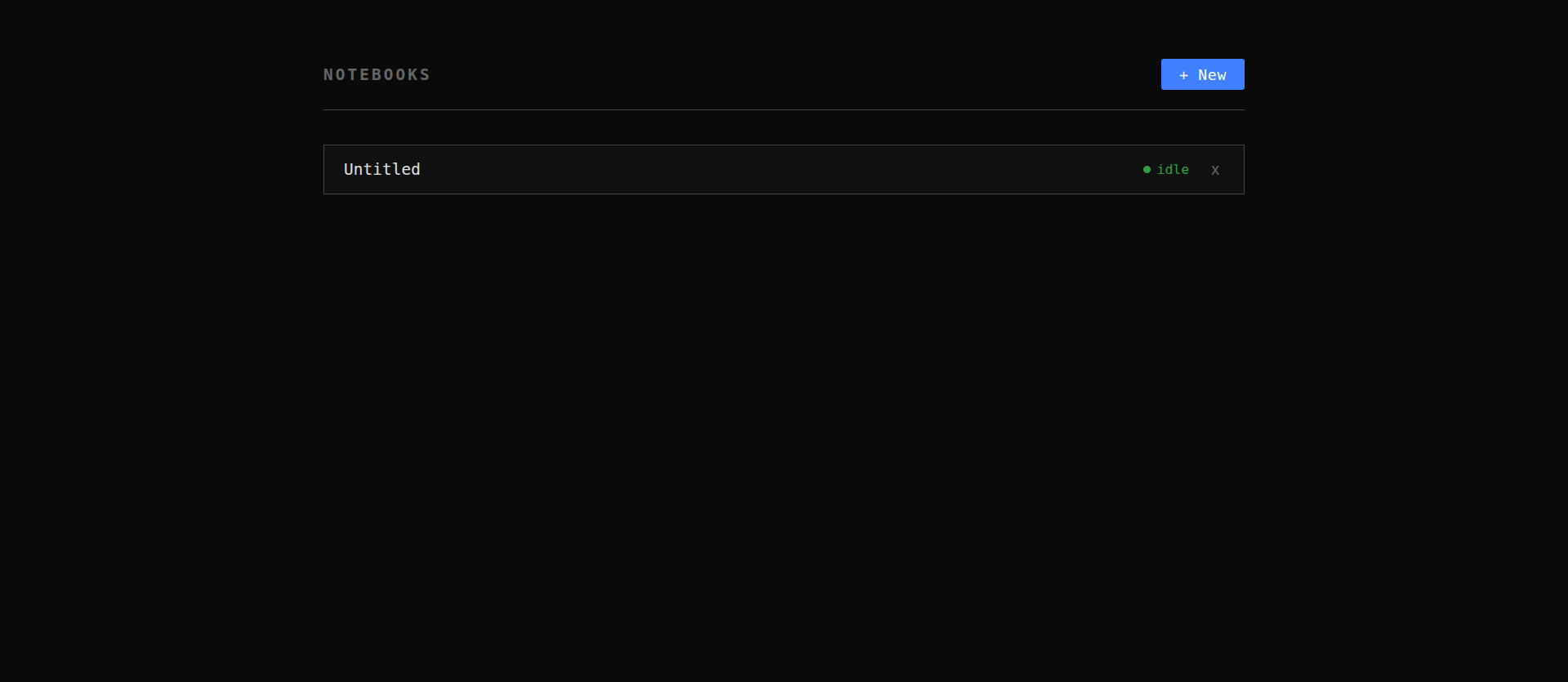

Notebook List

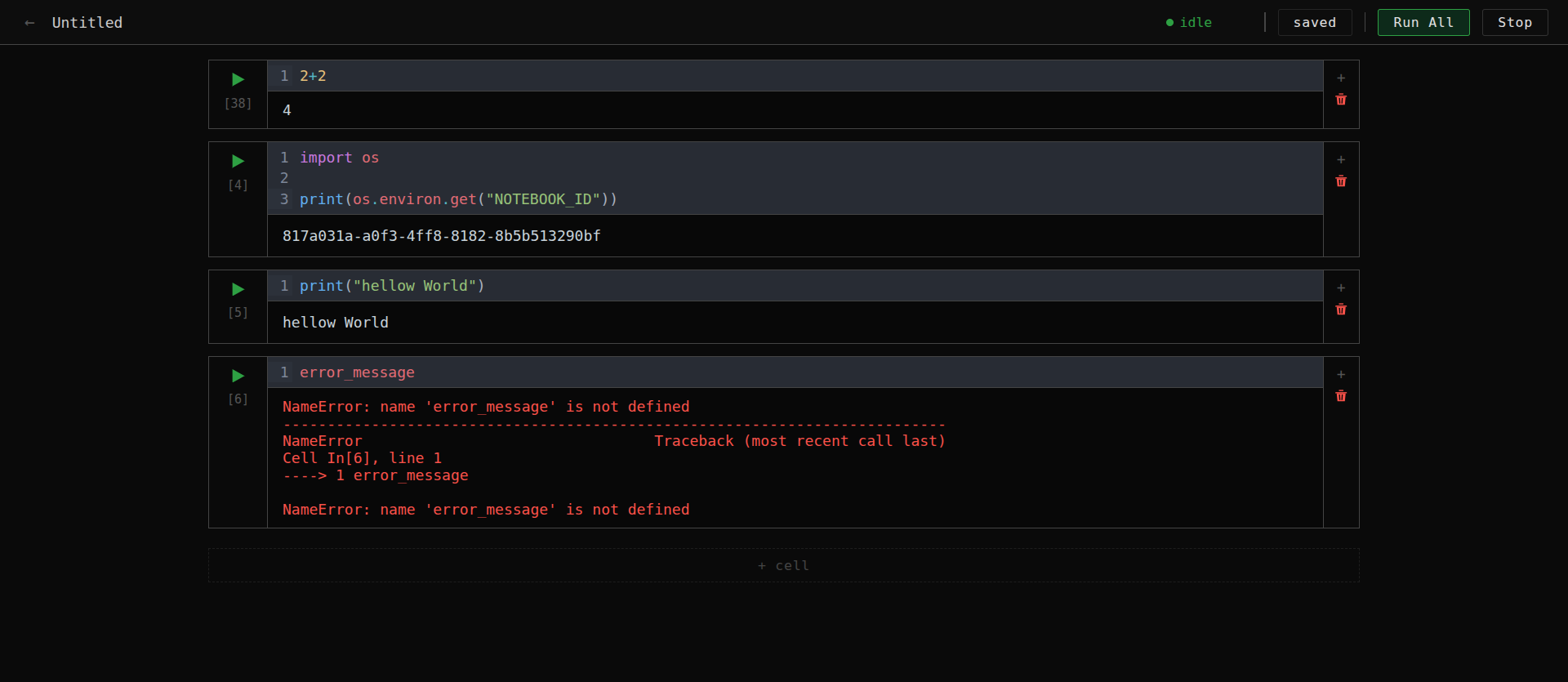

Notebook Editor
