prefixd

prefixd is a BGP FlowSpec policy daemon for automated DDoS mitigation. It receives attack signals from detectors, applies policy-driven playbooks, and announces FlowSpec rules to routers via GoBGP.

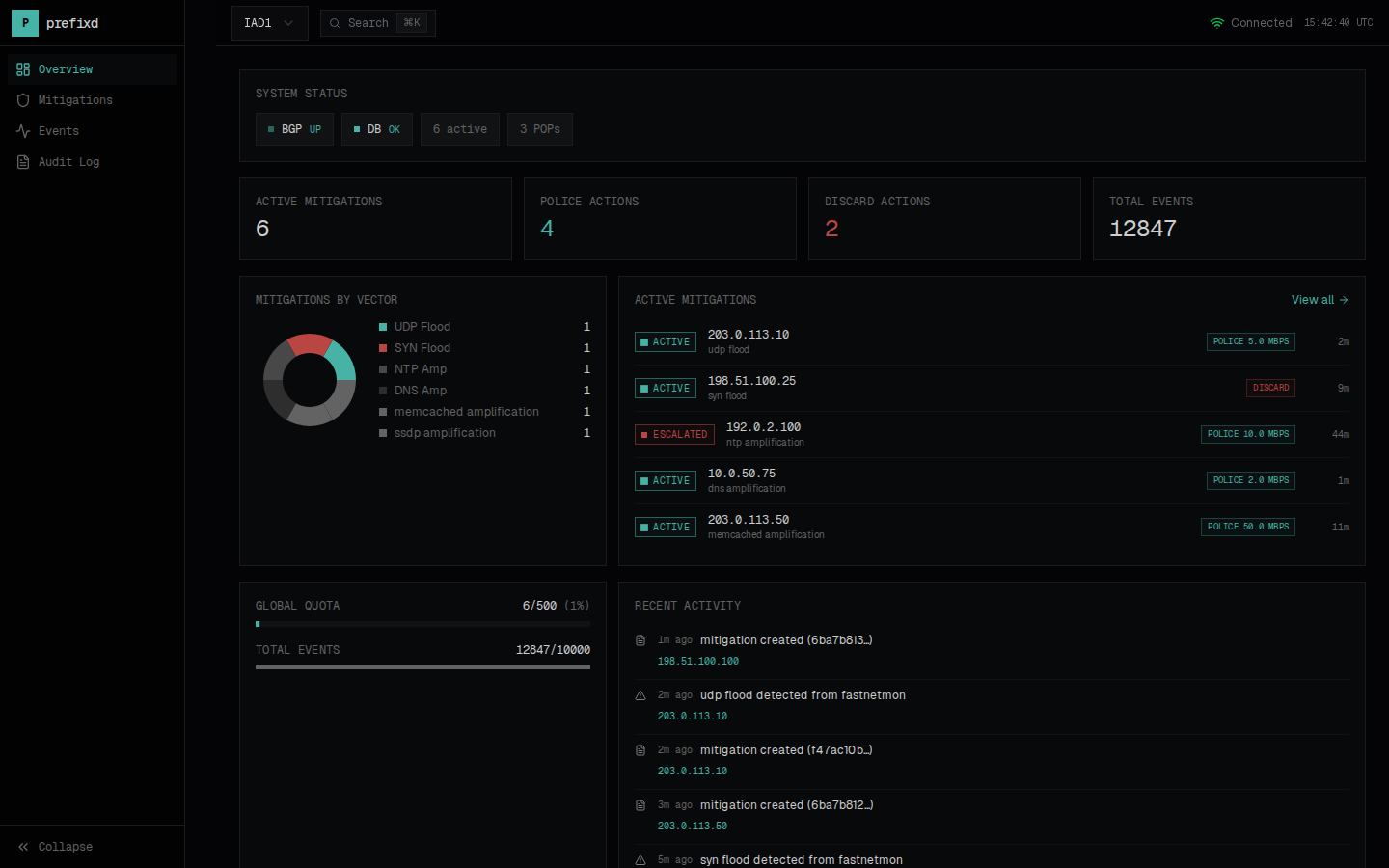

Dashboard Overview

Why prefixd?

You have detectors (FastNetMon, Kentik, Prometheus alerts) that know when you're under attack. You have routers (Juniper, Arista, Cisco) that can filter traffic at line rate with FlowSpec. But there's a gap:

| Problem | Without prefixd | With prefixd | |---------|-----------------|--------------| | Detector → Router | Manual CLI or fragile scripts | Automated policy engine | | Response time | Minutes (operator intervention) | Seconds (API-driven) | | Safety | Easy to fat-finger, no guardrails | Quotas, safelist, /32-only, TTLs | | Visibility | Scattered logs, no audit trail | Dashboard, metrics, audit log | | Expiry | Forget to remove rules | Auto-expire via TTL |

Key idea: Detectors signal intent, prefixd decides policy. No detector ever speaks BGP directly.

Detector ──► prefixd ──► GoBGP ──► Routers
                │
                ├── Policy Engine (playbooks)
                ├── Guardrails (quotas, safelist)
                └── Reconciliation (auto-expire)

Quick Start

1. Clone and configure

git clone https://github.com/lance0/prefixd.git
cd prefixd

2. Start the stack

docker compose up -d

This starts 7 services:

| Service | Purpose | Ports | |---------|---------|-------| | nginx | Reverse proxy (single entrypoint) | 80 | | prefixd | Policy daemon | internal | | dashboard | Web UI | internal | | gobgp | BGP route server | 179 (BGP) | | postgres | State storage | 5432 | | prometheus | Metrics storage | 9091 | | grafana | Monitoring dashboards | 3001 |

3. Verify it's running

# Check all services are healthy
docker compose ps
Test the API
curl http://localhost/v1/health
{"status":"ok","version":"0.18.1","auth_mode":"none"}

4. Create an admin account

docker compose exec prefixd prefixdctl operators create \
  --username admin --role admin
Enter password when prompted

5. Open the dashboard

open http://localhost

Login with the admin credentials you just created.

Troubleshooting

# View prefixd logs
docker compose logs prefixd
View GoBGP logs
docker compose logs gobgp
Restart everything
docker compose restart

Common issues:

Port 80 in use → Stop local web server or change nginx port in docker-compose.yml
Port 5432 in use → Stop local PostgreSQL or change port in docker-compose.yml
Port 179 in use → Another BGP daemon is running
"connection refused" → Wait a few seconds for services to start

Next Steps

Once you have prefixd running locally:

1. Configure your inventory

Edit configs/inventory.yaml to map your IP space to customers:

customers:
  - customer_id: acme
    name: "ACME Corp"
    prefixes:
      - "203.0.113.0/24"
    services:
      - service_id: dns
        assets:
          - ip: "203.0.113.10"
        allowed_ports:
          udp: [53]

2. Define playbooks

Edit configs/playbooks.yaml to set response policies:

playbooks:
  - name: udp_flood
    match:
      vector: udp_flood
    steps:
      - action: police
        rate_bps: 10000000    # 10 Mbps
        ttl_seconds: 120
      - action: discard       # Escalate if attack persists
        ttl_seconds: 300

3. Connect a detector

Point your detector at prefixd's API. Three integration paths:

Generic events API (any detector):

curl -X POST http://localhost/v1/events \   -H "Content-Type: application/json" \   -H "Authorization: Bearer $PREFIXDAPITOKEN" \   -d '{     "timestamp": "'"$(date -u +%Y-%m-%dT%H:%M:%SZ)"'",     "source": "fastnetmon",     "victim_ip": "203.0.113.10",     "vector": "udp_flood",     "bps": 5000000000   }'

Native adapters (zero-config signal translation):

Alertmanager → POST /v1/signals/alertmanager — maps labels/annotations to events
FastNetMon → POST /v1/signals/fastnetmon — accepts native JSON payload

Generic webhook adapter — For detectors without a native integration (commercial DDoS appliances, internal abuse systems, cloud alerting), configure a named adapter in correlation.yaml with JSONPath field mappings:

webhook_adapters:
  - name: radware
    auth: { type: hmac, secretenv: RADWAREWEBHOOK_SECRET, header: X-Signature-SHA256, algorithm: sha256 }
    root_path: "$.alerts[*]"
    fields:
      victim_ip: "$.target.ip"
      vector: "$.alert_type"
      bps: "$.traffic.bps"

POST your JSON to /v1/signals/webhook/{name}. See Generic Webhook Adapter.

With multi-signal correlation enabled, events from multiple detectors targeting the same IP are grouped and corroborated before triggering mitigation.

See FastNetMon Integration for a complete setup guide.

4. Peer with your routers

Configure GoBGP neighbors in configs/gobgp.conf and set up FlowSpec import policies on your routers. See Router Setup.

Features

| Category | What it does | |----------|--------------| | Signal Ingestion | HTTP API + native Alertmanager and FastNetMon webhooks + configurable generic webhook adapter with JSONPath mapping | | Multi-Signal Correlation | Time-windowed grouping of events from multiple detectors with source weighting and corroboration | | Policy Engine | YAML playbooks define per-vector responses with escalation | | Guardrails | Quotas, safelist, /32-only enforcement, mandatory TTLs | | BGP FlowSpec | Announces via GoBGP (traffic-rate, discard actions) | | Reconciliation | Auto-expires mitigations, repairs RIB drift every 30s | | Dashboard | Real-time web UI with WebSocket updates and toast notifications | | Manual Mitigation | "Mitigate Now" form for operator-initiated events | | Authentication | Three roles (admin, operator, viewer) with mode-aware auth (none, bearer, credentials, mtls) | | Observability | Prometheus metrics, Grafana dashboards, structured logs, audit trail | | CLI | prefixdctl for status, mitigations, safelist, config reload |

How It Works

Detector sends event → POST /v1/events, /v1/signals/alertmanager, /v1/signals/fastnetmon, or a configured /v1/signals/webhook/{name}
Inventory lookup → Find customer/service owning the IP
Signal correlation → Group related signals by (victim_ip, vector), check corroboration
Playbook match → Determine action (police/discard) based on vector
Guardrails check → Validate quotas, safelist, prefix length
FlowSpec announce → Send rule to GoBGP via gRPC
Router enforcement → Traffic filtered at line rate
Auto-expiry → Rule withdrawn when TTL expires

Fail-open design: If prefixd dies, mitigations auto-expire. No permanent rules, no stuck state.

Documentation

| Topic | Link | |-------|------| | Full deployment guide | docs/deployment.md | | Configuration reference | docs/configuration.md | | API reference | docs/api.md | | CLI reference | docs/cli.md | | Router setup | docs/deployment.md#router-configuration | | Grafana dashboards | docs/grafana.md | | Architecture | docs/architecture.md |

Supported Routers

FlowSpec (RFC 5575, RFC 8955) is supported by:

| Vendor | Platform | Notes | |--------|----------|-------| | Juniper | MX, PTX, SRX | Full FlowSpec support | | Arista | 7xxx | EOS 4.20+ | | Cisco | IOS-XR | ASR 9000, NCS | | Nokia | SR OS | 19.x+ |

Requirements

Docker (recommended) or Rust 1.85+ for building from source
PostgreSQL 14+ for state storage
GoBGP is included in Docker Compose

Upgrading

Database migrations run automatically on startup. See docs/upgrading.md for version-specific notes.

v0.12.0 breaking change: Offset-based pagination (?offset=N) has been removed from all list endpoints. Use cursor-based pagination instead (?cursor=<opaque>&limit=N). If you have scripts or integrations using --offset or ?offset=, they must be updated. See ADR 016 for rationale and upgrading.md for migration examples.

Project Status

Current version: v0.18.1

Core functionality stable and tested
Real-time dashboard with WebSocket updates, toast notifications, and mitigation detail views
Full operator workflow: manual mitigation, withdraw, safelist management, config browsing
API may change before v1.0
See ROADMAP.md for planned features
