ESPHome LVGL Configuration Repository

Welcome to my ESPHome LVGL configuration repository! This project provides a modular setup for ESP32 touch LCD devices using the LVGL graphics library, designed specifically for home automation and sensor monitoring.

7-inch touch LCD display running ESPHome with LVGL interface, showing home automation controls including temperature display, printer status, air conditioning controls, and various smart home features.

Purpose

This repository contains ESPHome configurations for creating beautiful, touch-enabled displays for home automation. The setup is organized into modular components that can be mixed and matched to create custom interfaces for different rooms and use cases.

Features

ESP32 Touch LCD Support: Optimized for multiple ESP32-based touch LCD displays
Modular Design: Organized components for easy customization
LVGL Interface: Modern, responsive touch interface
Sensor Integration: Built-in support for various sensors
Custom Themes: Styled buttons and UI components
Network & Time: Automatic network connectivity and time synchronization
Backlight Control: Intelligent display brightness management

Supported Devices

| Device | Size | Configuration | |--------|------|---------------| | Waveshare ESP32-P4-WIFI6-Touch-LCD-4B | 4.0" 720x720 | esphome.yaml | | Guition ESP32-P4 JC1060P470 | 7" | esphome.yaml | | Guition ESP32-P4 JC8012P4A1 | 10.1" | esphome.yaml | | Guition ESP32-P4 JC4880P443 | 4.3" | esphome.yaml | | Guition ESP32-S3 4848S040 | 4.0" | esphome.yaml |

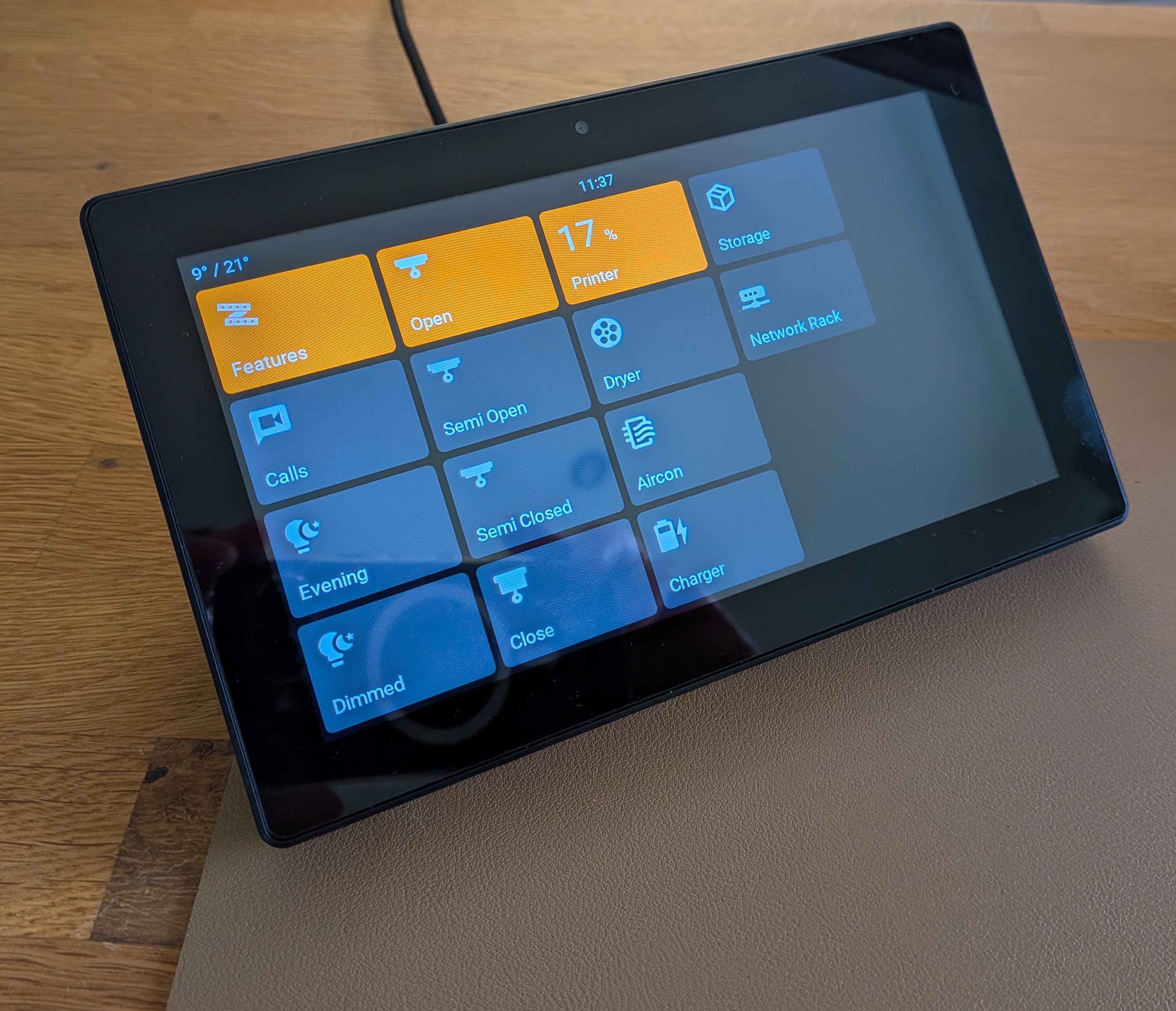

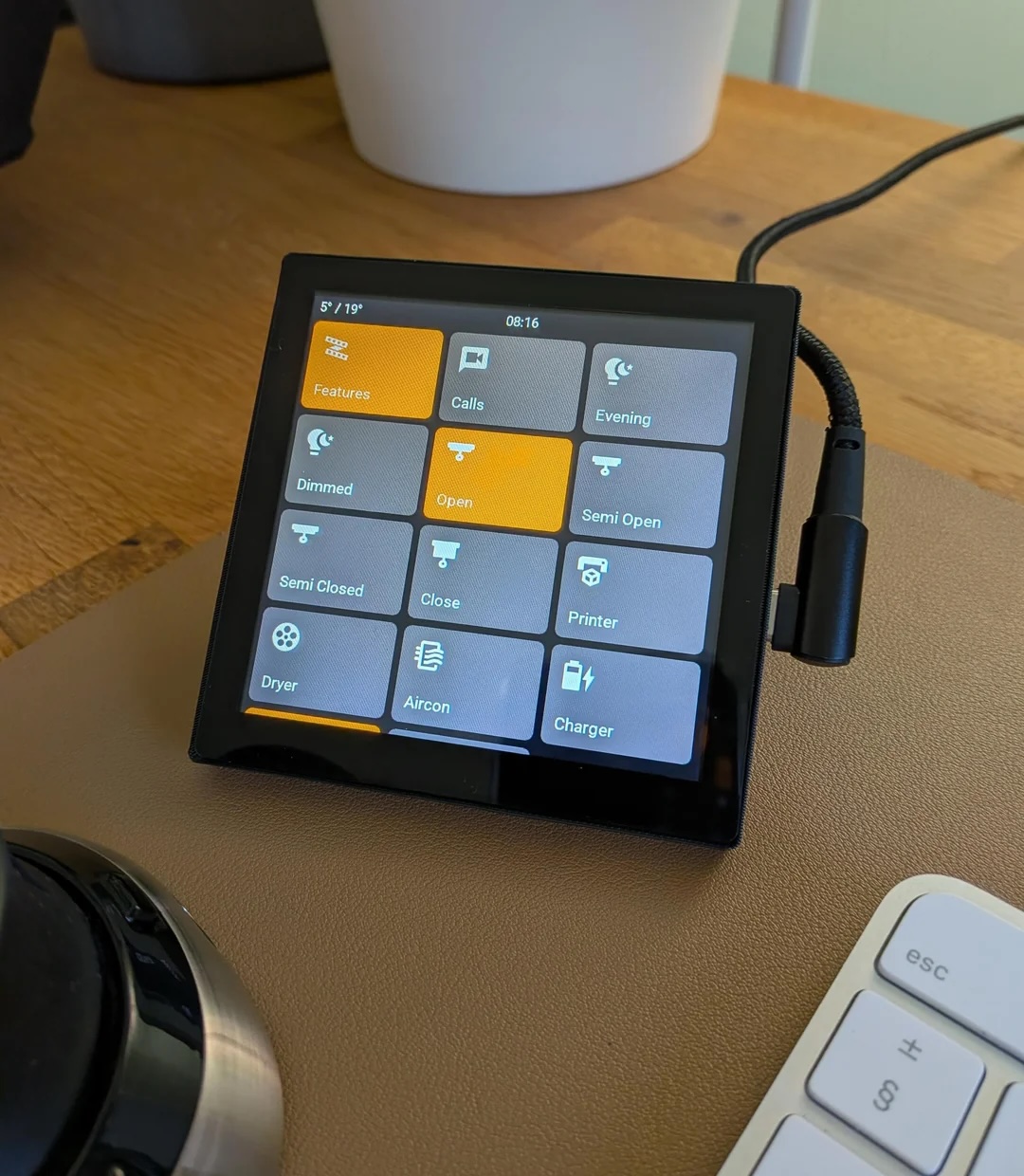

Guition ESP32-P4 JC1060P470 Guition ESP32-S3 4848S040

Archived Devices

These configs are kept for reference but are no longer listed as current supported devices.

| Device | Configuration | |--------|---------------| | Waveshare ESP32-S3 Touch LCD 7" | esphome.yaml |

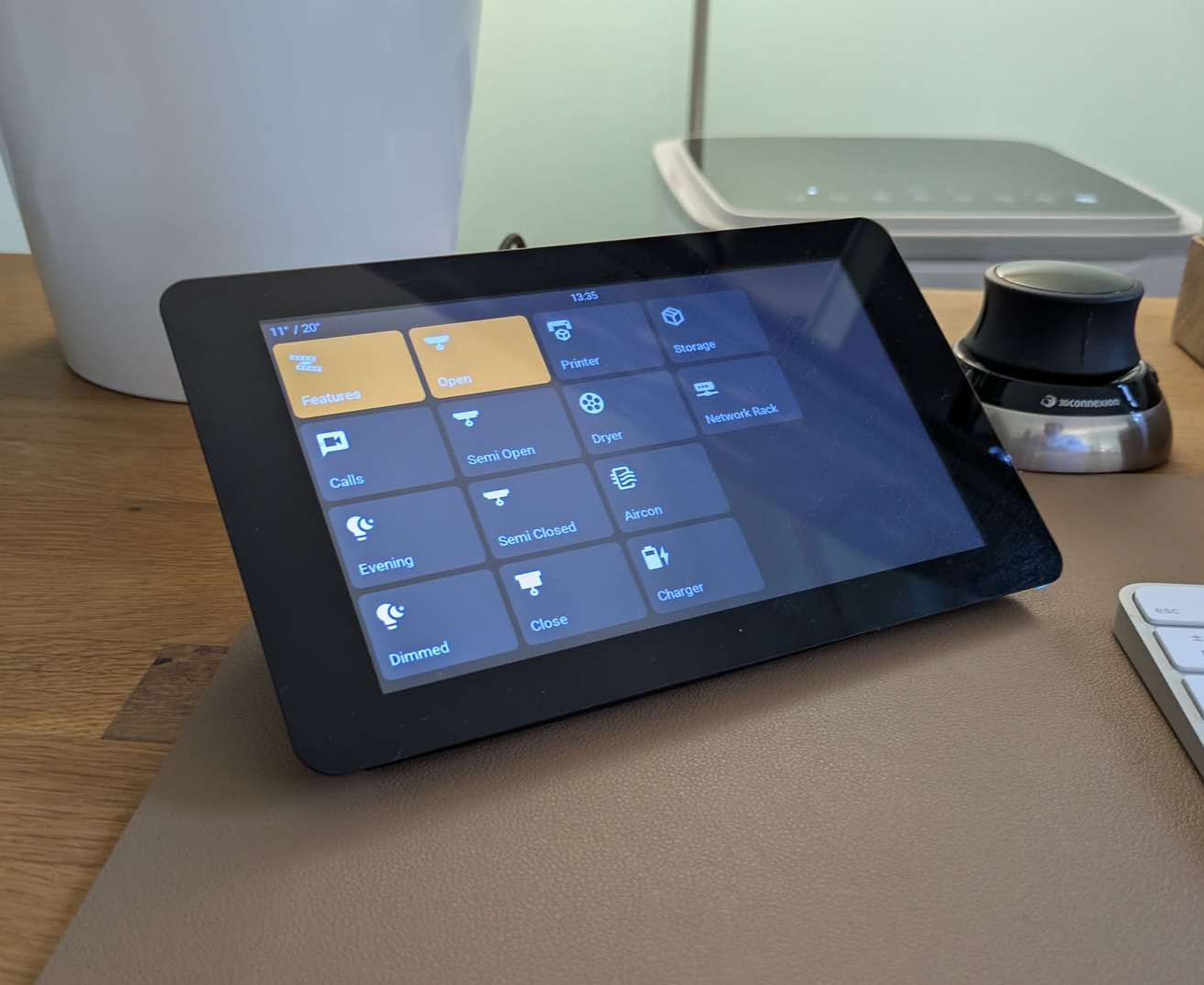

Waveshare ESP32-S3 Touch LCD 7

Where to Buy

| Device | Configuration | Where to Buy | |--------|---------------|--------------| | Waveshare ESP32-P4-WIFI6-Touch-LCD-4B (4.0", 720x720) | esphome.yaml | Waveshare | | Guition ESP32-P4 JC1060P470 (7") | esphome.yaml | AliExpress | | Guition ESP32-P4 JC8012P4A1 (10.1") | esphome.yaml | Search by model name | | Guition ESP32-P4 JC4880P443 (4.3") | esphome.yaml | Search by model name | | Guition ESP32-S3 4848S040 (4.0") | esphome.yaml | AliExpress | | Waveshare ESP32-S3 Touch LCD 7" (archived) | esphome.yaml | AliExpress |

Stands

Desk/desktop stands (3D printable models on MakerWorld):

| Device | Stand | |--------|-------| | Guition ESP32-P4 JC1060P470 (7") | Link | | Guition ESP32-S3 4848S040 (4.0") | Link | | Waveshare ESP32-S3 Touch LCD 7" (archived) | Link |

How to get it working

Follow these steps in order. The first flash is the only fiddly part; after that you can usually update over WiFi (OTA).

Fork this repo (recommended) and clone it. The configs are meant to be customized for your own setup rather than used as-is.

Install ESPHome

Use the ESPHome installation guide. Run the ESPHome dashboard (e.g. esphome dashboard or your usual method) and open it in Chrome — you’ll need Chrome for USB flashing later.

Add your device config

For your panel, open the esphome.yaml in that device's folder (see the table above). Use the full contents of that file as your ESPHome config: in the dashboard, create a new device (or edit an existing one) and paste in the template contents.

Set WiFi and secrets

In the ESPHome dashboard, open Secrets (top right) and add at least:

wifissid: "YourWiFi_SSID"
   wifipassword: "YourWiFi_Password"

First flash over USB

Connect the board with a USB cable. In the dashboard, compile and choose Install (flash). Pick the serial port when asked. - If the board isn’t found, install the USB drivers (CP210x, CH340, etc.) — ESPHome will prompt you and give links. - If the board has factory demo firmware and the flash fails, put it in flashing mode once: hold boot, press reset, then try flashing again. You usually only need to do this once. - Disconnect the USB and reconnect it to power each time you flash over USB. This isn't required for updates over WiFi.

Done

After a successful flash, the device should appear in the ESPHome dashboard and in Home Assistant as a discovered device. Later you can update it over WiFi (OTA) from the dashboard.

Allow Home Assistant actions

For the screen to be able to control things in Home Assistant (e.g. toggle lights, activate scenes), you need to enable this per-device. In Home Assistant go to Settings → Devices & Services → ESPHome, click Configure on your device, and turn on "Allow the device to perform Home Assistant actions". Without this, any homeassistant.action calls from the display will be silently ignored.

Optional: To change what’s on the display, edit the YAML in the device folder: device/device.yaml, device/sensors.yaml, device/lvgl.yaml, plus addon/, assets/, and theme/ as needed.

Resources

Home Assistant Stateful Scenes

The lighting scene examples in this project assume you are using the Stateful Scenes integration for Home Assistant so scene state can be inferred reliably (for example, keeping a scene switch "on" when all scene entities match). Install and configure the add-on here: https://github.com/hugobloem/stateful_scenes.

Remember: This repository contains my personal home automation setup. Please fork and customize it for your own environment.
