README

pyribs

| Discord | Mailing List | X | | :---------------------------------------------------------------------------------------------------------------------------------: | :--------------------------------------------------: | :------------------------------------------------------------------------------------------------: | | | Google Groups | |

| PyPI | Conda | CI/CD | Docs Status | | :---------------------------------------------------------------------------------------------------------------: | :--------------------------------------------------------------------------------------------------------------------------------: | :--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: | :----------------------------------------------------------------------------------------------------------------------------------------------: | | | | | |

A bare-bones Python library for quality diversity (QD) optimization. Pyribs implements the highly modular Rapid Illumination of Behavior Space (RIBS) framework for QD optimization. Pyribs is also the official implementation of Covariance Matrix Adaptation MAP-Elites (CMA-ME), Covariance Matrix Adaptation MAP-Elites via a Gradient Arborescence (CMA-MEGA), Covariance Matrix Adaptation MAP-Annealing (CMA-MAE), scalable variants of CMA-MAE, and Discount Model Search (DMS).

Community

**Join the Pyribs Announcements mailing list** for infrequent updates (less than 1/month) on the status of the project and new releases.

Need some help? Want to ask if pyribs is right for your project? Have a question that is not quite a bug and not quite a feature request?

Join the community Discord!

Overview

Types of Optimization

Quality diversity (QD) optimization is a subfield of optimization where solutions generated cover every point in a measure space while simultaneously maximizing (or minimizing) a single objective. QD algorithms within the MAP-Elites family of QD algorithms produce heatmaps (archives) as output where each cell contains the best discovered representative of a region in measure space.

In the QD literature, measure function outputs have also been referred to as

"behavioral characteristics," "behavior descriptors," "feature descriptors,"

and "outcomes."

Recent years have seen the advent of many QD algorithms. To represent these and future algorithms, we have developed the highly modular RIBS framework. RIBS divides a QD algorithm into three components:

An archive, which saves generated solutions within measure space.
One or more emitters, where each emitter is an algorithm which generates

new candidate solutions and responds to feedback about how the solutions were evaluated and how they were inserted into the archive.

A scheduler that controls the interaction of the archive and

emitters. The scheduler also provides an interface for requesting new candidate solutions and telling the algorithm how candidates performed.

Interchanging these components enables a user to compose a large number of QD algorithms.

Pyribs is an implementation of the RIBS framework designed to support a wide range of users, from beginners entering the field to experienced researchers seeking to develop new algorithms. Pyribs achieves these goals by embodying three principles:

Simple: Centered only on components that are absolutely necessary to run

a QD algorithm, allowing users to combine the framework with other software frameworks.

Flexible: Capable of representing a wide range of current and future QD

algorithms, allowing users to easily create or modify components.

Accessible: Easy to install and learn, particularly for beginners with

limited computational resources.

In contrast to other QD libraries, pyribs is "bare-bones." For example, like pycma, pyribs focuses on optimizing fixed-dimensional continuous domains. Focusing on this one commonly-occurring problem allows us to optimize the library for performance as well as ease of use.

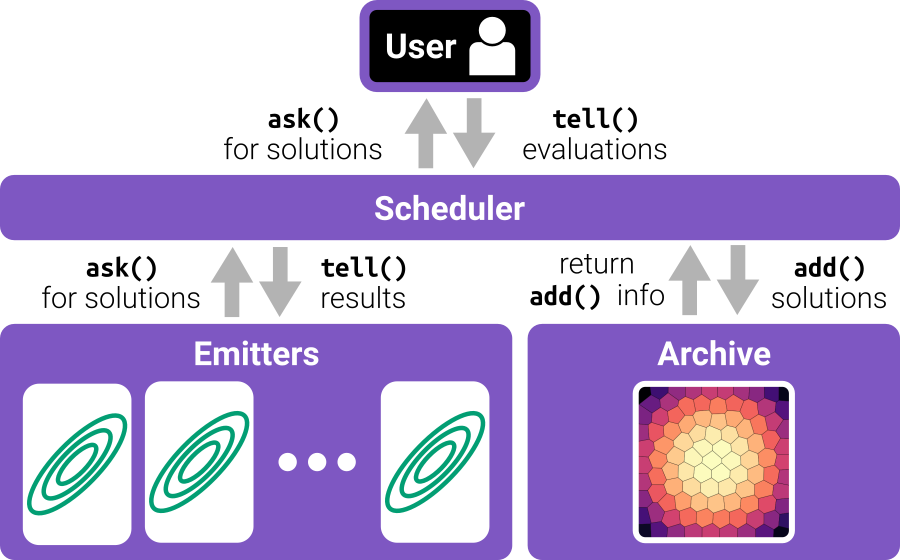

Following the RIBS framework (shown in the figure below), a standard algorithm in pyribs operates as follows:

The user calls the ask() method on the scheduler. The scheduler requests

solutions from each emitter by calling the emitter's ask() method.

The user evaluates solutions to obtain the objective and measure values.
The user passes the evaluations to the scheduler's tell() method. The

scheduler adds the solutions into the archive and receives feedback. The scheduler passes this feedback along with the evaluated solutions to each emitter's tell() method, and each emitter then updates its internal state.

The RIBS framework

Installation

Pyribs supports Python 3.10 and above. The vast majority of users can install pyribs by running:

# If you are on Mac, you may need to use quotations, e.g., pip install "ribs[visualize]"
pip install ribs[visualize]

The command above includes the visualize extra. If you will not be using the pyribs visualization tools, you can install the base version of pyribs with:

pip install ribs

For more specific installation commands (e.g., installing from Conda or installing from source), visit the installation selector on our website.

To quickly test your installation, import pyribs and print the version with this command:

python -c "import ribs; print(ribs.version)"

You should see a version number in the output.

Usage

Here we show an example application of CMA-ME in pyribs. To initialize the algorithm, we first create:

A 2D GridArchive where each dimension contains 20 cells across the range

[-1, 1].

Three instances of EvolutionStrategyEmitter, all of which start from the

search point 0 in 10-dimensional space and a Gaussian sampling distribution with standard deviation 0.1.

A Scheduler that combines the archive and emitters together.

After initializing the components, we optimize (pyribs maximizes) the negative 10-D Sphere function for 1000 iterations. Users of pycma will be familiar with the ask-tell interface (which pyribs adopted). First, the user must ask the scheduler for new candidate solutions. After evaluating the solution, they tell the scheduler the objectives and measures of each candidate solution. The algorithm then populates the archive and makes decisions on where to sample solutions next. Our toy example uses the first two parameters of the search space as measures.

import numpy as np
from ribs.archives import GridArchive from ribs.emitters import EvolutionStrategyEmitter from ribs.schedulers import Scheduler
archive = GridArchive(     solution_dim=10,     dims=[20, 20],     ranges=[(-1, 1), (-1, 1)], ) emitters = [     EvolutionStrategyEmitter(         archive,         x0=[0.0] * 10,         sigma0=0.1,         batch_size=36,     ) for _ in range(3) ] scheduler = Scheduler(archive, emitters)
for itr in range(1000):     solutions = scheduler.ask()
# Optimize the 10D negative Sphere function.     objectives = -np.sum(np.square(solutions), axis=1)
# Measures: first 2 coordinates of each 10D solution.     measures = solutions[:, :2]
scheduler.tell(objectives, measures)

To visualize this archive with Matplotlib, we then use the gridarchiveheatmap function from ribs.visualize.

import matplotlib.pyplot as plt
from ribs.visualize import gridarchiveheatmap
gridarchiveheatmap(archive) plt.show()

Sphere heatmap

Documentation

**The documentation is available online here. We suggest that new users start with the tutorials.**

Supported Algorithms

By implementing the RIBS framework, pyribs makes it possible to implement a wide variety of QD algorithms by interchanging the individual components. For examples of algorithms that can be implemented in pyribs, see this list.

Paper and Citation

Two years after the initial release of pyribs, we released a paper that elaborates on the RIBS framework and the design decisions behind pyribs. For more information on this paper, see here. If you use pyribs in your research, please consider citing this paper as follows. Also consider citing any algorithms you use as shown below.

@inproceedings{10.1145/3583131.3590374,
  author = {Tjanaka, Bryon and Fontaine, Matthew C and Lee, David H and Zhang, Yulun and Balam, Nivedit Reddy and Dennler, Nathaniel and Garlanka, Sujay S and Klapsis, Nikitas Dimitri and Nikolaidis, Stefanos},
  title = {Pyribs: A Bare-Bones Python Library for Quality Diversity Optimization},
  year = {2023},
  isbn = {9798400701191},
  publisher = {Association for Computing Machinery},
  address = {New York, NY, USA},
  url = {https://doi.org/10.1145/3583131.3590374},
  doi = {10.1145/3583131.3590374},
  abstract = {Recent years have seen a rise in the popularity of quality diversity (QD) optimization, a branch of optimization that seeks to find a collection of diverse, high-performing solutions to a given problem. To grow further, we believe the QD community faces two challenges: developing a framework to represent the field's growing array of algorithms, and implementing that framework in software that supports a range of researchers and practitioners. To address these challenges, we have developed pyribs, a library built on a highly modular conceptual QD framework. By replacing components in the conceptual framework, and hence in pyribs, users can compose algorithms from across the QD literature; equally important, they can identify unexplored algorithm variations. Furthermore, pyribs makes this framework simple, flexible, and accessible, with a user-friendly API supported by extensive documentation and tutorials. This paper overviews the creation of pyribs, focusing on the conceptual framework that it implements and the design principles that have guided the library's development. Pyribs is available at https://pyribs.org},
  booktitle = {Proceedings of the Genetic and Evolutionary Computation Conference},
  pages = {220–229},
  numpages = {10},
  keywords = {framework, quality diversity, software library},
  location = {Lisbon, Portugal},
  series = {GECCO '23}
}

Contributors

pyribs is developed and maintained by the ICAROS Lab at USC. For information on contributing to the repo, see CONTRIBUTING.

We thank Amy K. Hoover and Julian Togelius for their contributions deriving the CMA-ME algorithm.

Users

pyribs users include:

researchers at the University of Tsukuba

Publications

For the list of publications that use pyribs, refer to our Google Scholar entry.

Software

See the GitHub dependency graph for the public GitHub repositories which depend on pyribs.

Citing Algorithms in pyribs

If you use the following algorithms, please consider citing their relevant papers:

CMA-ME: Fontaine 2020

@inproceedings{10.1145/3377930.3390232,
    author = {Fontaine, Matthew C. and Togelius, Julian and Nikolaidis, Stefanos and Hoover, Amy K.},
    title = {Covariance Matrix Adaptation for the Rapid Illumination of Behavior Space},
    year = {2020},
    isbn = {9781450371285},
    publisher = {Association for Computing Machinery},
    address = {New York, NY, USA},
    url = {https://doi.org/10.1145/3377930.3390232},
    doi = {10.1145/3377930.3390232},
    booktitle = {Proceedings of the 2020 Genetic and Evolutionary Computation Conference},
    pages = {94–102},
    numpages = {9},
    location = {Canc\'{u}n, Mexico},
    series = {GECCO '20}
  }

CMA-MEGA:

Fontaine 2021

@inproceedings{NEURIPS2021_532923f1,
   author = {Fontaine, Matthew and Nikolaidis, Stefanos},
   booktitle = {Advances in Neural Information Processing Systems},
   editor = {M. Ranzato and A. Beygelzimer and Y. Dauphin and P.S. Liang and J. Wortman Vaughan},
   pages = {10040--10052},
   publisher = {Curran Associates, Inc.},
   title = {Differentiable Quality Diversity},
   url = {https://proceedings.neurips.cc/paper/2021/file/532923f11ac97d3e7cb0130315b067dc-Paper.pdf},
   volume = {34},
   year = {2021}
  }

CMA-MAE: Fontaine 2022

@misc{cmamae,
    doi = {10.48550/ARXIV.2205.10752},
    url = {https://arxiv.org/abs/2205.10752},
    author = {Fontaine, Matthew C. and Nikolaidis, Stefanos},
    keywords = {Machine Learning (cs.LG), Artificial Intelligence (cs.AI), FOS: Computer and information sciences, FOS: Computer and information sciences},
    title = {Covariance Matrix Adaptation MAP-Annealing},
    publisher = {arXiv},
    year = {2022},
    copyright = {arXiv.org perpetual, non-exclusive license}
  }

Scalable CMA-MAE: Tjanaka 2023

@ARTICLE{10243102,
    author={Tjanaka, Bryon and Fontaine, Matthew C. and Lee, David H. and Kalkar, Aniruddha and Nikolaidis, Stefanos},
    journal={IEEE Robotics and Automation Letters},
    title={Training Diverse High-Dimensional Controllers by Scaling Covariance Matrix Adaptation MAP-Annealing},
    year={2023},
    volume={8},
    number={10},
    pages={6771-6778},
    keywords={Covariance matrices;Training;Neural networks;Legged locomotion;Reinforcement learning;Evolutionary robotics;Evolutionary robotics;reinforcement learning},
    doi={10.1109/LRA.2023.3313012}
  }

Discount Model Search: Tjanaka 2026

@inproceedings{
    tjanaka2026discount,
    title={Discount Model Search for Quality Diversity Optimization in High-Dimensional Measure Spaces},
    author={Bryon Tjanaka and Henry Chen and Matthew C. Fontaine and Stefanos Nikolaidis},
    booktitle={The Fourteenth International Conference on Learning Representations},
    year={2026},
    url={https://openreview.net/forum?id=m6Hv0yZO3n}
  }

Additional QD Libraries

QDax: Implementations

of QD algorithms in JAX. QDax is suitable if you want to run entire QD algorithms on hardware accelerators in a matter of minutes, and it is particularly useful if you need to interface with Brax environments.
