⚠️ Read-only research / education tool. Never deploy against production OT environments without explicit written authorization. See SECURITY.md and the Safe Harbor section.

What it does

IndustrialScanner gives OT/ICS security practitioners a safe, read-only, automated analysis suite for the three most common industrial protocols:

| Module | Protocol | Mode | Output | |---|---|---|---| | modbus_scanner | Modbus/TCP (port 502) | Active read-only probe (coils, inputs, registers) | JSON + HTML | | s7commanalyzer | Siemens S7Comm (TPKT/COTP, port 102) | Passive PCAP analysis | JSON + HTML | | dnp3_monitor | DNP3 (TCP/UDP 20000) | Passive PCAP analysis | JSON + HTML | | build*index.py | All three | Consolidated dashboard | HTML + Chart.js |

The suite is intentionally split into report generation (scanners/analyzers) and dashboard building (index builders). Scanners produce per-target reports; index builders aggregate them into executive dashboards.

Why it exists

ICS/OT networks are not regular IT networks. They prioritize availability and safety over speed and convenience, and they use specialized protocols that traditional security tooling ignores. A single misconfiguration can halt a substation, a production line, or a water treatment plant.

Commercial ICS/OT tooling (Claroty, Nozomi, Dragos) is excellent but expensive and closed-source. IndustrialScanner closes that gap by giving practitioners, researchers, and educators a transparent, auditable, and free toolkit to understand the security posture of their OT assets.

Quickstart

# 1. Clone
git clone https://github.com/frangelbarrera/industrial-scanner.git
cd IndustrialScanner
2. Install
python -m venv .venv && source .venv/bin/activate
pip install -e ".[dev]"
3. Copy env template (optional for read-only analysis)
cp .env.example .env
4. Run a Modbus scan (read-only, safe probes)
industrial-scanner modbus --targets 127.0.0.1 --unit 1
or
python -m modbusscanner.modbusscan --targets 127.0.0.1 --unit 1
5. Analyze S7Comm PCAPs (single file)
industrial-scanner s7 --pcap pcaps/s7/step7s300stop.pcapng
6. Batch-analyze all DNP3 PCAPs in pcaps/dnp3/
python rundnp3all.py
7. Build consolidated dashboards
python builds7index.py        # S7 dashboard
python builddnp3index.py      # DNP3 dashboard
python buildglobalindex.py    # Global executive dashboard

Outputs land in reports/ as HTML dashboards with Chart.js visualizations.

Repository layout

IndustrialScanner/
├─ modbus_scanner/        # Active read-only Modbus/TCP scanner
│  ├─ modbus_scan.py
│  └─ utils.py
├─ s7commanalyzer/      # Passive S7Comm analyzer
│  ├─ s7_analyze.py
│  └─ parsers.py
├─ dnp3_monitor/           # Passive DNP3 analyzer
│  ├─ dnp3_analyze.py
│  └─ parsers.py
├─ ics_scanner/            # Shared security primitives (NEW)
│  ├─ security.py          # HTML escape, target policy, path guards
│  └─ cli.py               # Unified Click+Rich CLI
├─ reports/
│  ├─ modbus_batch/
│  ├─ s7_batch/
│  ├─ dnp3_batch/
│  ├─ templates/           # Jinja2 templates (autoescape on)
│  ├─ modbus_index.html
│  ├─ s7_index.html
│  ├─ dnp3_index.html
│  └─ index.html
├─ tests/                  # pytest + property-based tests (NEW)
├─ .github/workflows/      # CI, release, dependency scan (NEW)
├─ pcaps/                  # Sample PCAPs
├─ docs/images/            # Screenshots
├─ cli.py                  # Legacy CLI (kept for compatibility)
├─ build_*.py              # Dashboard builders
├─ pyproject.toml          # Modern packaging (PEP 621)
├─ .pre-commit-config.yaml # Ruff + mypy + bandit hooks
└─ .env.example            # Environment template

Unified CLI (new)

The new Click+Rich based CLI lives in ics_scanner/cli.py. Install exposes the industrial-scanner entry point:

industrial-scanner modbus --targets 192.168.0.10,192.168.0.11 --unit 1
industrial-scanner s7 --pcap pcaps/s7/step7s300stop.pcapng
industrial-scanner dnp3 --pcap pcaps/dnp3/readandresponse.pcap

The CLI enforces a target safety policy: public IPs are refused by default (use --allow-public only after explicit written authorization). This prevents accidental wide-area scanning of legacy PLCs.

Usage by protocol

Modbus (active, read-only)

python -m modbusscanner.modbusscan --targets 127.0.0.1 --port 502 --unit 1
or
industrial-scanner modbus --targets 127.0.0.1 --port 502 --unit 1

• Issues only read function codes: 0x01 Read Coils, 0x02 Read Discrete Inputs, 0x03 Read Holding Registers, 0x04 Read Input Registers.
• Collects latency, exposure signals (unauthenticatedread, broadregister_access).
• Outputs JSON + HTML in reports/modbus_batch/.

S7Comm (passive, from PCAPs)

industrial-scanner s7 --pcap pcaps/s7/step7s300stop.pcapng
python -m s7commanalyzer.s7_analyze  # batch-process all PCAPs in pcaps/s7/
python builds7index.py                # consolidated dashboard with Chart.js

• Unwraps TPKT/COTP framing (RFC 1006 / ISO 8073) before parsing the S7 PDU.
• Strict binary parser per Siemens spec: decodes the S7 header (ROSCTR) and parameter block (function code at offset 10), not heuristic ASCII matching.
• Function classifier: ReadVar, WriteVar, Start, Stop, DownloadBlock, CopyRamToRom, FirmwareUpdate, Password, ReadDiag.
• Each packet is enriched with MITRE ATT&CK for ICS techniques (T0801, T0802, T0808, T0848, T0858, T0859, T0879, T0885, T0881).

DNP3 (passive, from PCAPs)

industrial-scanner dnp3 --pcap pcaps/dnp3/readandresponse.pcap
python rundnp3all.py     # batch-process all PCAPs in pcaps/dnp3/
python builddnp3index.py

• Strict binary parser per IEEE 1815-2012: decodes the link layer (10 bytes), transport layer, and application layer (function code at offset 12).
• Function classifier: Read, Write, Select, Operate, DirectOperate, ColdRestart, WarmRestart, StopApplication, DeleteFile, EnableUnsolicited, AssignClass, Authenticate, and 16 more.
• Each suspect function is flagged and enriched with MITRE ATT&CK for ICS techniques.

Global executive dashboard

python buildglobalindex.py

Produces reports/index.html with totals and quick links per protocol.

Screenshots

Demo (animated)

The demo cycles through the global executive dashboard, S7Comm dashboard, DNP3 dashboard, and a per-PCAP DNP3 report showing MITRE ATT&CK mapping in action.

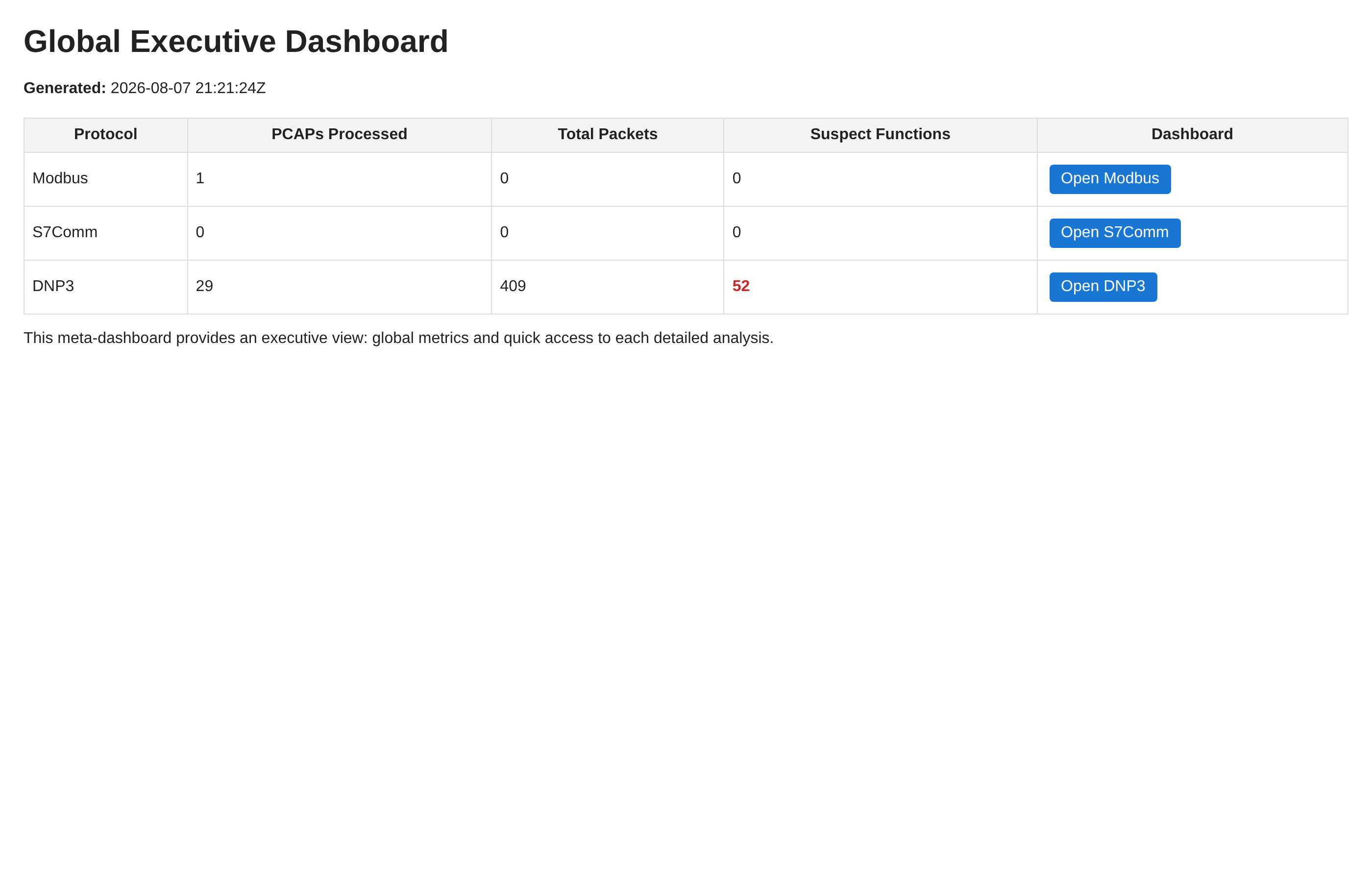

Global Executive Dashboard

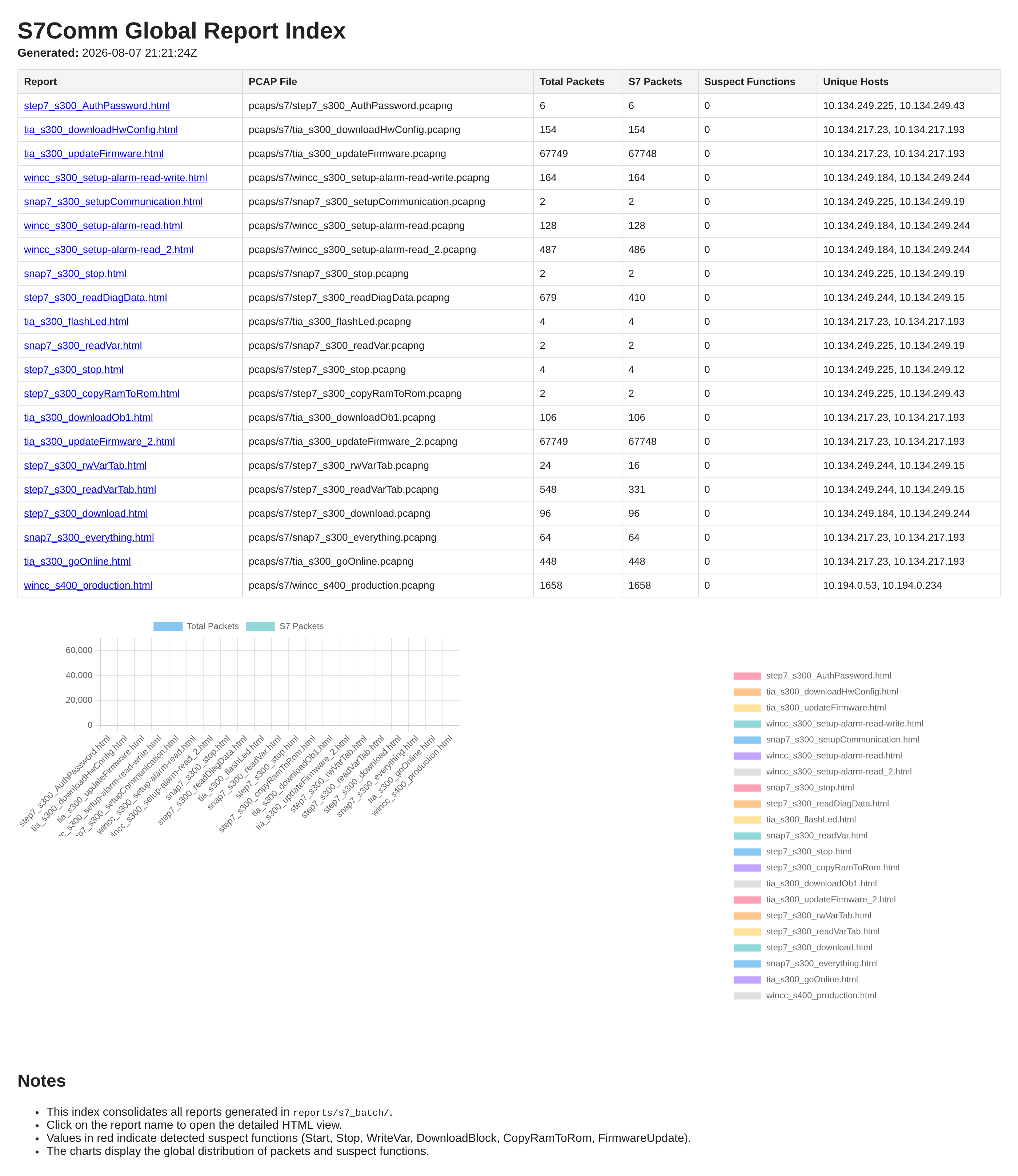

S7Comm Dashboard (with Chart.js visualizations)

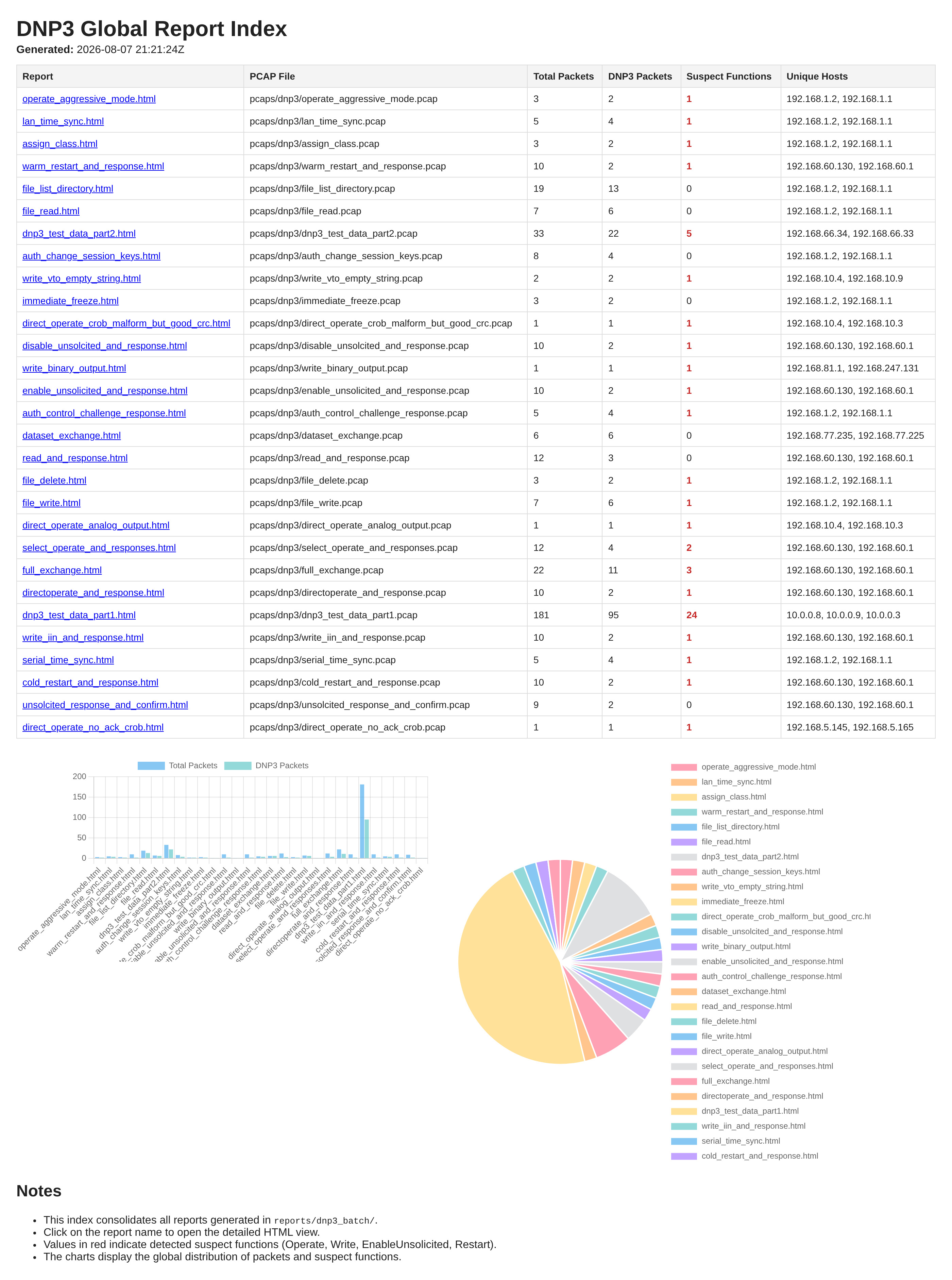

DNP3 Dashboard (with Chart.js visualizations)

Per-PCAP report with MITRE ATT&CK enrichment

S7 individual report — shows parsed packets with ROSCTR, function code, and hints:

DNP3 individual report — shows parsed packets with function code, suspect flag, and MITRE techniques:

Test data

The repo bundles:

• Sample PCAPs for S7Comm (.pcapng) and DNP3 (.pcap) under pcaps/.
• ModbusPal.jar, a third-party Modbus/TCP emulator, for spinning up a local test target. (External dependency; report issues to its upstream project.)

Development

pip install -e ".[dev]"
pre-commit install
pytest
ruff check .
mypy modbusscanner s7commanalyzer dnp3monitor ics_scanner

CI/CD

The repo ships three GitHub Actions workflows under .github/workflows/:

| Workflow | Purpose | |---|---| | ci.yml | Lint (ruff), type-check (mypy), tests (3.11/3.12/3.13), security-scan (bandit + pip-audit + semgrep + CodeQL), build | | release.yml | On tag v*, publish to PyPI + GitHub Release | | dependency-scan.yml | Daily pip-audit of pinned dependencies |

Conventions

• Style: Ruff (line-length 100, pyupgrade, bugbear, simplify, security).
• Types: strict mypy on modbusscanner, s7commanalyzer, dnp3monitor, ics_scanner.
• Tests: pytest + hypothesis for fuzz testing of parsers.
• Commits: conventional-commits style (feat:, fix:, sec:, docs:, ci:).
• Versioning: Semantic Versioning 2.0.0.

Security

See SECURITY.md for the full policy, supported versions, vulnerability reporting flow, Safe Harbor, and known security considerations.

Key highlights:

• Read-only by design: Modbus scanner issues only 0x01–0x04 function codes.
• Target safety policy: public IPs are refused by default (--allow-public requires explicit opt-in).
• HTML/JSON output escaping: all untrusted PCAP bytes are escaped via icsscanner.security.htmlescape() or Jinja2 autoescape=True.
• No write/control primitives for S7Comm or DNP3.
• No telemetry / no outbound calls: the tool runs entirely offline.

Compliance references

IndustrialScanner is positioned against the following standards (see docs/compliance.md for the full gap analysis):

• IEC 62443 (industrial automation and control systems security)
• NIST SP 800-82 Rev 3 (Guide to Operational Technology (OT) Security)
• NERC CIP (Critical Infrastructure Protection)
• ISO/IEC 27019 (Energy utility industry security)

Roadmap

| Quarter | Theme | Highlights | |---|---|---| | Q1 | Stabilization | Strict parsers (per IEEE 1815 / IEC 61131), type hints everywhere, 80%+ coverage | | Q2 | Security hardening | DNP3 SA v5, Modbus/TCP TLS (RFC 9441), SBOM generation, signed releases | | Q3 | Architecture | Plugin system for new protocols (PROFINET, EtherNet/IP, IEC 61850), async I/O | | Q4 | Ecosystem | PyPI release, Docker image, MkDocs site, community Discord, S4 / Black Hat ICS talks |

A note on language composition

GitHub's language breakdown shows a high HTML percentage because the tool generates HTML dashboards. The actual application logic is entirely Python — see modbusscanner/, s7commanalyzer/, dnp3monitor/, and ics_scanner/.

License

MIT — see LICENSE.

Contributing

PRs welcome. Please read SECURITY.md first, run pre-commit install, and ensure all CI checks pass before requesting review.

For larger changes, open an issue first to discuss the design.

Acknowledgements

Built on the shoulders of giants:

• scapy — packet manipulation
• pymodbus — Modbus implementation
• Jinja2 — HTML templating
• ModbusPal — Modbus emulator
• snap7 — Siemens S7 reference
• The broader ICS-CERT, SANS ICS, and Dragos research communities
