Unified Knowledge Graph RAG on AWS

🇰🇷 한국어 README · 🤝 Contributing

An AWS-native knowledge graph RAG (Retrieval-Augmented Generation) framework that turns large multilingual document corpora into knowledge graphs and answers questions over them with multi-hop graph traversal.

It reimplements two retrieval methodologies — Microsoft's GraphRAG ("From Local to Global: A Graph RAG Approach to Query-Focused Summarization") and LightRAG ("Simple and Fast Retrieval-Augmented Generation") — over a single AWS-native stack. The two are selectable per query and share one ingestion, indexing, caching, multilingual, and hybrid (lexical + semantic + graph) search infrastructure; only the retrieval algorithm differs.

Highlights

- Two methodologies, one stack. GraphRAG community-summary (auto/drift/global/local/simple) and LightRAG dual-level keyword (mix/hybrid/naive), chosen per query via search_strategy.

- Incremental indexing. The DynamoDB document-status registry (aws.dynamodb) diffs a corpus by content hash and re-indexes only new/changed documents, merging into the live graph (idempotent upserts; deletions remove a document's exclusive artifacts).

- Prompt tuning. run-prompt-tuning profiles a corpus (domain/language/persona/entity-types) and emits domain-adapted custom_prompts.

- Standalone visualization & graph-aware evaluation. run-visualization renders from exported graph data without re-ingesting; the graph_aware evaluator scores entity/relationship coverage.

- Hexagonal architecture. Ports & adapters + registries make storage backends, retrieval strategies, evaluators, and renderers pluggable. See docs/design.md.

✨ Features & Advantages

🏗️ AWS-Native Design

AWS service integration: Bedrock, Neptune, OpenSearch, S3, and DynamoDB
Scalable: parallel, batched processing for large document corpora
Caching: local + S3-synced stage cache with task retry to avoid recomputation
Security: S3 encryption and private-VPC deployment

🚀 Triple Hybrid Search Architecture

Semantic Search: High-quality vector search based on Amazon Bedrock embedding models
Lexical Search: Precise keyword matching using BM25 algorithm
Relationship-based Search: Connectivity analysis through knowledge graph traversal
Result Optimization: Enhanced search accuracy with the RRF (Reciprocal Rank Fusion) algorithm and Amazon Bedrock reranking models

🧠 Advanced Knowledge Graph Processing

Precise Entity Resolution: Automatic detection and integration of duplicate entities
Topic Clustering: Efficient community detection based on Leiden algorithm
Complex Reasoning: Multi-hop reasoning capabilities across document boundaries
Source Transparency: Verifiable information sources provided for all responses

🔍 Two Selectable Methodologies, One Infrastructure

Pick per query via search_strategy; both share the same ingestion, indexing, caching, multilingual, and hybrid-scoring stack — only the retrieval algorithm differs.

GraphRAG (community-summary): simple (direct), local (entity-focused),

global (community-based), drift (progressive exploration), auto (LLM router)

LightRAG (dual-level keyword): mix, hybrid, naive — high/low keyword

extraction over an entity index + a relationship vector index + graph expansion

♻️ Incremental Indexing

Content-hash delta detection: a DynamoDB document-status registry fingerprints

each document, so re-runs re-index only new/changed documents and merge into the live graph (idempotent upserts)

Deletion lineage: removing a document deletes only its exclusive artifacts

(entities shared with surviving documents are preserved)

🎯 Comprehensive Evaluation Framework

LangChain-based Evaluation: correctness and partial_correctness via built-in evaluators
RAGAS Metrics: answer correctness, answer relevancy, faithfulness, context precision, and context recall
Graph-aware Evaluation: entity/relationship coverage (recall of expected

graph artifacts surfaced in the answer) against ground-truth expectations (deterministic, LLM-free, word-boundary matching). Precision/F1 are intentionally not emitted — a free-text answer cannot be enumerated into a closed set of entities, so a false-positive count would be meaningless.

🔧 User Support

Domain-specific Prompts: customizable per-prompt overrides via config
Automatic Prompt Tuning: profile a corpus (domain/language/persona/entity-types)

and emit domain-adapted prompts (run-prompt-tuning)

Flexible Configuration: detailed option adjustment through YAML configuration files
Comprehensive Monitoring: structured logging and performance metrics

🌍 Multilingual Support

Automatic Language Processing: translation during indexing/search, language-aware

analyzers, and multilingual keyword extraction — applied to both methodologies

📊 Visualization & Analytics Tools

Interactive Graph: Node2Vec + UMAP graph visualization
Network Analysis: centrality metrics and graph statistics
Standalone CLI: render from exported graph data without re-ingesting (run-visualization)

🧱 Hexagonal Architecture

Ports & adapters: pluggable storage/retrieval backends and a registry for

strategies, evaluators, and renderers — extend without editing dispatch code (see CLAUDE.md)

🏛️ Architecture Overview

The framework implements a sophisticated indexing and retrieval pipeline:

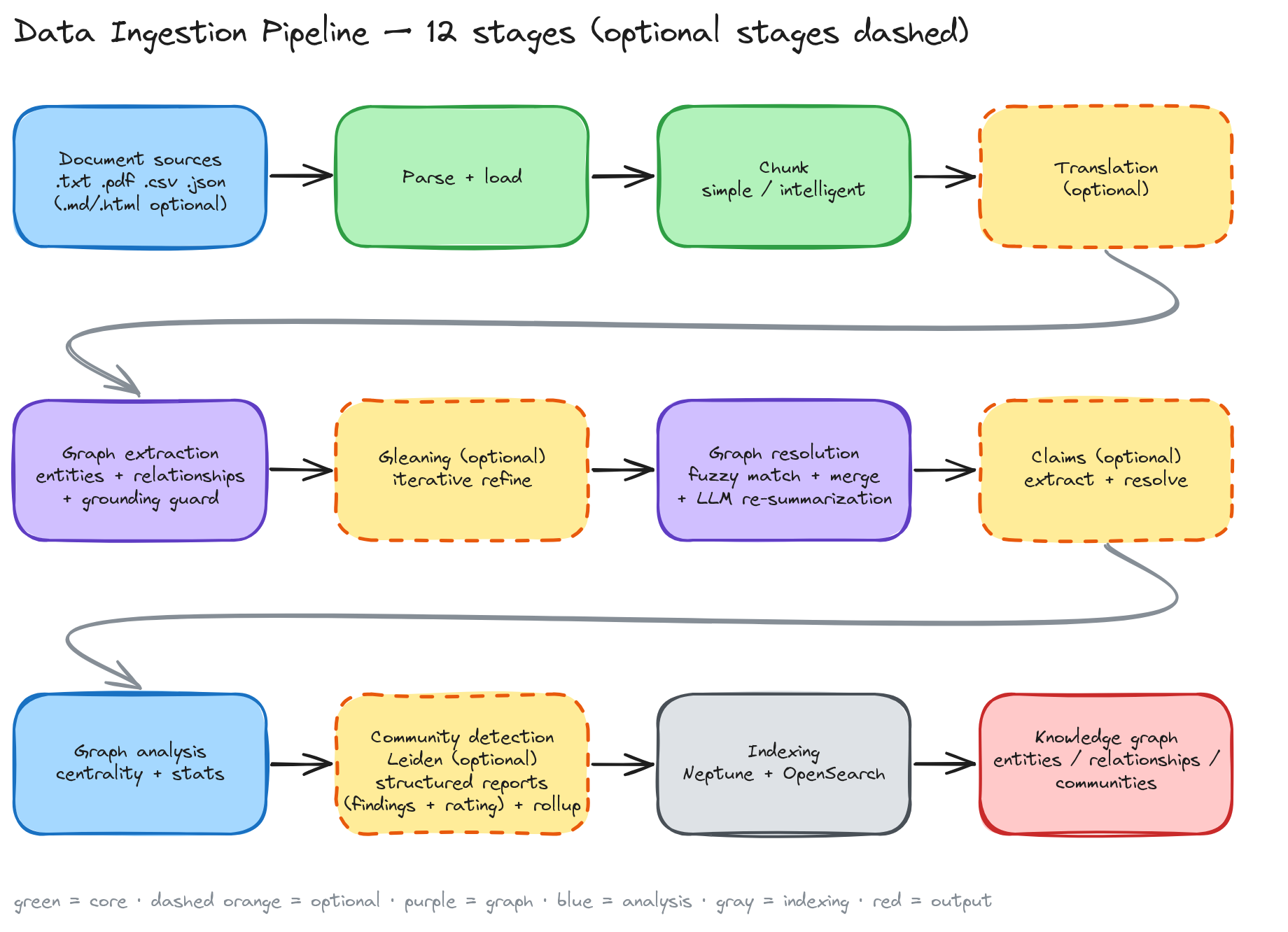

Data Ingestion Pipeline

Core Stages:

Document Loading/Parsing: PDF, TXT, CSV, JSON out of the box (plus MD/HTML when the optional unstructured extra is installed)
Text Chunking: Simple/intelligent strategies with context preservation
Graph Extraction: Entity/relationship extraction via LLM
Graph Resolution: Fuzzy matching and deduplication of entities/relationships
Graph Analysis: Centrality metrics (degree, betweenness, PageRank, eigenvector) and graph statistics
Community Detection: Leiden algorithm for topic clustering
Indexing: Storage backend integration (OpenSearch + Neptune)

Optional Stages:

Translation: Multi-language support with automatic language detection
Gleaning: Iterative graph refinement for improved accuracy
Claim Extraction/Resolution: Factual assertions extraction and validation

(opt-in: processing.claim_extraction.enabled, off by default). When enabled, claims are embedded into a dedicated index and injected into local/simple search context as covariates.

Key Features:

Incremental Indexing: content-hash delta detection + merge (DynamoDB registry)
Resumable Pipeline: Stage checkpointing for interrupted runs
Comprehensive Caching: S3 sync with local cache management
Parallel Processing: Batch optimization and concurrent execution
Configurable Strategies: Flexible processing approaches per stage
Error Handling: Optional continuation on stage failures

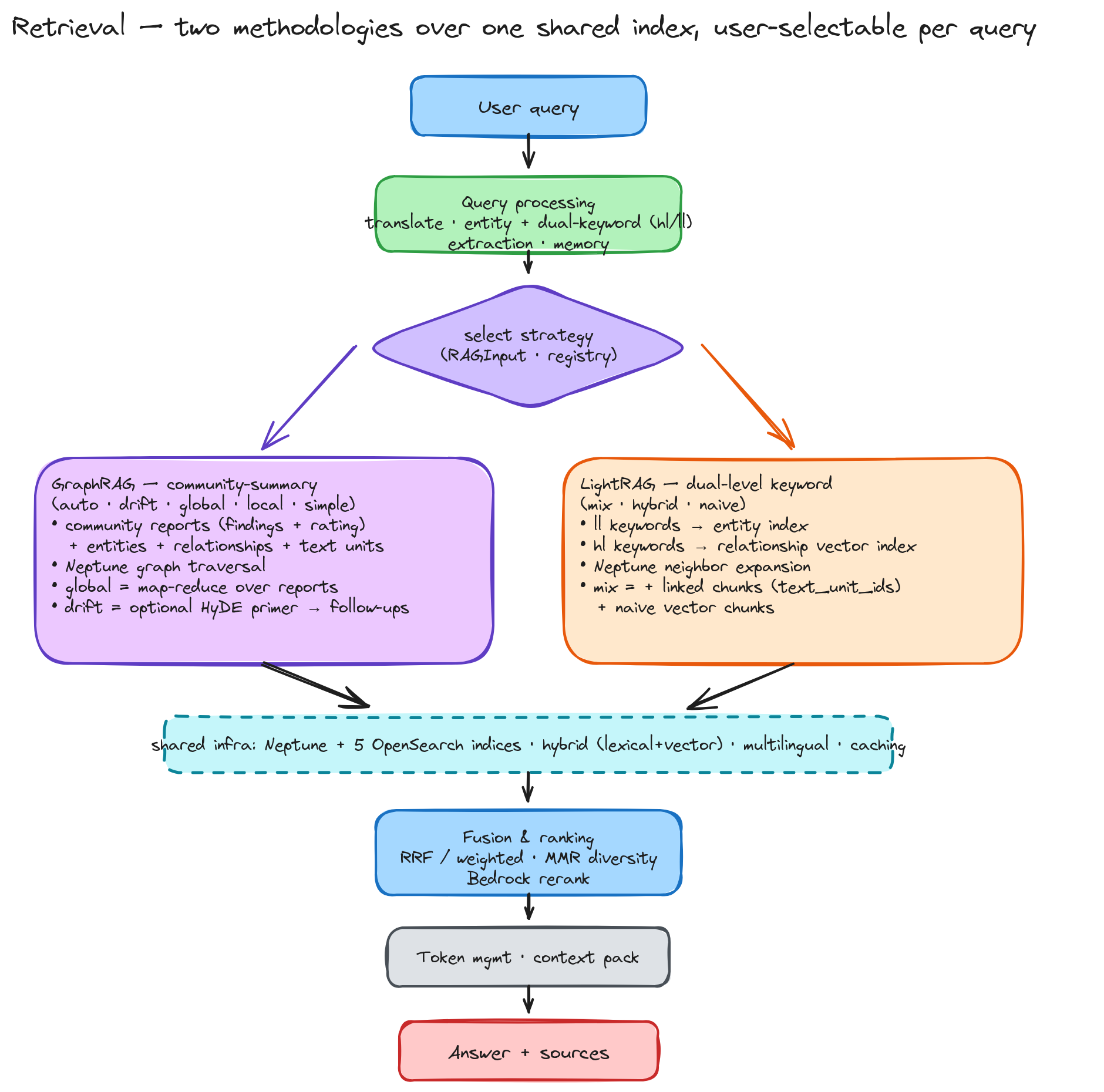

Retrieval Pipeline

Multi-Strategy Architecture

The framework offers two retrieval methodologies — GraphRAG community-summary and LightRAG dual-level keyword — sharing one ingestion/indexing/caching/ hybrid-search infrastructure and selectable per query via RAGInput.search_strategy. The GraphRAG auto strategy automatically selects the optimal approach based on query analysis.

GraphRAG strategies

Simple Strategy: Direct OpenSearch retrieval for basic queries

Vector and keyword search without graph traversal
Fastest response time for straightforward questions
Ideal for factual lookups and simple information retrieval

Local Strategy: Entity-focused search using graph traversal + text retrieval

Identifies key entities in the query
Performs graph traversal to find related entities and relationships
Combines graph context with vector/keyword search results
Optimal for detailed analysis of specific entities or concepts

Global Strategy: Community-based analysis for broad questions

Leverages community detection results for comprehensive coverage
Uses map-reduce approach for large-scale information synthesis
Dynamic community selection based on query relevance
Best for high-level insights and thematic analysis

Drift Strategy: Iterative query evolution with convergence detection

Starts with initial search and iteratively refines based on results
Expands context through multiple search rounds
Convergence detection prevents infinite loops
Excellent for complex, multi-faceted questions requiring exploration

LightRAG strategies (dual-level keyword)

Mix / Hybrid Strategy: Extracts high-level and low-level keywords (KeywordsExtractionPrompt), then queries the relationship vector index (high-level) + entity index (low-level) with Neptune neighborhood expansion. mix additionally blends naive vector chunk retrieval. Both run through the same HybridScorer (lexical + semantic + graph, RRF + Bedrock rerank).

Naive Strategy: Pure vector chunk retrieval — the LightRAG baseline, useful as a fast lexical/semantic fallback and for comparison evaluation.

Component Architecture

Dual Retriever System:

Neptune Graph DB: Relationship traversal and entity-centric search
OpenSearch: Vector similarity and keyword matching with BM25

Query Processing Pipeline:

Language detection and translation (if needed)
Entity extraction using LLM
Strategy selection based on query characteristics
Multi-retriever coordination and result fusion

Fusion and Ranking Mechanisms:

RRF (Reciprocal Rank Fusion): Combines scores from different retrievers
Diversity Filtering: Reduces redundancy in search results
LLM Reranking: Context-aware result prioritization using Bedrock models
Hybrid Scoring: Weighted combination of lexical and semantic similarity

Context Optimization:

Token Management: Dynamic context sizing within model limits
Priority Scoring: Relevance-based content selection
Memory Integration: Conversational context tracking for multi-turn queries
Entity Tracking: Maintains entity focus across conversation turns

🚀 Installation

Prerequisites

Python 3.10–3.12 (uv recommended)
AWS CLI configured with appropriate permissions
AWS Services deployed and accessible (provision them yourself, or use the

optional CDK app — see Provision the AWS stack below): - Amazon Bedrock (with model access enabled) - Amazon Neptune cluster - Amazon OpenSearch domain - Amazon S3 bucket - Amazon DynamoDB (only if you want incremental indexing)

Quick Start

# Clone the repository (replace <repository-url> with this repo's Git URL)
git clone <repository-url>
cd unified-kg-rag-on-aws
Install the framework (uv recommended; or: pip install -e .)
uv sync --extra dev
Copy and configure settings
cp config-template.yaml config.yaml
Edit config.yaml with your AWS service endpoints
Copy and configure environment variables (if using username/password authentication)
cp .env-template .env
Edit .env file with your OpenSearch credentials if not using IAM authentication

📦 Provision the AWS stack (optional)

The framework talks to existing AWS services — it does not create them. You have two ways to get those services in place:

Already have them? Skip this section. Just put your Bedrock region and your

Neptune / OpenSearch / S3 (and optional DynamoDB) endpoints into config.yaml and go straight to Usage.

Starting from scratch? The repo ships an **optional, batteries-included AWS

CDK app** in iac/ that provisions the entire stack for you — VPC + endpoints, a Neptune cluster, an OpenSearch domain, the DynamoDB doc-status table, an S3 cache bucket, an ECS Fargate data plane, a Step Functions ingestion pipeline, CloudWatch dashboards/alarms, and an optional Bedrock Guardrail — with Well-Architected defaults (private-VPC isolation, KMS at-rest encryption, enforced TLS, least-privilege IAM).

Using the CDK app is a short, self-contained flow:

cd iac
python -m venv .venv && . .venv/bin/activate
pip install -r requirements.txt
See what would be created — no AWS changes, no cost:
cdk synth
First time in this account/region only:
cdk bootstrap
Deploy everything (creates billable resources — see the cost note below):
cdk deploy --all

After the deploy finishes, CloudFormation prints the Neptune / OpenSearch / S3 outputs — copy those endpoints into your config.yaml, and you're ready to ingest and query.

💡 Heads-up on cost & teardown. Deploying creates Neptune and OpenSearch

(both billed hourly) plus, in public network mode, NAT gateways. In the

default dev profile everything tears down cleanly with cdk destroy --all.

For production, review the hardening flags (usecmk, deletionprotection,

Multi-AZ sizing, vpcflowlogs, …) first.

The iac/README.md is the full reference: every stack, all -c key=value configuration knobs, VPC reuse, the region-pinned Bedrock Guardrail two-step, cdk-nag validation, and how to kick off an ingestion run via Step Functions once the stack is up.

Environment Configuration

If your OpenSearch cluster uses username/password authentication instead of IAM, create a .env file:

cp .env-template .env

Then edit the .env file with your OpenSearch credentials:

# OpenSearch Authentication (only required if use_iam is false in config.yaml)
OPENSEARCHUSERNAME=youropensearch_username
OPENSEARCHPASSWORD=youropensearch_password

Note: The .env file is only needed when useiam: false is set in your config.yaml OpenSearch configuration. If you're using IAM authentication (useiam: true), you can skip this step.

📖 Usage

All behavior is driven by config.yaml (schema: config-template.yaml). The five CLIs (pyproject scripts) cover the full workflow:

# 1) Index a corpus (full 12-stage pipeline; incremental when DynamoDB is enabled)
run-ingestion --source-directory ./source --config-path config.yaml
2) Query — GraphRAG (community-summary) or LightRAG (dual-level keyword)
run-rag --query "What are the main themes?" --search-strategy global --config-path config.yaml
run-rag --query "How are Alice and Acme related?" --search-strategy mix --config-path config.yaml
run-rag --interactive --use-memory --conversation-id my-session --config-path config.yaml
3) Evaluate (langchain + ragas + graph-aware)
run-eval --eval-data-path eval_data.json --config-path config.yaml
4) Visualize an exported graph (no re-ingestion)
run-visualization --data-path visualization_data.json --output-dir ./viz --config-path config.yaml
5) Auto-tune prompts to a domain corpus
run-prompt-tuning --source-directory ./source --output tuned_prompts.yaml --config-path config.yaml

Choosing a strategy — GraphRAG: simple (direct vector/lexical), local (entity-centric), global (community-summary, map-reduce), drift (iterative), auto (LLM router). LightRAG: mix / hybrid / naive (dual-level keyword).

See the User Guide for configuration, CLI flags, the Python API, and incremental indexing, and the Design Doc for architecture and algorithms.

🧪 Testing & Quality

uv run pytest -m "not aws"                    # AWS-free tests (unit/integration/property)
uv run pytest -m "not aws" --cov=unifiedkgrag # with coverage
uv run ruff check unifiedkgrag tests
uv run mypy unifiedkgrag

The aws marker isolates tests that need real AWS services; they are excluded in CI.
DynamoDB/S3 are tested with moto; Neptune/OpenSearch with port-based in-memory fakes.
CI (.github/workflows/): ruff/black/isort/mypy + pytest+coverage gate, plus a non-blocking ASH security scan.

🔒 Security & Disclaimer

This project is a **reference framework provided for educational and illustrative purposes**. It is offered "AS IS" without warranty of any kind (see LICENSE). **It should not be deployed to a production environment without your own additional security testing, threat modeling, and hardening.**

Run it in your own AWS account against your own resources; you are responsible

for IAM policies, network configuration, data classification, and end-user authentication in your deployment.

The optional CDK stack (iac/) provides secure defaults (private-VPC

isolation, KMS at-rest encryption, enforced TLS, least-privilege IAM, an optional Bedrock Guardrail for PII/prompt-attack filtering), but you own the deployment and should review it for your environment.

Enable the Bedrock Guardrail (aws.bedrock.guardrail) and apply rate limiting

/ monitoring appropriate to your use case before production use.

To report a security issue, see SECURITY.md — please do not

open a public issue.

🤝 Contributing

We welcome contributions! Please see our Contributing Guidelines for details.

For extension recipes (adding a search strategy, storage backend, evaluator, or renderer), see CONTRIBUTING.md and CLAUDE.md — most extensions are a registry registration and need no dispatch-code edits.

📄 License

This project is licensed under the Apache-2.0 License - see the LICENSE file for details.

📚 References

GraphRAG (Microsoft)

LightRAG (HKUDS)

🙏 Acknowledgments

Thanks to Jihyeon Kang for significant contributions to the library's feature development and validation, and to Yusuke Tanimiya for a thorough review and real-corpus testing — both of which strengthened the framework ahead of release.

🏢 About

Maintained by AWS under the awslabs organization. Licensed under Apache-2.0. Contributions welcome — see CONTRIBUTING.md.

🔗 More in this category
