Deploy NFT on Ethereum using Amazon Managed Blockchain

This repository contains sample code to deploy ERC-721 smart contracts on the Ethereum blockchain network using Amazon Managed Blockchain as a geth node. It provides a reference architecture for deploying a contract, minting NFT tokens and querying token owners using serverless components

The repo is structured as follows:

bash
.
├── CODEOFCONDUCT.md
├── CONTRIBUTING.md
├── LICENSE
├── README.md
├── images
└── serverless</code></pre>

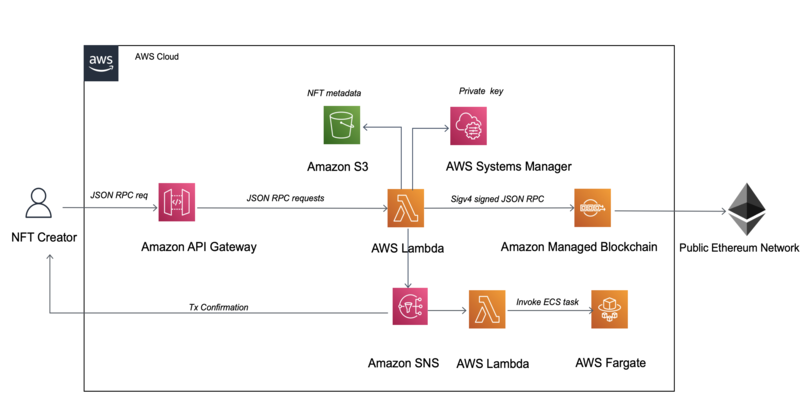

Reference architecture

Pre-requisites
1.	An AWS account with a VPC and a public subnet. Ensure you have permissions to make objects in the S3 bucket public 2.	AWS SAM CLI : Install the AWS SAM CLI. 3.	Node.js: Install Node.js 14, including the npm package management tool. 4.	Docker: Install Docker community edition.
Deploy Ethereum node and Serverless components
An AWS Serverless Application Model (SAM) template is used to deploy the stack
bash
cd serverless/
sam build
.... Building codeuri: /Users/pravincv/Nft-amb-repo/serverless/lambdas/nftmain runtime: nodejs14.x metadata: {} architecture: x86_64 functions: [&#39;nftmain&#39;] Running NodejsNpmBuilder:NpmPack Running NodejsNpmBuilder:CopyNpmrc Running NodejsNpmBuilder:CopySource Running NodejsNpmBuilder:NpmInstall Running NodejsNpmBuilder:CleanUpNpmrc
Build Succeeded</code></pre>
On success completion of the build, deploy the stack
bash
sam deploy --guided --capabilities CAPABILITYNAMEDIAM</code></pre>
Input the parameter values and confirm changes to deploy
Stack Name [nft-stack]:        	AWS Region [ap-southeast-1]:   -  region where Amazon  Managed Blockchain is supported 	Parameter pEmail [name@example.com]:  - email id that will receive Amazon SNS notifications  	Parameter pSubnetId [subnet-xxxxxxx]:  - public subnet where the AWS Fargate task will run 	Parameter pNftBucketName [nftmetadata]: - bucket where NFT metadata will be stored 	Parameter pConfirmationBlocks [50]:     - number of confirmations on the blockchain, to wait for 	Parameter pClusterName [nftcluster]:    -  AWS ECS cluster name 	Parameter pContainerName [rinkeby]:     -  name of container 	Parameter pRepositoryName [nftrepository]: - AWS ECR where the Docker images will be stored 	Parameter pIpRangeWhitelist [.../**]:  - IP address CIDR that is allowed to invoke the API 	Parameter pNetworkId [n-ethereum-rinkeby]:      - default network is rinkeby. Can choose ropsten if desired 	Parameter pInstanceType [bc.t3.large]:         - choose desired instance size 	Parameter pAvailabilityZone [ap-southeast-1a]: - choose availability zone based on region       	Confirm changes before deploy [Y/n]:           - confirm changes Y 	#SAM needs permission to be able to create roles to connect to the resources in your template 	Allow SAM CLI IAM role creation [Y/n]:    - choose Y 	Save arguments to configuration file [Y/n]: -choose Y 	SAM configuration file [samconfig.toml]:  - default file to save the samconfig 	SAM configuration environment [default]:

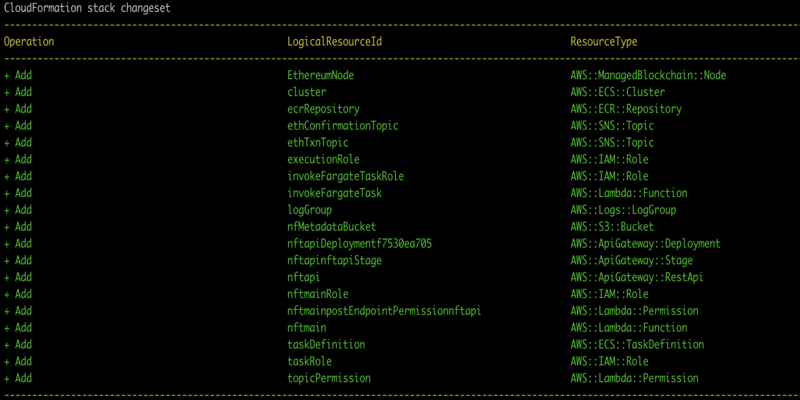

The following resources are created on deployment


This creates the following resources
nftmain  -  AWS Lambda function that provides APIs to  deploy an ERC-721 contract to the Ethereum  rinkeby test network, mint a new token as well get the owner of a specified token minted. The deploy API sends out an SNS message on successful deployment of a contract
 * invokeFargateTask   - This Lambda function  is triggered by the AWS SNS message sent by the nftmain Lambda. On being triggered, it invokes a  task that awaits until the rinkeby blockchain has confirmed the deployment confirmationBlocks (passed as an environment variable)  number of times
 * ethTxnTopic -  Amazon SNS topic to which nftmain Lambda published the transaction id on deployment of a contract
 * ethConfirmationTopic  - Amazon SNS topic to which the  task publishes a message on completing  confirmationBlocks number of confirmations on the Rinkeby network
 * cluster and taskDefinition -  cluster and task definition that provides the compute for the 'confirmation' logic
 * nftapi - api created and exposed via the  api gateway for users to invoke  HTTP POST
 * ecrRepository - repository where the docker image for the  task is stored
To complete the serverless stack, create a Docker image and push to the ecrRepository by building, tagging and pushing the image as below.
bash
cd serverless/
aws ecr get-login-password --region &lt;region&gt; | docker login --username AWS --password-stdin &lt;account id&gt;.dkr.ecr.&lt;region&gt;.amazonaws.com

docker build -t nftrepository .

docker tag nftrepository:latest &lt;account&gt;.dkr.ecr.&lt;region&gt;&lt;.amazonaws.com/nftrepository:latest

docker push &lt;account&gt;.dkr.ecr.&lt;region&gt;.amazonaws.com/nftrepository:latest</code></pre>

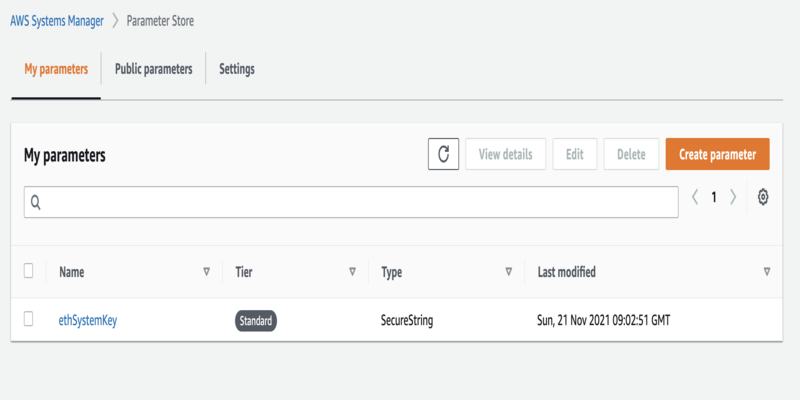

To create a transaction on the Ethereum Rinkeby network, a private-public key pair is required. Generate the private key and upload to AWS SSM Parameter Store  as an encrypted string as 'ethSystemKey'. - ensure the string excludes the first 2 characters, 0x of the privatekey . Add some ethereum test tokens for the rinkeby network by entering the public key https://faucets.chain.link/rinkeby  and requesting ethereum test tokens. Please note that for AWS SSM Paramter Store might not be sufficient for some cases where wallets bear real funds.

Deploying a test contract, minting an NFT and checking token ownership

Now we are ready to deploy an ERC-721 smart contract to the network.
 bash
├── nftmain │   ├── NFTSamples │   │   ├── build │   │   │   └── NFT_BaseURI.json │   │   └── contracts │   │       ├── NFTSample.sol │   │       └── NFT_BaseURI.sol │   ├── aws-web3-http-provider.js │   ├── deploy_contract.js │   ├── get_owner.js │   ├── index.js │   ├── mint_nft.js │   ├── package-lock.json     ├── package.json     └── utils.js      └── txconfirmation     └── index.js</code></pre>    The contract to be deployed  is stored in the nftmain directory under NFTSamples.       We'll be using curl -X POST to deploy and mint the NFT. Obtain the API endpoint i.e InvokeURL from  Amazon API Gateway ->APIs > Stages on the AWS Console.
bash   cd serverless/test-events

serverless/test-events ├── deploy.json ├── getowner.json └── mint.json</code></pre> Edit the deploy.json file to fill up the needed values.
 bash
&gt; cat deploy.json
{&quot;requestType&quot;: &quot;deploy&quot;, &quot;tokenName&quot;: &quot;coolnft&quot;,  # name of nft &quot;tokenTicker&quot;: &quot;SYMB&quot;,   # symbol &quot;metadataFilename&quot;: &quot;metadata.json&quot;, # name of metadata file  &quot;metadata&quot;:{                #metadata associated with nft   &quot;description&quot;: &quot;useful description&quot;,        &quot;image&quot;: &quot;&lt;url of the image, preferably an IPFS hash&gt;&quot;,   &quot;name&quot;: &quot; coolnft&quot; }} &gt; curl -X POST https://&lt;api&gt; .execute-api.&lt;region&gt;.amazonaws.com/nftapi -H &quot;Content-Type: application/json&quot; -d @deploy.json</code></pre>
The deploy command returns a transaction id hash  and the contract address.
bash
{&quot;Transaction id&quot;:&quot;0x6b2af81c34055b678e5a8ae401f508fcbf950341df7e55e7372e80f75faf8afc&quot;,&quot;ContractAddress&quot;:&quot;0x8A3Ce65B266E8DE37Fe7d2e4911CA4578B5a7445&quot;
&gt; cat mint.json    {&quot;requestType&quot;: &quot;mint&quot;, &quot;contractAddress&quot;: &quot;0x8A3Ce65B266E8DE37Fe7d2e4911CA4578B5a7445&quot;,   -&gt; address of the contract address of the deployed contract &quot;mintAddress&quot;: &quot;0x905b8699E611a5F1f74BF5Cc3cCa2aCd175ec0c0&quot;        -&gt; public key of any another wallet/address }    &gt; curl -X POST https://&lt;api&gt;.execute-api.&lt;region&gt;.amazonaws.com/nftapi -H &quot;Content-Type: application/json&quot; -d @mint.json</code></pre>   The response contains the transaction id  ash
bash
{&quot;Mint Tx Hash&quot;:&quot;0x960080892462ea76a90a5a00fe88ebc5d85d0b84d75e781ca5aa14e5829a0a14&quot;}
 &gt; cat getowner.json
 {&quot;requestType&quot;: &quot;mint&quot;,
&quot;contractAddress&quot;: &quot;0x8A3Ce65B266E8DE37Fe7d2e4911CA4578B5a7445&quot;,   -&gt; address of the contract address of the deployed contract
&quot;tokenID&quot;: &quot;0&quot;        -&gt; ID of the token that was minted previously
}
&gt; curl -X POST https://&lt;api&gt;.&lt;region&gt;.amazonaws.com/nftapi -H &quot;Content-Type: application/json&quot; -d @getowner.json</code></pre> The response provides the address of the owner for whom the token was minted.
bash {&quot;Owner address&quot;:&quot;0x905b8699E611a5F1f74BF5Cc3cCa2aCd175ec0c0&quot;}</code></pre>

Security
See CONTRIBUTING for more information.
License
This library is licensed under the MIT-0 License. See the LICENSE file.
