AISIX AI Gateway is a Rust-native gateway that puts a single, OpenAI-compatible API in front of every LLM provider — OpenAI, Anthropic, Google Gemini, AWS Bedrock, Azure OpenAI, DeepSeek, and any OpenAI-compatible endpoint. It gives platform teams one place to route, govern, secure, and observe LLM traffic, with first-class SSE streaming and low gateway overhead.

It runs as a single static binary — low cold-start, lock-free config reads, and hot configuration reloads with no restarts: declare resources in one resources.yaml and reload on SIGHUP, or point the gateway at etcd for a multi-replica cluster. Run the open-source gateway in your infrastructure, or connect it to AISIX Cloud for centralized management with team governance, budgets, audit, and a dashboard.

AISIX AI Gateway (this repo) is the open-source product. It runs without a control

plane using declarative configuration or etcd. When connected to

AISIX Cloud,

the same gateway serves as the data plane. AISIX Cloud adds a commercial control plane,

either hosted by API7 (Hybrid Cloud) or hosted by you in your infrastructure

(On-Premises). In both options, the gateway runs in your environment and calls

providers directly; live AI traffic does not pass through the control plane or API7.

The proxy API is identical throughout.

Talk to us about AISIX Cloud →

⚡ Quickstart

One container. No control plane, no database, no configuration store — the gateway reads every dynamic resource from one declarative resources.yaml.

# config.yaml
resources_file: /etc/aisix/resources.yaml
proxy:
  addr: "0.0.0.0:3000"
admin:
  enabled: false          # a declarative gateway needs no admin listener
observability:
  metrics:
    prometheus:
      enabled: true
      addr: "0.0.0.0:9090"

# resources.yaml
formatversion: "1"
provider_keys:   - display_name: openai-main     provider: openai     apikey: ${OPENAIAPI_KEY}        # interpolated from the environment
models:   - display_name: my-model     provider: openai     model_name: gpt-4o-mini     provider_key: openai-main
api_keys:   - display_name: local-dev     keyenv: CALLERAPI_KEY           # hashed at load; the plaintext is never stored     allowed_models: ["my-model"]

export OPENAIAPIKEY="YOURPROVIDERKEY"
export CALLERAPIKEY="YOURCALLERKEY"
docker run -d --name aisix \   --platform linux/amd64 \   -v "$(pwd)/config.yaml:/etc/aisix/config.yaml:ro" \   -v "$(pwd)/resources.yaml:/etc/aisix/resources.yaml:ro" \   -e OPENAIAPIKEY -e CALLERAPIKEY \   -p 3000:3000 -p 127.0.0.1:9090:9090 \   ghcr.io/api7/aisix:latest        # proxy → :3000, metrics + status → :9090
                                 ^ the metrics/status listener is unauthenticated;

                                   keep it on loopback or a private network

Then call the gateway exactly like OpenAI:

curl http://localhost:3000/v1/chat/completions \
  -H "Authorization: Bearer $CALLERAPIKEY" \
  -H "Content-Type: application/json" \
  -d '{"model":"my-model","messages":[{"role":"user","content":"hello"}]}'

Edit resources.yaml and send SIGHUP (docker kill -s HUP aisix) to apply changes with no restart — an invalid file is rejected whole and the last good configuration keeps serving. Check a file before booting with aisix validate --resources resources.yaml.

Full walkthrough: the Gateway Quickstart · every field: the resources file reference. For a multi-replica cluster, point the gateway at etcd instead — resources_file and etcd are mutually exclusive.

✨ Why AISIX

• One API, every model. Speak the OpenAI or Anthropic wire format in; the gateway

translates to whichever provider each model points at. Point an OpenAI or Claude SDK at one base_url and switch models without changing code.

• A real gateway, in Rust. Single static binary, low cold-start, lock-free config reads

on the hot path, native streaming.

• Open source, free forever. Apache-2.0 licensed and built to run in your

infrastructure. Choose AISIX Cloud when you want centralized management through a control plane and dashboard.

• Production controls built in. Routing & failover, rate limits, guardrails, caching,

and observability ship in the box. (Budgets and spend caps are an AISIX Cloud feature — the gateway enforces the control plane's decisions.)

🧩 Features — available today

Covered by 183 end-to-end scenario files (496 cases) that run against real gateway processes.

• OpenAI-compatible proxy (:3000) — chat/completions, completions, responses,

embeddings, rerank, images/generations, audio/{speech,transcriptions,translations}, videos (submit → poll → fetch), files, batches, fine_tuning/jobs, realtime, GET /v1/models, plus a root-level /passthrough/:provider/* escape hatch. Native SSE streaming, tool/function calling, JSON mode, vision/multimodal input, and reasoning-content support.

• Anthropic Messages API — POST /v1/messages as a first-class route, working against

any configured upstream: requests and responses (including streaming) are translated both ways when a model points at a non-Anthropic provider.

• Routing & failover — virtual/routing models with six strategies: round_robin,

weighted (with sticky/canary hashing), failover, plus metric-based least_cost, leastlatency, and leastbusy. Retry budgets, cooldowns, tag-conditional targets, and per-attempt timeouts.

• Ensemble models — fan one request out to a panel of models concurrently, then have a

judge model synthesize a single answer, with a minimum-successful-responses threshold.

• Semantic routing — one virtual model that dispatches by the meaning of each

request: it embeds the prompt, scores it against per-route example utterances, and routes to the best match (or a default). See the semantic routing docs.

• Rate limiting & concurrency — RPS/RPM/RPH/RPD + TPM/TPD + concurrency caps,

AND-combined across caller keys, models, and policy scopes (api_key / model / team / member / team_member). Counters are per-process by default, or shared across replicas with the Redis backend.

• Guardrails — content-policy enforcement on input and output, in-process or through a

provider: keyword/regex, built-in PII detection and redaction, Presidio, Lakera, OpenAI Moderation, AWS Bedrock Guardrails, Azure AI Content Safety (Prompt Shield + text moderation), and two Alibaba Cloud services. A block returns 422 content_filter; monitor mode records what would have happened without blocking.

• Caching — exact-match response cache with per-policy TTL and model/key scope matchers;

memory and Redis backends; cost-saved telemetry on every hit. Separately, **automatic prompt caching** can be enabled per direct Anthropic model to inject cache breakpoints, so callers get provider-side prompt discounts without changing their requests.

• MCP gateway — register upstream MCP servers as first-class resources and front them

all behind one endpoint (/mcp), with the gateway holding each server's upstream credential, namespacing tools per server, and enforcing per-caller tool access. Also exposes a REST API as MCP tools from its OpenAPI description.

• A2A agent gateway — front A2A (Agent-to-Agent) agents at /a2a/:agent, serving each

agent's card with URLs rewritten to the gateway, over JSON-RPC 2.0.

• Inbound authentication — caller API keys (SHA-256 hashed, model allowlists, expiry,

rotation), or OIDC/JWT bearer tokens validated against registered providers (Entra ID, Okta, Google Workspace, or any OIDC issuer) with JWKS caching.

• Observability — Prometheus /metrics, structured per-request access logs, usage

events, OTLP/GenAI span export (Langfuse, Honeycomb, Grafana Cloud, or any OTLP receiver), plus dedicated Datadog and Aliyun SLS log exporters and object-storage (S3/GCS/Azure Blob) telemetry.

• Declarative configuration — one resources.yaml carries all ten resource collections

(provider keys, models, caller keys, guardrails, MCP servers, A2A agents, cache policies, observability exporters, rate-limit policies, OIDC providers), validated against the same JSON Schemas the gateway uses at runtime. aisix validate checks a file offline; SIGHUP reloads it atomically.

• Operational endpoints — /livez and /readyz on the proxy listener; /status/config,

/status/ready, /status/models, and Prometheus /metrics on a dedicated metrics listener (:9090). The admin listener (:3001) additionally serves a read-only resource surface, OpenAPI 3 with a Scalar UI, and a playground. Resources are managed declaratively — through the resources_file (reloaded on SIGHUP) or direct etcd writes — not through the admin listener; its former write endpoints were removed.

🔌 Supported providers

AISIX dispatches through five native adapter families — distinct wire-protocol bridges, not one generic relabel. Whatever the upstream protocol, the client-facing API stays OpenAI-shaped.

| Adapter family | Reaches | Wire shape · auth | |---|---|---| | openai | OpenAI + any OpenAI-compatible vendor — DeepSeek, Groq, Mistral, Together, Fireworks, Perplexity, vLLM, Ollama, or self-hosted OpenAI-compatible endpoints | OpenAI chat completions · Bearer | | anthropic | Anthropic Claude | Anthropic Messages · x-api-key | | bedrock | AWS Bedrock — Anthropic, Meta Llama, Mistral, Cohere, Amazon Titan/Nova, AI21 | Bedrock Converse + /invoke · SigV4 | | vertex | Google Vertex AI (Gemini) | Vertex :generateContent · OAuth2 | | azure-openai | Azure OpenAI | Azure deployments · api-key / Entra ID |

Plus specialized handling for vendor quirks (e.g. DeepSeek reasoning content) and dedicated rerank / embeddings vendors (Cohere, Jina). Details in adapter protocol families.

☁️ Open source vs AISIX Cloud

Same gateway binary, same proxy API — in every form the gateway runs in your environment. AISIX Cloud adds a commercial control plane, either hosted by API7 (Hybrid Cloud) or hosted in your infrastructure (On-Premises).

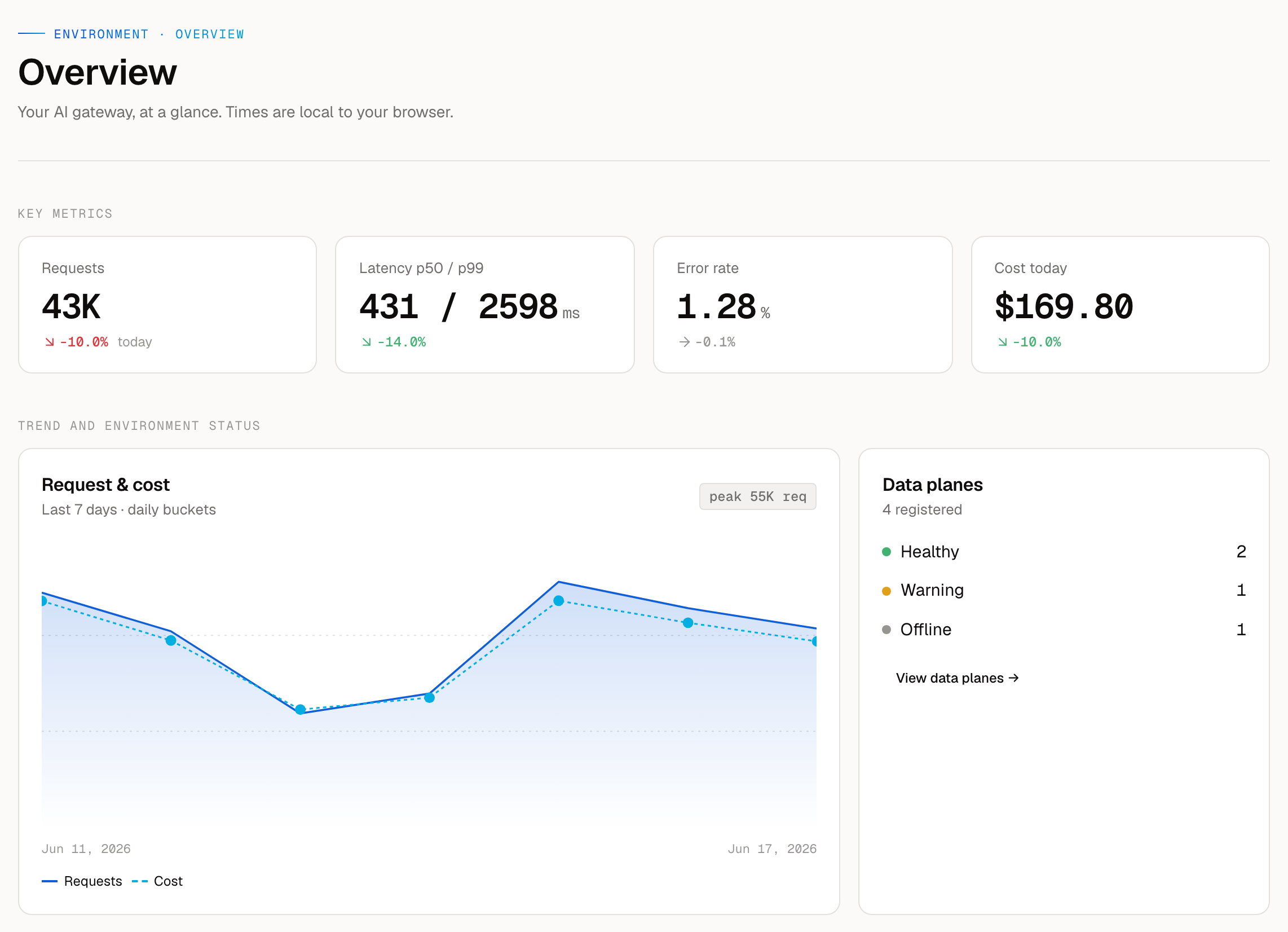

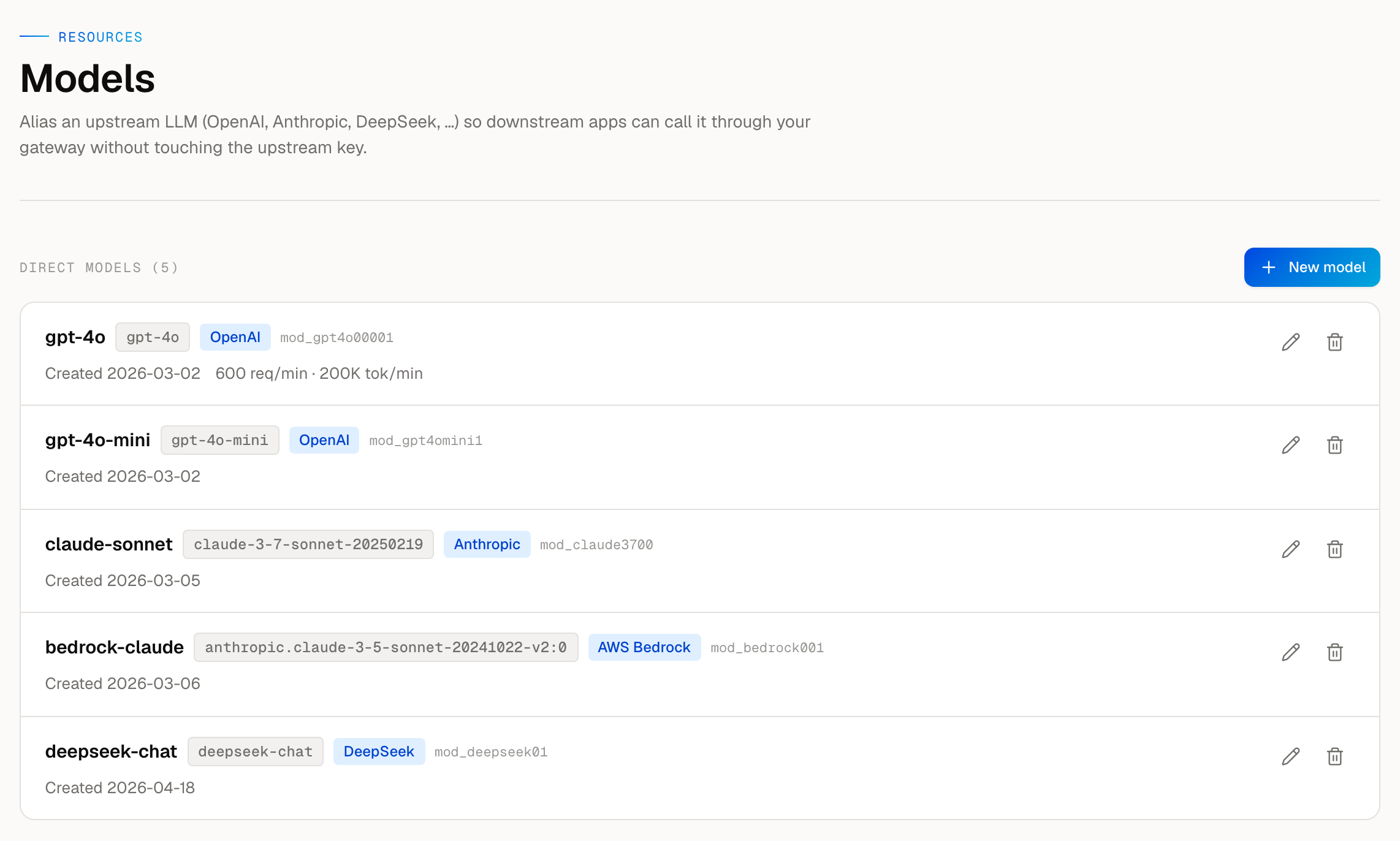

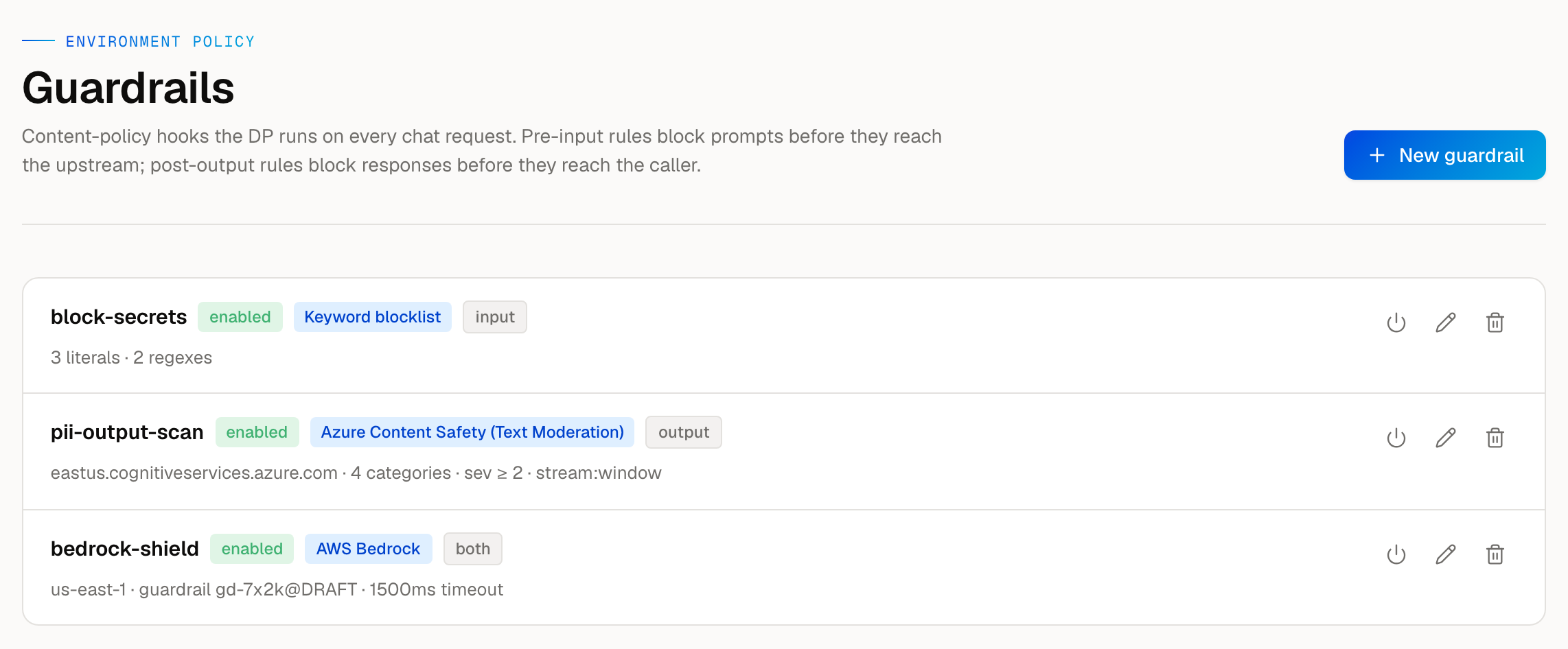

Overview — traffic, latency, error rate & spend at a glance Models — one alias per upstream: OpenAI, Anthropic, Bedrock, DeepSeek… Guardrails — pre-input & post-output policies, block on violation

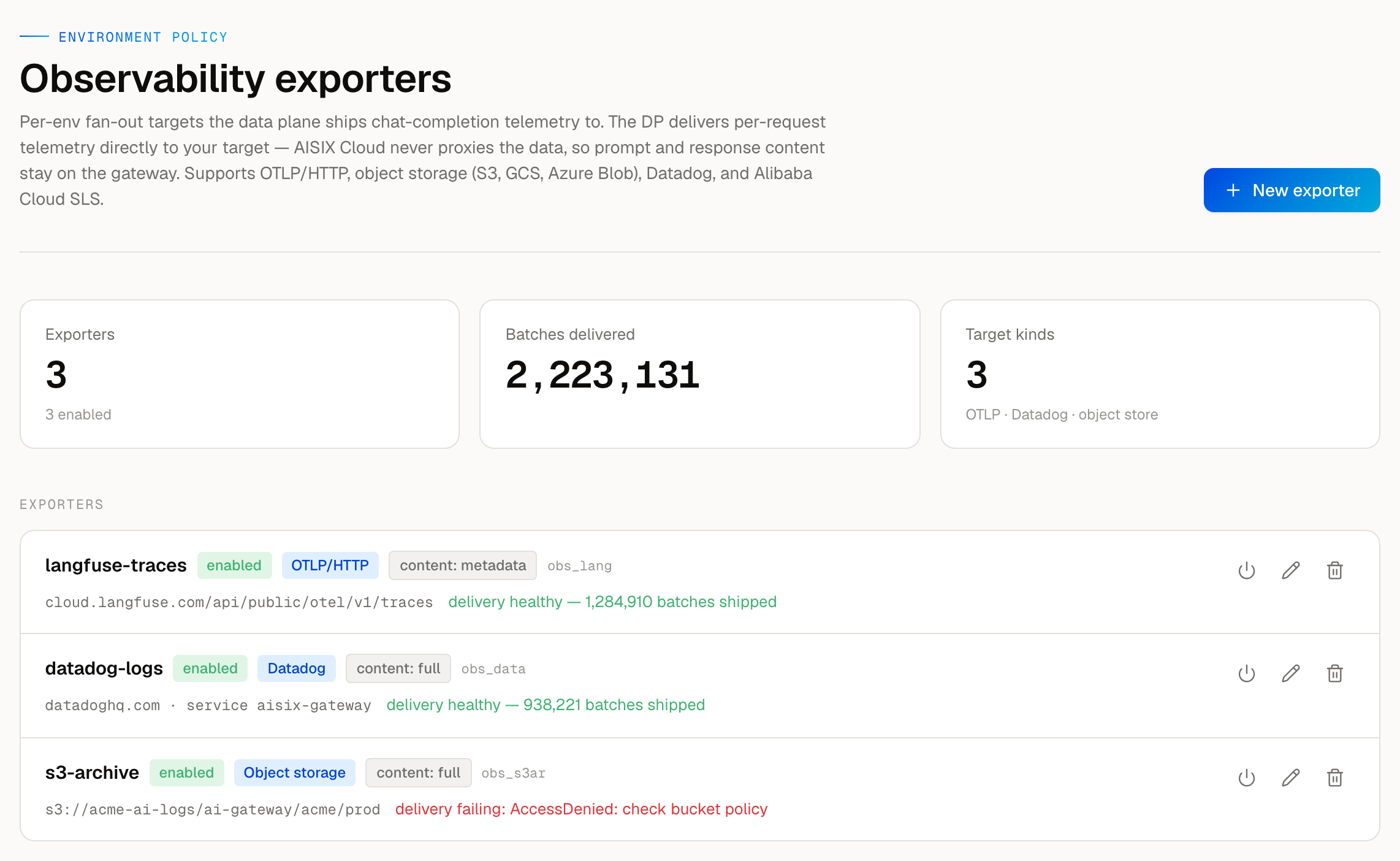

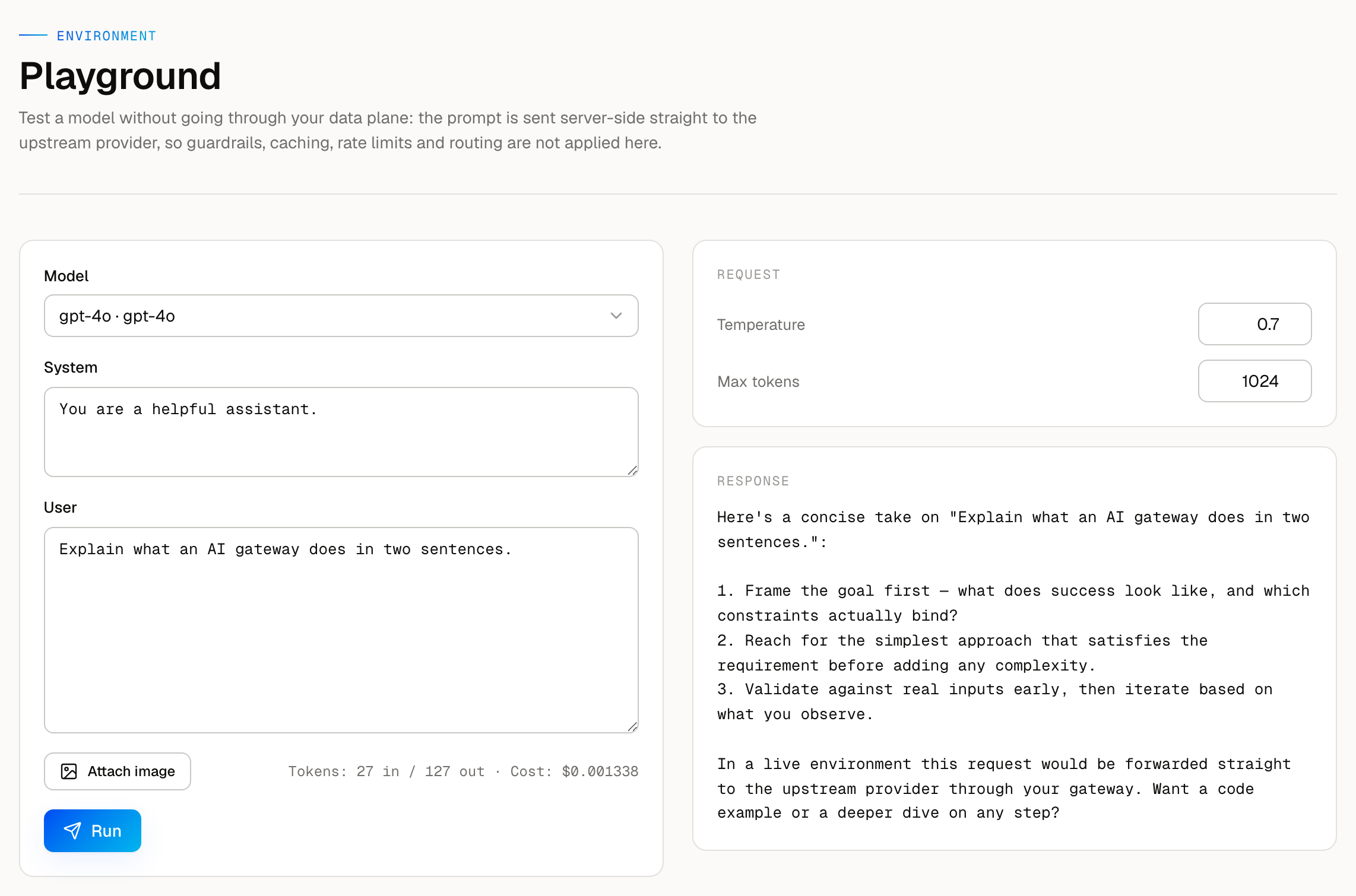

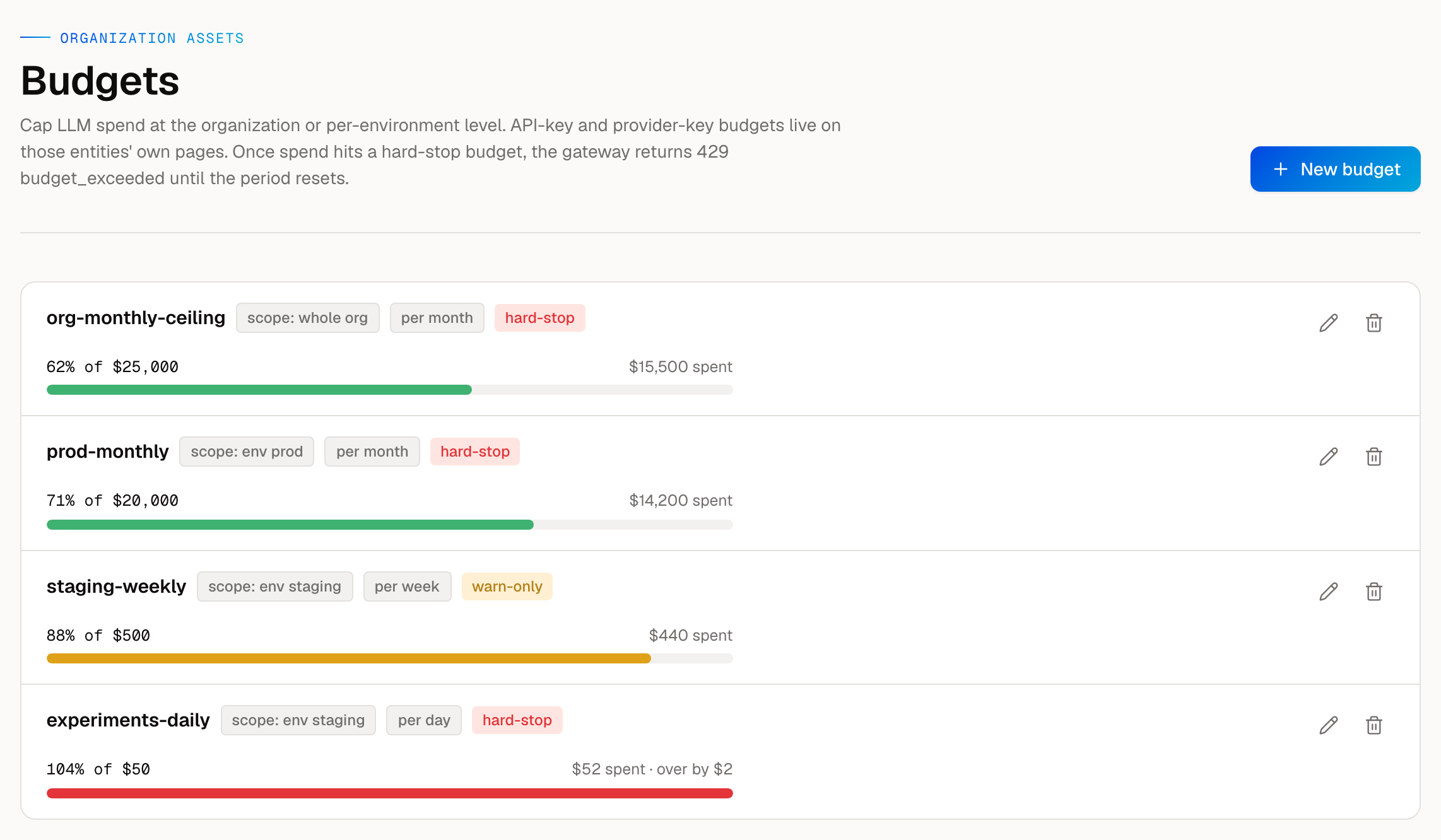

Playground — test any model with live token & cost metering Observability — fan out traces & logs to OTLP, Datadog, object storage Budgets — hard-stop spend caps with warn-only tiers

The AISIX Cloud dashboard — overview metrics, multi-provider models, guardrails, budgets (with hard-stop spend caps), and observability exporters, across all your gateways.

▶ Try the live dashboard demo — aisix-demo.api7.ai

| | Open-source gateway (this repo) | AISIX Cloud (Hybrid Cloud or On-Premises) | |---|---|---| | Price | Free · Apache-2.0 · forever | Commercial — talk to us | | Configuration | Declarative resources.yaml, or etcd for a cluster | Dashboard + Cloud Admin API, multi-environment | | Tenancy | Single instance / namespace | Org → Team → Member → Environment | | Provider keys | In the resources file as ${VAR} env references, or in etcd | Envelope-encrypted at rest, write-only, in-place rotation | | Inbound auth | Caller keys (SHA-256 hashed, model allowlists, expiry), or OIDC/JWT bearers | Same, plus masked reveal, key ownership, and PATs | | Budgets | — (rate and token limits only) | Per key / provider / env / org / team, hard-stop & alerts | | RBAC | Admin key = read-only resource surface | Org roles (owner / admin / member), invites | | Audit log | — | Full org-scoped audit with diff viewer | | Usage & cost | Export logs, metrics, and usage events yourself | Managed usage views, model pricing catalog, spend reporting | | Surface | Status endpoints, OpenAPI read surface, playground | Full dashboard + per-environment playground |

→ Want the AISIX Cloud control plane, governance, budgets, and dashboard? Talk to API7 about Hybrid Cloud or On-Premises, or book a demo.

🏗️ Architecture

A single Cargo workspace; the aisix-server crate builds one binary named aisix that wires the crates together.

crates/
├── aisix-core           Config, snapshot, resource model, resources.yaml source, errors
├── aisix-etcd           Config provider + watch supervisor
├── aisix-gateway        Hub & bridge, SSE parser, provider trait
├── aisix-proxy          /v1/*, /mcp, /a2a handlers, routing, middleware
├── aisix-admin          Read-only resource surface + playground + OpenAPI
├── aisix-provider-*     openai · anthropic · azure-openai · bedrock · vertex
├── aisix-mcp            MCP gateway — server registry, tool ACL, transports
├── aisix-a2a            A2A agent gateway — agent cards, JSON-RPC bridge
├── aisix-ratelimit      fixed-window + token accounting + concurrency (local | redis)
├── aisix-cache          memory + redis backends
├── aisix-redis          shared Redis connection for cache + rate limits
├── aisix-guardrails     pre/post content-policy hooks
├── aisix-obs            tracing, metrics, access log, exporters
└── aisix-server         the aisix binary — bootstrap + CLI

🗺️ Roadmap

Highlights on the roadmap; tracked live in issues:

• Semantic (embedding-similarity) response caching
• More observability sinks — Langsmith, Helicone, Slack alerts
• Prompt templates managed as gateway resources
• Llama-Guard as a guardrail provider

Shipped since this list was last written: the MCP gateway, the A2A agent gateway, OIDC/JWT inbound auth, Redis-backed distributed rate limiting, and the Lakera, Presidio, PII, and OpenAI Moderation guardrails — see Features above.

🛠️ Development

Prerequisites: the Rust toolchain pinned in rust-toolchain.toml. Docker is only needed for the tests that exercise etcd, Redis, or provider emulators.

cargo check --workspace
cargo fmt --check
cargo clippy --workspace -- -D warnings
cargo test --workspace
Coverage (matches the CI gate)
cargo llvm-cov --workspace --lcov --output-path lcov.info
Run locally against a resources.yaml (no etcd needed). Copy the Quickstart's two files
and change resourcesfile to the local path, e.g. resourcesfile: ./resources.yaml
cargo run -p aisix-server --bin aisix -- --config config.local.yaml
Check a resources file without starting a listener
cargo run -p aisix-server --bin aisix -- validate --resources resources.yaml

💬 Community

• Discord — discord.gg/dUmRZ7Rvf
• Issues & discussions — github.com/api7/aisix/issues
• Contributing — CONTRIBUTING.md
• Website — api7.ai/ai-gateway

If AISIX is useful to you, a ⭐ helps other engineers find it.

📄 License

Apache 2.0.
