About

Raspi-Sump V2.0 is a sump pit water level monitoring system for the Raspberry Pi. It uses an ultrasonic sensor to continuously measure water depth, logs all readings to a local SQLite database, sends email (email to SMS recommended) or Mastodon alerts if the water reaches a critical level, and provides a built-in web interface for monitoring and administration.

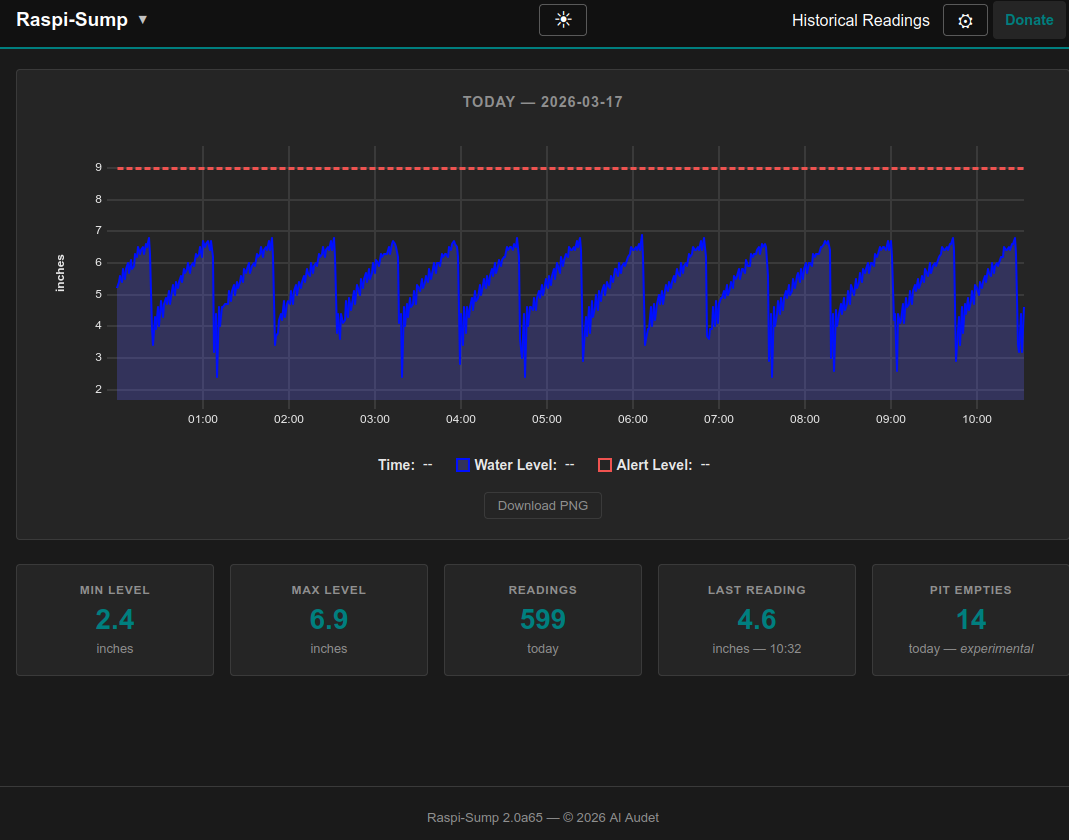

Homepage screenshot

Documentation

Raspi-Sump User and Install Manual

Features

Continuous water level monitoring at configurable intervals
Email (email to sms recommended) and/or Mastodon alerts when water reaches a critical level
Heartbeat notifications to confirm the system is running
Secure HTTPS web interface (self-signed certificate, nginx + Flask)
Interactive charts with dark mode support
Historical readings with single-day, multi-day, and custom date range views
Admin panel: service control, configuration editor, backup/export, CSV import, support tools
Installed as a standard Debian package — no virtual environment required
systemd services with automatic startup

Supported Hardware

Raspberry Pi 2, 3, 4, and 5
Ultrasonic sensors: HC-SR04, JSN-SR04T 2.0 (waterproof). JSN-SR04T 3.0 not recommended.

Supported OS

| OS | Architecture | |---|---| | Raspberry Pi OS 13 (Trixie) | 32-bit and 64-bit | | Raspberry Pi OS 12 (Bookworm) | 32-bit and 64-bit |

Raspi-Sump follows the Debian release schedule. Older OS versions are not supported.

What's New in Version 2.0

Version 2.0 is a complete rewrite:

Installed as a .deb package via apt — no virtual environment, no manual dependency management
SQLite database replaces per-day CSV files
Full HTTPS web interface with dark mode, interactive charts (uPlot), and a mobile-friendly layout
Admin panel with service control, config editor, backup/restore, CSV import/export, and support tools
Optional persistent admin login with 30-day session cookie
Mastodon DM alerts as an alternative or complement to email
FHS-compliant paths (/etc/raspi-sump/, /var/log/raspi-sump/, /var/lib/raspi-sump/)
systemd services for both the monitor and web interface

See the changelog for full details.

Legacy 1.11.1 Version

V1.11.1 is the latest and last version 1 release. Only bug fixes will be applied going forward. Support for v1.11.1 will cease with the debian release cycle and drop of support for Debian 11 - Bullseye on August 31, 2026

The github source code is tagged v1.11.1 at the following url;

https://github.com/alaudet/raspi-sump/tree/legacyV1

Community

Discord — discuss and get support from other users. Email alaudet@linuxnorth.org for an invite link.
Issue tracker — GitHub Issues

Disclaimer

Raspi-Sump is a passive monitoring tool. It does not control your pump and cannot prevent flooding. There is no warranty. See the license for details.

Best practices:

Install a backup pump that triggers at a slightly higher water level than your primary pump
Connect the backup pump to a separate dedicated electrical breaker
Have an alternate power source (generator or battery backup) for extended outages during spring thaw or severe weather
If building a new home, consider lot grading that allows gravity drainage — use a pump and Raspi-Sump as a backup layer
