Rust NEAT

Implementation of NeuroEvolution of Augmenting Topologies NEAT http://nn.cs.utexas.edu/downloads/papers/stanley.ec02.pdf

This implementation uses a CTRNN (Continuous-Time Recurrent Neural Network) based on On the Dynamics of Small Continuous-Time Recurrent Neural Network (Beer, 1995) http://www.cs.uvm.edu/~jbongard/2014CS206/BeerCTRNNs.pdf

CTRNN time constant (τ)

The time constant τ controls neuron response speed — like biological membrane resistance time. What matters is the ratio dt/τ where dt=0.01 is the simulation step. Configurable via MutationConfig::tau:

• Small τ (e.g. 0.01): dt/τ = 1.0 — neurons react instantly, state resets each step. Network behaves as feedforward. Use for stateless problems like XOR.
• Large τ (e.g. 0.1): dt/τ = 0.1 — neurons update only 10% per step, retaining 90% of previous state. Network has temporal memory. Use for control tasks like Lunar Lander where the agent integrates information over time.
• Very large τ (e.g. 1.0): dt/τ = 0.01 — neurons barely respond, very strong inertia. Needs many steps to react to new inputs.

Telemetry Dashboard

cargo run --release --example simple_sample --features=telemetry

Then go to http://localhost:3000 to see how the neural network evolves.

Cart Pole

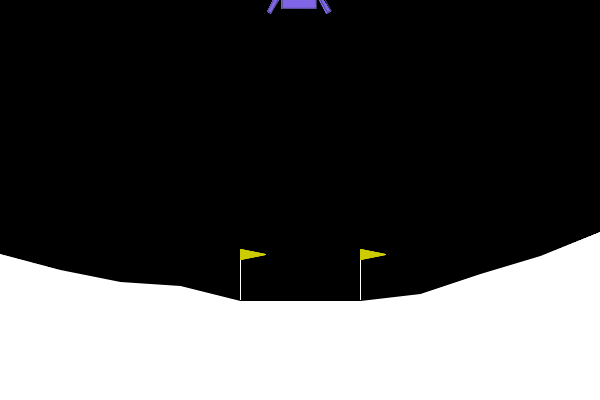

Lunar Lander

NEAT+CTRNN agent evolved to land on the OpenAI Gym LunarLander-v3 environment using discrete actions with independent threshold-based output control.

Results

• Verified average reward: +70 (fitness 570 with +500 offset)
• Peak reward: +278 (fitness 778)
• Solved threshold: average reward +200

The agent uses 2 independent CTRNN outputs (main thruster, lateral direction) with lateral priority — a key insight for CTRNN control problems where argmax causes state lock-in.

Run

cargo build --release --example openailunarlander --features openai
./target/release/examples/openailunarlander

Test champion

cargo build --release --example test_champion --features openai
./target/release/examples/test_champion

Install Rust

curl --proto '=https' --tlsv1.2 -sSf https://sh.rustup.rs | sh
source $HOME/.cargo/env

Run tests

To speed up tests, run them with --release (XOR classification/simple_sample should take less than a minute):

cargo test --release

Sample usage

Create a new cargo project and add rustneat to Cargo.toml:

[dependencies]
rustneat = "0.2.1"

Then use the library to implement XOR classification:

extern crate rustneat;
use rustneat::Environment;
use rustneat::Organism;
use rustneat::Population;
struct XORClassification;
impl Environment for XORClassification {     fn test(&self, organism: &mut Organism) -> f64 {         let mut output = vec![0f64];         let mut distance: f64;         organism.activate(&vec![0f64, 0f64], &mut output);         distance = (0f64 - output[0]).abs();         organism.activate(&vec![0f64, 1f64], &mut output);         distance += (1f64 - output[0]).abs();         organism.activate(&vec![1f64, 0f64], &mut output);         distance += (1f64 - output[0]).abs();         organism.activate(&vec![1f64, 1f64], &mut output);         distance += (0f64 - output[0]).abs();         (4f64 - distance).powi(2)     } }
fn main() {     let mut population = Population::create_population(150);     let mut environment = XORClassification;     let mut champion: Option<Organism> = None;     while champion.is_none() {         population.evolve();         population.evaluate_in(&mut environment);         for organism in &population.get_organisms() {             if organism.fitness > 15.9f64 {                 champion = Some(organism.clone());             }         }     }     println!("{:?}", champion.unwrap().genome); }

Develop

Check style guidelines with:

rustup component add rustfmt-preview
cargo fmt

References

• NeuroEvolution of Augmenting Topologies NEAT http://nn.cs.utexas.edu/downloads/papers/stanley.ec02.pdf
• On the Dynamics of Small Continuous-Time Recurrent Neural Network (Beer, 1995) http://www.cs.uvm.edu/~jbongard/2014CS206/BeerCTRNNs.pdf
• An Investigation into the Dynamics of a Continuous Time Recurrent Neural Network Node http://www.tinyblueplanet.com/easy/FCSReport.pdf

Thanks

Thanks for the icon nerves by Delwar Hossain from the Noun Project
