DetailCLIP

March 2025 Paper accepted at ICLR - Scaling Self-Improving Foundation Models without Human Supervision (SSI-FM)! 🎉

Detail-Oriented CLIP for Fine-Grained Tasks (Amin Karimi Monsefi, Kishore Prakash Sailaja, Ali Alilooee, Ser-Nam Lim, Rajiv Ramnath)

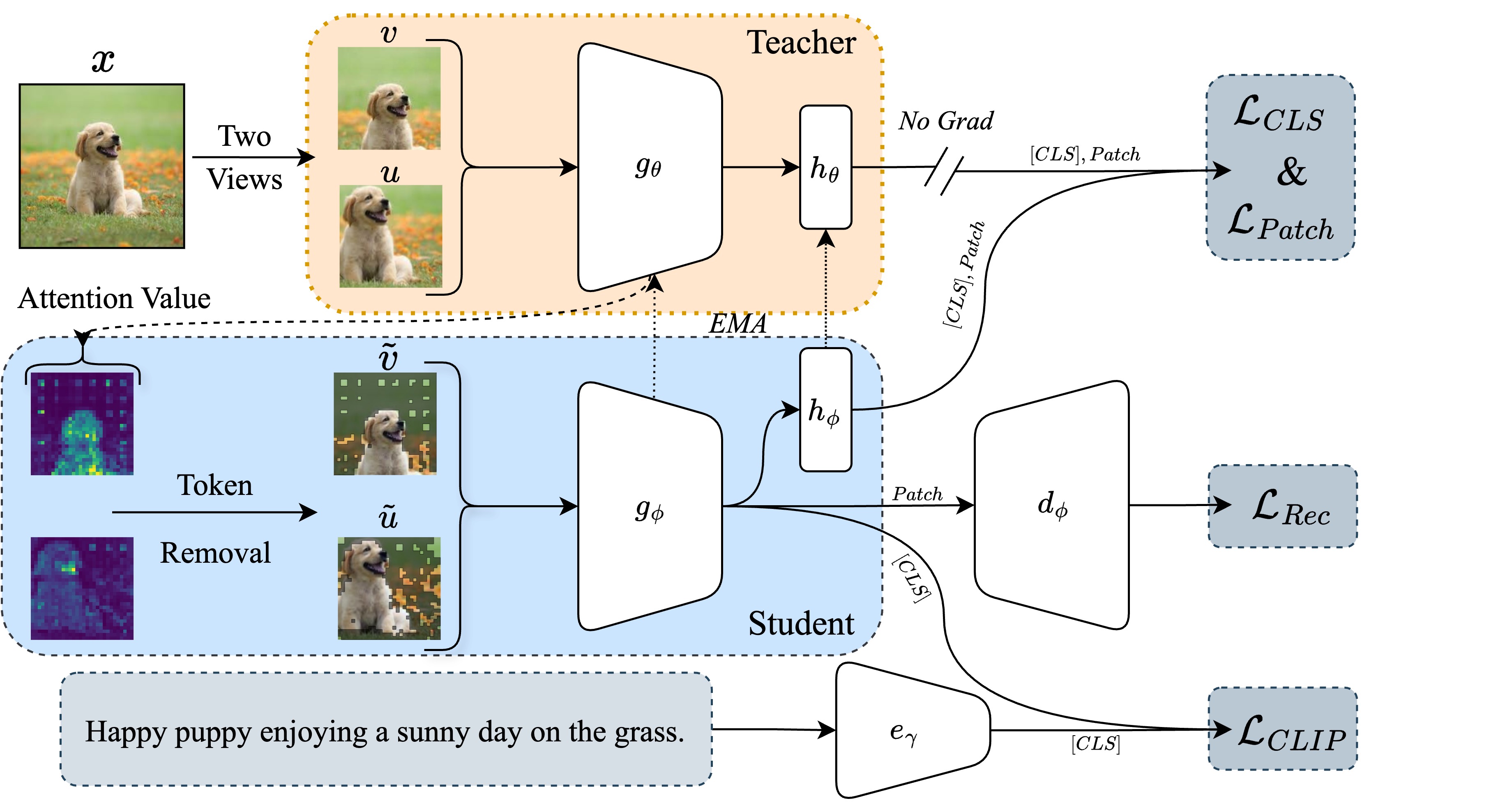

DetailCLIP enhances CLIP-based models for fine-grained tasks like segmentation by using patch-level comparison and pixel-level reconstruction, with an attention-based token removal to focus on semantically relevant details. This results in superior segmentation accuracy and generalization across diverse datasets.

Performance comparison of various models on detail-oriented visual tasks, including segmentation and object detection. All models utilize the vision component’s ViT-B (Vision Transformer Base) architecture.

Segmentation & Object Detection

| Methods | Dataset | Epoch | Effective View | ADE20K (UperNet) | ADE20K (Linear) | COCO (AP^b) | COCO (AP^m) | |-----------|---------|-------|----------------|------------------| --------------- |-------------|-------------| | Self-Supervised | | | | | | | | DeiT | IN-1K | 300 | 720M | 47.4 | - | 44.1 | 39.8 | | MAE | IN-1K | 800 | 960M | 46.5 | 34.3 | 46.2 | 39.1 | | DINO | IN-1K | 800 | 960M | 46.8 | 34.5 | 47.4 | 40.1 | | iBOT | IN-1K | 300 | 720M | 47.3 | 34.7 | 48.4 | 42.1 | | AttMask | IN-1K | 300 | 432M | 47.5 | 35.2 | 48.9 | 42.2 | | CLIP-Based Model | | | | | | | | CLIP | 400M | - | - | 46.4 | 34.2 | 43.6 | 39.5 | | SLIP | YFCC-15M| 25 | 750M | 46.6 | 36.1 | 44.0 | 40.3 | | MaskCLIP | YFCC-15M| 25 | 750M | 47.5 | 36.3 | 45.8 | 40.9 | | A-CLIP | YFCC-15M| 25 | 750M | 47.0 | 34.7 | 45.8 | 41.7 | | DetailCLIP| YFCC-15M| 25 | 750M | 48.1 | 37.3 | 48.9 | 42.5 | | DetailCLIP| YFCC-15M| 50 | 1500M | 48.8 | 39.3 | 50.1 | 43.3 |

Below includes the performance of DetailCLIP I2T and T2I retrieval on a COCO, Flickr30k, and Imagenet-1K.

Image-to-Text and Text-to-Image Retrieval

| Methods | E | Flickr30K (I2T) | Flickr30K (T2I) | COCO (I2T) | COCO (T2I) | IN-1K (0-Shot) | |-----------|----|-----------------|-----------------|------------|------------|----------------| | CLIP | 25 | 51.4 | 32.6 | 27.9 | 17.6 | 37.6 | | SLIP | 25 | 57.2 | 41.2 | 33.6 | 21.9 | 42.8 | | MaskCLIP | 25 | 60.0 | 38.8 | 34.1 | 21.2 | 42.7 | | A-CLIP | 25 | 62.7 | 42.1 | 38.0 | 23.2 | 43.9 | | DetailCLIP | 25 | 62.8 | 42.2 | 38.3 | 22.9 | 43.9 | | CLIP | 50 | 53.9 | 35.8 | 30.2 | 19.2 | 39.4 | | SLIP | 50 | 60.6 | 41.1 | 33.2 | 22.3 | 44.1 | | A-CLIP | 50 | 66.7 | 43.2 | 39.8 | 24.4 | 46.3 | | DetailCLIP | 50 | 65.9 | 44.7 | 39.8 | 24.9 | 46.2 |

Installation

Code tested with pytorch 2.0.0, torchvision 0.15.0, cuda 11.7, and timm 0.5.4.

YFCC15M Setup: Please refer to SLIP's repo.

Usage

the code has been tested with SLRUM distrubted training. Sample SLURM script is provided in samplejobscript.sh.

Checkpoint

50 epoch checkpoint

Train DetaiCLIP ViT-B/16:

python -m torch.distributed.launch --nprocpernode=$NUMPROC --nnodes=$NUMNODES main.py \
--model DetailCLIP_VITB16  --dataset yfcc15m --metadata yfcc15m.pkl \
--output-dir output/$JOB_NAME --mask-ratio 0.5 --epochs 50 \
--batch-size 256 --lr 5e-4 --wd 0.5 \
--workers $NUMWORKERS --cliplossweight 1 --ibotpatchlossweight 1 \
--ibotclslossweight 1 --reconstloss_weight 1 --print-freq 1000

Zero-shot evaluation

python eval_zeroshot.py --resume /path/to/checkpoint.pt

For semantic segmenation and object detection evaluation, refer to IBOT's repo. We use mmseg framework to run evaluations.

extractbackbone_weights.py can be used to extract backbone weights from the model. This might be useful for evaluation and other downstream tasks.

Visualization

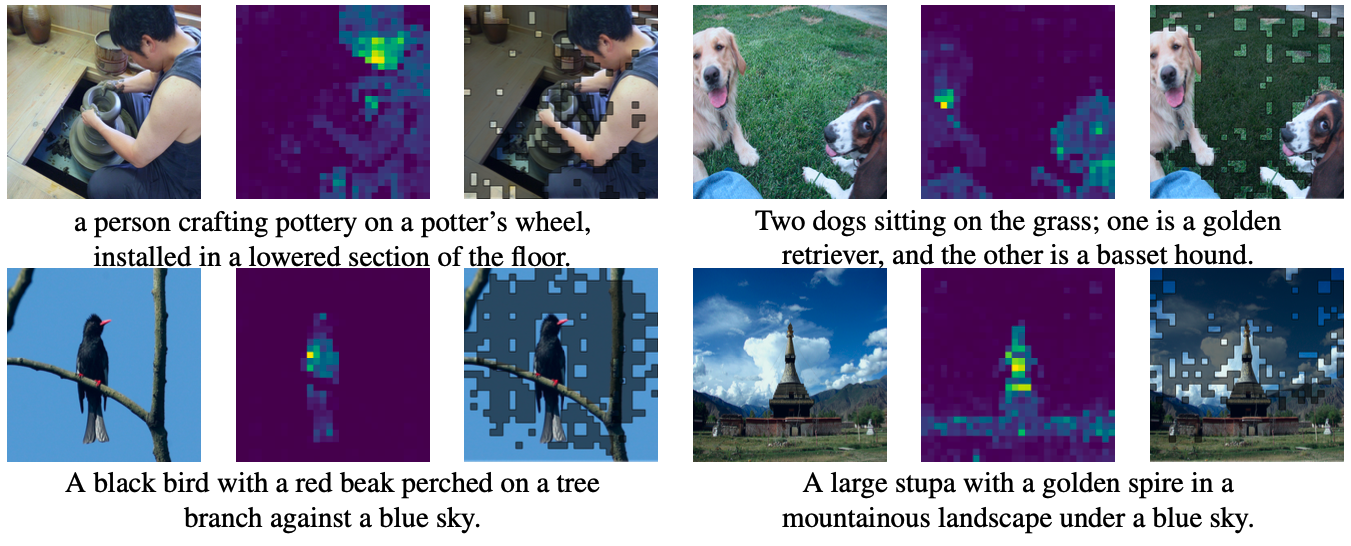

Attention Maps and Token Removal

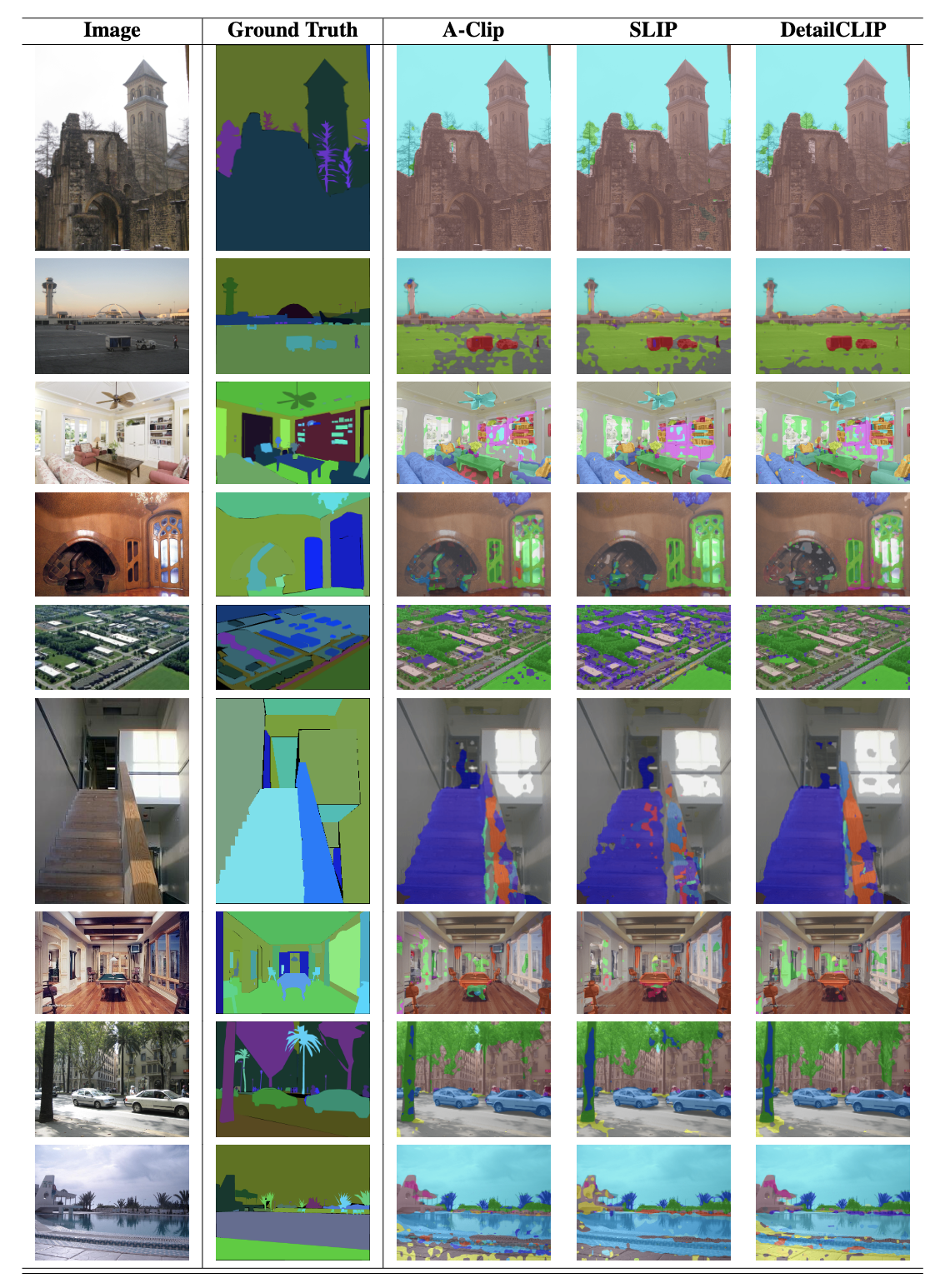

Segmentation

Object Detection

Citation

@misc{monsefi2024detailclipdetailorientedclipfinegrained,
      title={DetailCLIP: Detail-Oriented CLIP for Fine-Grained Tasks},
      author={Amin Karimi Monsefi and Kishore Prakash Sailaja and Ali Alilooee and Ser-Nam Lim and Rajiv Ramnath},
      year={2024},
      eprint={2409.06809},
      archivePrefix={arXiv},
      primaryClass={cs.CV},
      url={https://arxiv.org/abs/2409.06809},
}
