MLX LoRA Studio

A native Mac App for LLM fine-tuning on Apple Silicon — fully on-device, fully open source.

There is a quiet kind of power in running a model on the machine that sits in front of you.
MLX LoRA Studio puts fine-tuning on your Mac — local, native, and visible end to end.
Pick a model, choose an algorithm, watch the loss fall. The cloud is optional, the code is optional, the mystery is not.

Important macOS first-launch step after installing:

Because this first open-source release is distributed outside the Mac App Store and is not yet notarized, macOS may show a scary "damaged", "cannot be opened", or unidentified developer warning. This does not mean the app is malware. It is Apple's quarantine flag on a freshly downloaded app bundle.

After dragging MLX LoRA Studio.app into /Applications, and before opening it for the first time, open Terminal and run:

sudo xattr -dr com.apple.quarantine "/Applications/MLX LoRA Studio.app"

Then open the app normally from /Applications. You only need to do this once per installed copy.

Release v2.0.0

MLX LoRA Studio v2.0.0 updates the app for mlx-lm-lora 3.0.0.

This release adds FTPO, Dynamic Fine-Tuning, and memory-bounded Chunked NLL while aligning the native training runner and documentation with the mlx-lm-lora 3.0.0 API. Synthetic dataset creation has been removed from the active app workflow, while historical synthetic run folders remain readable in the Runs archive.

If you need detialed and longer explanations for the algorythms used, then visit the wiki page.

What's included

Native macOS app for Apple Silicon built with SwiftUI and AppKit.
Fully local fine-tuning workflow for MLX-compatible language models.
10 training algorithms: SFT, DPO, FTPO, CPO, ORPO, GRPO, Online DPO, XPO, RLHF Reinforce,

and PPO.

Dynamic SFT objectives: NLL, memory-bounded Chunked NLL, and Dynamic Fine-Tuning.
Multiple training modes: LoRA, DoRA, QLoRA at 4/6/8-bit, full fine-tuning, and

Quantization-Aware Training (QAT).

Live training observability with loss, learning rate, gradient norm, throughput,

progress, logs, and recent-step charts.

Memory-aware run planning with live wired/active memory monitoring and ResourceGuard

checks before launch.

Runs archive for configs, logs, adapters, run status, resume flows, Finder reveal,

and upload handoff.

Hugging Face upload flow with repository settings, model-card metadata, token handling,

license selection, and progress feedback.

Algorithm Guide explaining when to use each method, which hyperparameters matter, and

common failure modes.

Python environment discovery and provisioning so users can start from the app instead

of hand-assembling dependencies.

Self-contained app bundle that includes the Swift app, Python helpers, and bundled

trainer resources.

MIT-licensed source code so the community can inspect, modify, improve, and build on

the project.

Why MLX LoRA Studio?

Fine-tuning a large language model used to mean renting a GPU, installing a Python environment the size of a refrigerator, and babysitting a Jupyter notebook for two days. **MLX LoRA Studio exists to make that loop feel like using a normal Mac app:**

One click to fine-tune. Pick a model, point it at a dataset, hit Run. The app handles

the Python environment, the dependency install, the adapter paths, the resume logic, the metrics, the runs archive, and the export to Hugging Face.

Local, on-device, private. Your prompts, your model, your weights, your disk. No data

leaves your Mac unless you choose to push it to the Hub at the end.

Real algorithms, not toy versions. SFT, DPO, FTPO, CPO, ORPO, GRPO, Online DPO, XPO,

RLHF Reinforce, PPO — with QLoRA, DoRA, full fine-tuning, and Quantization-Aware Training (QAT).

Built for everyone. A beginner can ship a LoRA-tuned Llama model on their M-series Mac

without writing a line of code. An ML researcher can drop into the YAML config and pin every hyperparameter they care about.

The trainer is mine, and yours. MLX LoRA Studio wraps

mlx-lm-lora — the same project, vendored at vendor/mlx-lm-lora/, so what runs in the GUI is exactly what you can run from the CLI, and vice versa.

What it is

A native macOS app written in SwiftUI + AppKit, distributed as a single .app and

an installable .dmg.

A graphical front-end to the mlx-lm-lora

Python training pipeline (also developed by the author of this app), with a few Swift-side services around it: environment discovery, live memory monitoring, the ResourceGuard that keeps the GPU from being driven into swap, run archival, and HF upload.

A complete workflow — train, watch live metrics, push the

resulting adapter to the Hub — without leaving the window.

What it isn't

Not a general LLM chat app, IDE, or inference server. (Bring your own for inference;

Studio produces the adapter you can serve from mlx-lm or ollama.)

Not a cross-platform app. macOS 14+ on Apple Silicon only — it depends on the

MLX framework, which is Apple Silicon–only.

Not a fork of someone else's training code. The trainer is the author's own work, and the

Studio is a graphical surface for it.

Features at a glance

🧠 Training

10 training algorithms out of the box: SFT, DPO, FTPO, CPO, ORPO, GRPO, Online DPO, XPO,

RLHF Reinforce, PPO. Pick by use case, not by which one is wired up.

Selectable SFT losses: NLL, Chunked NLL for lower peak memory, and DFT for emphasizing difficult tokens.
LoRA, DoRA, QLoRA (4/6/8-bit), full fine-tuning, and QAT (Quantization-Aware Training

for SFT/DPO/ORPO) — the same training surface as the underlying mlx-lm-lora CLI.

Adapter resume — point a new run at an existing adapter checkpoint and Studio picks

up where the last run left off.

Judge / reward model selection for RL-style algorithms (GRPO, XPO, Online DPO, PPO,

RLHF Reinforce): pick a base model + a judge model from the Hugging Face cache.

YAML-driven configuration — the GUI's form is a view over a YAML config; the

same config can be exported and rerun on the CLI.

📊 Live observability

Live metrics panel with loss, learning rate, gradient norm, throughput, and a

refreshable plot of recent steps.

Live memory monitor in the sidebar: current wired + active memory, plus a static

estimate of what the current configuration should cost.

Run progress bar in the sidebar while a job is in flight.
Pause / resume / stop from the toolbar without losing the run.

🚀 Publish

One-click Hugging Face upload of adapters (LoRA / DoRA / QLoRA / QAT) with

metadata, model card, and license pickers.

Runs archive — every run's config, logs, and final adapter weights are kept in

~/Library/Application Support/MLXLoRAStudio/runs/ and surfaced in the Runs tab for re-run, resume, or upload.

🛠 Engineering

Python environment discovery & provisioning — Studio finds an existing venv/conda

env that has the trainer installed, or provisions one for you. No "I forgot to install the deps" loop.

ResourceGuard — watches the OS memory pressure signals and refuses to start a

job the system can't fit, with a clear human-readable reason.

Self-contained app bundle — the bundled Python + mlx-lm-lora checkout is

copied into the app, so a drag-installed copy works without the source tree.

Installation

Option 1 — Download a release (recommended for users)

Go to the Releases page.
Download the latest MLX-LoRA-Studio-X.Y.Z.dmg.
Open the DMG, drag MLX LoRA Studio to /Applications.
Before opening it for the first time, run this in Terminal:

sudo xattr -dr com.apple.quarantine "/Applications/MLX LoRA Studio.app"

This clears Apple's quarantine flag from the downloaded app bundle. It is needed for this first open-source release because the app is distributed outside the Mac App Store and is not yet notarized; it does not mean the app is malware.

Launch it from /Applications (or Spotlight).
On first launch, allow the bundled Python helper to be opened in **System Settings →

Privacy & Security** (Gatekeeper).

The first time you start a run, Studio will discover or provision a Python environment with the right dependencies — no terminal needed.

Option 2 — Build it yourself

See Building from source below.

System requirements

| Component | Requirement | |-----------|----------------------------------------------------------------------| | OS | macOS 14 (Sonoma) or later | | Chip | Apple Silicon (M1 / M2 / M3 / M4 family). Intel is not supported. | | RAM | 16 GB minimum; 24 GB+ recommended for ≥13B models | | Disk | ~5 GB for the app + a per-model HF cache (varies by model) | | Python | Bundled Python is used; a system Python is not required |

Quick start (60 seconds)

Launch MLX LoRA Studio.
On the Train tab:

- Pick a base model (any MLX-compatible model you've already pulled into your HF cache, e.g. mlx-community/Meta-Llama-3-8B-Instruct-4bit). - Pick a dataset (e.g. mlx-community/JOSIE-v2-Instruct-5K). - Leave the algorithm at SFT for a first run. - Hit Run in the toolbar.

The sidebar memory card updates in real time; the Live Metrics tab shows

loss / learning rate as the run progresses. Pause, resume, or stop from the toolbar.

When the run finishes, head to the Runs tab → open the run → Upload to HF

to publish the adapter.

Tip: the Algorithm Guide tab in the sidebar explains why you'd pick DPO

over SFT, when GRPO makes sense, and how QAT differs from QLoRA — it pairs with the

Train tab rather than replacing it.

A guided tour of the app

The app is organised around a left-hand sidebar with seven sections. Each one maps to a single screen in the detail pane.

Train

MLX LoRA Studio

The heart of the app. The form is grouped into:

Model & data — base model, dataset, chat template, max sequence length, packing.
Adapter shape — LoRA rank, alpha, dropout, target modules; or switch to DoRA /

QLoRA / full fine-tune; or enable QAT with a target bit width.

Optimization — learning rate, schedule, warmup, weight decay, grad accumulation,

max steps / epochs.

Algorithm-specific — only the fields the selected algorithm actually uses.

For SFT: completion-only loss. For DPO/CPO/ORPO: beta, label smoothing. For GRPO/PPO: judge model, reward shaping, group size, KL coefficient.

Resume / output — where to write the adapter, whether to resume from an existing

checkpoint, and how often to save.

A memory estimate at the bottom of the form shows what the current configuration should cost, so you can change a knob and immediately see the projected effect.

Live Metrics

MLX LoRA Studio

A second-by-second view of what the runner is doing:

Loss / reward / KL over the last N steps, with a refreshable line plot.
Throughput (tokens/sec) and elapsed time.
A scrolling console of the last lines of stdout/stderr from the Python job, for when

something looks off and you want to read the underlying trace.

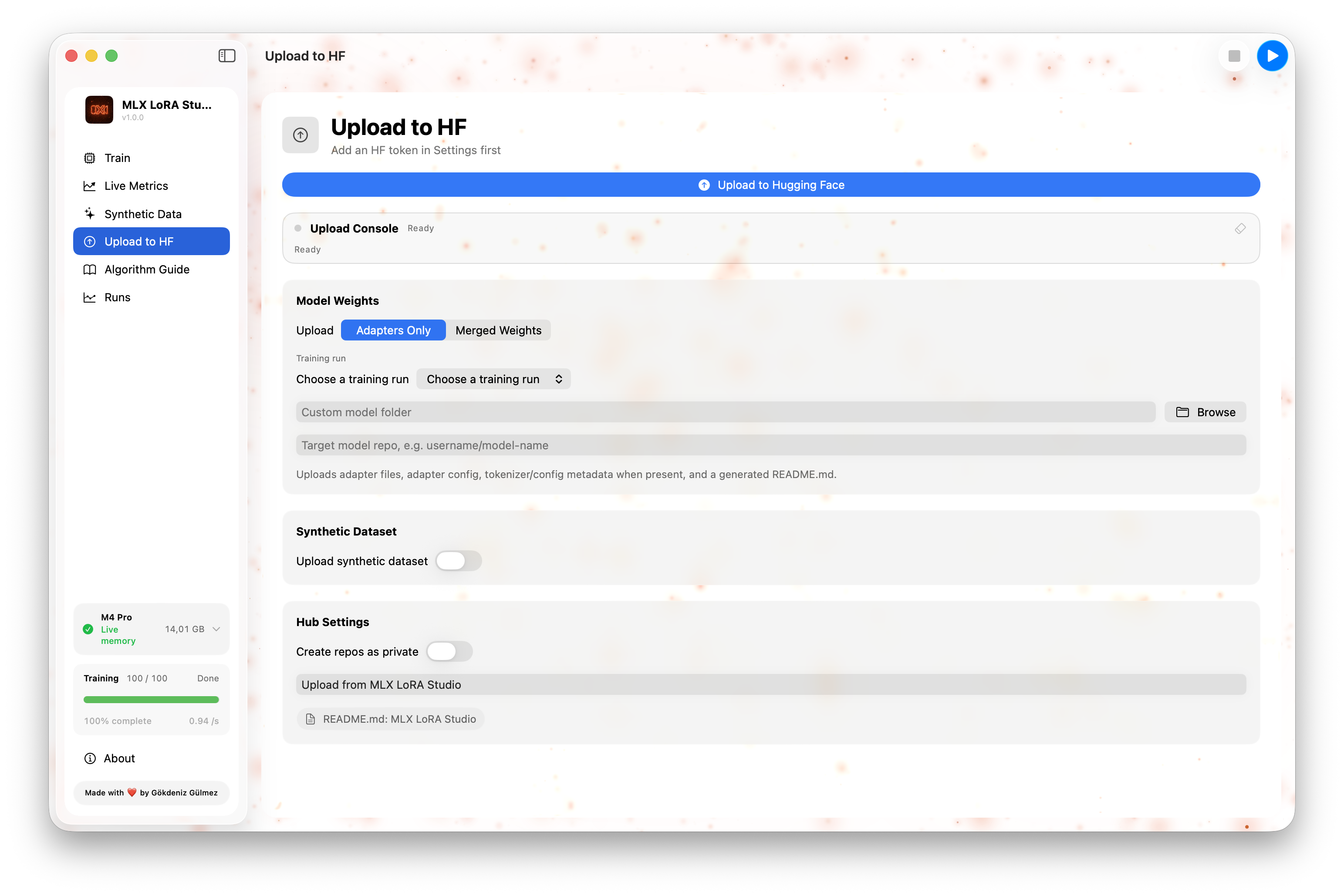

Upload to HF

MLX LoRA Studio

A guided form for pushing a finished adapter to the Hugging Face Hub:

Repository name, visibility (public / private), license.
Model card fields: base model, language, tags, dataset card, intended use.
Token source: env var, keychain entry, or paste.
One Push button. The app shows a step-by-step progress feed and a final URL.

Algorithm Guide

MLX LoRA Studio

A built-in reference for the 9 supported algorithms. Each entry covers:

What it is in one paragraph, with the math in plain words.
When to use it — the practical "SFT first, then DPO" ladder.
Key hyperparameters and how to think about them.
Failure modes — what goes wrong if beta is too high, group size is too small, etc.

This is the screen to open when a user is choosing between, say, ORPO and CPO, and isn't sure which one applies to their data.

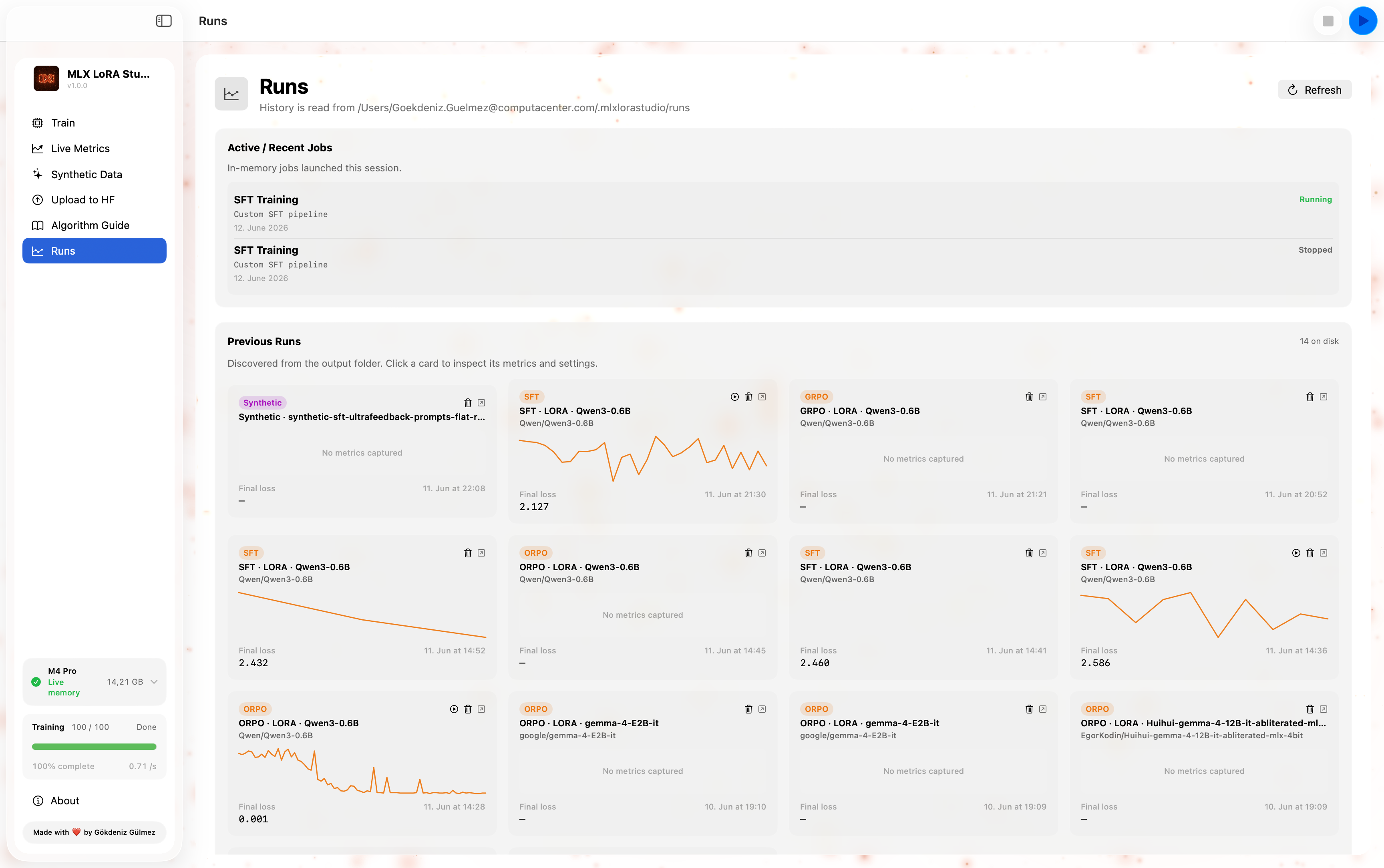

Runs

MLX LoRA Studio

A table of every run Studio has ever done, sorted by recency:

Status (running / paused / done / failed / cancelled).
Algorithm, base model, dataset, last loss, duration.
The run's full YAML config and final adapter path.
Actions: Open (loads it back into the form), Resume (start a new run from

the same adapter), Upload to HF, Reveal in Finder, Delete.

Settings & Onboarding

Settings controls the Python environment Studio should use (auto-discovered,

pinned to a specific venv, or freshly provisioned), HF cache paths, default templates, and the optional animated background.

Onboarding is a 5-step tour shown on first launch: it walks through picking

a model, picking a dataset, choosing an algorithm, starting a run, and finding the metrics. It can be re-opened from the About tab.

The training pipeline under the hood

┌─────────────────────────────────────────────────────────────────────┐
│  SwiftUI app  (Sources/MLXLoRAStudio)                               │
│  ┌──────────────┐   ┌─────────────────┐   ┌──────────────────────┐ │
│  │ AppStore     │──▶│ PythonJobRunner │──▶│ LiveMemoryMonitor    │ │
│  │ (state)      │   │ (subprocess +   │   │ + ResourceGuard      │ │
│  └──────────────┘   │  line streaming)│   └──────────────────────┘ │
│                     └────────┬────────┘                             │
│                              │ stdin/stdout                         │
└──────────────────────────────┼──────────────────────────────────────┘
                               │
                               ▼
┌─────────────────────────────────────────────────────────────────────┐
│  Python helper  (Backend/training_runner.py)                        │
│  • Translates the YAML config into mlx-lm-lora CLI flags            │
│  • Streams metrics on stdout as JSON lines                          │
│  • Saves adapter checkpoints under the run dir                      │
└──────────────────────────────┬──────────────────────────────────────┘
                               │
                               ▼
┌─────────────────────────────────────────────────────────────────────┐
│  mlx-lm-lora  (vendor/mlx-lm-lora — same code the CLI uses)         │
│  • SFT / DPO / CPO / ORPO / GRPO / Online DPO / XPO /               │
│    RLHF Reinforce / PPO                                             │
│  • LoRA / DoRA / QLoRA / full / QAT                                 │
│  • MLX-native training, fused-metal on Apple Silicon                │
└─────────────────────────────────────────────────────────────────────┘

The app and the trainer communicate over a simple line-delimited JSON protocol: the runner emits one JSON object per training step (loss, lr, grad_norm, tokens/sec, etc.), plus structured event lines for phase changes (starting, epoch, checkpoint, done, error). This keeps the Swift side reactive without polling.

Supported training methods

Mirrored from the underlying mlx-lm-lora trainer:

| Family | Algorithms | |----------|---------------------------------------------------------------------------------------------| | Supervised fine-tuning | SFT | | Preference | DPO, CPO, ORPO | | RL / online | GRPO, Online DPO, XPO, RLHF Reinforce, PPO |

| Adapter type | Notes | |-------------------------------|----------------------------------------------------------------| | LoRA | Low-rank adapters, configurable rank / alpha / target modules | | DoRA | Weight-decomposed LoRA | | QLoRA (4/6/8-bit) | Quantized base model + LoRA adapters | | Full fine-tuning | Train all parameters | | QAT (Quantization-Aware) | SFT / DPO / ORPO; project quantization during training |

All combinations are exposed in the Train tab's adapter section.

Configuration reference

The GUI's form maps 1:1 to a YAML file (also the format the underlying mlx-lm-lora CLI takes). You can find every run's config in ~/Library/Application Support/MLXLoRAStudio/runs/.

A minimal SFT example:

# This file was generated by MLX LoRA Studio and is safe to edit by hand. The same file can be passed to mlxlmlora on the CLI.

train_mode: sft model: mlx-community/Meta-Llama-3-8B-Instruct-4bit dataset: - mlx-community/JOSIE-v2-Instruct-5K adapter: type: lora rank: 16 alpha: 32 dropout: 0.05 targetmodules: [qproj, kproj, vproj, o_proj] optim: learning_rate: 2.0e-4 schedule: cosine warmup_steps: 20 weight_decay: 0.0 gradaccumulationsteps: 8 train: max_steps: 1000 batch_size: 2 maxseqlen: 2048 save_every: 200 output: adapter_path: ~/Library/Application Support/MLXLoRAStudio/runs/<id>/adapter

Run a YAML directly from the terminal (no GUI):

>

> python -m mlxlmlora -c my_run.yaml

Memory & hardware expectations

Approximate, single-GPU Apple Silicon, batch_size 2, 2048-token sequences:

| Base model size | LoRA r=16 | QLoRA 4-bit | Full FT | |-----------------|-----------|-------------|---------| | 1B–3B | 8 GB | 5 GB | 12 GB | | 7B–8B | 14 GB | 7 GB | 32 GB | | 13B | 22 GB | 10 GB | 56 GB | | 70B | 110 GB | 38 GB | — |

The live memory card in the sidebar shows the OS's reported wired + active memory; the memory estimate below the form shows what the current configuration should cost, given the base model size, the sequence length, the adapter shape, and the quantization mode. ResourceGuard refuses to start a run whose estimated cost would push the system into swap.

Building from source

Requires the Xcode command-line tools (Swift 5.9+, macOS 14+ SDK):

git clone https://github.com/Goekdeniz-Guelmez/MLX-LoRA-Studio.git
cd mlx-lm-lora-app
Build + run the app:
./script/buildandrun.sh
Build a release .dmg:
./script/buildandrun.sh --package
Open the .app in lldb:
./script/buildandrun.sh --debug
Tail the unified log while the app runs:
./script/buildandrun.sh --logs

The build script:

Compiles all Swift files in Sources/MLXLoRAStudio/ with swiftc against

SwiftUI and AppKit.

Bundles the app icon, the Python helper (Backend/), and the vendored

mlx-lm-lora checkout (vendor/) into Contents/Resources/.

Stamps the version from the version file at the repo root into

Info.plist.

The output .app is fully self-contained — you can copy it to another Mac and it will still run, as long as that Mac has Python access (or you let Studio provision one).

Project layout

.
├── Sources/
│   ├── Media/                       # logo.png, logo_ultra-wide.png
│   └── MLXLoRAStudio/
│       ├── App/                     # App entry point (SwiftUI @main)
│       ├── Models/                  # TrainingModels, PythonEnvironment
│       ├── Services/                # PythonJobRunner, HFCacheScanner, …
│       ├── Stores/                  # AppStore (Observable state root)
│       ├── Support/                 # LiveMemoryMonitor, MemoryEstimator
│       └── Views/                   # All SwiftUI screens
├── Backend/                         # Python helpers invoked by the Swift side
│   ├── training_runner.py
│   └── hf_upload.py
├── vendor/
│   └── mlx-lm-lora/                 # The training library the GUI wraps
├── script/
│   └── buildandrun.sh             # Builds .app + .dmg
├── Tests/
├── .github/workflows/release.yml    # Tag-driven release pipeline
├── Package.swift                    # SwiftPM manifest
├── version                          # Single source of truth for the app version
└── README.md
