dgxtop

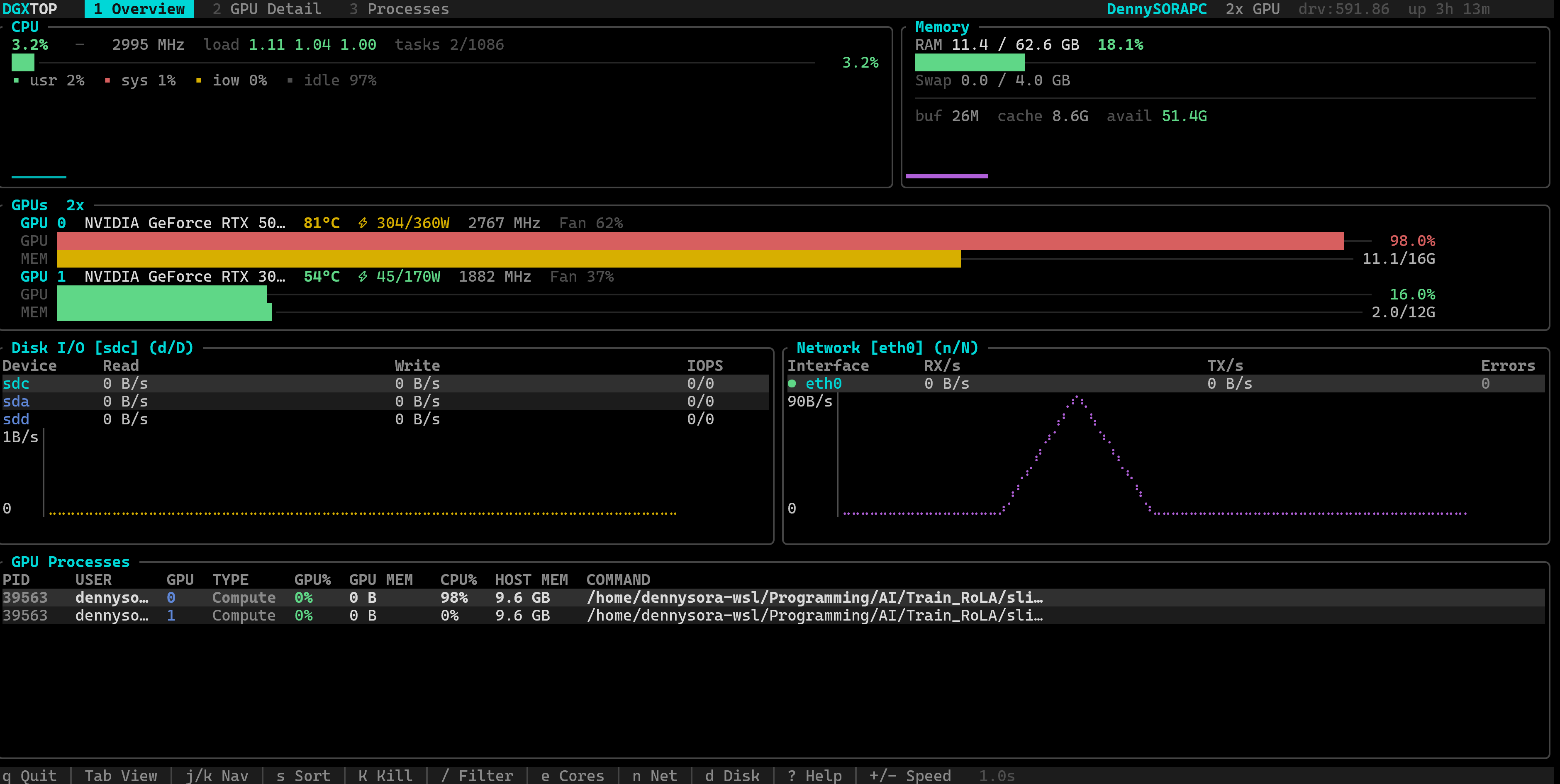

dgxtop — Overview on DGX Spark

High-performance, interactive system monitor for NVIDIA DGX systems with real-time GPU, CPU, memory, disk capacity/I/O, and network monitoring.

dgxtop is a comprehensive system monitoring tool purpose-built for NVIDIA DGX infrastructure. It provides real-time visibility into GPU utilization, VRAM, temperature, power draw, NVLink topology, disk usage, and system resources — all in an interactive terminal UI. Built in Rust with direct NVML access for maximum performance and reliability.

Quick Install

curl -fsSL https://raw.githubusercontent.com/DennySORA/dgxtop/main/install.sh | bash

See Installation for more options.

Why dgxtop?

Direct NVML Access — Reads GPU metrics through NVIDIA Management Library, not nvidia-smi subprocess calls. Faster, more reliable, and more detailed.
DGX-Optimized — Supports multi-GPU monitoring, NVLink topology, ECC error tracking, and PCIe throughput — features critical for DGX A100/H100/B200 and DGX Spark.
Full System View — CPU per-core utilization, memory (RAM + Swap), disk capacity (Used / Free / Use%) plus I/O, and network interfaces in a single dashboard.
Interactive Process Management — Sort, filter, and kill GPU processes directly from the TUI. See per-process GPU utilization, VRAM usage, and host memory.
Secure by Design — No subprocess shell-outs, PID recycling protection, config value sanitization, and UTF-8 safe rendering. Passed deep security audit.

Features

GPU Monitoring (via NVML)

| Category | Metrics | |----------|---------| | Utilization | GPU %, Memory controller %, per-process SM utilization | | Memory | VRAM used/total/free, BAR1 usage, per-process GPU memory | | Bandwidth | Memory bandwidth utilization (actual/theoretical GB/s), unified-memory auto-detection (LPDDR5X), PCIe TX/RX throughput with 1/6/12/24h avg/max stats | | Thermal | Temperature (with slowdown/shutdown thresholds), fan speed, 1/6/12/24h avg/max | | Power | Draw/limit (watts), usage %, total energy consumption (kWh), 1/6/12/24h avg/max/cumulative energy | | Clock | Graphics, SM, Memory, Video frequencies (current/max MHz) | | State | Performance state (P0–P15), throttle reasons, compute mode, persistence mode | | Health | ECC errors (corrected/uncorrected), retired pages (SBE/DBE) | | Topology | NVLink active links with remote GPU mapping, PCIe Gen/Width | | Codec | Encoder/Decoder utilization % | | Identity | UUID, serial number |

System Monitoring

| Category | Metrics | |----------|---------| | CPU | Aggregate and per-core usage (htop-style), user/system/iowait breakdown, temperature, power draw, frequency, load average (1/5/15m), tasks (running/total) | | Memory | RAM used/total, buffers, cached, available, swap usage | | Disk Capacity & I/O | Filesystem usage for mounted devices (Used / Free / Use%), per-device read/write throughput, IOPS, await latency, sorted by throughput | | Network | Per-interface RX/TX throughput, errors, sorted by activity |

Time-Series Analytics

Line charts for GPU utilization, memory, temperature, and power with Braille markers
1/6/12/24h statistics — avg/max for CPU, Memory, GPU utilization, temperature, power (with cumulative kWh), memory, PCIe TX/RX; avg R/W for Disk; cumulative ↓/↑ for Network
Progressive display — stats windows only appear after enough data has been collected
Minute-resolution aggregation — memory-efficient 24h storage (~28KB per metric)

Interactive TUI

Three Views — Overview dashboard, GPU detail (full-page per-GPU), full-screen process table
Vim Keybindings — Navigate with j/k, switch tabs with 1/2/3, GPU selection with h/l
Device Selection — Cycle network interfaces (n/N), disk devices (d/D) with chart/stats following selection
Process Management — Sort by GPU mem/utilization/CPU/PID, filter by name, kill with confirmation
Responsive Layout — Auto-adapts to terminal size, conditionally shows charts/stats based on available space
Visual Design — Rounded panels, gradient gauges, line charts, alternating row colors, color-coded thresholds

Multi-GPU Overview with Active Workloads

dgxtop — Multi-GPU with active workloads

Installation

Quick Install (Recommended)

curl -fsSL https://raw.githubusercontent.com/DennySORA/dgxtop/main/install.sh | bash

The installer auto-detects your libc and picks the matching release target. For NVIDIA GPU metrics, glibc (-gnu) builds are recommended.

Download Binary

Download pre-built binaries from GitHub Releases:

| Platform | Architecture | Download | |----------|--------------|----------| | Linux | x8664 (glibc, recommended) | dgxtop-x8664-unknown-linux-gnu.tar.gz | | Linux | x8664 (musl, compatibility) | dgxtop-x8664-unknown-linux-musl.tar.gz | | Linux | ARM64 (glibc, recommended) | dgxtop-aarch64-unknown-linux-gnu.tar.gz | | Linux | ARM64 (musl, compatibility) | dgxtop-aarch64-unknown-linux-musl.tar.gz |

Note: On some systems, musl builds may fail to load NVIDIA NVML (libnvidia-ml.so), resulting in missing GPU metrics.

Build from Source

git clone https://github.com/DennySORA/dgxtop.git
cd dgxtop
cargo build --release
Binary: target/release/dgxtop

Cargo Install

cargo install --git https://github.com/DennySORA/dgxtop.git

Usage

Basic Usage

# Start with default settings
dgxtop
Custom refresh interval (0.5 seconds)
dgxtop -i 0.5
Disable GPU monitoring (system metrics only)
dgxtop --no-gpu
Use green color theme
dgxtop -t green

Command Line Options

| Option | Description | Default | |--------|-------------|---------| | -i, --interval <SECS> | Update interval in seconds (0.1–10.0) | 1.0 | | -t, --theme <NAME> | Color theme: cyan, green, amber | cyan | | --no-gpu | Disable GPU monitoring | false | | --net-max <N> | Max visible network interfaces / disk devices (1–20) | 3 | | --log-level <LEVEL> | Log level: error, warn, info, debug | warn |

Keyboard Shortcuts

| Key | Action | |-----|--------| | q / Ctrl+C | Quit | | Tab / Shift+Tab | Switch between views | | 1 / 2 / 3 | Jump to Overview / GPU Detail / Processes | | j/k or ↑/↓ | Navigate up/down | | h/l or ←/→ | Select GPU (in GPU Detail view) | | s | Enter sort mode | | r | Reverse sort order (in sort mode) | | / | Filter processes by name/PID/user | | K | Kill selected process (with confirmation) | | e | Toggle per-core CPU view (htop-style) | | n / N | Cycle network interface | | d / D | Cycle disk device | | + / - | Increase / decrease refresh speed | | ? | Toggle help overlay |

Views

Overview — Responsive dashboard with CPU gauge (temperature, power draw, load average, tasks, htop per-core toggle), memory bars, GPU cards, disk capacity + I/O, and network panels with line charts and 1/6/12/24h statistics. The disk table shows Used / Free / Use% for mounted filesystems, with read/write throughput, IOPS, and await latency still tracked per device. Device selection highlights chart/stats for the chosen interface or disk.

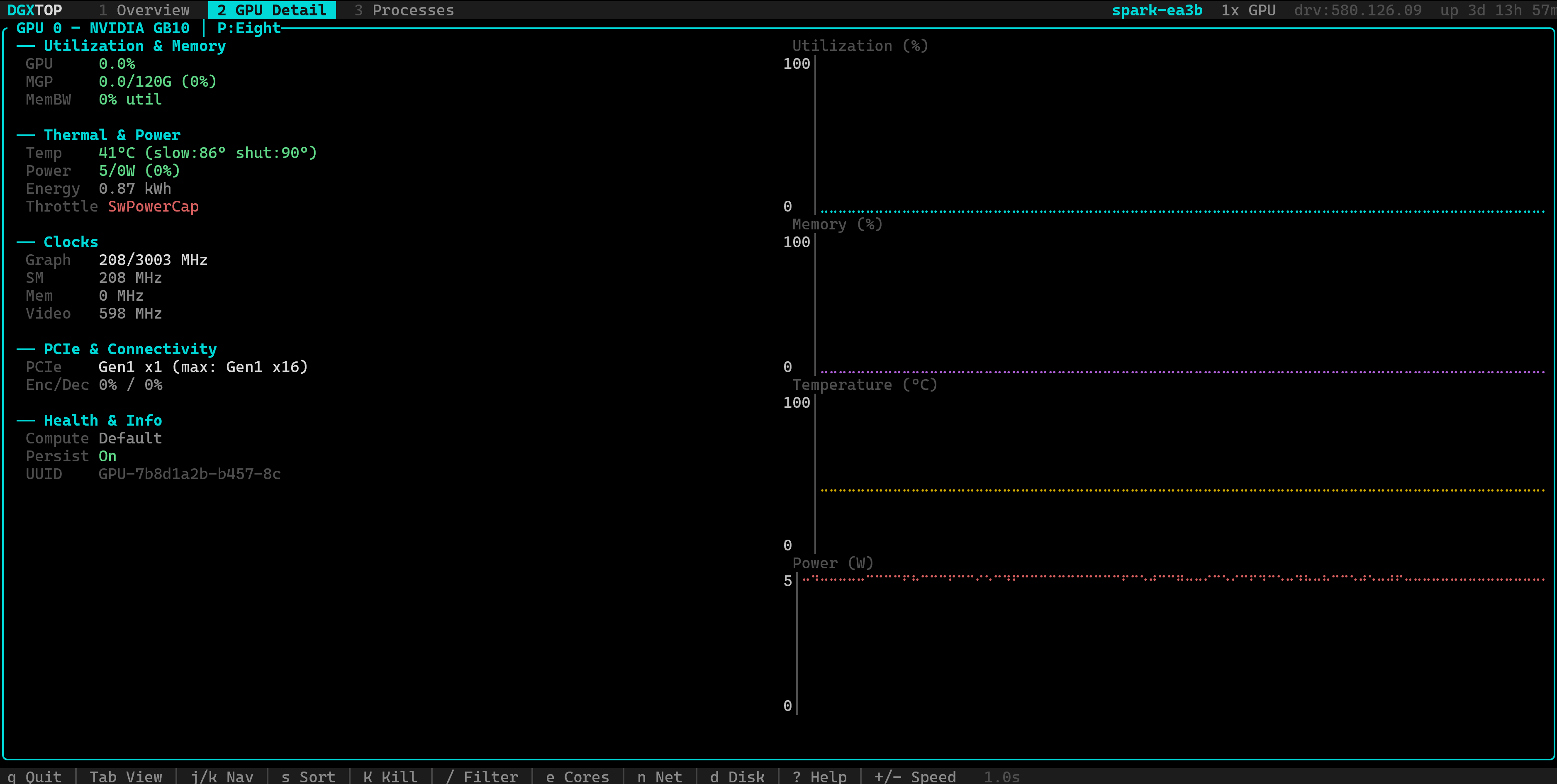

GPU Detail — Full-page single-GPU view with comprehensive metrics: utilization, VRAM, memory bandwidth (actual/theoretical GB/s), BAR1, thermal (with thresholds), power (with energy kWh), throttle reasons, P-state, all clock domains (Graphics/SM/Memory/Video), PCIe info, NVLink topology, encoder/decoder, ECC, retired pages, compute mode, UUID — plus time-series charts and per-GPU process list.

dgxtop — GPU Detail view

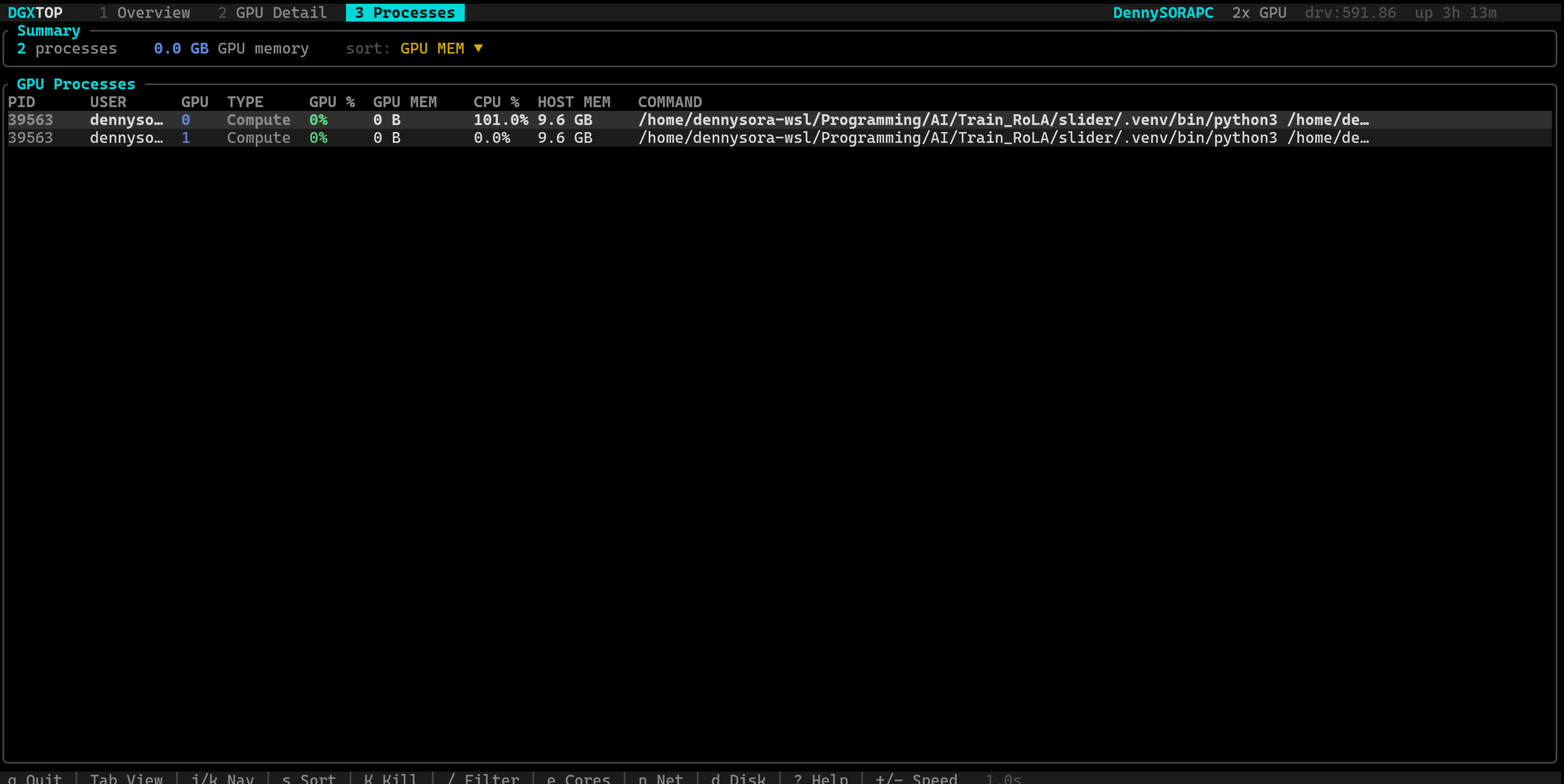

Processes — Full-screen GPU process table with sortable columns, search filter, and process kill capability. Shows PID, user, GPU device, type, GPU%, VRAM, CPU%, host memory, and command.

dgxtop — Processes view

Architecture

┌─────────────────────────────────────────────────────────────────────┐ │ Main Thread │ │ ┌───────────┐ ┌────────────┐ ┌────────────────────────────┐ │ │ │ AppState │◄───│ UI Loop │◄───│ crossbeam channel (rx) │ │ │ │ │ │ (ratatui) │ │ bounded(256) │ │ │ └───────────┘ └────────────┘ └────────────────────────────┘ │ └─────────────────────────────────────────────────────────────────────┘ ▲ Tick events + Key/Mouse │ │ ┌───────────────────────────────────────────────┴─────────────────────┐ │ Event Thread │ │ ┌───────────────────────────────────────────────────────────────┐ │ │ │ crossterm::event::poll + Tick timer → AppEvent → channel tx │ │ │ └───────────────────────────────────────────────────────────────┘ │ └─────────────────────────────────────────────────────────────────────┘ Collectors (called on each Tick): ├── GpuCollector (NVML: utilization, temp, power, clocks, memory, bandwidth, │ ECC, PCIe, NVLink, BAR1, throttle, P-state, encoder/decoder, │ retired pages, energy, UUID, serial) ├── GpuProcessCollector (NVML + /proc: per-process GPU/CPU/memory stats) ├── CpuCollector (/proc/stat + /proc/loadavg + powercap/hwmon: per-core usage, │ frequency, temperature, power draw, load average, task count) ├── MemoryCollector (/proc/meminfo: RAM, swap, buffers, cached) ├── DiskCollector (/proc/diskstats + /sys/class/block + mountinfo/statvfs: │ filesystem Used/Free/Use%, per-device throughput, IOPS, latency) └── NetworkCollector (/sys/class/net: per-interface RX/TX, packets, errors)

History (per metric): ├── RingBuffer (short-term: 300 samples for charts) └── TimeWindowAggregator (long-term: minute-resolution buckets for 24h stats)

Requirements

OS: Linux (DGX systems, WSL2, containers)
GPU: NVIDIA drivers with NVML (libnvidia-ml.so)
Runtime: No additional dependencies. For GPU monitoring, prefer glibc (-gnu) builds.
