What is Krossboard

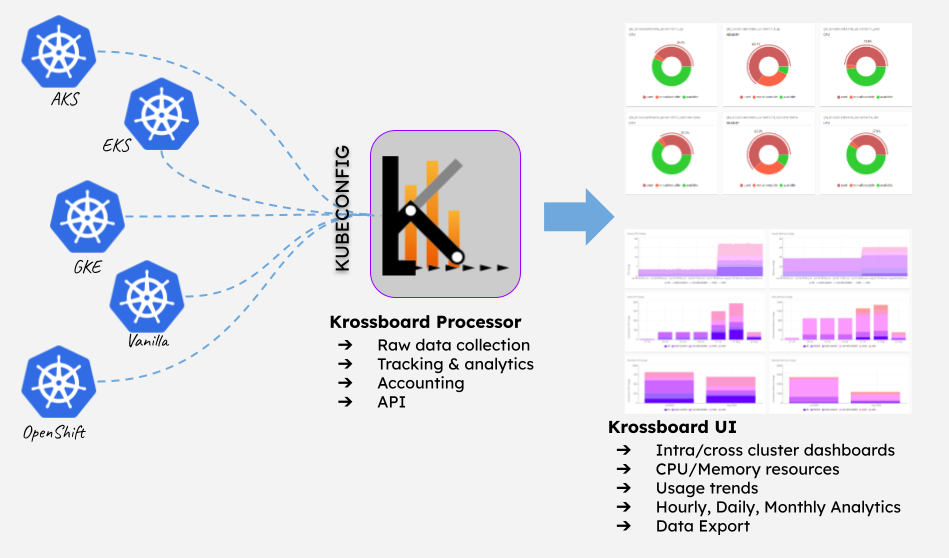

Krossboard is a Kubernetes Operator designed to provide comprehensive usage tracking, analytics, and accounting across diverse Kubernetes environments. It supports cross-site deployments (e.g., geographically dispersed clusters) and cross-distribution management (e.g., vanilla Kubernetes, OpenShift, EKS, AKS, GKE, and other distributions).

Krossboard enables enterprises to gain insights into resource consumption, perform cost analysis, and centralize monitoring across multiple Kubernetes clusters. For example, it helps manage resource usage across multiple cloud providers and provides detailed cost analysis for hybrid deployments. Check out the documentation for more details.

Once the Operator installed, the Krossboard CR allows to define a Krossboard instance as a Kind, as well as parameters to bootstrap that instance: krossboard-api, krossboard-ui, krossboard-consolidator, krossboard-kubeconfig-handler, kube-opex-analytics instances.

Each instance of Krossboard enables to track the usage of a set of Kubernetes clusters listed in a KUBECONFIG secret.

The next steps describe how to deploy the operator and a Krossboard instance.

Learn more about Krossboard Features

Deploy Krossboard

The following command deploy the latest version of Krossboard Operator.

kubectl apply -f https://raw.githubusercontent.com/2-alchemists/krossboard-kubernetes-operator/main/config/releases/latest/krossboard/krossboard-kubernetes-operator.yaml

The installation is achieved in a namespace named krossboard.

Deploy a Krossboard Instance

Create a Krossboard CR

Once the operator deployed, a custom resource named Krossboard is created. This CR is used to define each instance of Krossboard.

See krossboard.yaml for an example to a Krossboard instance along with its persistent volume claim.

---
apiVersion: krossboard.krossboard.app/v1alpha1
kind: Krossboard
metadata:
  name: krossboard
  namespace: krossboard
spec:
  koaImage: rchakode/kube-opex-analytics:25.03.1
  krossboardDataProcessorImage: krossboard/krossboard-data-processor:1.3.0
  krossboardUIImage: krossboard/krossboard-ui:1.2.2-d49718c
  krossboardPersistentVolumeClaim: krossboard-data-pvc
  krossboardSecretName: krossboard-secrets

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: krossboard-data-pvc
  namespace: krossboard
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi
 storageClassName: uncomment-and-set-if-not-using-default

Each instance of Krossboard allows to track the usage of a set of Kubernetes clusters listed in a KUBECONFIG secret.

• The secret name is set by the parameter krossboardSecretName (default is krossboard-secrets).
• The secret key is kubeconfig.

Create a KUBECONFIG secret for target Kubernetes

Given a KUBECONFIG resource (/path/to/kubeconfig in the below command), you can create a secret for Krossboard Operator as follows.

kubectl -n krossboard \
    create secret --type=Opaque generic krossboard-secrets \
    --from-file=kubeconfig=/path/to/kubeconfig

* Learn how to Create a KUBECONFIG resource with minimal permissions for Krossboard.

* Learn how to Create a secret from several KUBECONFIG resources

Start the Krossboard Instance

The below command deploys an instance of Krossboard based on the latest version.

kubectl -n krossboard apply -f https://raw.githubusercontent.com/2-alchemists/krossboard-kubernetes-operator/main/config/releases/latest/krossboard/krossboard-deployment.yaml

Once started, the instance enables access to two Kubernetes services:

• krossboard-ui.krossboard.svc enabling access to Krossboard UI.
• krossboard-api.krossboard.svc enabling access to Krossboard REST API.
